WPC Board Production Line / Equipment
Wuxi Boyu Plastic Machinery Co., Ltd.- Product Type:Extrusion Molding Machine
- Automatic Grade:Automatic
- Power Source:Electric
- Screw Design:Double-Screw
- Certification:CE, ISO
- Condition:New
Base Info
- Model NO.:BYSJ
- Customized:Customized
- Type:Sheet Extruder
- Plastic Processed:PVC
- Feeding Mode:One Feed
- Assembly Structure:Separate Type Extruder
- Screw:Twin-Screw
- Engagement System:Intermeshing
- Screw Channel Structure:Deep Screw
- Exhaust:Exhaust
- Automation:Automatic
- Computerized:Computerized
- Transport Package:PVC Film
- Specification:CE SGS
- Trademark:BOYU
- Origin:Wuxi
- Production Capacity:20,Month
Description
Basic Info.
Model NO. BYSJ Customized Customized Type Sheet Extruder Plastic Processed PVC Feeding Mode One Feed Assembly Structure Separate Type Extruder Screw Twin-Screw Engagement System Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Transport Package PVC Film Specification CE SGS Trademark BOYU Origin Wuxi Production Capacity 20/MonthProduct Description
PVC Foam Board Production Line/WPC Floor Production LineI. Design parameters
No. | Items | Data |
01 | Operation Conditions | 380V/3 phases/50Hz, DC24V. |
02 | Raw Material | PVC powder, calcium carbonate, wood flour, auxiliary chemicals |
04 | Main material proportion | PVC: CACO3= 1:3 |
05 | Product specifications | Width:1050mm/1350/1850/ 2500 for optional Thickness: 2- 40mm |
06 | Extrusion line mode | SJSZ 80/156 conical twin screw extrusion line |
07 | Quality standard | Twin screw standard JB6492-2001 Electricity standard: GB5226.1-2008/IEC 60204-1:2005 |
08 | Machine Fabrication Certificate | CE /UL |
09 | Electric components certificate | CE /UL /CSA |

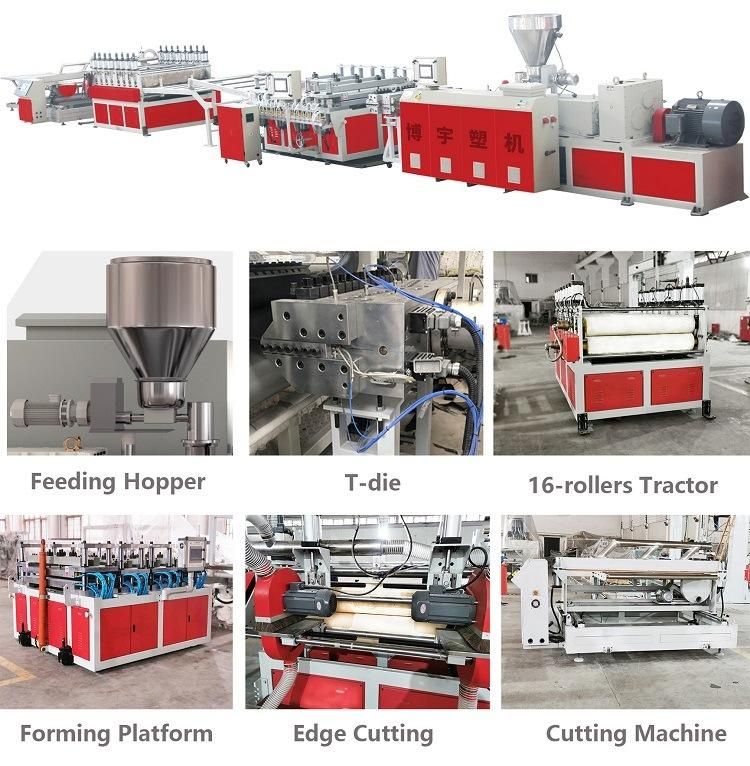

II.Equipment List & Quantity
No. | Equipment Name | Quantity | Remark |
01 | Φ80/156 Conical twin-screw extruder | 1 Set | |
02 | Extrusion die | 1 Set | |
03 | Forming platform | 1 Set | |
04 | 16-rollers tractor | 1 Unit | |
05 | Lengthwise cutting tool holder | 1 Set | |
06 | Auto plate lifter | 1 Unit | |
07 | Longitudinal edge cutting mechanism | 1 Unit | |
08 | Plate bracket | 1 Set | |
09 | Length meter | 1 Set | |
10 | Plate shearing machine | 1 Set | |
11 | Automatic stacker | 1 Unit | |
12 | Electric control cabinet | 1 Unit |
III. Production process:
The screw feeder takes the material from the 5m3 silo(~ 3 tons) → The Extruder Feeding Hopper → The extruder → Material Plasticizing → T-die → Forming Platform →Edges Trimming → Roller Cooling Bracket →Air Cooling Cabinet(Optional) → Traction Machine→ Cutting Machine →Automatic Stacking Machine
IV. Main technology parameter of extruder

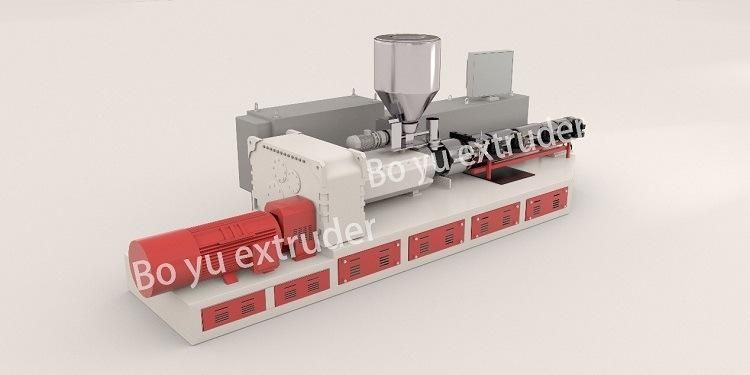

- Conical Twin-screw Extruder
Extruder Model | Capacity/24h | Capacity/h | 4mm Linear Speed |
SZJZ-80 | 6-8T | 250-350KG | 0.4-0.6m/min |
SZJZ-92 | 8-12T | 500-700KG | 0.8-1.3 m/min |

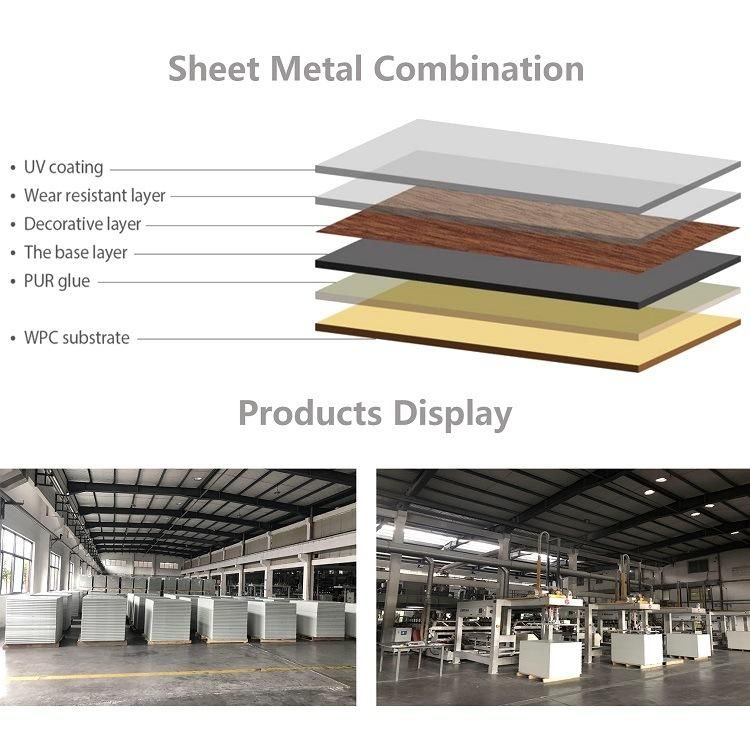

V. Finished Products
VI. Boyu Company Profile
VII. Our Services

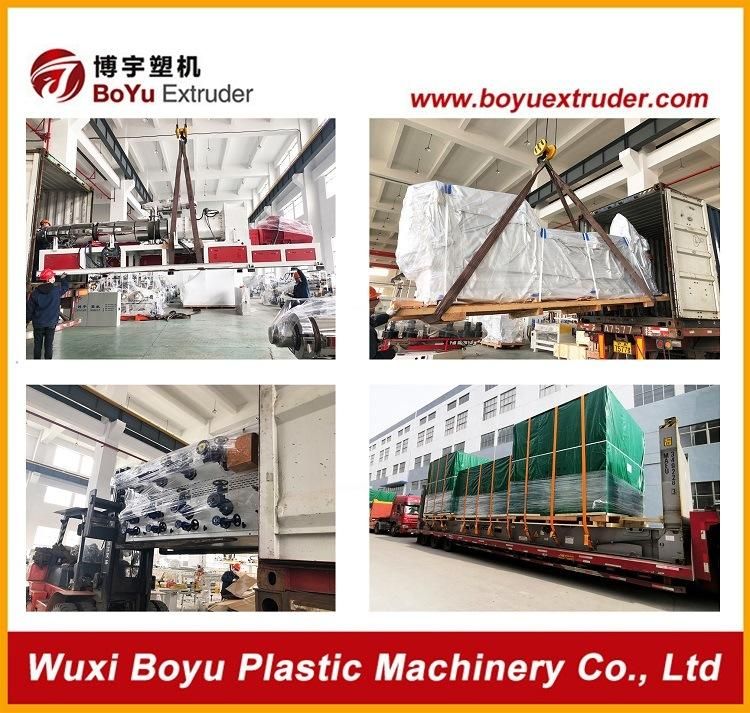

VIII.Shipping

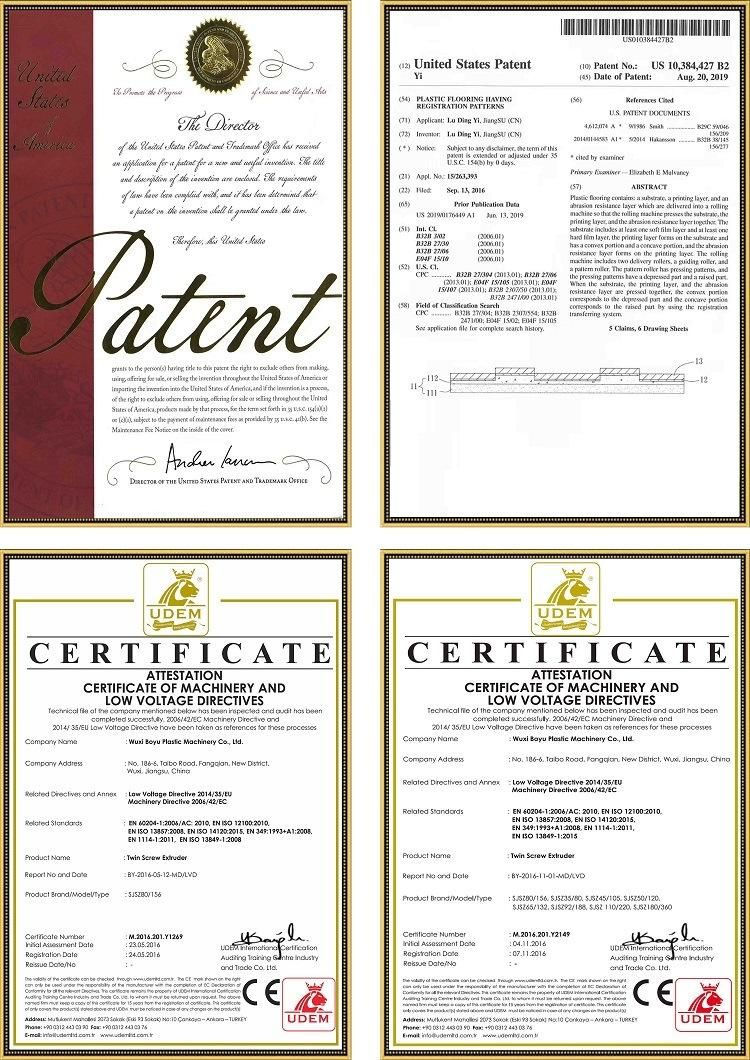

IX. Patent
