• Model NO.：QT6
• Raw Material：Crushed Stone, Sand, Cement, Dust etc..
• Applied Products：Hollow Block, Solid Block, Interlocking Pavers, Gr
• Transport Package：Standard Seaworthy Packing
• Specification：CE & ISO9001
• Trademark：QGM
• Origin：China
• HS Code：84748090
• Production Capacity：14400-19200

Basic Info.

Model NO. QT6 Raw Material Crushed Stone, Sand, Cement, Dust etc.. Applied Products Hollow Block, Solid Block, Interlocking Pavers, Gr Transport Package Standard Seaworthy Packing Specification CE & ISO9001 Trademark QGM Origin China HS Code 84748090 Production Capacity 14400-19200

Product Description

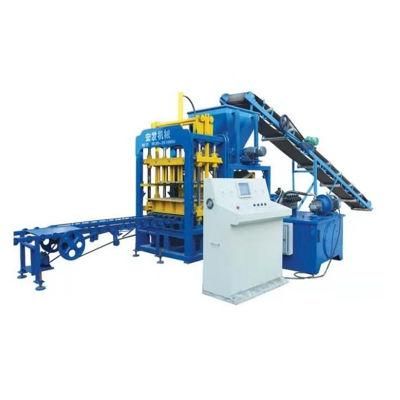

Interlock paving machine
Main Technical Specifications
Production per Mould:
6 PCS/mould (Standard Block: 400x200x200mm)
30 PCS/mould (Solid Block: 240x115x53mm)
15 PCS/mould (Interlock Paver: 225x112.5x60mm)
21 PCS/mould (Holland Brick: 200x100x60-80mm)
Cycle Time:
15-20 seconds
Production per Day (8 Working Hours):
Hollow Block (400x200x200mm): 8640-11520 PCS
Solid Block (240x115x53mm): 43200-57600 PCS
Interlock Paver (225x112.5x60mm): 17280-21600 PCS
Holland Brick (200x100x60-80mm): 2419230240 PCS

Vibrating Frequency:
3300 rolls/minute
Vibrating Force: 60 KN
Motors Power: 30 KW
Machine Dimensions: 9680x2800x2800mm
Pallet Size: 850x680mm
Gross Weight: About 7.5T



Raw Materials:
Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes.
Applied Products:
Concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc.
Applied Fields:
Widely used in buildings, road pavings, squares, gardens, landscaping, city constructions, etc.

Main Technical Features:
1) Uses Germany Siemens PLC control system and Siemens Touch Screen.
A. Visualization screen with easy operation;
B. Is able to set up, update and amend the production perimeters, to maximize the production output;
C. Dynamic display of the systems status, automatic trouble shooting and warning notice;
D. Has automatic-locking function, avoiding mechanical accidents caused by operational mistakes;
E. Is able to troubleshoot the machinery via teleservice...

2) Uses high-dynamic proportional and directional valves, which automatically adjust the oil flow and pressure as per specific working requirements, to buffer the hydraulic cylinder when working; Uses integrated high-pressure and soft oil pipes, with easy installation;
3) Uses multi-shaft rotating and compulsory feeding, which greatly improves the density and intensity of the blocks, and reduces the feeding time as well;
4) Integrated structure of vibrating and moulding platforms, which reduces the weight of the machine, and improves the vibrating efficiency;
5) Uses double-line aero vibration-proof system, which reduces the vibrating force on the mechanical parts, improves the using lifetime of the machine, and reduces the noise;
6) High-precision guide bearings are used to assure the precise movement between the tamper head and the mould;
7) Heavy-duty machine frame, which uses high-intensity steel and advanced heat treatment, is wear resistant.
