• Model NO.：CNM-YH30
• Automatic Grade：Automatic
• Structure：Horizontal
• Transmission Method：Electric
• Material：Alloy Steel, Casting Iron, Steel
• Color：Green, Blue, Electroplating Sliver, etc.
• Type：Yh30 Onion Jack(Embossing Machine)
• Certificate：SGS, BV and Is09001-2008
• Usage：Make Flower Type PC Strand
• Performance：Good
• Applied Diameter of PC Strand and Steel：15.7mm, 15.24mm, 12.7mm, 12.9mm, 9.52mm
• Applications：Bridges, High Buildings, Railway and Highway, Coal
• Mating Oil Pump：Ybz2X2-50A, Ybz1.5X2-63 Electric Oil Pump
• Delivery Time：Have Stock
• Transport Package：Ply Wooden Case or Carton, or Container
• Specification：SGS, ISO9001-2008, BV
• Trademark：CNM
• Origin：Hennan Province
• HS Code：842542100
• Production Capacity：650 Sets Per Month
• Package size per unit product：100.00cm * 30.00cm * 20.00cm
• Gross weight per unit product：15.000kg

Basic Info.

Model NO. CNM-YH30 Automatic Grade Automatic Structure Horizontal Transmission Method Electric Material Alloy Steel, Casting Iron, Steel Color Green, Blue, Electroplating Sliver, etc. Type Yh30 Onion Jack(Embossing Machine) Certificate SGS, BV and Is09001-2008 Usage Make Flower Type PC Strand Performance Good Applied Diameter of PC Strand and Steel 15.7mm, 15.24mm, 12.7mm, 12.9mm, 9.52mm Applications Bridges, High Buildings, Railway and Highway, Coal Mating Oil Pump Ybz2X2-50A, Ybz1.5X2-63 Electric Oil Pump Delivery Time Have Stock Transport Package Ply Wooden Case or Carton, or Container Specification SGS, ISO9001-2008, BV Trademark CNM Origin Hennan Province HS Code 842542100 Production Capacity 650 Sets Per Month

Packaging & Delivery

Package size per unit product 100.00cm * 30.00cm * 20.00cm Gross weight per unit product 15.000kg

Product Description

Post Tension Bulding Jack Onion Jack for Post-Tensioning System (Call us: Mobile Phone: +8613673713569)



PRODUCTION DESCRIPTIONS (Call us: Mobile Phone: +8613673713569)

 1. Model:  YH30

 2. Usage: To bend pc strands make it become flower type(dead end anhcor) for fixing.

 3. Matched oil pump: it is work with our YBZ2X2-50A(50Mpa) or YBZ1.5x2-63(53Mpa) electric oil pump.

 4. Suitable PC Strands Diameter: 15.24mm, 12.7mm.

FEATURES(Call us: Mobile Phone: +8613673713569)

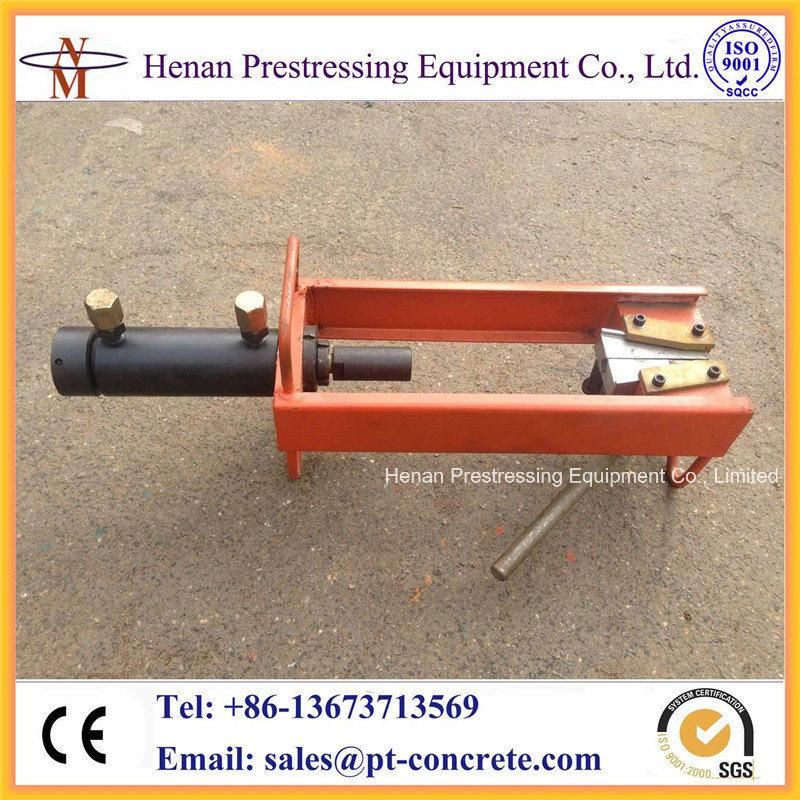

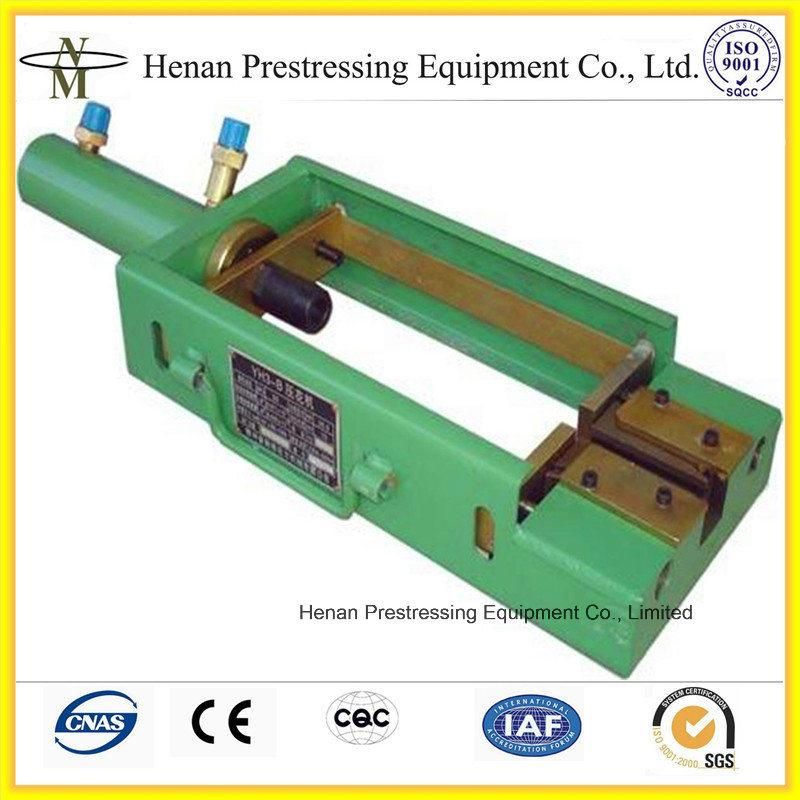

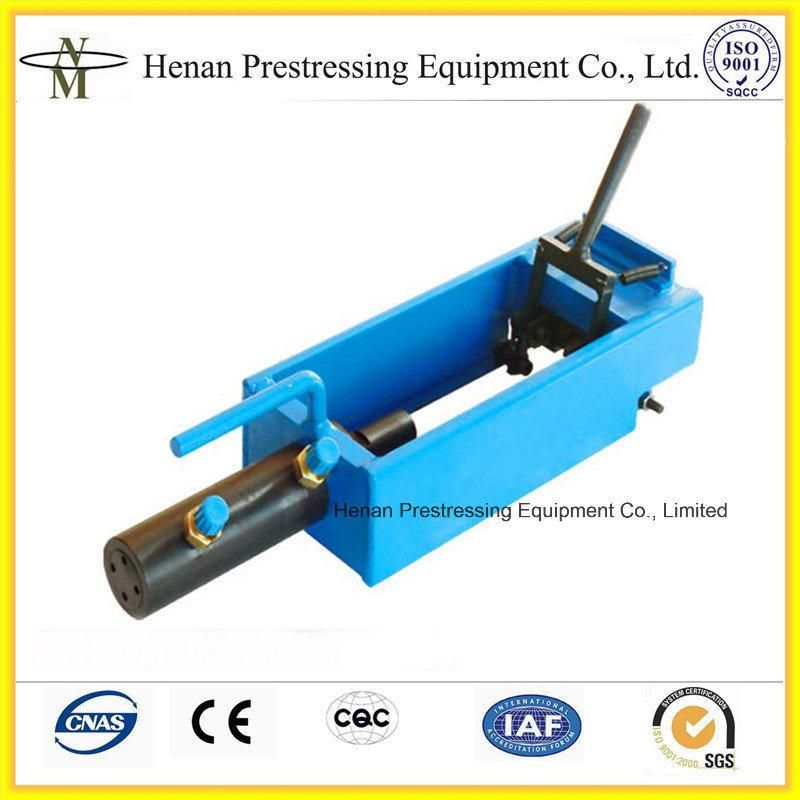

1). YH30 knurling machine is the special extruding equipment of making the fixed-end anchorage, mainly used for extruding  the fixed-end of Prestressing strands into pear-shaped scattering shape.
 2). After replaced the wedge, it can be used for the other specification of steel strands.
 3). YH30 type knurling machine is small in size, light, and easy to operate.

APPLICATIONS (Call us: Mobile Phone: +8613673713569)

1). For Buildings: Housing, Commercial Buldings, High Rise Buildings.

2). For Municipal Engineering: Railway, Highway, Over Head Fast Speed Way, Metro Way, High-speed Railway, etc.

3). For Projects: Mining, Piling, Foundation, Slope and Rock Reinforcement, Hydropower Station, Anchoring Engineers, Water Conservancy Project, Oil or Gas Tank, etc.





FAQ Call us: Mobile Phone: +8613673713569)

1). Q: What information should provide before placing order?
We are appreciated you provide us detail information about your requirement:
1. What diameter of Strand you use? Do you also need Electric Oil Pump(power pack) to work with it?
2. How many quantity for order?
3. What is your required Destination Port?

2) Q: How is the delivery lead time:
A: Goods in stock: within 3 days, Goods out of stock(7 days), Goods need to be customized(10-15 days).

3) What is your Minimum Order?
A: MOQ: 100 pieces.

4) Q: Payment Terms?
A TT, LC, Western Union, Paypal, etc.

5) Q: How to transport the goods:
A: by shipping, airflight, express.


TECHNCIAL DATA (Call us: Mobile Phone: +8613673713569)


Model	Rated stressing pressure	Oil pressure	Return area of piston	Extrusion area of piston	Stroke of extrusion	Weight	Overall Dimension
	KN	Mpa	m²	m²	mm	kg	mm
YH30	30	43	0.425×10-³	0.707×10-³	70	11	560×155×215






ABOUT OUR COMPANY (Call us: Mobile Phone: +8613673713569)

Henan Prestressing Equipment Co.,Limited manufacture full complete post tension components, materials and post tension equipment for buildings and bridge construction. Kindly please call us: Mobile Phone. +8613673713569.

OUR ADVANTAGES (Call us: Mobile Phone: +8613673713569)

1. Anchor System: unbonded monostrand anchor system, multistrands anchor system, flat anchor system, arch type flat anchor, anchor barrel and wedges, ground anchor, rock and soil anchor, anchor wedges, anchor bearing plate, spiral reinforcing rings.

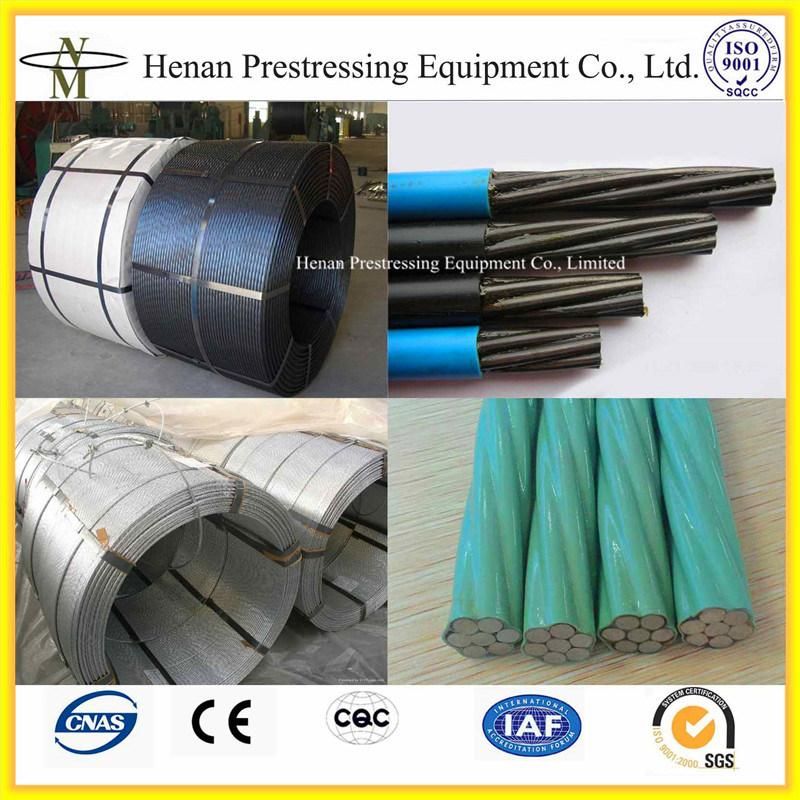

2. PC Strand System: unbonded pc strand, bonded pc strand, 12.7mm prestressed cable, 15.24mm prestressed strand, epoxy coated pc strand,galvanized pc strand, 6mm, 7mm, 9mm pc steel wire.

3. Duct System: galvanized metal duct, HDPE plastic duct, curved type galvanized metal duct, flat duct, corrugated pipe.

4. Heavy equipment: bridge girder launching machine, drilling rig, bridge girder transporter.

Contact with us:  call us: Mobile No: +8613673713569.

RELATED PRODUCTS (Call us: Mobile No: +8613673713569)

Prestressed Anchor System




Prestressed Strand Cable

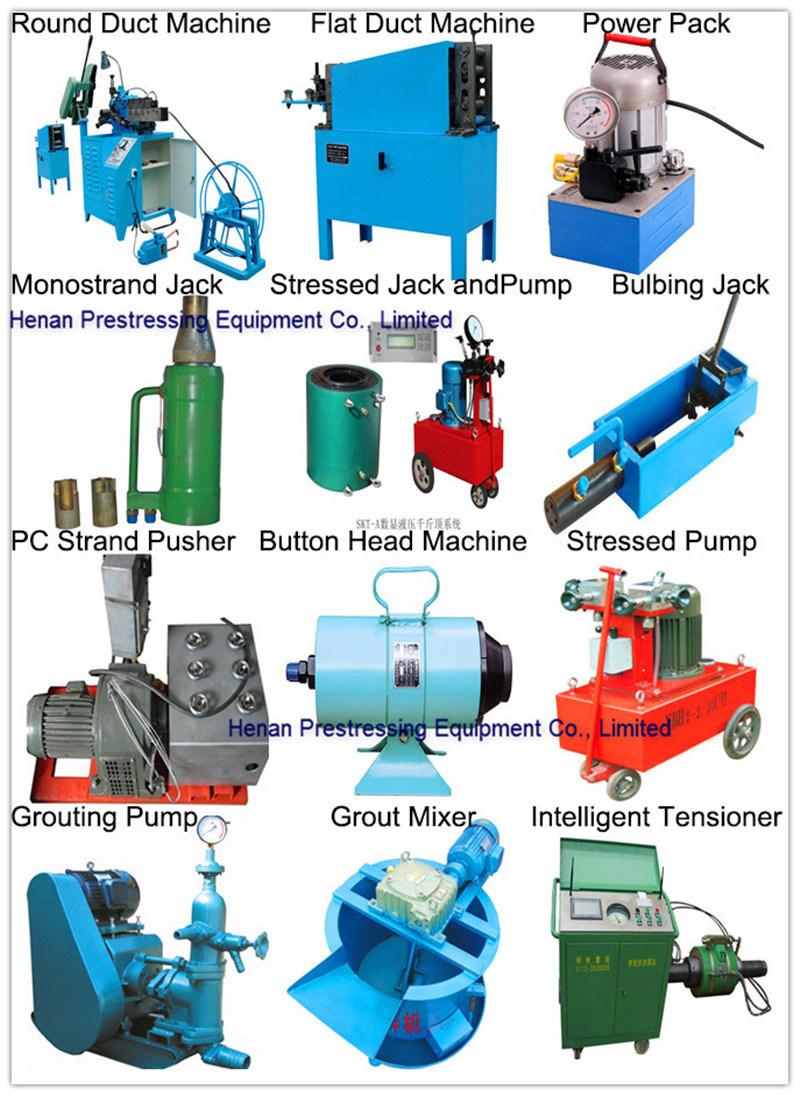

Prestressing Equimpent
