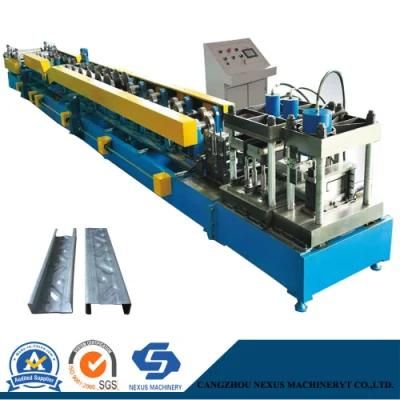

Full Automatic C Shaped Section Purlin Machine

HEBEI XINNUO ROLL FORMING MACHINE CO., LTD.
  • Warranty：1 Year
  • Certification：CE, ISO9001
  • Customized：Customized
  • Condition：New
  • Control Type：PLC Computer Control
  • Automatic Grade：Automatic

Base Info

  • Model NO.：C80-300
  • Capicity of Decoiler：5000kgs
  • Main Motor Type：Three-Phase Asynchronous
  • Motor Power：18.5kw
  • Thickness of Raw Material：1.0-3.0mm
  • Processing Precision ：WithinT1.0mm
  • Diameter of Main Shaft：65mm
  • Roller Stations：15
  • Transport Package：Main Machine with Film by Container Shipping.
  • Specification：size: about 8.8*1.65*1.45m
  • Trademark：KXD
  • Origin：China
  • HS Code：8455221000
  • Production Capacity：3000 Sets,Year

Description

Main parameters of C80-300 roll forming machine1Suitable to processsteel2Width of the feeding materialMax. 500mm3Roller station15 rows4Thickness of feeding material1.5-3.0mm5Productivity15-25m/min6Rollers' material45# steel7Diameter of shaft65mm8WeightAbout 8.5T9Size9500*1500*1400mm10Voltage380V  50HZ  3phases11Wall thickness of main machine20mm steel plate12Main forming machine body300 mm H steel13Main motor power18.5 kw14Hydraulic cutting power5.5 kw
Full Automatic C Shaped Section Purlin Machine
