Simple Foam and Rock Wool Composite Sandwich Board Forming Machine

HEBEI XINNUO ROLL FORMING MACHINE CO., LTD.
  • Tile Type：Colored Steel
  • Certification：CE, ISO
  • Condition：New
  • Customized：Customized
  • Usage：Roof
  • Transmission Method：Machinery

Base Info

  • Model NO.：sandwich panel machine
  • Transport Package：Nude with Simple Plastic
  • Specification：45M
  • Trademark：Xinnuo
  • Origin：China
  • HS Code：8455221000
  • Production Capacity：10sets,Month

Description

Basic Info.

Model NO. sandwich panel machine Transport Package Nude with Simple Plastic Specification 45M Trademark Xinnuo Origin China HS Code 8455221000 Production Capacity 10sets/Month

Product Description

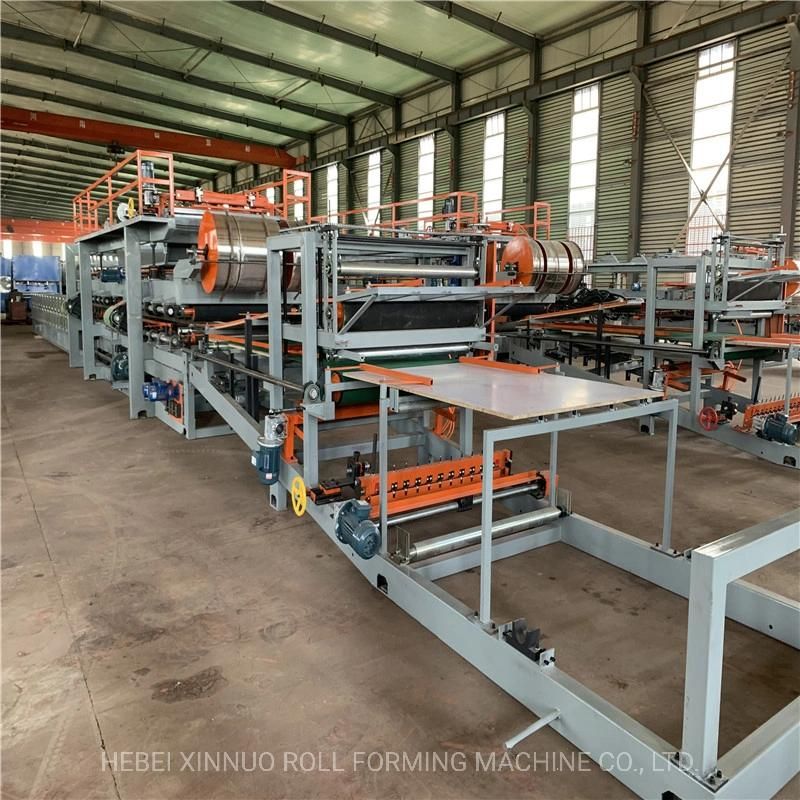

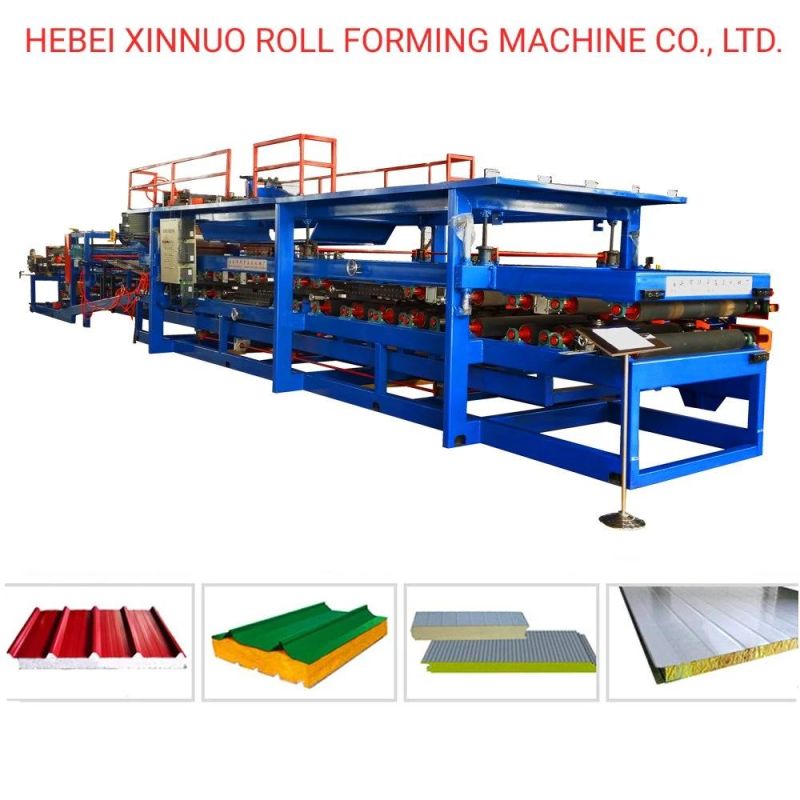

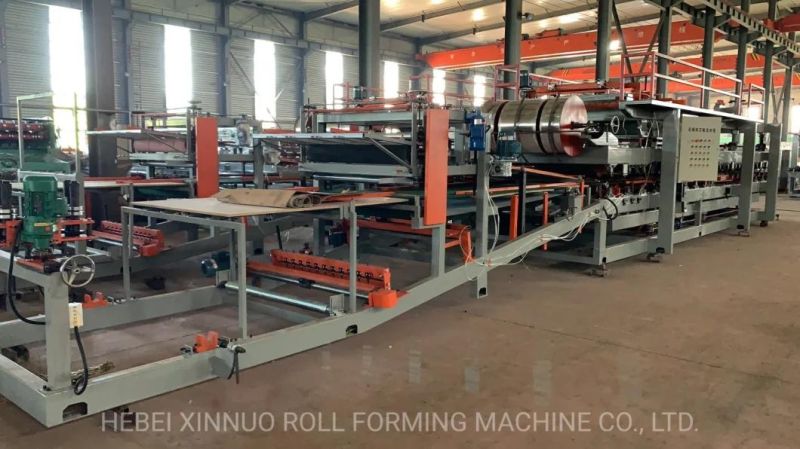

Simple foam and rock wool composite sandwich board forming machine

Technical specification

1. Technique parameters of the processing line

(1) Coil material: EPS, rock wool, glass silk floss and so on

(2) Thickness of the plate: 0.3-0.8mm

(3) Core thickness: 20-300mm

(4) Production capacity (according to your glue):

4-4.5m/min (the fastest), 2-2.5m/min(the slowest)

(5) Total power: about 30KW

(6) Weight: 25ton

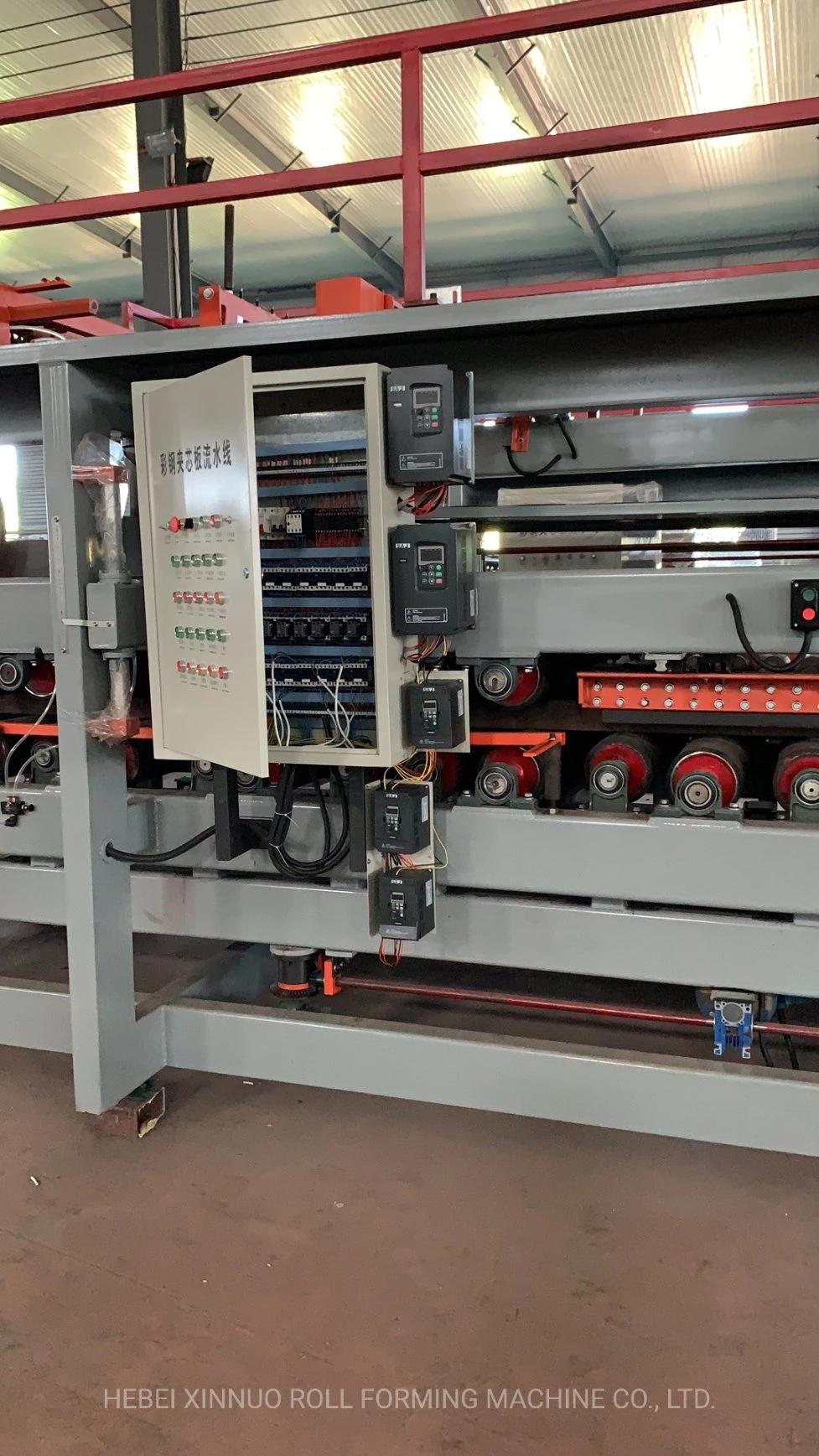

(7) PLC control systerm, easy to operate, high precision and work stably.

(8) Dimensions of whole production line:

About Length35000mm × Width2500mm × Height2600mm



2. Processing technique and deployment

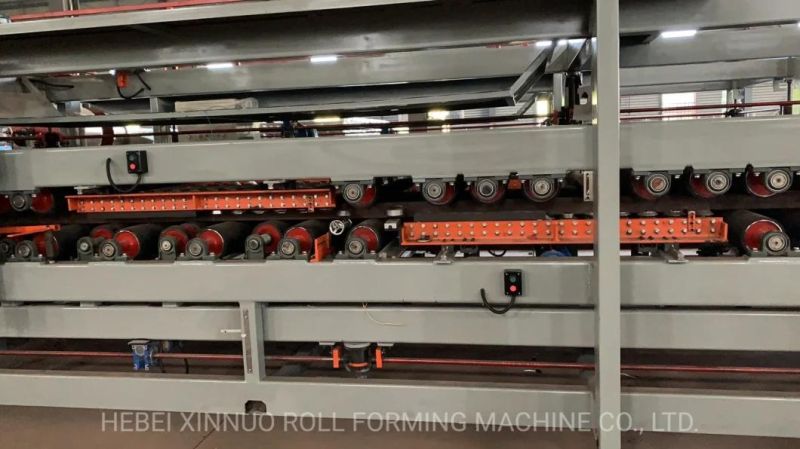

Processes: Composite Decoiler-Roll Forming-laminating system (ribbon, gelatinizing, heating up, compounding, crimping, notching, edge trimmer)-cutting system-Runout Table
Simple Foam and Rock Wool Composite Sandwich Board Forming Machine
