• Model NO.：CSHP4WD-CNC-3000B
• Air Consumption：100L,Min
• Profile Height：25-160mm
• Profile Width：120mm
• Welding Range Min.：500*650mm
• Welding Range Max.：1800*3000mm
• Dimension：5100*3050*1500mm
• Weight：3000kg
• Transport Package：Standard
• Specification：CSHP4WD-CNC-3000B
• Trademark：Truepro
• Origin：China
• HS Code：846599
• Production Capacity：500sets,Year

Basic Info.

Model NO. CSHP4WD-CNC-3000B Air Consumption 100L/Min Profile Height 25-160mm Profile Width 120mm Welding Range Min. 500*650mm Welding Range Max. 1800*3000mm Dimension 5100*3050*1500mm Weight 3000kg Transport Package Standard Specification CSHP4WD-CNC-3000B Trademark Truepro Origin China HS Code 846599 Production Capacity 500sets/Year

Product Description

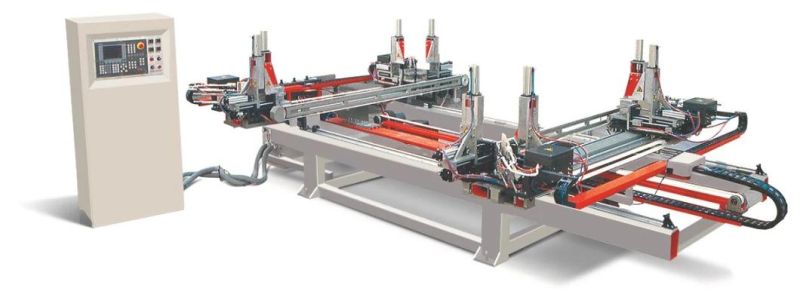

Horizontal CNC four corner machine for welding PVC window



Equipment Advantages
1. One working cycle,one frame.
2. Common profile fixture along with the machine can meet various height profiles' processing requirement.
3. Imported computer control system,for high precise welding,easy operation and high stability.
4. Special profile fixture along with the machine can meet various height profile's processing requirement.
5. Imported linear bearing eystem kept the running stable.
6. Special "know-how" technique keep the high corner strength
7. Size tolerance compensation is available to increase welding presicion.
Parameter:

Model	CSHP4WD-CNC-3000B
Input power	9Kw
Power supply	380V/50Hz
Air pressure	0.5~0.8MPa
Air consumption	100L/min
Welding height	25~160mm
Welding width(Max.)	120mm
Welding Range	500*650~1800*3000(mm)
Overall Dimension	5100*3050*1500mm
Weight	3000Kg

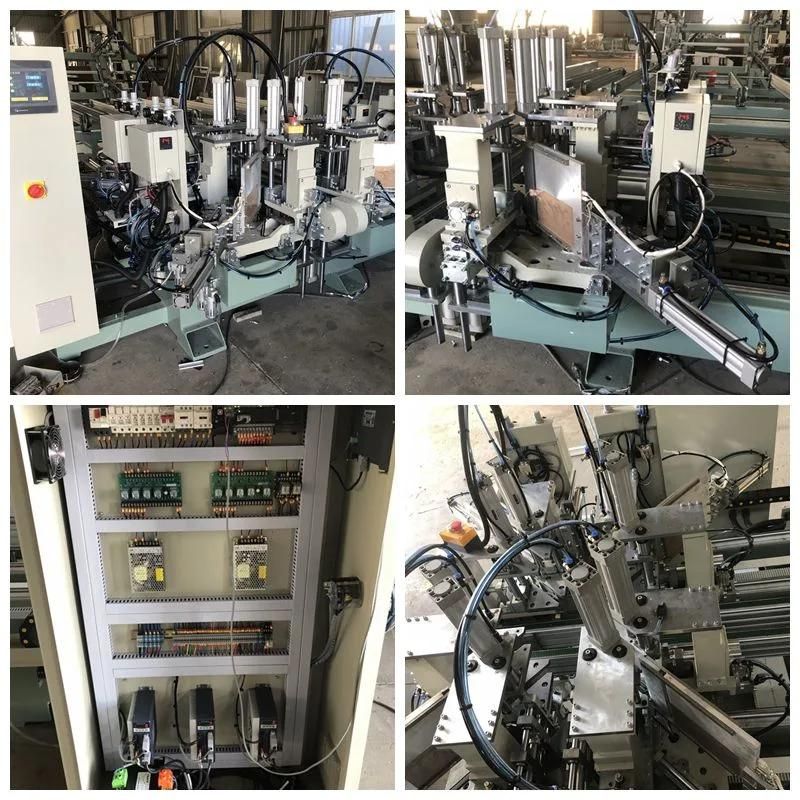

Machine details:






Jinan Truepro is a manufacturer of window machine, insulating glass processing machine and curtain wall machine with
well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish
designs, our products are extensively used in building trade and other industries. Hope we can cooperate with you.
We believe that "IT'S THE BEST THAT FITS MOST."
Every machine could be customized to meet your special requirement.




1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.

2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can dispatch our engineers to repair your machines

3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
All of our engineers have passport.

4. PVC window production line
