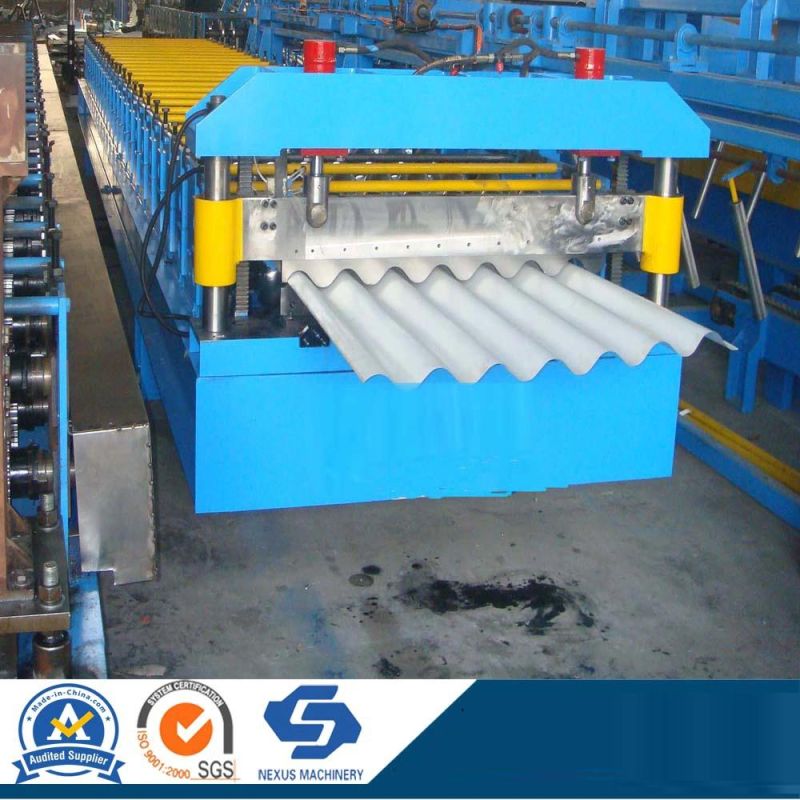

Corrugated Steel Panel Roll Forming Machine for Making Roofing Sheet

Cangzhou Nexus Machinery Co., Ltd.
  • Tile Type：Colored Steel
  • Certification：CE, ISO
  • Condition：New
  • Customized：Customized
  • Usage：Roof, Wall
  • Transmission Method：Electric

Base Info

  • Model NO.：NX780
  • Product Name：Corrugated Steel Panel Roll Forming Machine
  • Raw Material：PPGI Sheet
  • Thickness Range：0.3-0.8mm
  • Machine Power：4kw+3kw
  • Machine Weight：About 5 Tons
  • Warrenty：12 Months
  • Main Shaft Dia：70mm
  • Material：45# Forge Steel and Quenched
  • Roll Station：18 Groups
  • Working Speed：10m--15m,Min(Exclude Cutting Time)
  • Transport Package：Plastic Film & Steel Wire Fixed
  • Specification：6000mm*1500mm*1500mm(L*W*H)
  • Trademark：NEXUS MACHINERY
  • Origin：China
  • HS Code：8455221000
  • Production Capacity：30 Sets , Months

Description

Manual decoilerCapacity5tonFeeding widthMAX 1300mmExpanding range460-520mm Corrugated Steel Panel Roll Forming Machine For Making Roofing SheetMain motor power4kwDrive1'' single chainType:wall panelMain shaft dia¢70mmmaterial45# forge steel and quenchedRoller material45# high grade forge steel ,chrome coated 0.05mmRoll station18 groupsRaw material0.3-0.8mmCoil width 1000mmWorking speed10m--15m/min(Exclude cutting time)Length Tolerance±1.5mmWeight of machineAbout 5 tonSize of machineAbout 7500×1800×1500mm L x W x HColor of machineYellow and BlueCoderOmron, made in JapanControlPLC Panasonic, made in Japan. 380V 50HZ,3phase (Also depend on client)Computer operating paneltouching screenOther electrical elementSchneiderCuttingHydraulic cutting. Auto cutting when reach the set lengthHydraulic power3KWBlade materialCr12mov,quenched 58°-62°Working pressure16mpaCutting tolerance+/- 1.0mm

4. Character of main structure:
  1. The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and most of the connectors are screw which make the machine flexible and stronger.
  2. All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
  3. We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .
  4. It is very easy to install the equipment and suitable for producing in the factory.
  5. Low noise with high efficiency.
5. Photos of Corrugated Steel Panel Roll Forming Machine For Making Roofing Sheet for Reference:

Corrugated Steel Panel Roll Forming Machine for Making Roofing Sheet
Corrugated Steel Panel Roll Forming Machine for Making Roofing Sheet
Corrugated Steel Panel Roll Forming Machine for Making Roofing Sheet


FAQ:


1) Q: Do you provide installing and staff training overseas?
A: Overseas machine install and worker training services are optional. We can send engineer to customers' factory to teach and install.

2) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians. What's more, we can provide updated spare parts to customer if they have requirement.

3) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference.
    2) We welcome your visit us and test machine by yourself in our factory.

4) Q: Do you sell only standard machines?
A: Absolutely not. Most machines are customized according to buyer's specific  demand.
