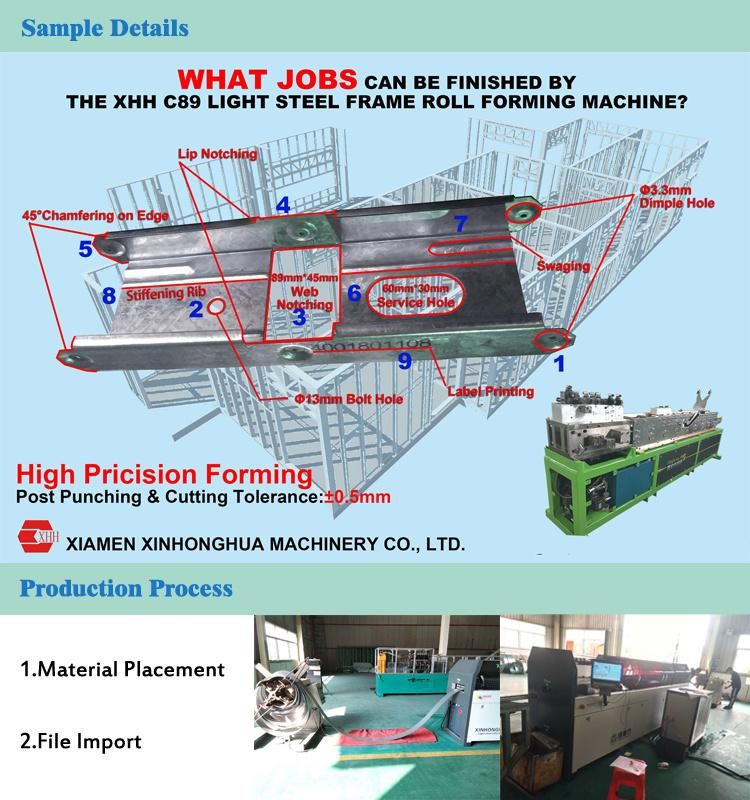

Light Steel Gauge Frame Cold Roll Forming Machine for Warehouses

Xiamen Xinhonghua Machinery Co., Ltd.
  • Tile Type：Glazed Steel
  • Certification：CE
  • Condition：New
  • Customized：Customized
  • Usage：Roof, Wall
  • Transmission Method：Hydraulic Pressure

Base Info

  • Model NO.：C89
  • Machine Color：Blue or as Your Request
  • Name：Double Layer Roof Making Machine
  • Hydraulic Power：1.5kw
  • Material Width：1000mm
  • Height of Roofing：25mm,15mm
  • Voltage：380V,50Hz,3pH
  • Control System：PLC(Imported Brand)
  • Material Thickness：0.3mm-0.6mm
  • Material of Rollers：45#Steel Forge
  • Effective Width：840mm,900mm
  • Transport Package：Standard Packed for Export
  • Specification：SGS
  • Trademark：XHH
  • Origin：Fujian, China (Mainland)
  • HS Code：84552290
  • Production Capacity：20sets,Moths

Description

Size3700*800*1100mmWeight2800KGSMain Servo Motor Power5.5KWHydraulic Motor Power5.5KWForming Steps10+2steps for reshapingProcessing Speed25-30m/minVoltage380V/50HZ/3PHLip of C Profile10mmTolerence Of Forming0.75mmForming Thickness0.7-1.2mmHeight 38mm2)Main Accessories:
(1) .Main Forming Machine;
(2) .Hydraulic Strip Uncoiler;
(3) .Hydraulic Punching Device;
(4) .Hydraulic Motor System;
(5) .PLC Computer Controlling System With Touch Screen;
(6) .Hydraulic Forming Cutter;
(7) .Automatic Printing Device;
(8) .Design Software;
(9) .Run Out Table;
(10) .Tools;
(11) .Operation Manual.
