• Model NO.：C89
• Servo Motor Power：7.5kw
• Voltage：380V,50Hz 3phase(as Customer′s Request)
• Uncoiler：3t Hydraulic Steel Strip Uncoiler
• Overall Production Speed：3-4 Tons,8h
• Profile Dimension(Web*Flange*Lip)：89mm*38mm*9mm
• Feeding Material：0.65-1.2 mm G300-G550 Gi,Gl Strip
• Material Strip Width：174mm
• Material of Rollers：SKD11
• Material of Cutting Punching Die：SKD 11
• Accessional Supporting Design Software：Vertex Bd
• Transport Package：Machine Is Fixed in The Container with Steel Ropes
• Specification：Dimension(L*W*H): 3850*800*1100mm
• Trademark：XHH-5S
• Origin：China
• HS Code：8455229090
• Production Capacity：20 Sets Per Month

Size

3850*800*1100mm

Weight

2500KGS

Main Servo Motor Power

7.5KW

Hydraulic Motor Power

7.5KW

Forming Steps

7 steps forming + 2 steps reshaping

Processing Speed

C Channel Roll Forming without Punching:2700m/h
Drywall Panel Frame Roll Forming Speed:600-700m/h
Overall Production Capacity: 3-4tons/8h

Voltage

380V/50HZ/3PH

Accessories

1.Laptop Based Production Cotrolling System
2.3MT Hydraulic Uncoiler
3.Hydraulic Oil Cooling System
4.Layout Table
5 Maintainance Tool Box
6 User Manual
7.Vertex BD Steel Frame Structure Design Software
  (permanent license,next annual version free update)
(USD 20,000 can be deducted from the total price if the client doesn't need the software)

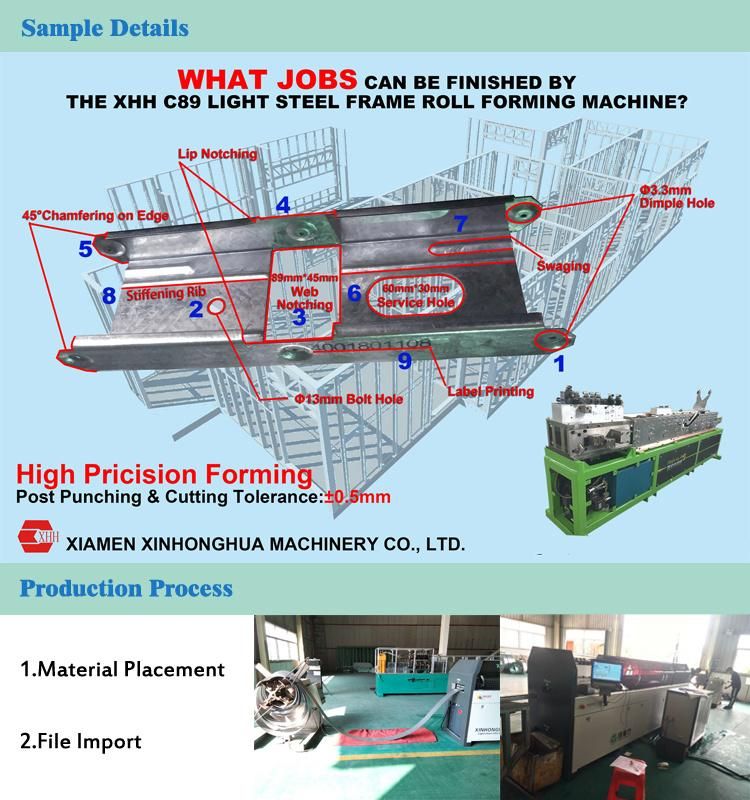

Tolerence

Forming Tolerence: 0.75mm,
Punching & Cutting Tolerence:±0.5mm

Feeding Material

174mm width 0.65mm -1.2mm Thickness G300-G550
GI/GL steel strip coils

SKD11 steel with heattreatment, plate hard chrome on the surface;

Material of Blade

SKD11 with quenched treatment 6 0-62 ºC ;
