Building Material Prefabricated Light Steel Frame House Making Rolling Forming Machines
Xiamen Xinhonghua Machinery Co., Ltd.- Warranty：1 Year
- Certification：SGS
- Customized：Customized
- Condition：New
- Control Type：PLC
- Automatic Grade：Automatic
Base Info
- Model NO.：c89
- Type：C,U Purline Machine
- Hydraulic Motor Power：11kw
- Motor Power：20kw
- Thickness：0.8-3.0mm
- Effective Width of C Profile：89-305mm
- Effective Width of U Profile：93-310mm
- Height of C/U Profile：42mm, 50mm, 60mm
- Profile Combination：C+C or C+U
- Tools：Web Notch, Dimple Hole, Service Hole, Swage Hole
- Software：Can Automatic Changed to Detail Material List
- Transport Package：Standard Package for Export
- Specification：SGS
- Trademark：XHH
- Origin：Xiamen of China
- HS Code：84552290
- Production Capacity：10-15 Sets,Month
Description
Function/ModelC+U Profile Single Model C+U Profile Muit-type Model 75, 90, 100 120, 140, 150 180, 200, 235, 254 305 90-254 90-305 Profile C+U C+U C+U C+U Profile Combination C+U or C+C C+U or C+C C+U or C+C C+U or C+C Application House/Commercial Building House/Commercial Building House/Commercial Building House/Commercial Building Control System Windows7 Windows7 Windows7 Windows7 Design Software CAD CAD CAD CAD Working Speed 0-1200m/h 0-1200m/h 0-1200m/h 0-1200m/h Material Thickness 0.5-1.2mm 1.0-1.5mm 1.5-2.0mm 2.0-2.5mm 0.8-2.0mm 0.8-3.0mm Material Yield Strength 235-550MPa 235-550MPa 235-550MPa 235-550MPa 235-550MPa 235-550MPa Main Motor Power 7.5kw 11kw 18kw 20kw 18kw 20kw Hydraulic Motor Power 4kw 5.5kw 7.5kw 11kw 7.5kw 11kw Voltage 380V 50Hz 380V 50Hz 380V 50Hz 380V 50Hz 380V 50Hz 380V 50Hz Oil Tank Capacity 120L 200L 300L 500L 500L 500L Screw/Rivet Hole HAD HAD NOT HAD NOT HAD HAD HAD Mounting Hole HAD HAD NOT HAD NOT HAD HAD HAD Hydropower Hole HAD HAD HAD HAD HAD HAD Flanged Downpipe Hole NOT HAD NOT HAD HAD HAD HAD HAD Edge Cutting HAD HAD NOT HAD NOT HAD HAD HAD Web Side Cutting (Square Hole) HAD HAD NOT HAD NOT HAD HAD HAD Web Width Automatically Adjusted NOT HAD NOT HAD NOT HAD NOT HAD HAD HAD Flange Height Automatically Adjusted NOT HAD NOT HAD NOT HAD NOT HAD NOT HAD HAD Flange Mark Print HAD HAD HAD HAD HAD HAD USB Setting Production HAD HAD HAD HAD HAD HAD Remote Operation HAD HAD HAD HAD HAD HAD Real-time Monitoring HAD HAD HAD HAD HAD HAD
Feature:
1. This machine can automatic changed type from 90-305, one machine can produce many type.
2. With the software, it can change the whole building to detail material produce list, don't need manual calculate.
3. With printing device, it can print the number on purline. You just need install according those number, save time and convenient.

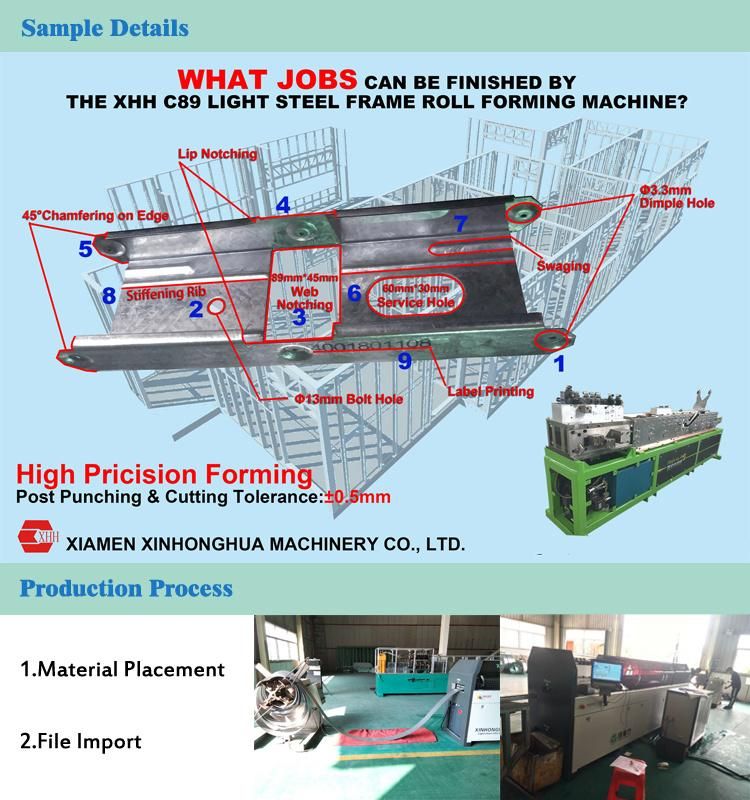

4. With Web Notch, Lip Notch, Dimple, Swage, Service Hole, install easily.

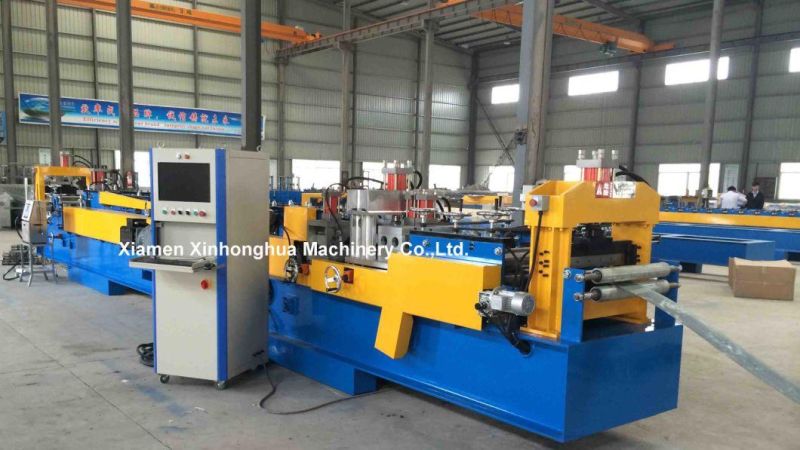

Picture for our Light Guage Steel Framing Machine

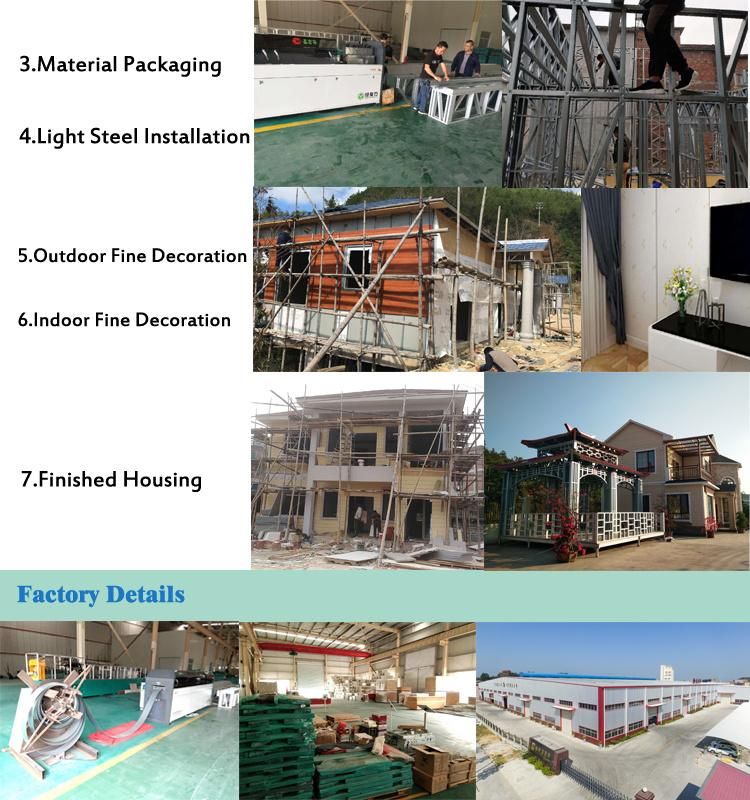

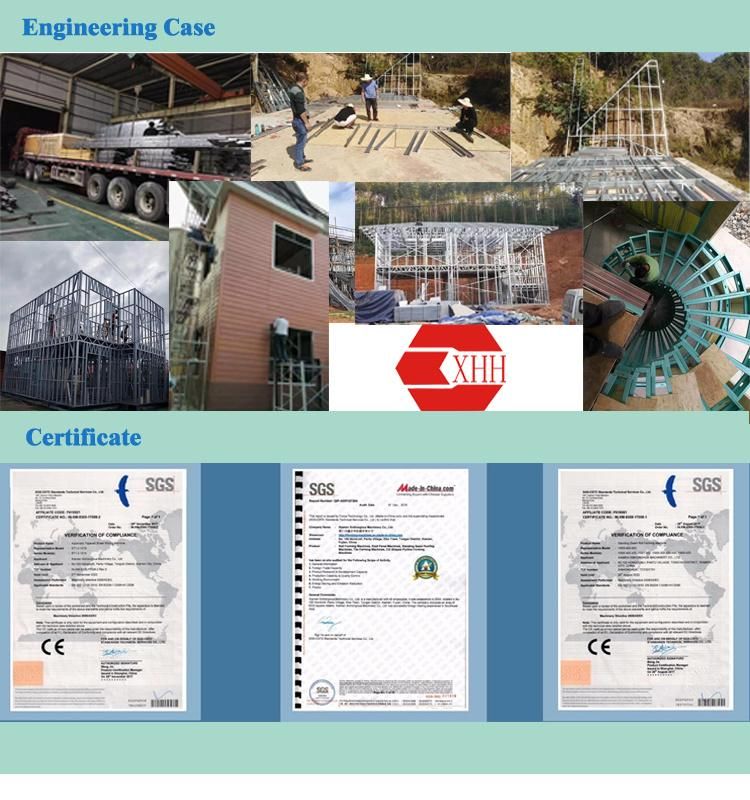

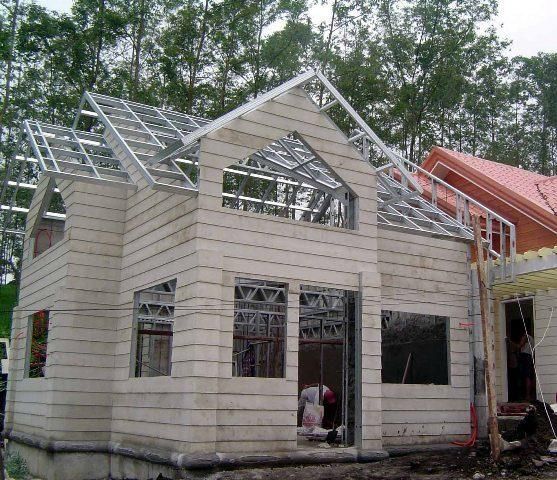

Picture for the project that use our machine:
Feature:
1. This machine can automatic changed type from 90-305, one machine can produce many type.
2. With the software, it can change the whole building to detail material produce list, don't need manual calculate.
3. With printing device, it can print the number on purline. You just need install according those number, save time and convenient.
4. With Web Notch, Lip Notch, Dimple, Swage, Service Hole, install easily.
Picture for our Light Guage Steel Framing Machine
Picture for the project that use our machine:
