Light Steel Gauge Farming Mahicne for Cheap Price Prefabricated Houses
Xiamen Xinhonghua Machinery Co., Ltd.- Warranty：1 Year
- Certification：CE, ISO9001, SGS
- Customized：Customized
- Condition：New
- Control Type：PLC
- Automatic Grade：Automatic
Base Info
- Model NO.：C89-5
- Model No：Magic C89 Light Steel Framing Machine
- Drive：Hydraulic
- Power：5.5kw
- Voltage：80V,50Hz 3phase(as Customer′s Request)
- Production Speed：About 80 Square Meters Per Day
- Working Pressure：550 MPa---300 MPa
- Accessional Un-Coiler：1.5t Hydraulic Steel Strip Un-Coiler with Automati
- Profile Dimension(Web*Flange*Lip)：89mm*38mm*9mm
- Feeding Material Steel Strip Width：174mm
- Accessional Supporting Design Software：Vertex Bd

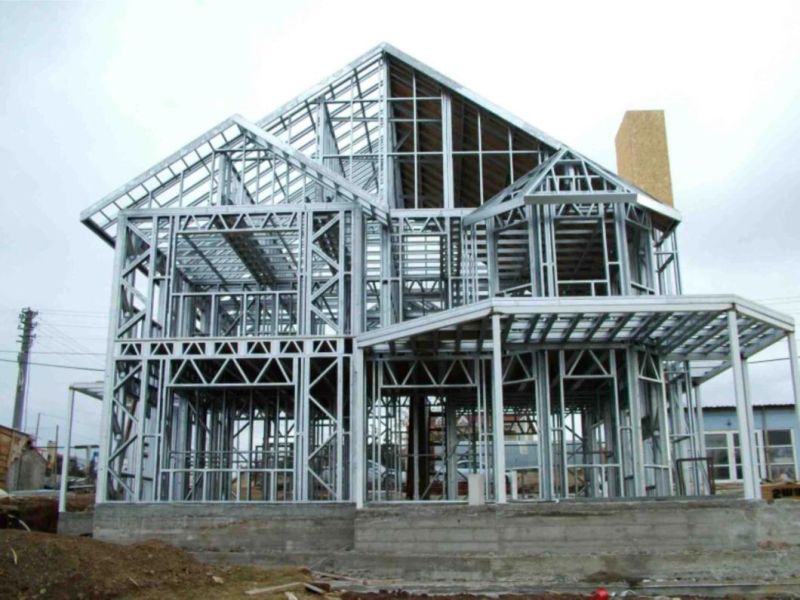

- Building Height：1-3 Floors
- Transport Package：Export Standard Packing
- Specification：Dimension: 3700*800*1100mm
- Trademark：XHH
- Origin：Xiamen
- HS Code：84552290
- Production Capacity：20 Sets,Month
Description
Size
3700*800*1100mm
Weight
4000KGS
Main Servo Motor Power
5.5KW
Hydraulic Motor Power
5.5KW
Forming Steps
9 steps for reshaping
Processing Speed
About 80 Square Meter Per Day
Voltage
380V/50HZ/3PH
Lip of C Profile
9mm
Tolerence Of Forming
0.75mm
Forming Thickness
0.6mm -1.2mm
Height
38mm
Width
89mm
2.Main Accessories:
| 1 | Main Forming Machine |
| 2 | Hydraulic Strip Uncoiler |
| 3 | Hydraulic Punching Device |
| 4 | Hydraulic Motor System |
| 5 | IPC Computer Controlling System with Product Software |
| 6 | Hydraulic Forming Cutter |
| 7 | Automatic Printing Device |
| 8 | Vertex BD Design Software |
| 9 | Run Out Table |
| 10 | Tools |
| 11 | Operation Manual |
