• Model NO.：LXDB-250WG
• Input Voltage：380V 50Hz
• Input Power：9.5 Kw
• Air Pressure：0.5~0.8MPa
• Air Consumption：180L,Min
• Motor Rotation Speed：Motor Rotation Speed
• Worktable Range：0~1400mm
• Max Processing Hole：40mm
• Milling Cutter Diameter：250mm ,300mm
• Adjustment Range：0~85mm
• Transport Package：Plastic Film or Depends on Customers
• Specification：3000*1200*1700mm
• Trademark：Yuefeng
• Origin：Jinan Shandong, China
• HS Code：8477800000
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. LXDB-250WG Input Voltage 380V 50Hz Input Power 9.5 Kw Air Pressure 0.5~0.8MPa Air Consumption 180L/Min Motor Rotation Speed Motor Rotation Speed Worktable Range 0~1400mm Max Processing Hole 40mm Milling Cutter Diameter 250mm /300mm Adjustment Range 0~85mm Transport Package Plastic Film or Depends on Customers Specification 3000*1200*1700mm Trademark Yuefeng Origin Jinan Shandong, China HS Code 8477800000 Production Capacity 20 Sets/Month

Product Description

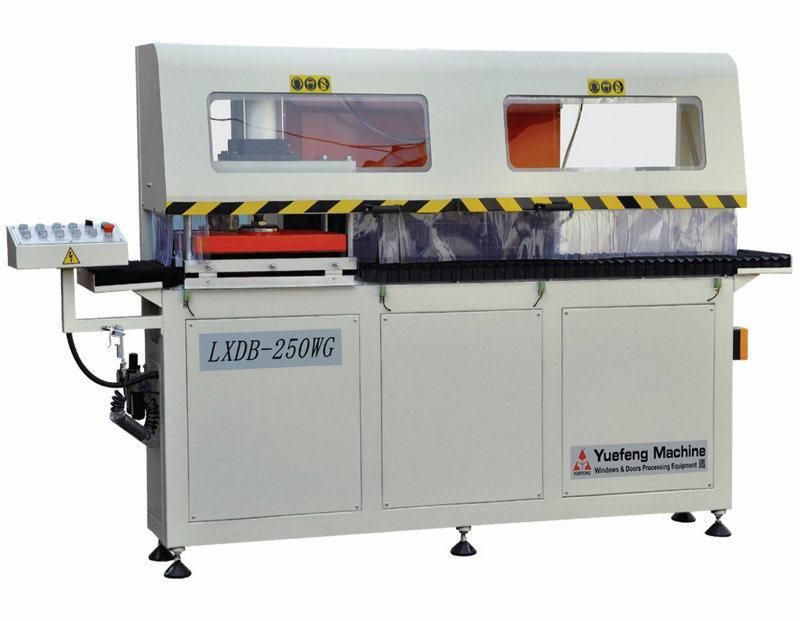

LXDB-250WG   End Milling Machine
Product Description

>Used for aluminum & curtain wall profiles' end processing, and suitable for various profiles.

>Process multi-piece profiles in one clamp, high efficiency.

>Convenient tool adjustment, can meet different processing requirement.

> It can complete angular milling, one group of miller can be adjusted between angles ±45

> Rack and gear transmission adopted in the feeding system, gives more stable.

> It has features of easy operation, reliable performance, advanced technique and convenient maintenance.


Technical Parameter:


Model	LXDB-250WG
Input voltage	380V 50Hz
Input power	9.5 Kw
Air pressure	0.5~0.8MPa
Air consumption	180L/min
Motor rotation speed	2800r/min
Worktable range	0~1400mm
Max processing hole	40mm
Milling cutter diameter	φ250mm /φ300mm
Adjustment range	0~85mm
Overall dimension	3000×1200×1700mm
