• Model NO.：LMB-SZ-120Z
• Certification：ISO, CE
• Automatic Grade：Automatic
• CNC or Not：not CNC
• Voltage：380V
• Power Supply：380V,50Hz
• Total Motor Power：3.0kw
• Rated Pressure：0.6~0.8MPa
• Air Supply：5L,Min
• Front Positioning Stroke：170mm
• Backward Cutter Stroke：120mm
• Adjusting Rang of Front Positioning：140mm
• Adjustment Range of Angle Cutter：160mm
• Height of Machined Profile：160mm
• Fuel Tank Capacity：40L
• Oil Pump Size：10L
• Weight：700kg
• Overall Dimension：870*1200*1100
• Transport Package：Wooden Box
• Specification：870*1200*1100
• Trademark：Seth
• Origin：Jinan
• Package size per unit product：185.00cm * 118.00cm * 121.00cm
• Gross weight per unit product：550.000kg

Product Description

1.It is suitable for angle-code punching and riveting connection of aluminum doors and windows curtain wall, with heavy structure and stable performance. It adopts sinking digital cutter adjustment design, which can adjust the cutter quickly and accurately and has higher machining accuracy.
2.The power is controlled by hydraulic system, which makes the work stable and reliable.
3.The rigidity of the left and right punches is synchronously fed, which avoids the useless deformation in the process of assembling angles and makes the connection of window angles firmer.
4.Synchronous feeding mechanism makes machine adjustment
easier.

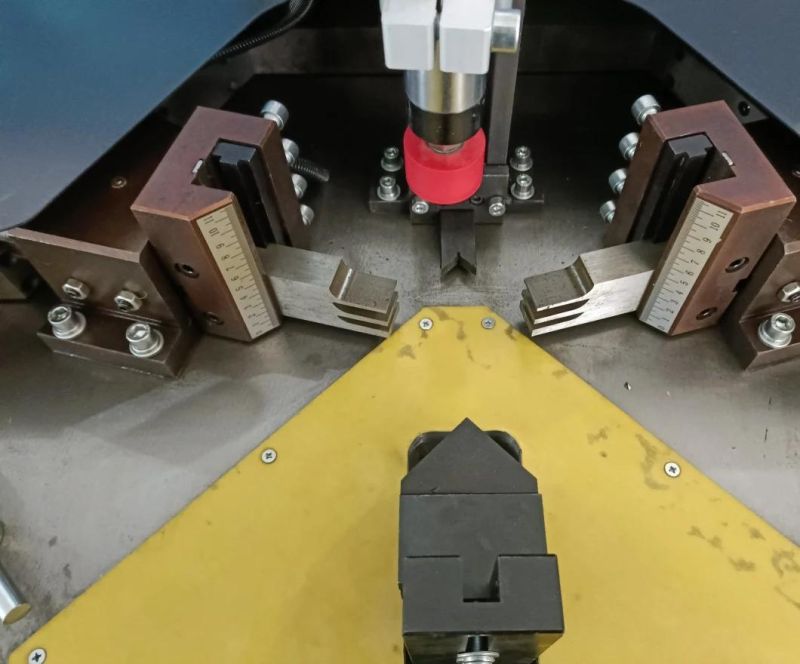

5.Single-knife and multi-point corner cutters can be configured, which makes the angle of insulation broken bridge aluminum doors and windows more reliable.

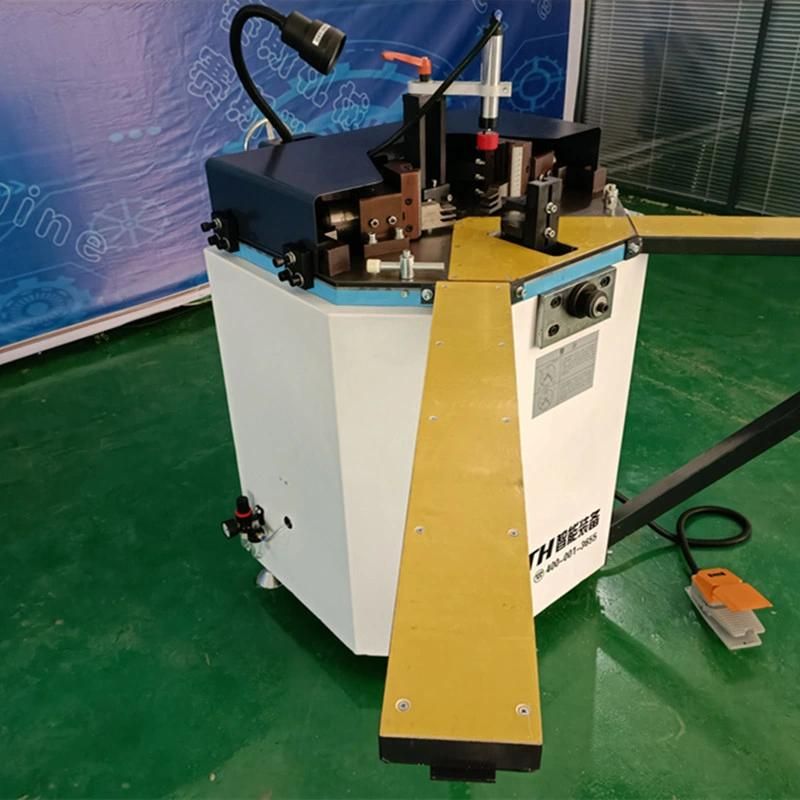

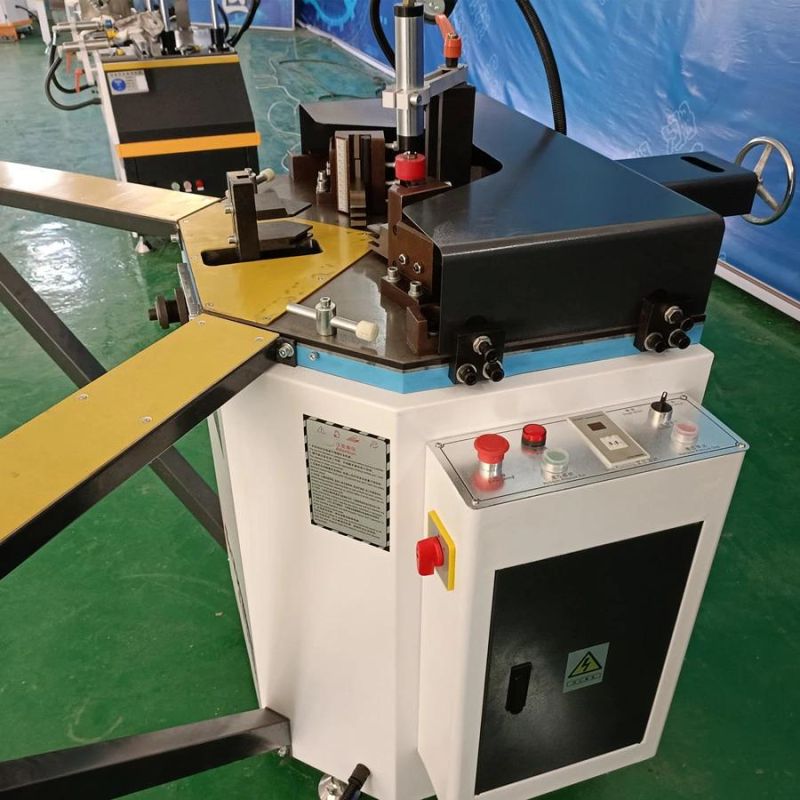

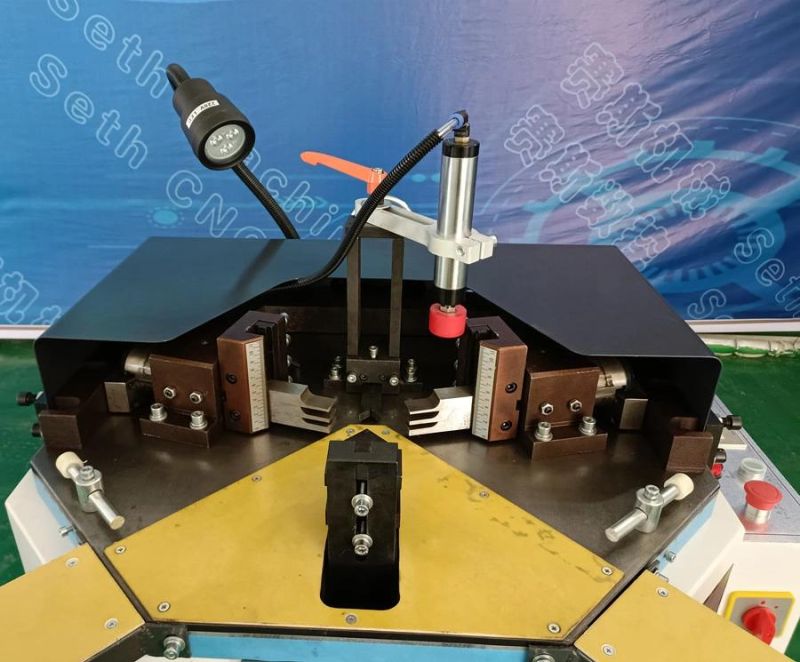

Detailed Photos
