CNC 7 Axes End Milling Machines for Aluminum Window Mullion Profile

Shandong Truetec Machinery Co., Ltd.
  • Condition:New
  • Certification:ISO, CE
  • CNC or Not:CNC
  • Voltage:380V
  • Product Name:CNC 7 Axes End Milling Machines for Aluminum
  • Cutting Motor Power:7.65kw

Base Info

  • Model NO.:CLXDB7-CNC-250
  • Motor Rotary Speed:2800r,Min
  • Air Pressure:0.6-0.8MPa
  • Spindle Diameter:Φ250*Φ32mm
  • Saw Blade Specification:Φ350*Φ30mm
  • Worktable Dimension:630*360mm
  • Motor Adjustment:0-90mm
  • Max. Open Tenon:85mm
  • Max Size of Tampping:100mm Vertical Knife
  • Color:Gray or as Requirement
  • Keywprd:CNC End Milling Machine
  • Transport Package:Simple Stretch Film or Plywood
  • Trademark:TRUETEC
  • Origin:Shandong China
  • Production Capacity:20 Sets Per Month

Description

Basic Info.

Model NO. CLXDB7-CNC-250 Motor Rotary Speed 2800r/Min Air Pressure 0.6-0.8MPa Spindle Diameter Φ250*Φ32mm Saw Blade Specification Φ350*Φ30mm Worktable Dimension 630*360mm Motor Adjustment 0-90mm Max. Open Tenon 85mm Max Size of Tampping 100mm Vertical Knife Color Gray or as Requirement Keywprd CNC End Milling Machine Transport Package Simple Stretch Film or Plywood Trademark TRUETEC Origin Shandong China Production Capacity 20 Sets Per Month

Product Description

CNC 7 axes end milling machines for aluminum window mullion profile

CNC 7 Axes End Milling Machines for Aluminum Window Mullion Profile
Equipment Advantages

1.The seven axes numerical control system adapts to different profiles and is quick and convenient to operate.
2. It is mainly used for milling the end faces of aluminum coposite profiles to meet the matching between mullions and frame meterials.
3. Multiple profiles can be milled at one time, which is suitable for processing in large quantities and varieties.
4. Save different profile programs into the computer, and replae profiles without adjusting the tool, greatly improving thworking efficiency.
5. This machine adopts numerical control technology and can finish automatic cutting of different sizes of profiles.
6. When processing different profiles, it is not necessary to customize the tool, thus shortening the production preparation, cycle and cost.

Technical Data

Input power7.65kw
Power supply380V 50Hz
Motor rotary speed2800r/min
Operation air pressure0.6-0.8MPa
Spindle diameterΦ250*Φ32mm
Saw blade specification Φ305*Φ30mm
Worktable dimension630*360mm
Motor adjustment0-90mm
Max. open tenon85mm
Max. size of tapping100mm vertical knife
Roughness Ra12.5um
Overall dimension3965*1740*1670mm

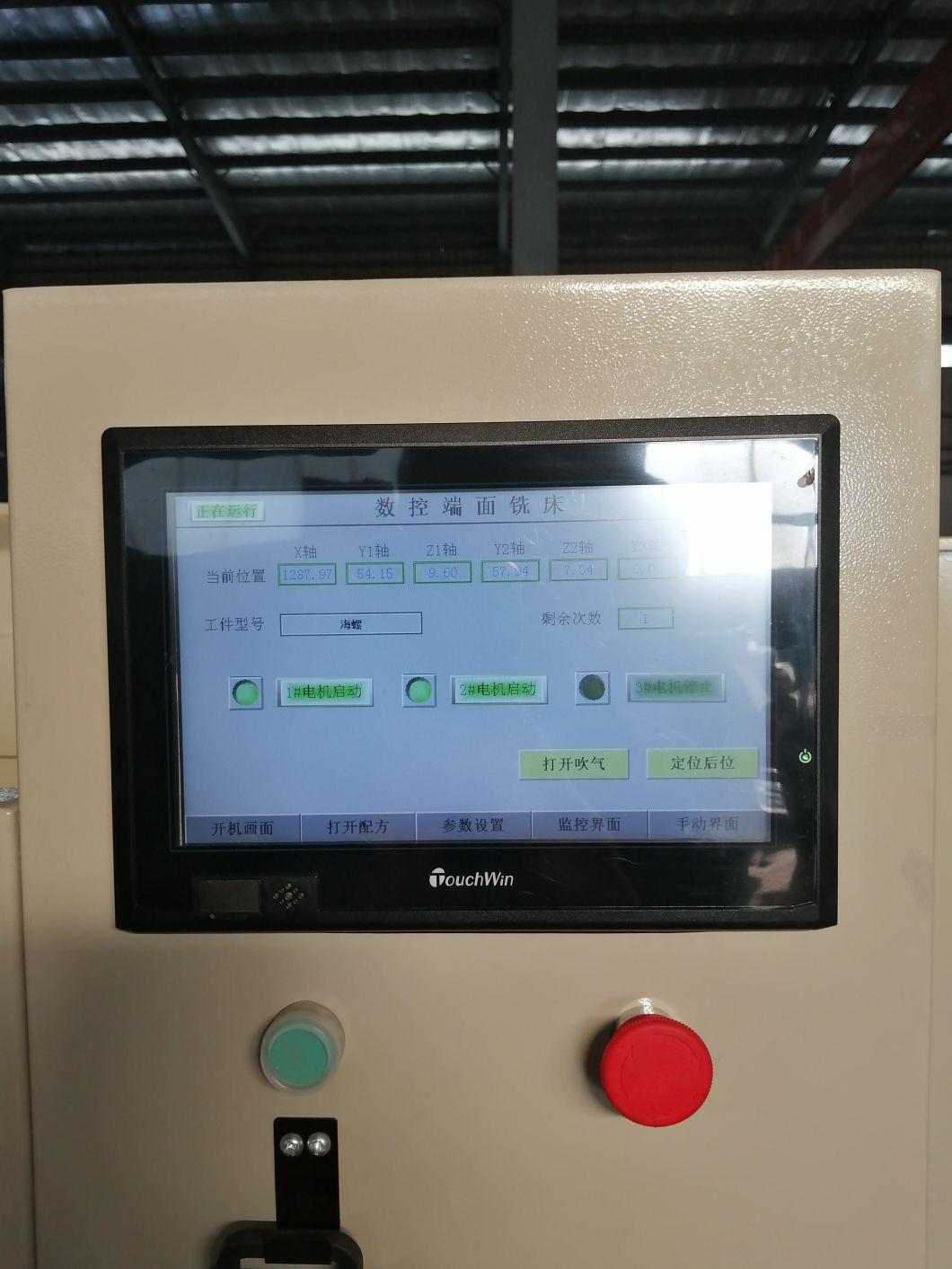

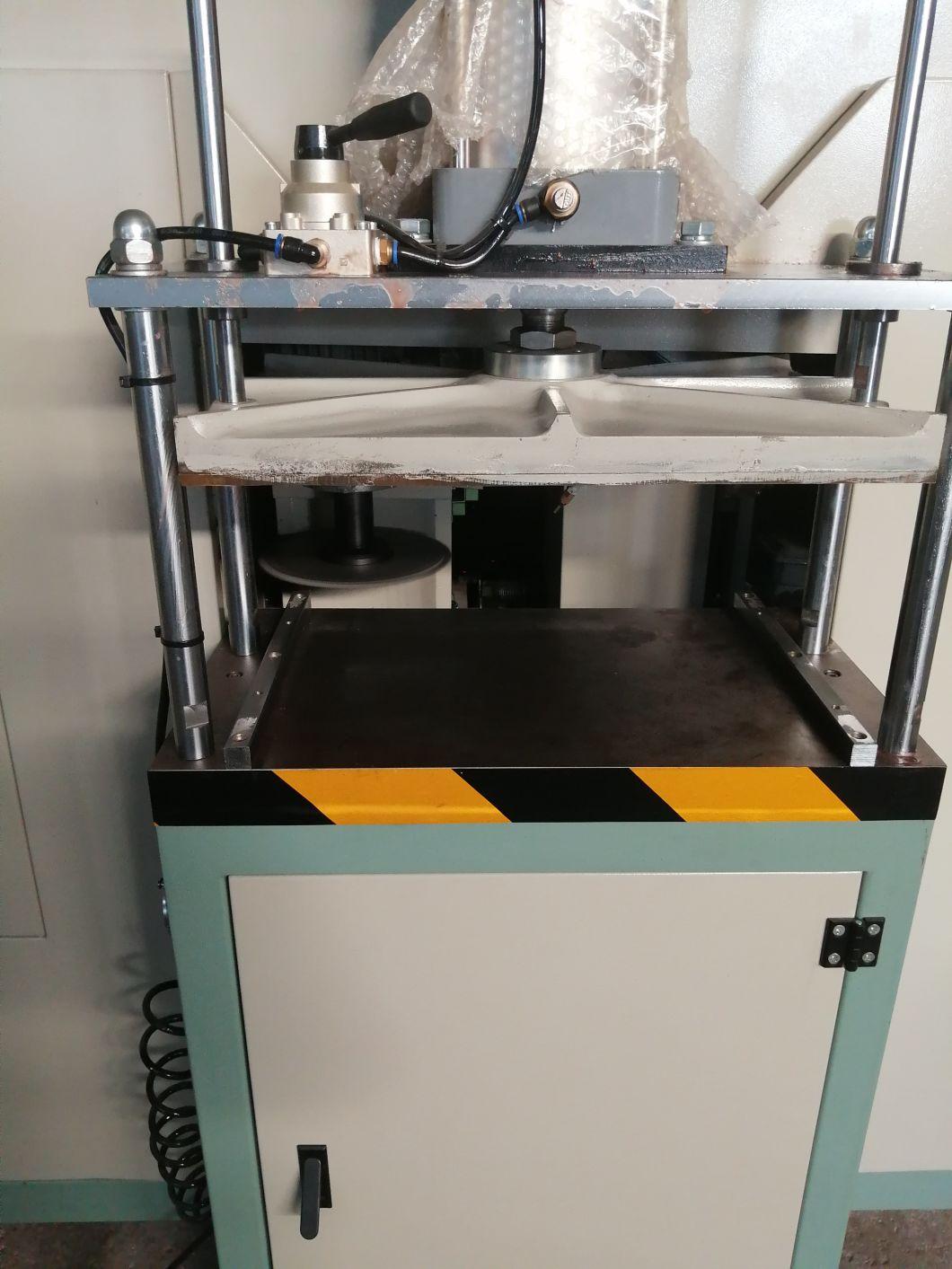

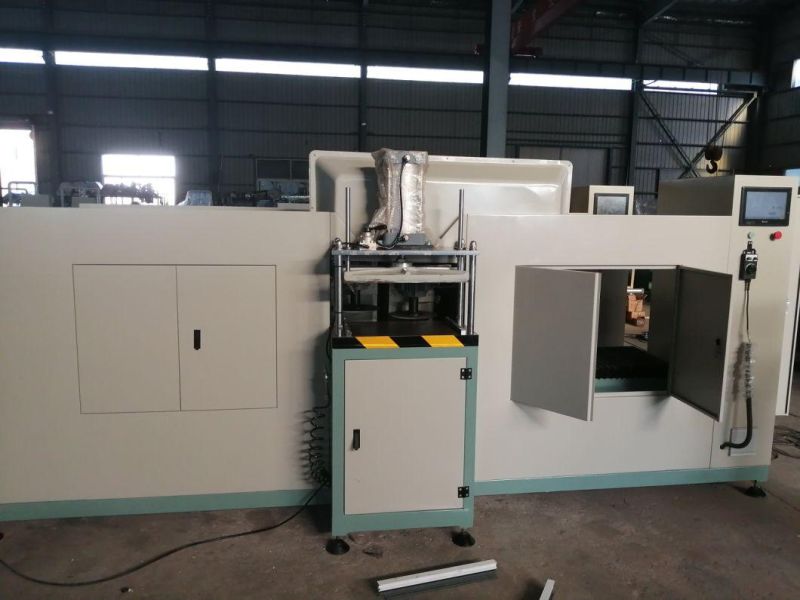

Machines DetailsCNC 7 Axes End Milling Machines for Aluminum Window Mullion Profile
CNC 7 Axes End Milling Machines for Aluminum Window Mullion Profile
 Machine processing

We work with everything from raw material to final machine
, could guarantee machine quality from each step. select each part carefully, we are strive to quality first when machine production and test each machine before delivery.
We will provide the best machine for you.


CNC 7 Axes End Milling Machines for Aluminum Window Mullion Profile

Packaging&Shipping

CNC 7 Axes End Milling Machines for Aluminum Window Mullion Profile

Our Services

Before payment

Free contact for the most suitable machine

Free professional design for each customer especially.

After sale service

24 hours technical support by phone, email or skype (email or skype) .

1years warranty period

Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.

By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.

Payment

♦ L/C, 30% deposit by T/T,70% spare payment L/C.

♦ T/T, 30% deposit by T/T,70% spare payment before shipment.

♦ Western Union or Paypal.

Our Company



Welcome To Visit

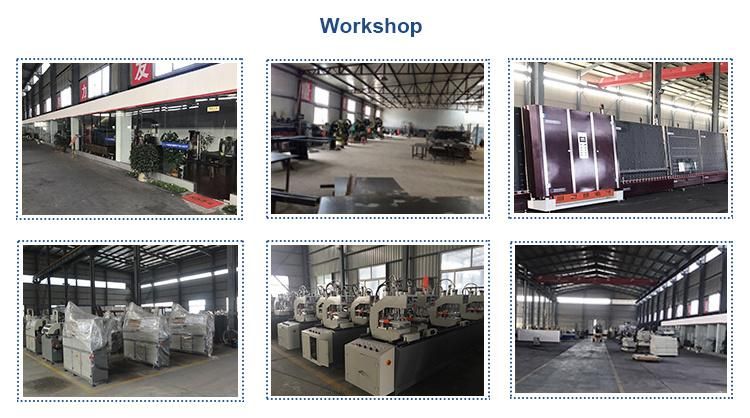

Our company is a manufacturer of window machine, insulating glass processing machine and curtain wall machine with well-equipped testing equipment and strong technical force.


With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in building trade and other industries. Hope we can cooperate with you.
CNC 7 Axes End Milling Machines for Aluminum Window Mullion Profile
CNC 7 Axes End Milling Machines for Aluminum Window Mullion Profile
CNC 7 Axes End Milling Machines for Aluminum Window Mullion Profile
Our Exhibition
CNC 7 Axes End Milling Machines for Aluminum Window Mullion Profile
FAQ


1. When can we arrange shippment?
We usually arrange shippment within 25 days after getting deopsit,
but customized machines should be more than 25 days.

2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines

3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.
