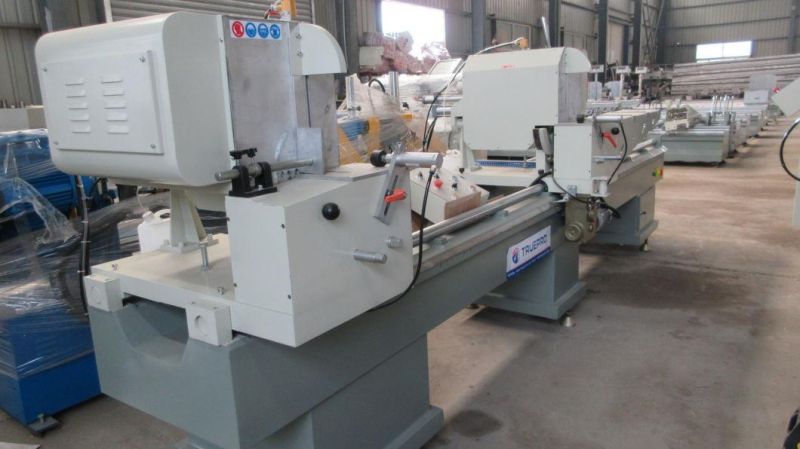

45 90 135 Degree Single Head Aluminum Profile Cutting Miter Saw Machine
Shandong Truetec Machinery Co., Ltd.- Condition：New
- Certification：CE
- Automatic Grade：Automatic
- CNC or Not：not CNC
- Voltage：380V
- Input Power：2*1.5kw
Base Info
- Rotary Speed：2800r,Min
- Air Consumption：60L,Min
- Cutting Length：400-3700mm
- Cutting Width：120mm
- Cutting Height：200mm
- Cutting Angle：45 ,90 and 135 Degree
- Machine Dimension：4500*1170*1400mm
- Weight：1500kg
- Keyword：Double Head Cutting Saw
- Function：Used for Cutting Aluminum Profile
- Cutting Speed：0-3m,Min
- Cutting Profile Surface Planess：Ra12.5
- Blade Specification：Degree 450*30*4.4 Z=120
- Transport Package：Wooden
- Specification：Saw blade diameter 450mm
- Trademark：Truepro
- Origin：China
- HS Code：846150
- Production Capacity：500sets,Year
Description
Machine feature:
1.The machine is used for cutting of aluminum &PVC profile.
2.Imported carbides blade is of accurate processing and high accuracy.
3.Saw blade rotates smoothly due to high accuracy main spindle.
4.Uniform speed feeding and smooth motion are due to airdraulic damping cylinder.
5.It has feature of easy operation,reliable performance,advanced technique and convenient maintenance,etc.
6.Two saw head can be manually switching angle,realize the -45 degree,90degree,45degree angle cutting profile.
Parameter:
| Model | CLJZ-450*3700 |
| Power Supply | 380V 50HZ |
| Input Power | 2*1.5KW 1*0.55KW |
| Air Pressure | 0.5~0.8MPa |
| Motor Rotary Speed | 2800r/min |
| Saw Blade Specification | Φ450*Φ30*4.4 Z=120 |
| Cutting Angle | 45 ° 90° 135° |
| Cutting angle allowance | ±5' |
| Cutting speed | 0-3m/min |
| Cutting profile surface planeness | ≤0.1mm |
| Cutting profile surface roughness | Ra12.5μm |
| Cutting Length | max. 3700mm min.400mm |
| Cutting Width*Height | 120*200mm |
| Overall Dimension | 4500*1170*1400mm |
| Weight | About 1500Kg |

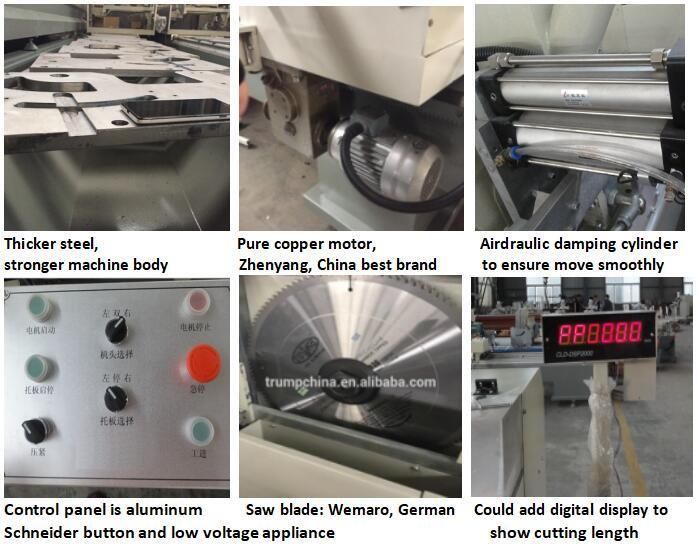

Machine details:

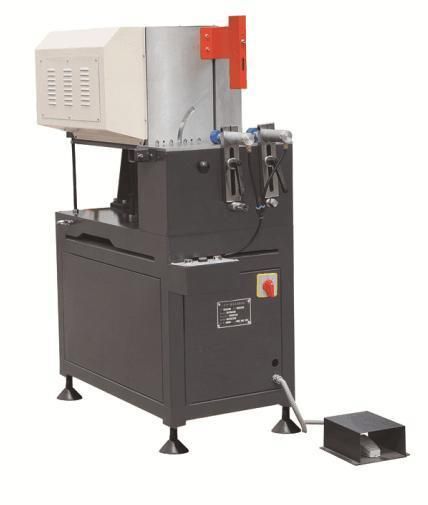

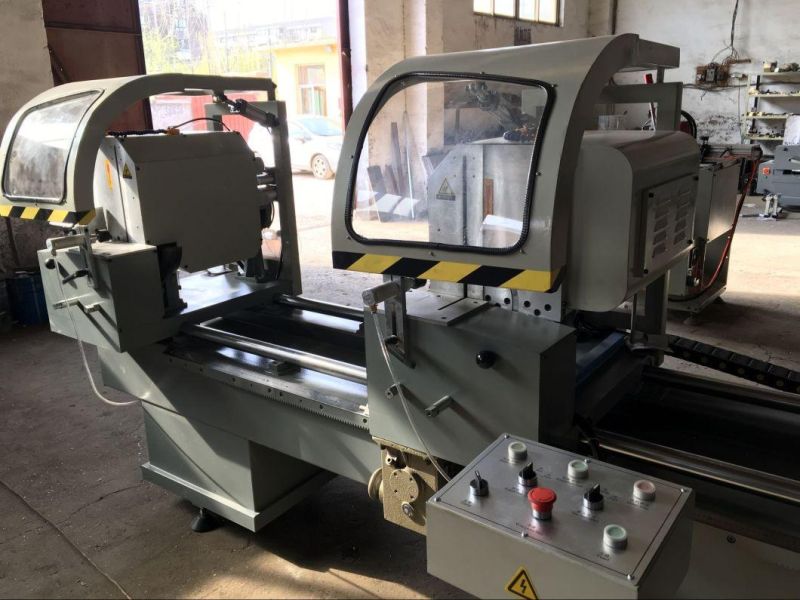

With saw cover:
1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.
2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can dispatch our engineers to repair your machines
3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
All of our engineers have passport.
4. If I make Aluminum window and door, how many basic machines do i need?
1).double head cutting saw
2).Lock hole copy milling machine
3).End milling machine
4).Automatic Corner connector automatic cutting saw
5).Single head Corner combining machine
