• Model NO.：Various Model
• Output：100-1500tpd
• Experiences：50 Years
• Condition：New
• After Sale Service：for The Whole Using Life
• Spare Parts：We Offer
• Testing：We Offer
• Type：Cement Clinker Grinding Station
• Training：on Site
• Transport Package：Packing in Standard Containers or Meet Your Demand
• Specification：ISO9001, ISO14000, CE
• Trademark：zk
• Origin：Henan, China (Mainland)
• HS Code：8417

Basic Info.

Model NO. Various Model Output 100-1500tpd Experiences 50 Years Condition New After Sale Service for The Whole Using Life Spare Parts We Offer Testing We Offer Type Cement Clinker Grinding Station Training on Site Transport Package Packing in Standard Containers or Meet Your Demand Specification ISO9001, ISO14000, CE Trademark zk Origin Henan, China (Mainland) HS Code 8417

Product Description

         Cement Vertical Mill in Cement Grinding Station


Cement grinding station is a separate production unit of cement final product, this phase will add an appropriate amount of cement clinker grinding mixed materials, and output of end cement products. Cement production, the general line can be divided into raw material preparation, clinker and cement made three processes.Silicate cement production technology in cement production representative, is composed of limestone and clay as the main raw material, crushing, batching, grinding into raw material, and then feeding mature cement kilns burning material, and then cooked add appropriate amount of gypsum materials (sometimes mixed with mixed materials or additives) from Ground.



Brief introduction of cement grinding station  process flow:

After crushed by hammer crusher, the large materials become small ones and are sent to storage hopper by elevator. When the grinding mill is at work, all the grinding rollers are rolling in the ring, and the materials are driven to the edge of the turnplate by the centrifugal force and fall down into the grinding chambers where the materials are repeatedly pressed, crushed and grinded by the rollers.

The high-pressure air blower constantly inhales air within the grinding mill and, in turn, the air flow with crushed materials are brought to the classifier whose high-speed impeller will screen the airflow: the unqualified particle size will fall and return to the mill for being reground while the qualified particle size mixed with air will go into the cyclone powder collector. At the same time, the fine powders clinging to the surface fall down by the sudden vibration of the filter bags, which is caused by the instantly ejected high-pressure gas controlled by the pulse valve.


Grinding equipments list supplying for 8-10 t/h small size simply - equipped cement  clinker grinding.

1.Grinding Mill: Cement vertical mill.

2.Feeding Machines: Apron Feeder , Impeller Feeding machine ,  Magnetic Vibrating Feeding Machine ect.

3.Conveying Equipments: Bucket Elevator, Belt Conveyor, Chain Conveyor , ect.

4.Crushers: Jaw Crusher, Hammer Crusher, Impact Crusher ect .

5.Dust  Collectors / Dust Filters: Bag type Dust Collector / dusct filter,  Pulse bag Dust Collector, Air box type pulse bag dusct collector  ect .

6.High effecient powder separator: High Efficient Horizontal whirling-fluid  Powder Separator, Centrifugal powder separator/ concentrator , cyclone  powder concentrator ect.



7.Packing Machines: Automatic Cement Packing Machine , 1-12 spouts cement bag rotary packing machine  ect .

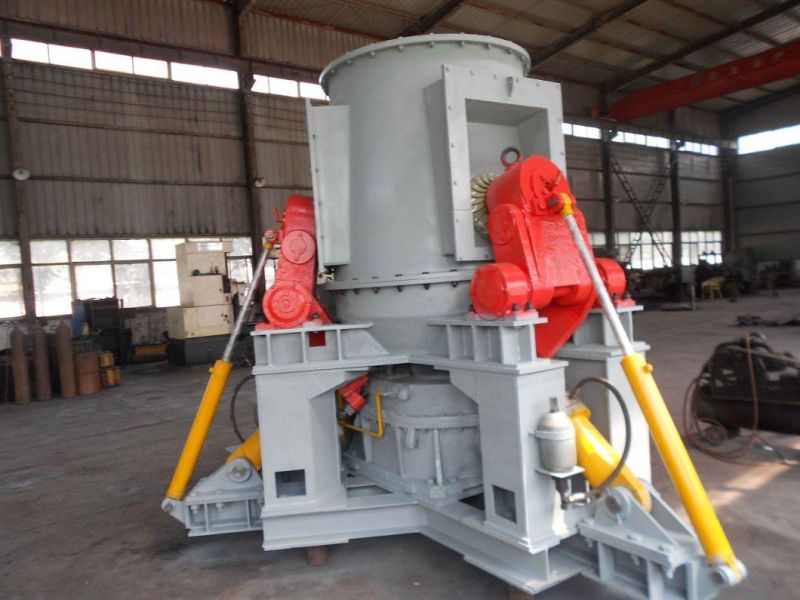

Introduction of cement vertical mill:

The vertical mill produced is air-swept type, widely used in the grinding of raw cement, slag, cement clinker, raw coal and other raw materials.   The vertical mill adopts dynamic powder selecting device, which comes with high powder-selecting efficiency and convenient adjustment of fineness. It has advantages of high grinding efficiency, saving 20~30% power consumption compared with the ball mill,strong drying capacity, mulfunction, such as crushing, drying, grinding, separating and conveying, low noises and little dust, no direct contact between the grinding rollers and grinding disc, so metallic impact is avoided and its noises is 20~25 decibels lower, low wear rate and little metallic pollution.


Our service:

Optimum Service of ZK CORP:


We have advanced production technology and management. Our professional engineers and after-sales groups can offer optimum service for our customers.



Pre-sale services

Act as a good adviser and assistant of you; enable you to get rich and generous returns on your investments;

1. Select equipment model; 2. Design and manufacture products according to clients' special requirement; 3. Train technical personnel for clients



Services during the sale

Respect your requirement; devote ourselves to improving the total value of yours.

1. Pre-check products before of delivery; 2. Help you to draft solution.



After-sales service

Provide considerate services to minimize your worries.

1. Assist you to prepare for the first construction scheme; 2. Install and debug the equipment; 3. Train the first-line operators on site; 4. Examine the equipment regularly; 5. Take initiative to eliminate the troubles rapidly at site; 6. Distribute the guarantee fittings door-to-door; 7. Provide perfect service; 8. Provide technical exchanging; 9. Provide maintenance for big items.

 Quality assurance

We have got

ISO9001:2008 Quality Management System Certification

CE Certification (Ball Mill)

ISO14001:2004 Environmental Management System Certification

OHSAS 18001:2007 Occupational Health & Safety Management System Certification



Company infromation:

Henan Zhengzhou Mining Machinery Co., Ltd is located in Wulong Industrial Park of Zhengzhou Xingyang which is the capital of Henan Province. It is at the junction of 310 State Road and Xingmi Road, close to the highway, railway station, West Zhongyuan Road, downtown area of Zhengzhou and Zhengzhou International Airport. The transportation condition is very convenient. The main products of company include: ball mill, rotary kiln, vertical preheater, cooler, crusher, metallurgical coke oven, magnetic separator, flotation machine, classifier, feeder, bucket elevator, preheater, dust collector, elevator, drier, and other equipments relate to metallurgy, cement, lime, mineral processing, refractory, chemical industry.
