Auto Adjustable Perforated Cable Tray Roll Forming Machinery Max. 800mm Width
Hangzhou Reliance Machinery Co., Ltd.- After-sales Service：Spare Parts Backup
- Warranty：2 Years
- Certification：CE, ISO9001
- Customized：Customized
- Condition：New
- Control Type：CNC
Base Info
- Model NO.：100-800
- Automatic Grade：Automatic
- Line Speed：10-15m,Min
- Suitable Material：Galvanized Steel,Stainless Steel
- Thickness Range：0.8-2mm
- Cable Tray Width：100-800mm
- Cable Tray Height：50-100mm
- Transport Package：Naked Packing with Fixing
- Specification：100-800
- Trademark：Reliance
- Origin：China
- HS Code：84552210
Description

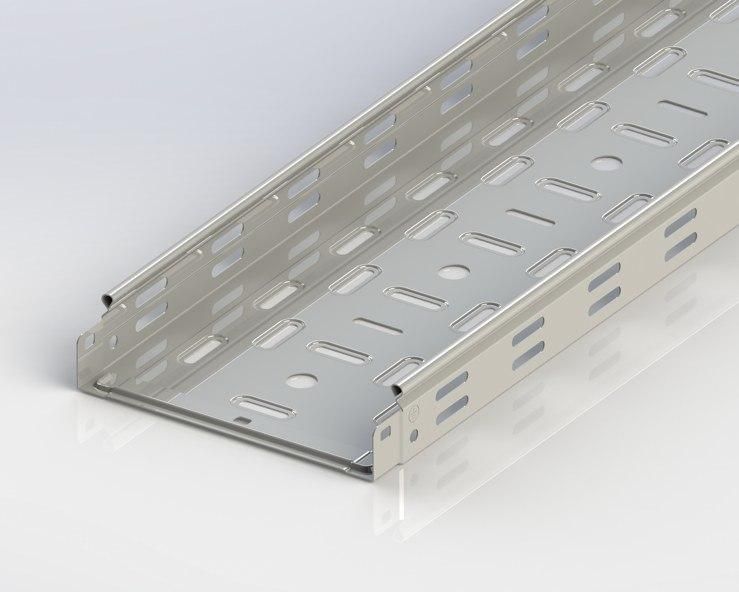

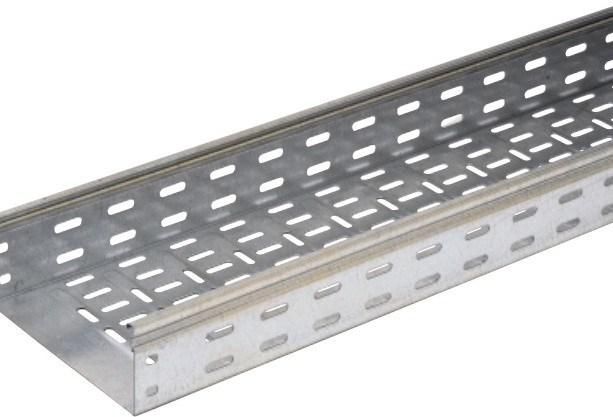

Cable tray roll forming machine is commonly used for cable management in commercial and industrial construction. This intelligent roll former could produce different types of cable trays like: Solid bottom cable tray, Trough cable tray, Channel cable tray, Perforated cable tray, Non perforated cable tray and Trunking cable tray etc. with different raw materials like: hot-dip galvanized steel, pre-galvanized steel, hot-rolled and cold-rolled steel, stainless steel and aluminum. Thickness range of material is 0.6mm-1.2mm or 1-2mm. You could set up 10 different lengths for cable tray.
Our roll forming machine could produce wide range of sizes, and automatically change by motors from one size to the other not only at width but also at height. The only step is put your required data into our touch screen and wait for few seconds. And other wise innovation is that one machine could make cable trays and covers of corresponding size. Change time is only 30 minutes, easy to operate, low-cost and save area.
Capable of producing ridge capping under mass-production with different sizes and specifications.
Certified with multiple patents
1. What's your warranty?
Two years, during which all parts damaged because of the quality problem will be changed for free, but not include damage caused by natural disaster or inappropriate operation or human factor.
2. What's your delivery time?
Within 60 days after receiving prepaid. Some machines are in stock, so can be delivered at any time.
3. What are your payment terms?
30% deposit is paid before production, the balance should be paid after inspection confirmation and before shipment.
4. What's your install and training?
If buyers come to our factory to inspect, the training to install and operate is provided face to face.
If not, a manual and video are provided to show how to install and operate.
5. What's your after-sale service?
We provide 24-hour online service for our customers.
(1) The seller will test the machines freely in China, and the traffic expense in
China of the technique people will be paid by the seller. When our engineer goes to the buyer's place to test the machines, the buyer should pay the expense of accommodation, and traffic for the buyer's engineer.
(2) If the buyer sends people to receive the training of the operation given by the seller, during the training period, the seller should pay the expense of accommodation, and traffic for the buyer's engineer, as well as daily salary of USD 150.
6. How to place an order?
Inquiry---Confirm the profile drawings and price----confirm the PI---Arrange the deposit or L/C---Start design and production--- Test and inspection --- Pay the balance --- Arrange shipping
