• Model NO.：WLFM 27-190-950
• Type：Steel Tile Roll Forming Machine
• Material：PPGI,PPGL,Pre-Painted Steel Sheet
• Controller：Siemens PLC
• Thickness：0.3-0.7mm
• Yield Stress：235-345 MPa
• Max.Forming Speed：15-18 M,Min
• Total Motor Power：11 Kw
• Warranty：1 Year
• After-Sales Service Provided：Engineers Available to Service Machinery Overseas
• Transport Package：Sea Worthy Fixed by Wire Rope, Wooden Blocks
• Specification：CE Standard, ISO 9001-2008
• Trademark：WILLING INT′L
• Origin：China R. P
• HS Code：84552210
• Production Capacity：150 Sets Per Year

Basic Info.

Model NO. WLFM 27-190-950 Type Steel Tile Roll Forming Machine Material PPGI,PPGL,Pre-Painted Steel Sheet Controller Siemens PLC Thickness 0.3-0.7mm Yield Stress 235-345 MPa Max.Forming Speed 15-18 M/Min Total Motor Power 11 Kw Warranty 1 Year After-Sales Service Provided Engineers Available to Service Machinery Overseas Transport Package Sea Worthy Fixed by Wire Rope, Wooden Blocks Specification CE Standard, ISO 9001-2008 Trademark WILLING INT′L Origin China R. P HS Code 84552210 Production Capacity 150 Sets Per Year

Product Description

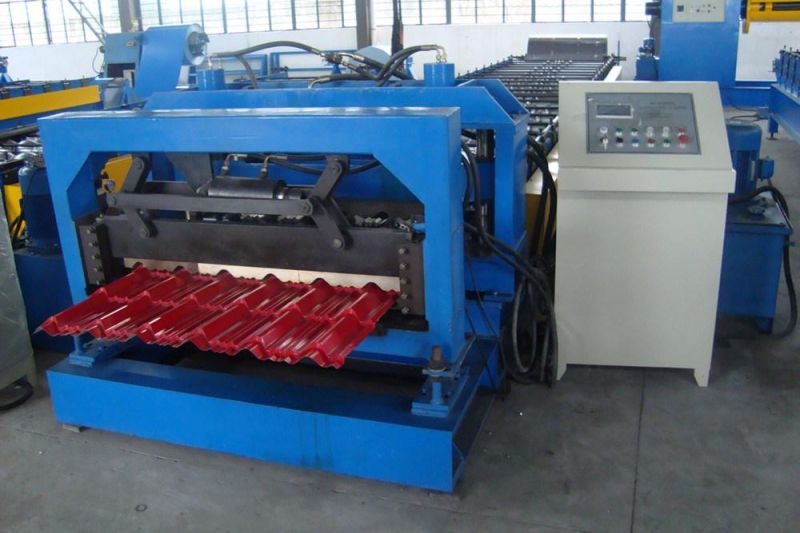

Newest Colorful Steel Tile Roofing Roll Forming Machine
Glazed Steel Tile Roll Forming Machine
Components for the Machine:
The roll forming machine includes manual uncoiler unit, infeed guide, fixed position driven forming stations, pressing die, cutting equipment, hydraulic station, PLC console and manual unload product run out table




Material specification	Aluminum, alu-zinc, galvanized and pre-painted galvanized steel.
Thickness	0.3-0.7mm.(perfect is 0.4mm-0.6mm)
Main motor power	5.5 kw.
Hydraulic station power	5.5kw.
Feeding width	1200mm.
Cover width	950mm
Yield stress	235Mpa (33KSI) ~ 345Mpa (50KSI).
Roll forming Speed	15-18 m/min
Cutting Tolerance	+/-2.5mm(length≤5000mm); +/-3.0mm(5000mm<length≤10000mm).

Manual Uncoiler	Max. Capacity: 5000kgs.
Coil inner diameter	508mm.
Voltage	380V,3 Phase,50HZ,Or As per customer's request.
Numbers of stands	15 stations
Type of cutting	Roll-formed and length-set profile cutting.

3. Material of Main Equipment:

Roller Material	High grade S45C forged steel, coated with hard chrome.
Active Shaft Material	High grade S45C carbon wrought steel, diameter 76mm.
Electric Elements	PLC control console, touch screen and transducer, from Siemens, Germany. Other elements, from Schneider Electric, Germany.
Cutter Blades	Cr12MoV steel with quenched treatment, hardness HRC58~61, wear-resistance, good steel structure, long life.

Process Sketch

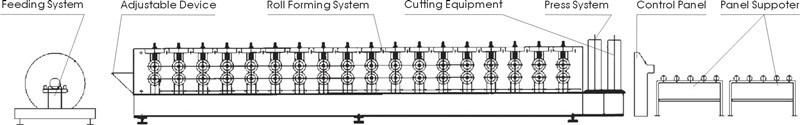

Uncoiling →Infeed guiding →Roll forming →Pressing→Measure Length&Shearing →Sheet to Support Table

Packaging & Shipping

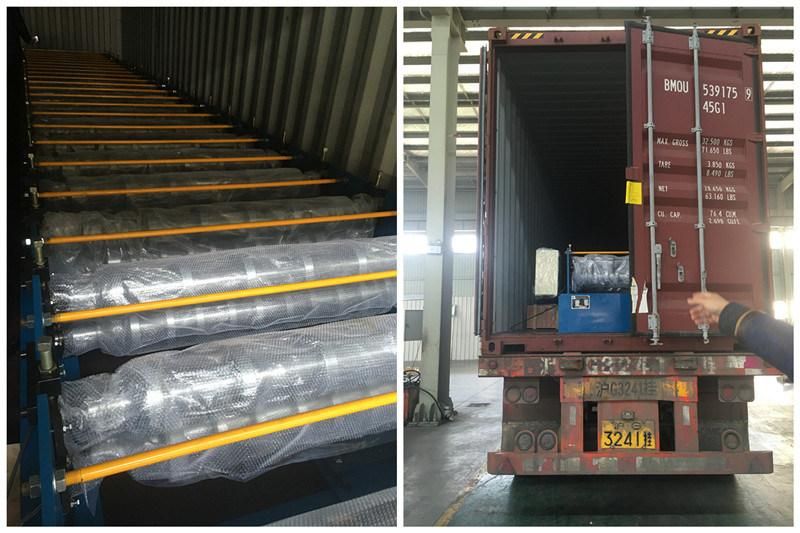

1.One 20ft container for loading one set machine with manual decoiler;
2.The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3.Spare parts and some small parts packed in plastic tooling box;
4.All Components Fixed by steel wire with Container.
