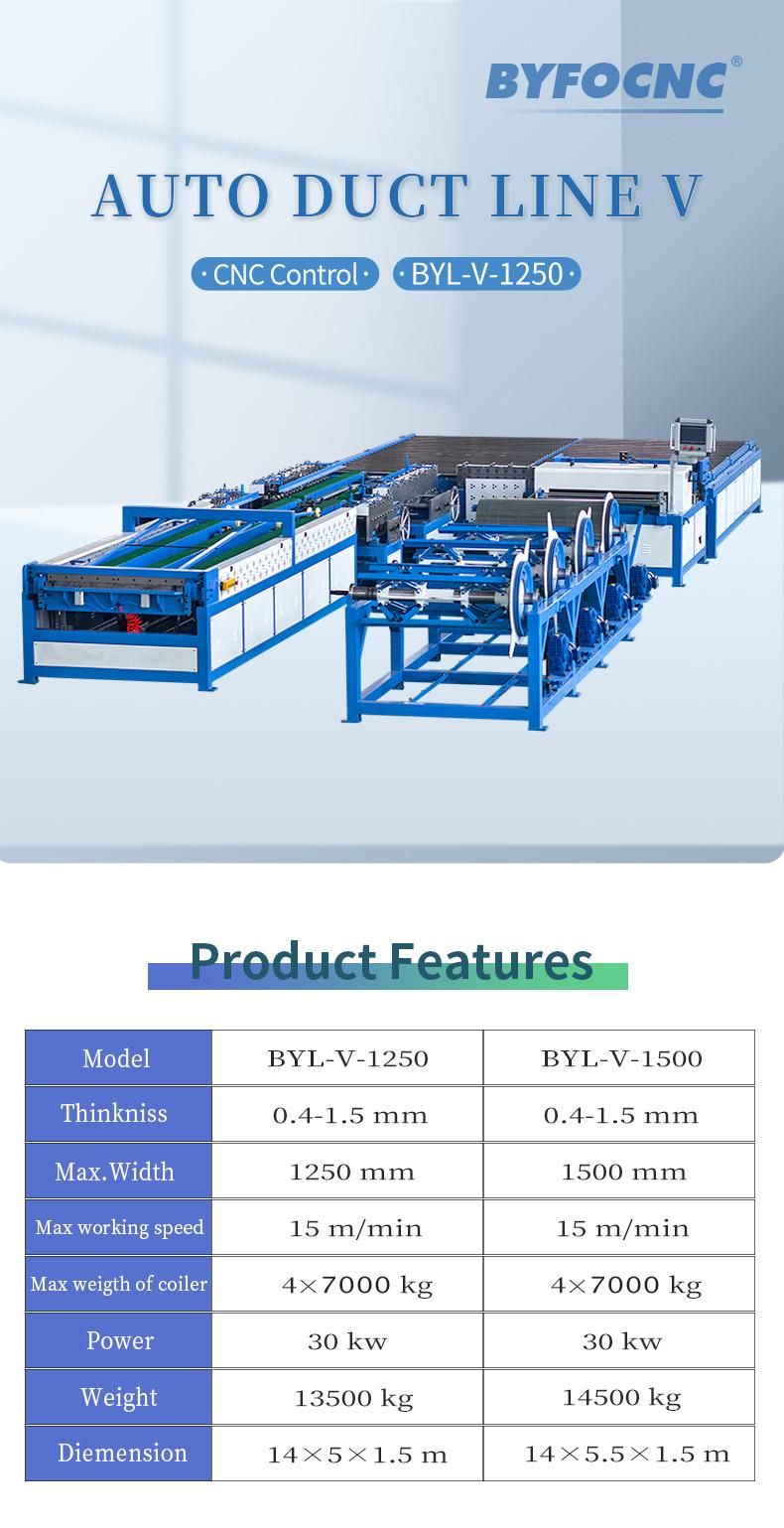

• Model NO.：BYL-V-U Shape 1.2*1300 duct auto line 5
• Application：Industry
• Type：Pipe Production Line
• Power：30kw
• Certification：CE&ISO
• Sheet Thickness：0.5-1.2mm
• Weight：13tons
• Color：Optional
• OEM：Available
• Name：HVAC Square Air Duct Making Machine
• Control System：PLC
• Voltage：220,380,415,420,440V
• Location：China
• Material：Galvanized Steel,Carbon Steel
• Dimension：24000*3500*1500mm
• Function：Duct Work
• Model：Byl-V-U Shape 1.2*1300 Duct Auto Line 5
• Transport Package：Seaworthy Package
• Specification：14000*5000*1500mm
• Trademark：BYFOCNC
• Origin：China
• HS Code：8462490000
• Production Capacity：30 Sets,Month

Basic Info.

Model NO. BYL-V-U Shape 1.2*1300 duct auto line 5 Application Industry Type Pipe Production Line Power 30kw Certification CE&ISO Sheet Thickness 0.5-1.2mm Weight 13tons Color Optional OEM Available Name HVAC Square Air Duct Making Machine Control System PLC Voltage 220/380/415/420/440V Location China Material Galvanized Steel,Carbon Steel Dimension 24000*3500*1500mm Function Duct Work Model Byl-V-U Shape 1.2*1300 Duct Auto Line 5 Transport Package Seaworthy Package Specification 14000*5000*1500mm Trademark BYFOCNC Origin China HS Code 8462490000 Production Capacity 30 Sets/Month

Product Description



Performance Features:

   · Honest strengthens the basis in the pursuit of customer satisfaction and constant innovation

 helps customers to achieve the goals.

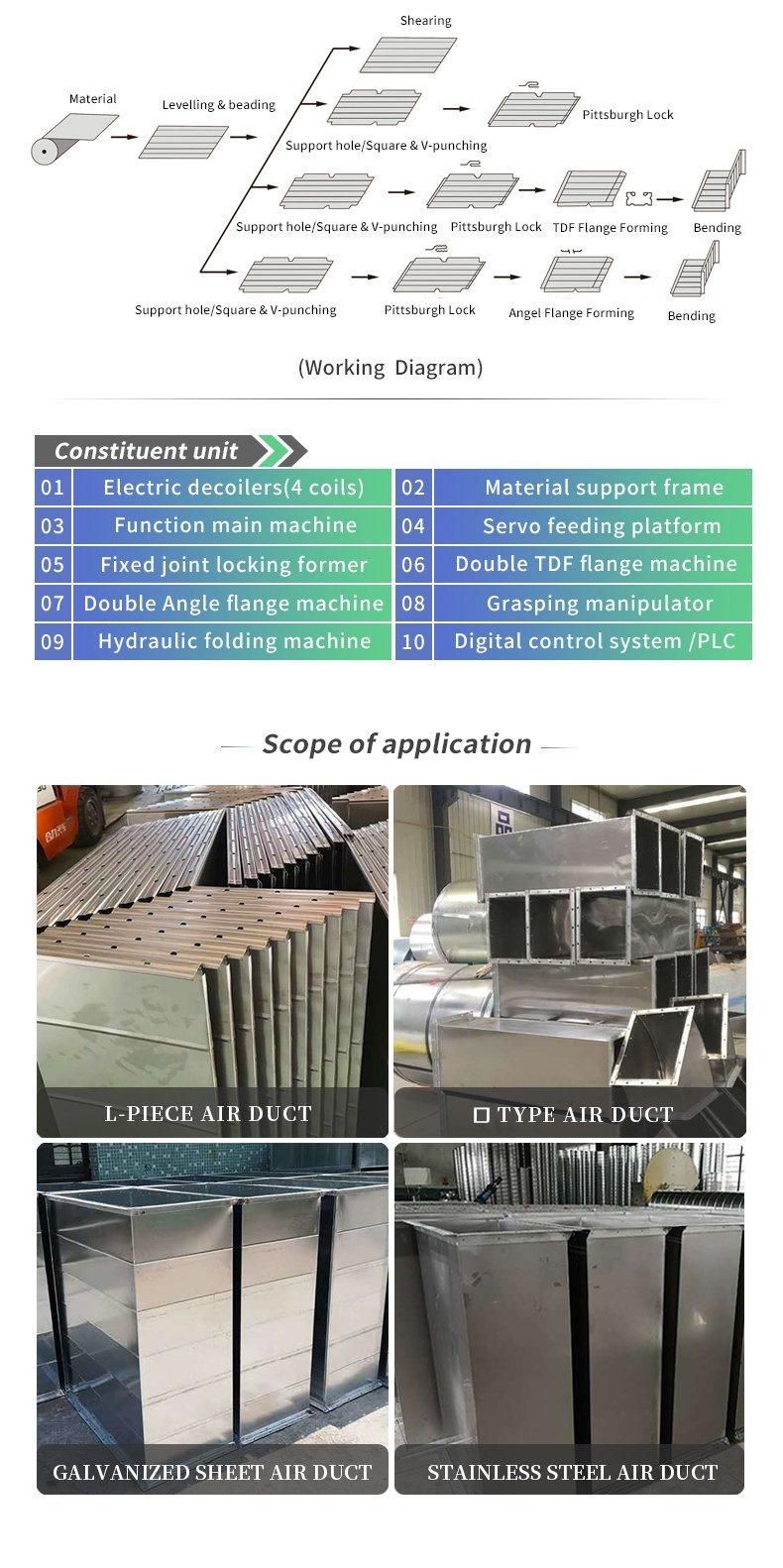

   ·  During feeding mechanism with pneumatic servo manipulator helps to ensure stability and

 speed of the machine, and the accuracy of its locating system.

   ·   It only takes 20-25 seconds to make one L-shaped workpiece and the efficiency will double

 comparing with the linear type.

   ·  Without moving back and forth the fixed locking machine is able to improve the efficiency.

   ·  All the rolling reels are made of bearing steel so that the lifetime prolongs by more than 5 times.

   ·  Under the material-saving mode of CNC system, waste is less than 20 mm per roll.

   ·  With production memory functions, the production orders can be tracked and checked.
