Roller Shutter Door Track Cold Roll Forming Machine
Xiamen Xinhonghua Machinery Co., Ltd.- Warranty:1 Year
- Customized:Customized
- Condition:New
- Control Type:Artificial
- Automatic Grade:Semi-Automatic
- Power Source:Electric
Base Info
- Model NO.:JM85
- Forging Forming Method:Cold Roll Forming
- Advantage:Work Flexible
- Motor Power:4 Kw
- Hydraulic Power:2.2kw
- Volage:220V,60Hz,3pH
- Material Width:136mm
- Effective Width:85mm
- Forming Steps:14 Steps
- Material Thickness:0.6-0.8mm
- Transport Package:Export Standard Packing
- Specification:4000*900*1400mm
- Trademark:XHH
- Origin:Xiamen
- HS Code:84552290
- Production Capacity:15 Sets,Month
Description
Basic Info.
Model NO. JM85 Forging Forming Method Cold Roll Forming Advantage Work Flexible Motor Power 4 Kw Hydraulic Power 2.2kw Volage 220V/60Hz/3pH Material Width 136mm Effective Width 85mm Forming Steps 14 Steps Material Thickness 0.6-0.8mm Transport Package Export Standard Packing Specification 4000*900*1400mm Trademark XHH Origin Xiamen HS Code 84552290 Production Capacity 15 Sets/MonthProduct Description
Specification
The detail information of JM85 Roller Shutter Door Roll Forming Machine,Roller Shutter Door Machine are as follows:
Main Techinal Date:
1. | Size | 4000*900*1400mm |
2. | Weight | 1500 KGS |
3. | Motor Power | 4 KW |
4. | Hydraulic Power | 2.2KW |
5. | Volage | 220V/60HZ/3PH |
6. | Effective Width | 85mm |
7. | Material Width | 136mm |
8. | Forming Steps | 14 steps |
9. | Forming Speed | 8-12m/min |
10. | Thickness for common use and test | 0.8mm |
11. | Tolerance | ± 2mm |

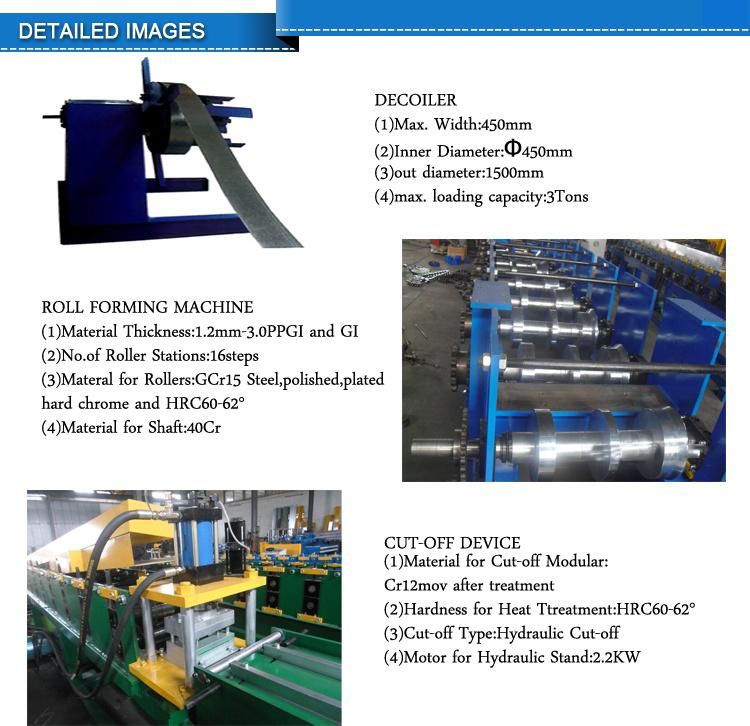

Main Accessories:
(1). Main Roller Shutter Door Forming Machine;
(2). 3 Tons Manual Uncoiler;
(3). Hydraulic System;

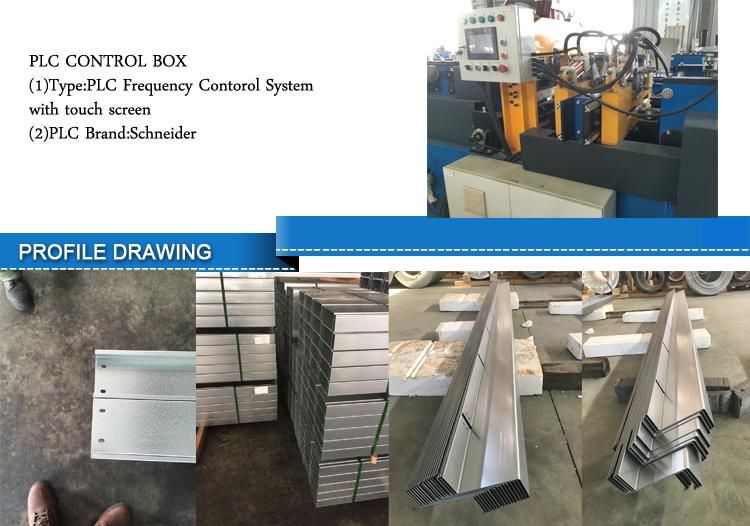

(4). PLC Computer Controlling System With Touch Screen;
(5). Hydraulic Forming Cutter;
(6). Run Out Table (3 sets);
(7). Tools;
(8). Operation Manual.
Usage:Roller Shutter Door is suitable for the general business facade, garage, mall, hospitals or residential corporations and other public places.
