German Technology Full Automatic Produce Concrete Block Brick Making Machine
Quanzhou Hawen Machinery Co., Ltd.- Certification:ISO
- Customized:Customized
- Automatic Grade:Automatic
- Type:Vibration Molding
- Pallet Size:980X880mm
- 39X14X19cm Block:12PCS Per Mould
Base Info
- Model NO.:QT8-15
- Working Method:Automatic
- Raw Material:Cement,Sand ,Crushed Stone
- After Sales Service:English Speaking Technician Available
- Rectangle Paver:32PCS Per Drop
- Hollow Block 40X20X20cm:8PCS Per Mould
- Transport Package:Standard Ocean Packing
- Trademark:HAWEN
- Origin:China
- HS Code:8474809090
- Production Capacity:300 Sets, Year
Description
Basic Info.
Model NO. QT8-15 Working Method Automatic Raw Material Cement,Sand ,Crushed Stone After Sales Service English Speaking Technician Available Rectangle Paver 32PCS Per Drop Hollow Block 40X20X20cm 8PCS Per Mould Transport Package Standard Ocean Packing Trademark HAWEN Origin China HS Code 8474809090 Production Capacity 300 Sets/ YearProduct Description

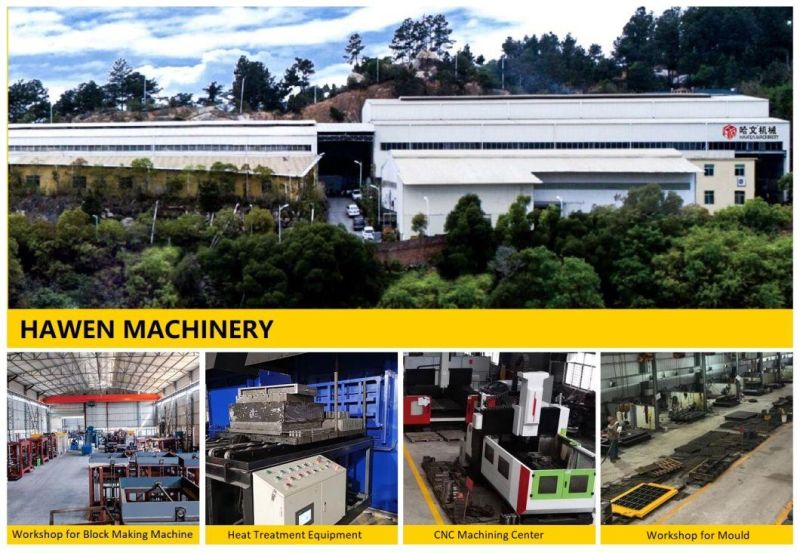

German Technology Full Automatic Produce Concrete Block brick Making MachineFactory workshop
Brief Introduction
QT8-15 is a medium size of our QT series block,brick,paver,curb stone making machine.
QT8-15 brick making machine is versatile, enjoying strong adaptability,the mould can be interchanged in the same model of block machine. It can produce different kinds of product just changing the moulds to meet the requirement of the market.

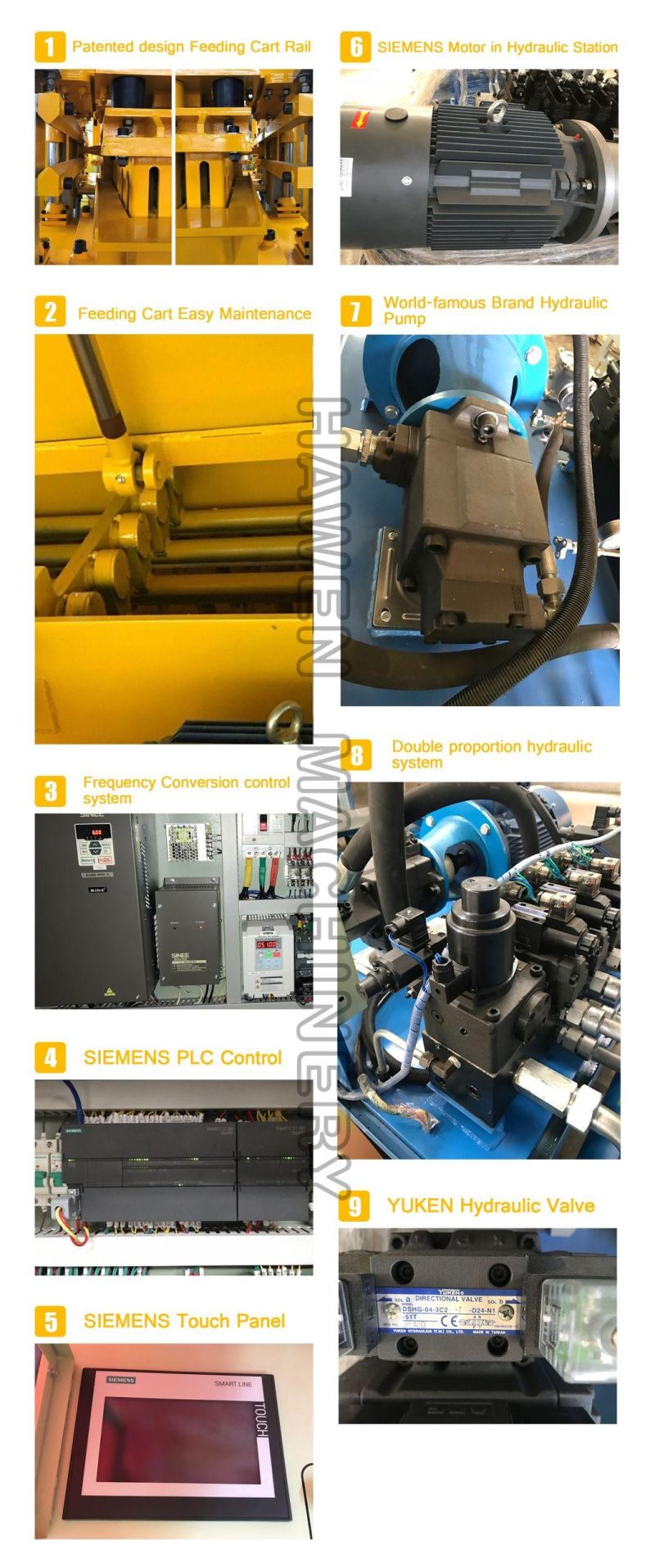

The advanced electrical and hydraulic unit system controls the material feeding and molding of our block making machine, which makes the material feeding well-distributed and the moulding perfect.
The whole production procedures is controlled by digital PLC which is fitted with input and output devices. And we can set the flow, the pressure and the technical data by the touch panel , realizing ideal man-machine conversation.

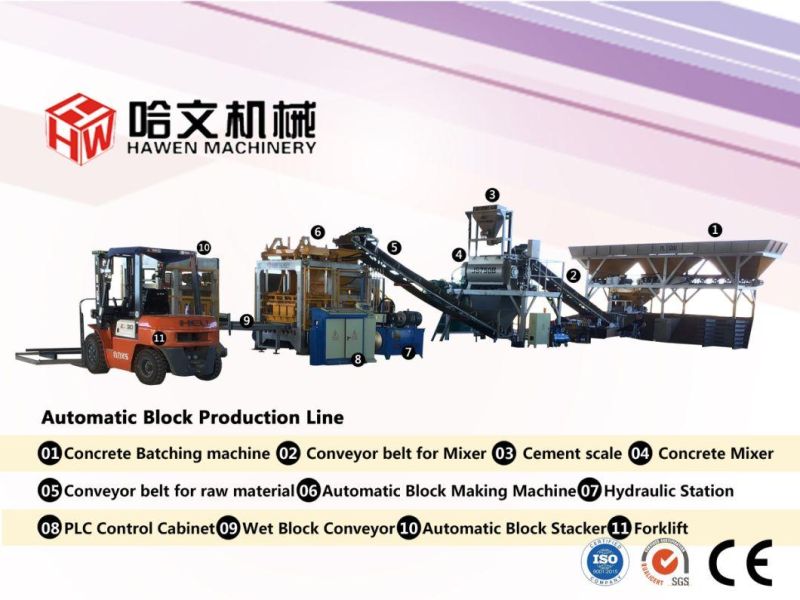

The whole production line including:
- Cement silo;
- Screw Conveyor;
- Cement Scale
- Pl1200-3 Concrete Batching Machine;
- JS750 Twin-shafts Concrete Mixer;
- QT8-15 Main forming machine;
- Automatic Block Stacker.
- Automatic Pallet Provider.
Technical specification:
Pallet size | mm | 980×880×25 |
Cycle time | S | 15-23 |
Rate Pressure | Mpa | 25 |
Vibration force | KN | 95 |
Power | KW | 44.9 |
Weight | T | 12 |
Vibration frequency | r/min | 3800-4500 |
Dimension | mm | 9800×3600×2800 |

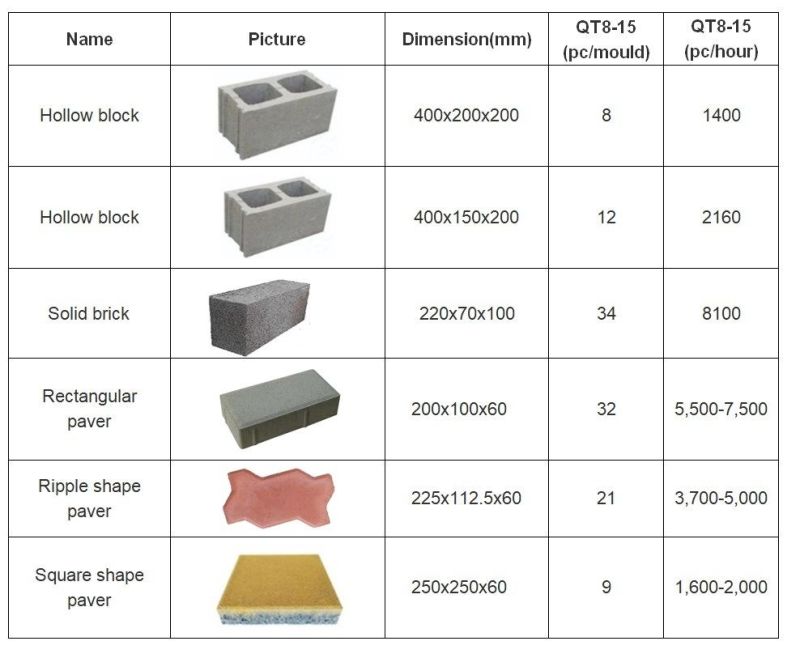

Output of QT8-15 Block machine.

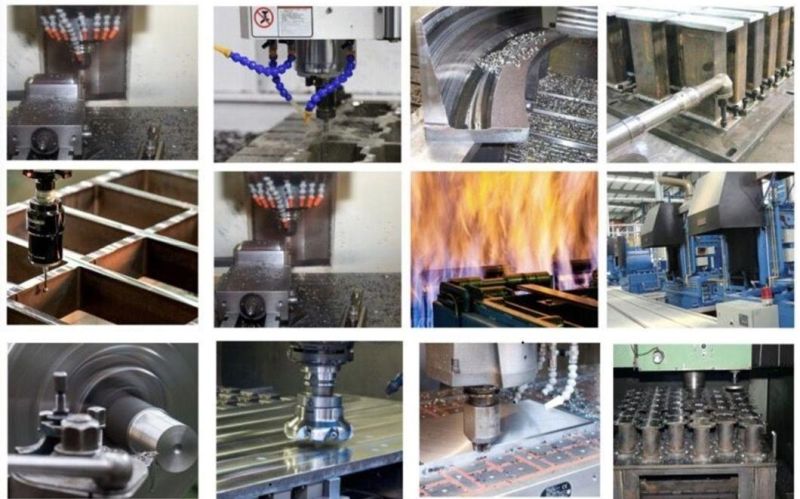

Processing equipment in the workshop

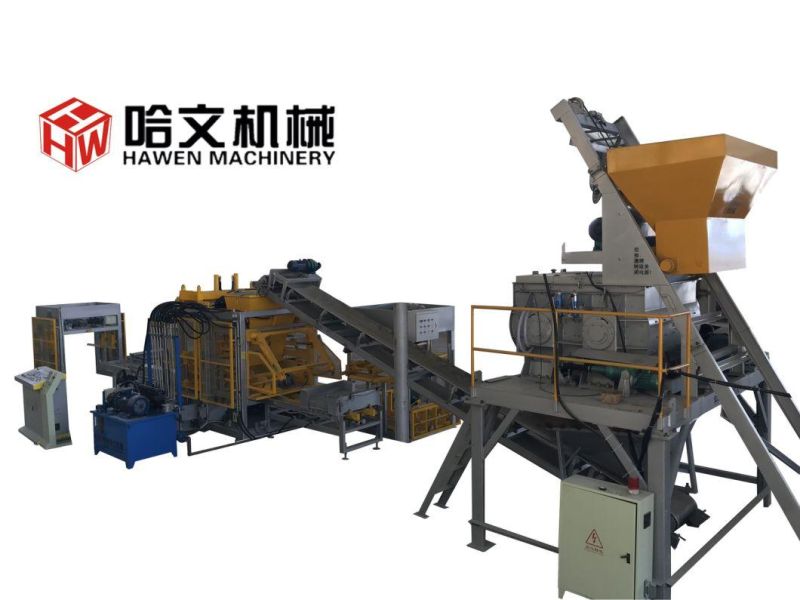

Application of QT8-15 Block Making Machine at site
with Block Stacker,Automatic Pallet Provider, automatic Pallet feeder can feed the pallet into machine automaticly.

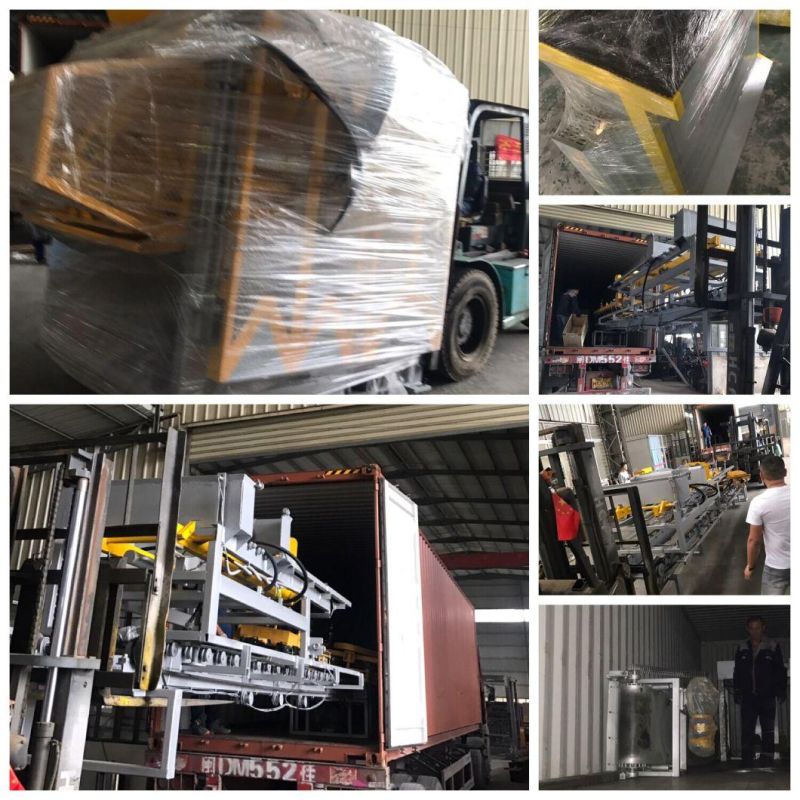

Container loading in workshp for customers overseas

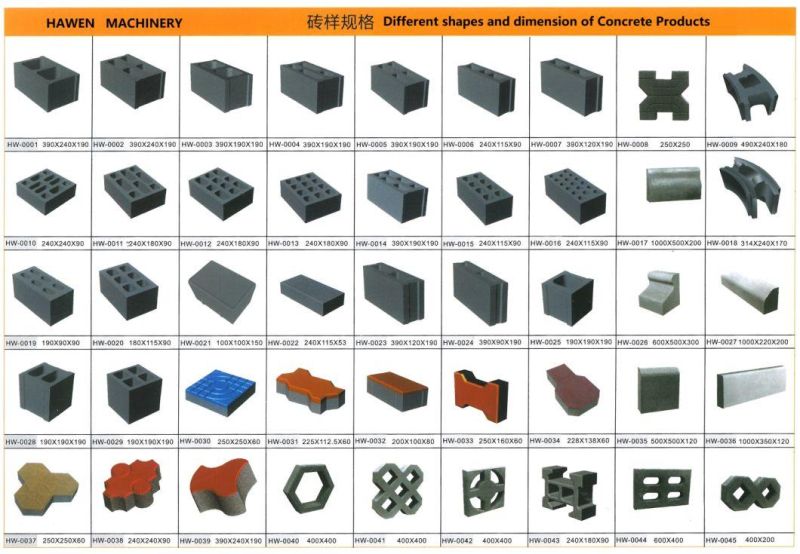

Block and Brick Sample
Application:
Our Service
