• Model NO.：NWDMP-30
• Automation：Full Automatic
• Condition：New
• Type：Dry Mortar Production
• Processing：Dose, Mix and Pack
• Method：Mixing
• Product：Dry Mortar
• Application：Dry Mortar Production

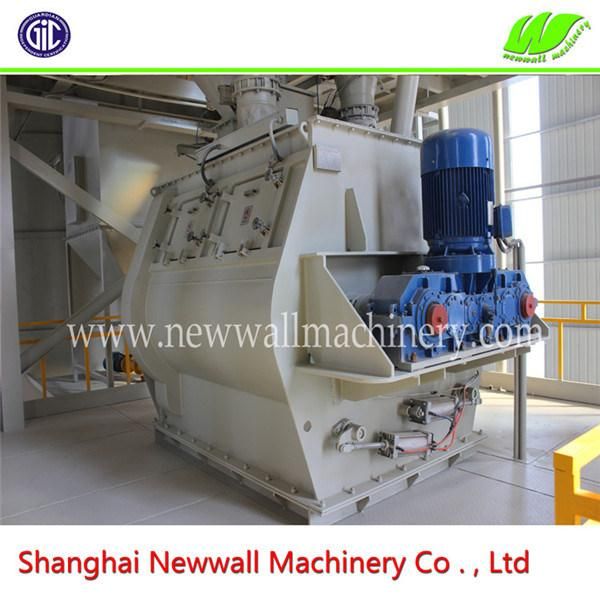

• Mixer：Dual Shaft Mixer
• Mixing Time：180s
• Operator：3 People
• Transport Package：Seaworthy Packing
• Specification：CE
• Trademark：Newwall
• Origin：China, Shanghai
• HS Code：8474310000
• Production Capacity：30 Sets Per Year

Basic Info.

Model NO. NWDMP-30 Automation Full Automatic Condition New Type Dry Mortar Production Processing Dose, Mix and Pack Method Mixing Product Dry Mortar Application Dry Mortar Production Mixer Dual Shaft Mixer Mixing Time 180s Operator 3 People Transport Package Seaworthy Packing Specification CE Trademark Newwall Origin China, Shanghai HS Code 8474310000 Production Capacity 30 Sets Per Year

Product Description

Shanghai Newwall Machinery has provided tile adhesiv batching plant since 2003, during 13 years, we have finished over 200 tile adhesive batching plant at home and abroad. We provide turnkey projects, which include plant design, machine manufacturing, installation and formulation.
the tile adhesive batching plant main consists of the following parts:

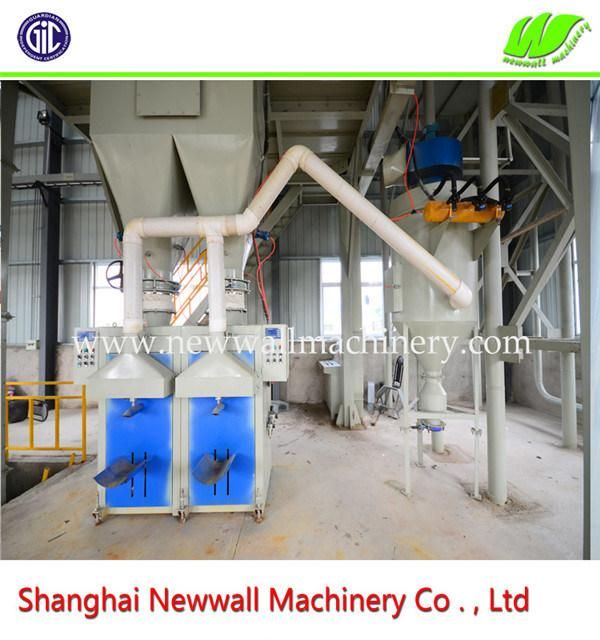

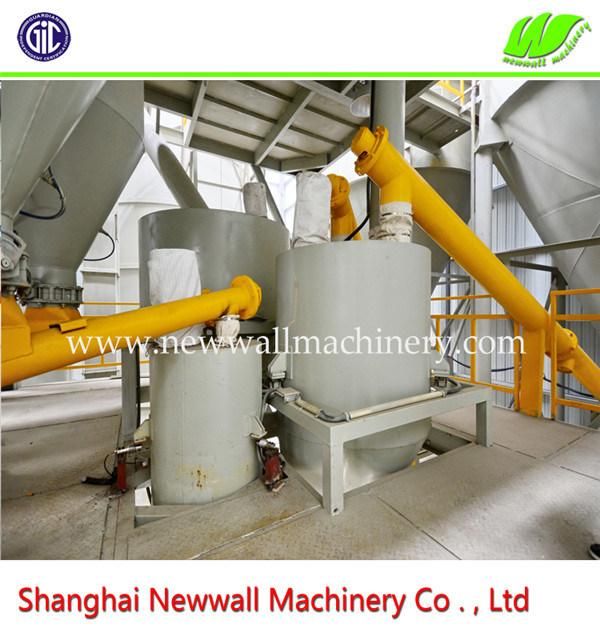

Sand dryer and screen, material store silo, screw conveyor, weighing system, bucket elevator, mixer, end product silo, packing machine and stacker, dust collector and control system. The productivity is 5-80T/h.

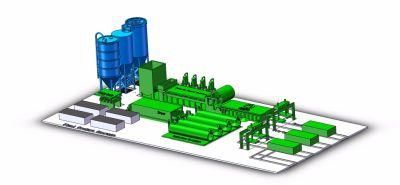

According to the structure type, tile adhesive batching plant can be classified into tower type, series type and workshop type. It is up to the character of raw materials and workshop situation. The needed area is 500~5000m².

Model	Full volume (m3)	Load coefficient	Power (kw)	Rated speed (r/min)
WZ-0.5	0.5	0.4~0.6	5.5	58
WZ-1.0	1.0	0.4~0.6	11	51
WZ-2.0	2.0	0.4~0.6	18.5	43
WZ-3.0	3.0	0.4~0.6	22	38
WZ-4.0	4.0	0.4~0.6	37	38
WZ-6.0	6.0	0.4~0.6	45	34
WZ-8.0	8.0	0.4~0.6	55	29
WZ-10.0	10.0	0.4~0.6	75	29
