• Model NO.：SKX3+1-CNC-3000
• Power：380V,50Hz,3phases or as Customer Request
• Working Size：200X200mm
• Total Power：6kw
• Delivery Time：10-15 Days
• Guarranty：12 Months
• X Axis Range：3000mm
• Y Axis Rang：500mm
• Z Axis Range：330mm
• X Axis Speed：50000mm,Min
• Spindle：Italy
• Machine Color：Any Color You Like
• Weight：1400kgs
• Packing：Steel Pallet
• Worktable Turn or Not：Yes
• Transport Package：Steel Pallet
• Specification：4180X1600X2200mm
• Trademark：MMCNC
• Origin：China
• HS Code：8459210000
• Production Capacity：200 Sets Per Month

Basic Info.

Model NO. SKX3+1-CNC-3000 Power 380V/50Hz/3phases or as Customer Request Working Size 200X200mm Total Power 6kw Delivery Time 10-15 Days Guarranty 12 Months X Axis Range 3000mm Y Axis Rang 500mm Z Axis Range 330mm X Axis Speed 50000mm/Min Spindle Italy Machine Color Any Color You Like Weight 1400kgs Packing Steel Pallet Worktable Turn or Not Yes Transport Package Steel Pallet Specification 4180X1600X2200mm Trademark MMCNC Origin China HS Code 8459210000 Production Capacity 200 Sets Per Month

Product Description

China Aluminium CNC Copy Router Machine Manufacturer 3 axis CNC Milling Machine Curtain Wall Machine

1.1 Feature
2.1.1  applicable for drilling holes,milling grooves,processing circular holes and special-shaped holes,plane engraving of aluminum alloy profile.
2.1.2  System adopts Taiwan SYNTEC CNC Controller
2.1.3  Adopting electric spindle:high precision,high safety and reliable.
2.1.4  X axis adopts high-precision helical gear and rack;Y and Z axis adopt high-precision ball screw transmission and high precision
2.1.5  By using programming software to automatically transform and process G code;easy operation;high efficiency and low labor intensity
2.1.6  Workbench can turn 180°,-90°~0°~+90°;it can realize three-sides processing by clamping one time;it can process deep and special-shaped holes through workbench;high efficiency and precision.

1.2 Technical Parameter
2.2.1   Power supply: 380V/50Hz
2.2.2   Main Spindle power: 3Kw
2.2.3   Main Spindle rotation: 18000rpm
2.2.4   Air pressure: 0.5~0.6MPa
2.2.5    X- axis Journey: 3000mm
2.2.6   Y-axis Journey: 500mm
2.2.7   Z-axis Journey: 330mm
2.2.8   Dimension: 4180 x 1600 x2200mm
2.2.9   Weight about: 1400kg

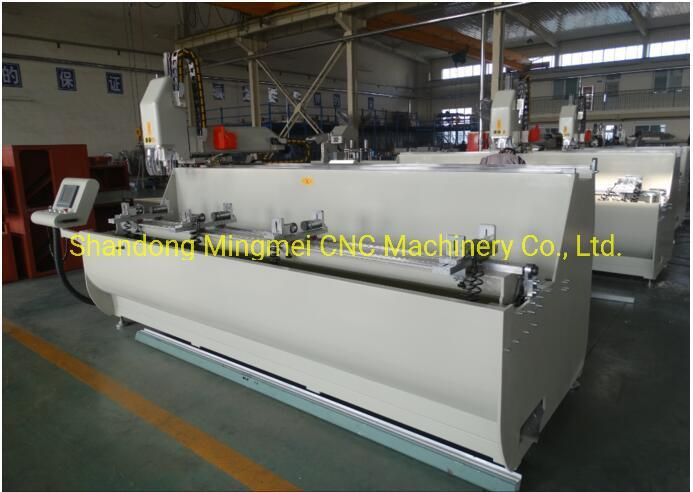

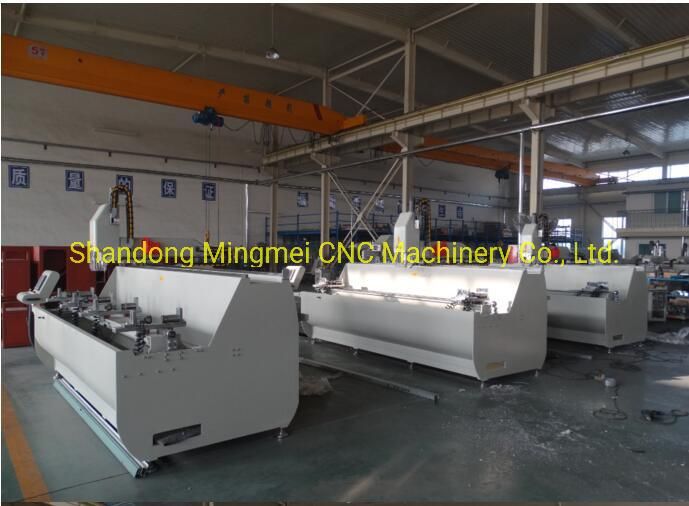

More pictures for 3 Axis CNC Milling Machine




Some samples after working by cnc milling machine for Aluminium Profile

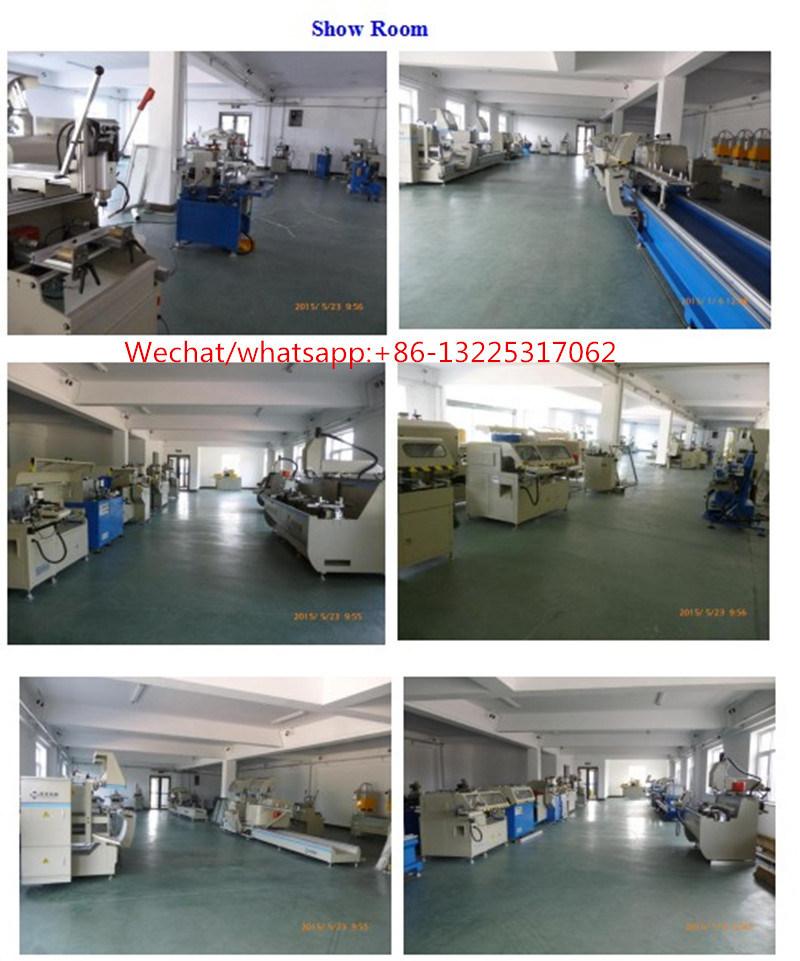

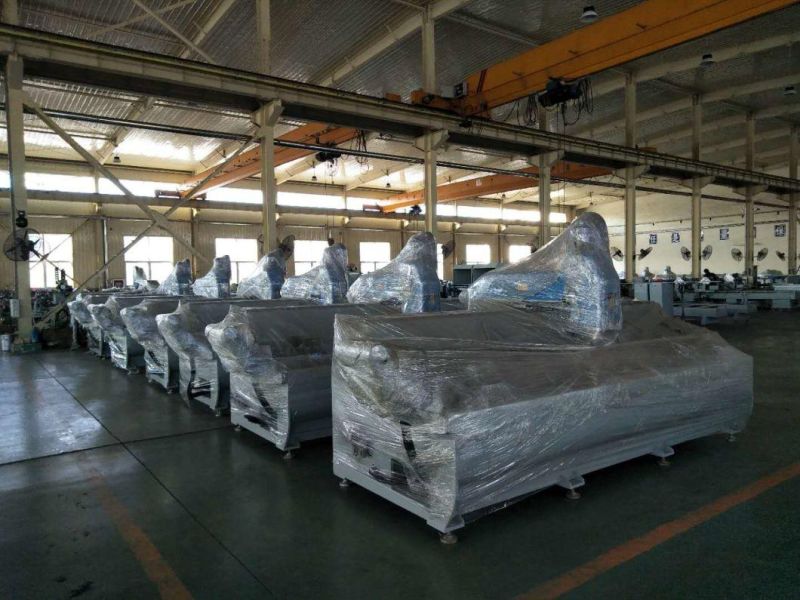

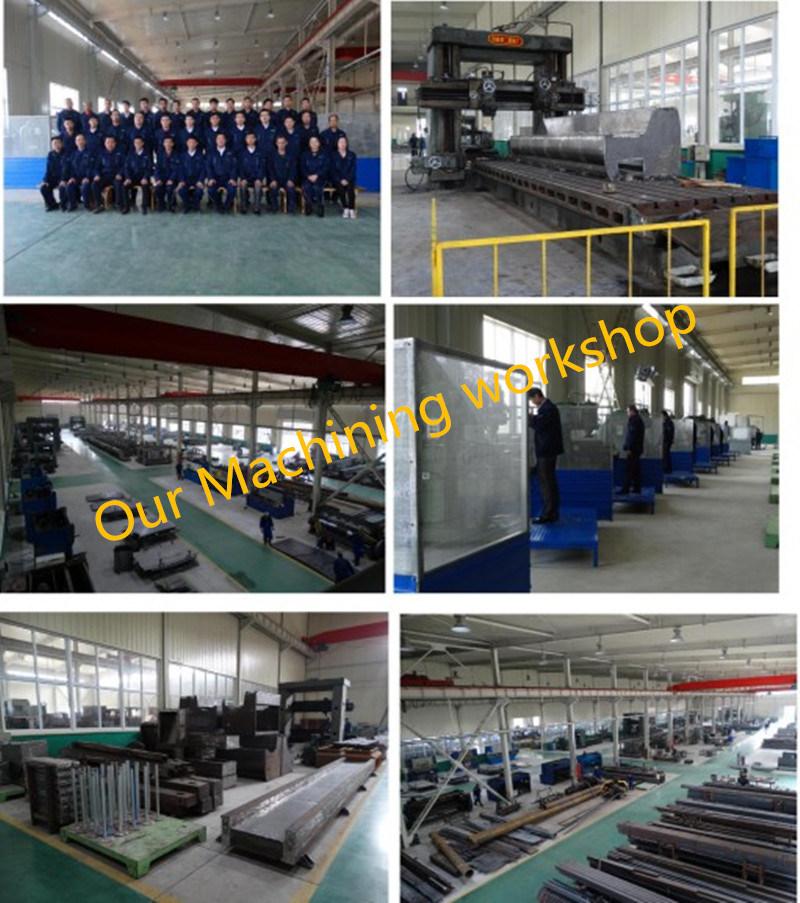

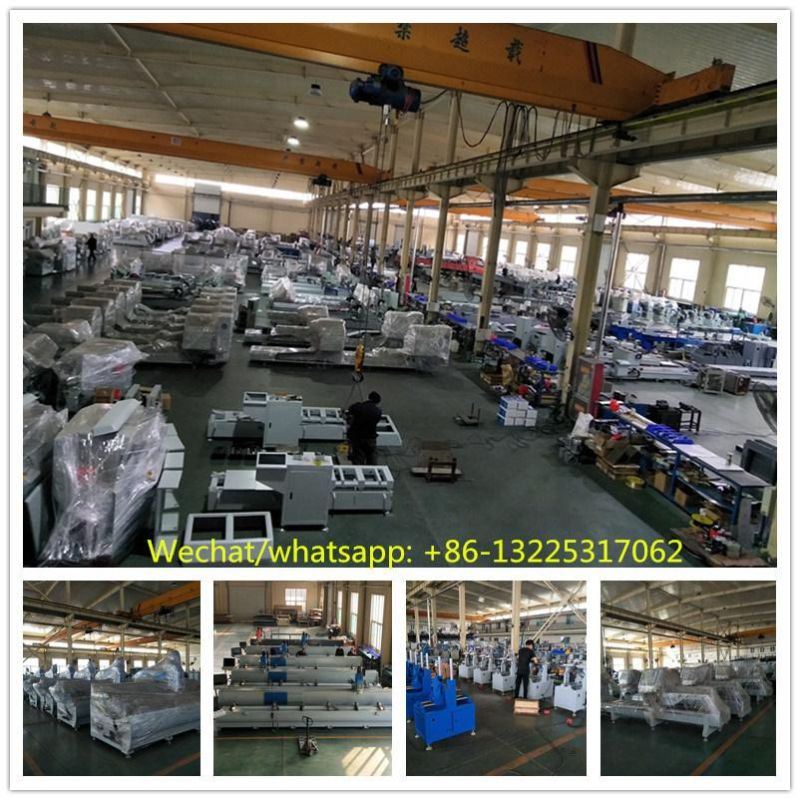

Our factory pictures:

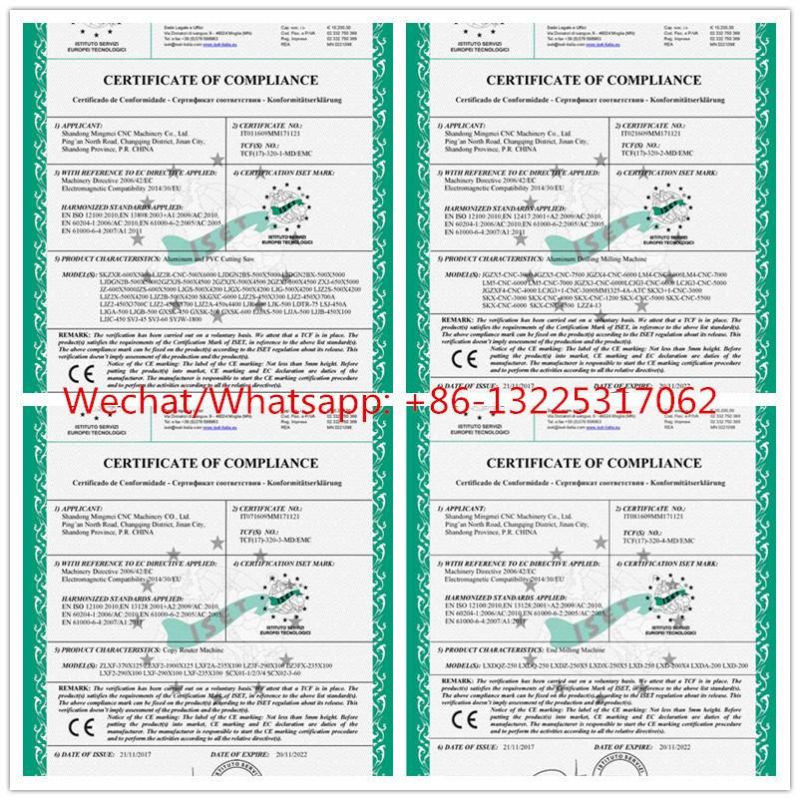

CE Certuification for Aluminium Window Machine

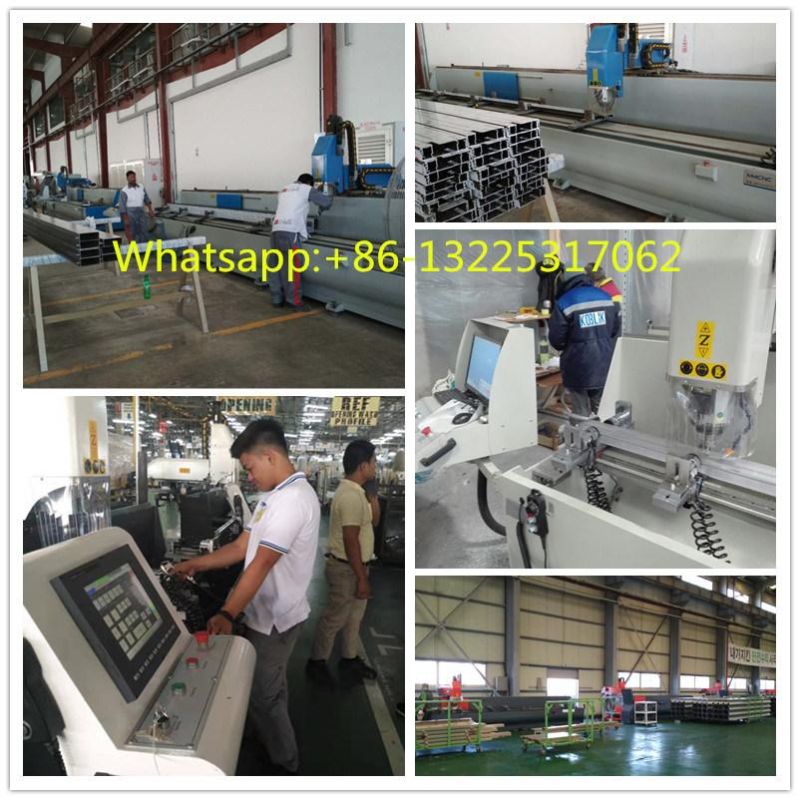

Our 3+1 axis Aluminium Profile CNC Milling Machines are in customer factory

Contact Jessica for good price on Machinery for Aluminium Profiles
