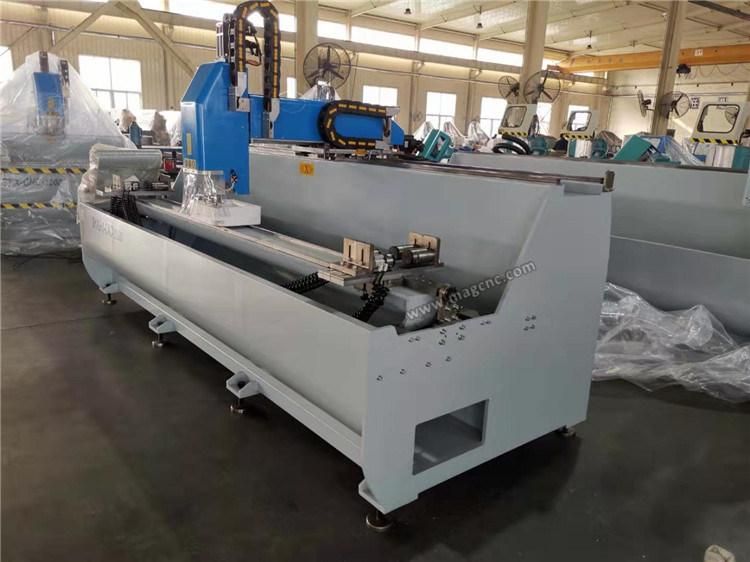

Skx 3+1-CNC-3000 Axis Aluminum Profile Drilling and Milling Machine/Aluminum Window CNC Drilling and Milling Machine Aluminum Window Machine PVC Window Machine
JINAN MAG GROUP CO., LTD.- Warranty:36months
- Condition:New
Base Info
- Model NO.:SKX3+1-CNC-3000
- Certification:ISO, CE
- Automatic Grade:Automatic
- CNC or Not:CNC
- Voltage:380V
- System:Syntec
- CNC:CNC
- Transport Package:Plywood Case
- Specification:SKX3+1-CNC-3000
- Trademark:MAG
- Origin:China
- HS Code:84778999
- Production Capacity:500,Year
- Package size per unit product:418.00cm * 160.00cm * 220.00cm
- Gross weight per unit product:1400.000kg
Description
Basic Info.
Model NO. SKX3+1-CNC-3000 Certification ISO, CE Automatic Grade Automatic CNC or Not CNC Voltage 380V System Syntec CNC CNC Transport Package Plywood Case Specification SKX3+1-CNC-3000 Trademark MAG Origin China HS Code 84778999 Production Capacity 500/YearPackaging & Delivery
Package size per unit product 418.00cm * 160.00cm * 220.00cm Gross weight per unit product 1400.000kgProduct Description
SKX3+1-CNC-3000 CNC Drilling Milling Machine1.Main features
1).This machine is designed for processing round holes, slots, keyhole etc on aluminum profile, window-door and curtain wall industry, it is also suitable for processing milling, chamfering,engraving plane surface and other procedure
2). Main spindle adopt air-cooling electric main axis, 3KW power, 0~18000/min , have the function of high precision, high safety and high reliable.
3). Adopt Taiwan SYNTEC CNC control system. Have professional CAD-CAM programming software. It can transform processing G code automatically, have the function of easy operation, high efficiency and lower labor intensity.
4).Imported guide rail, sliding block, X axis adopt high precision oblique gear and rack driving. Y and Z axis adopts high precision ball screw drive. The drive is stable, so can improve the precision of whole machine.
5). The worktable can overturn 180°.-90°~0°~+90°,Clamping one time profile can realize three faces processing, When processing deeply hole (hetero type hole ), it can realize deeply hole processing through overturn worktable, so can highly improve processing efficiency.
6). Adopt manual pump oil supply system, blades adopt system control spray cooling device.
7). The main electrical parts: circuit breakers, AC contactor are all French brand.
8). The main components adopt steel structure and they are all through aging treatment.
2.Technical Parameters
Brand Name | MAG |
Model | SKX3+1-CNC-3000 |
Power Supply | 380V 50Hz or customers specifications |
Cutting motor power | 6kw |
Operation air pressure | 0.5~0.8MPa |
Max Motor rotary speed | 18000r/min |
X axis journey | 3000mm |
Y axis journey | 500mm |
Z axis journey | 350mm |
X axis speed | 50000mm/min |
Overall dimension | 4180*1600*2200 |
Weight | 1400kg |

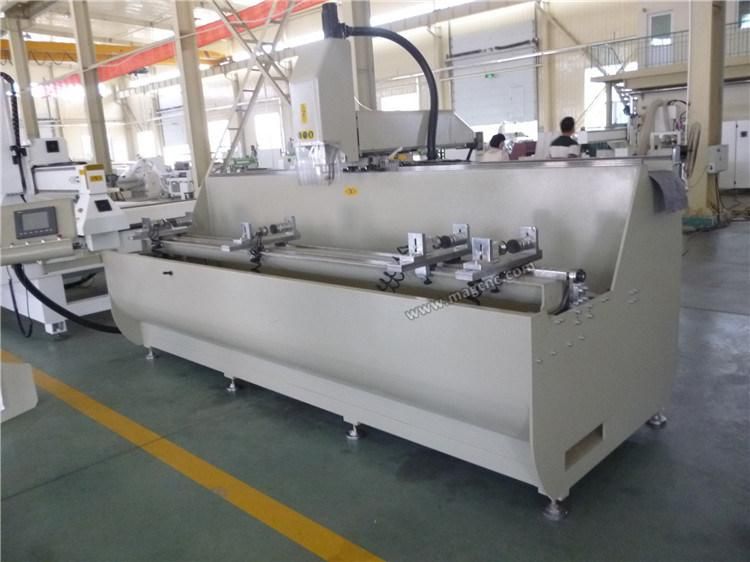

4 . Deatails pictres:

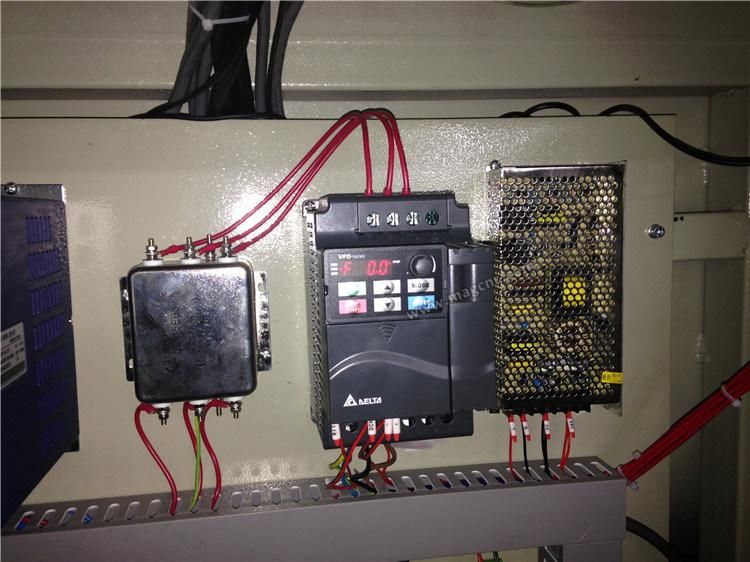

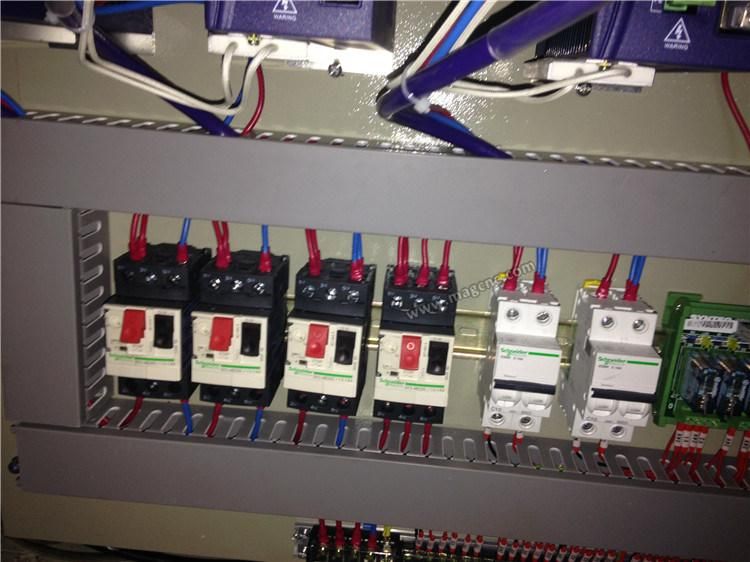

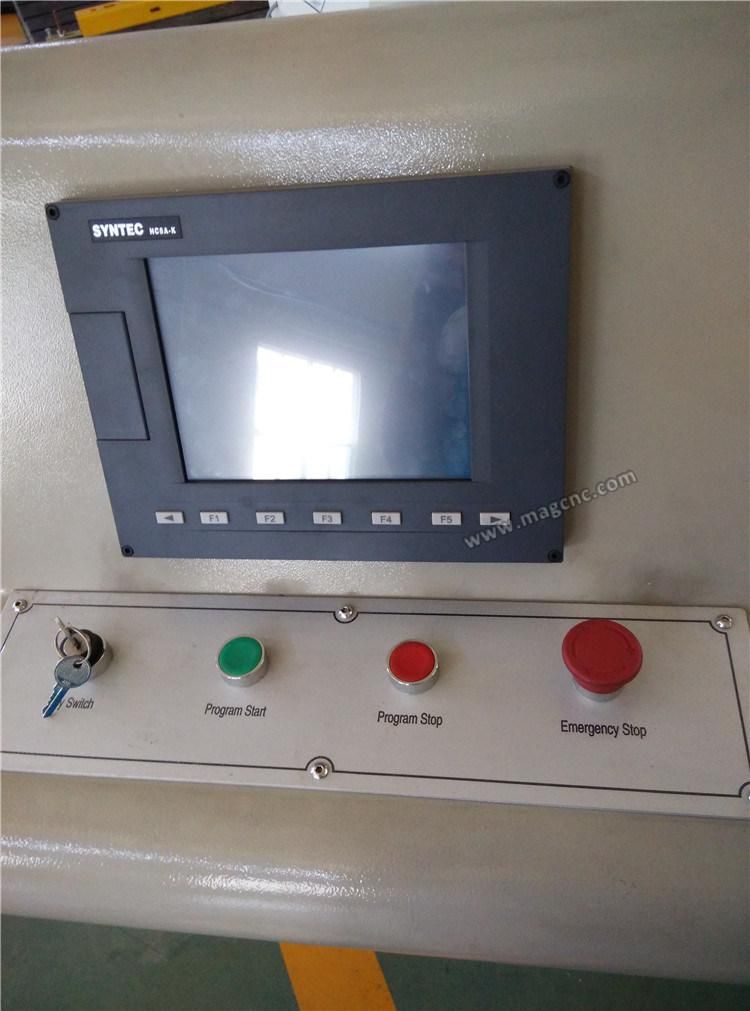

Syntec Operation System, Famous brand name electric parts, Delta main parts.

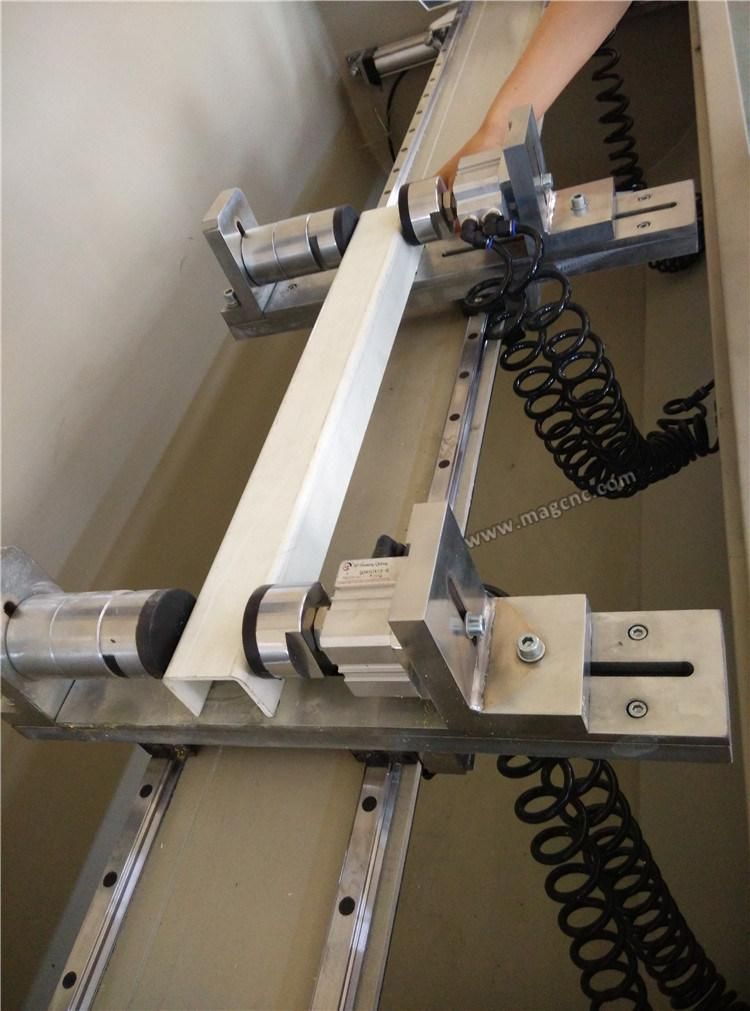

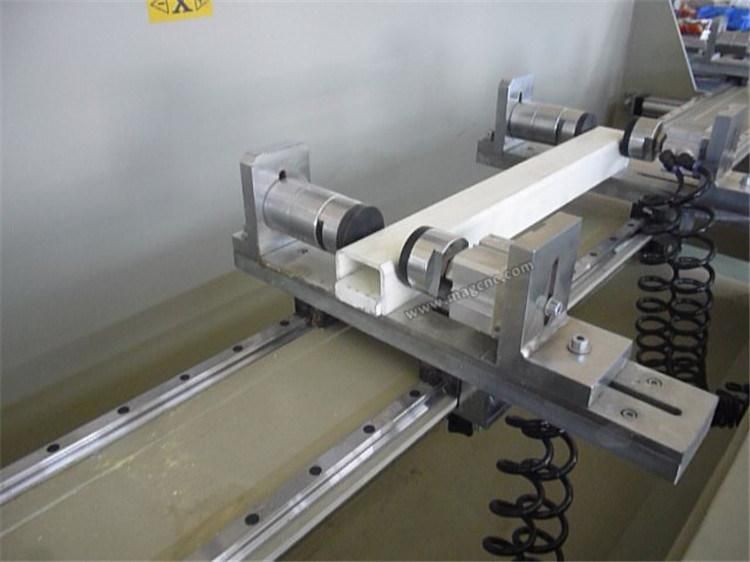

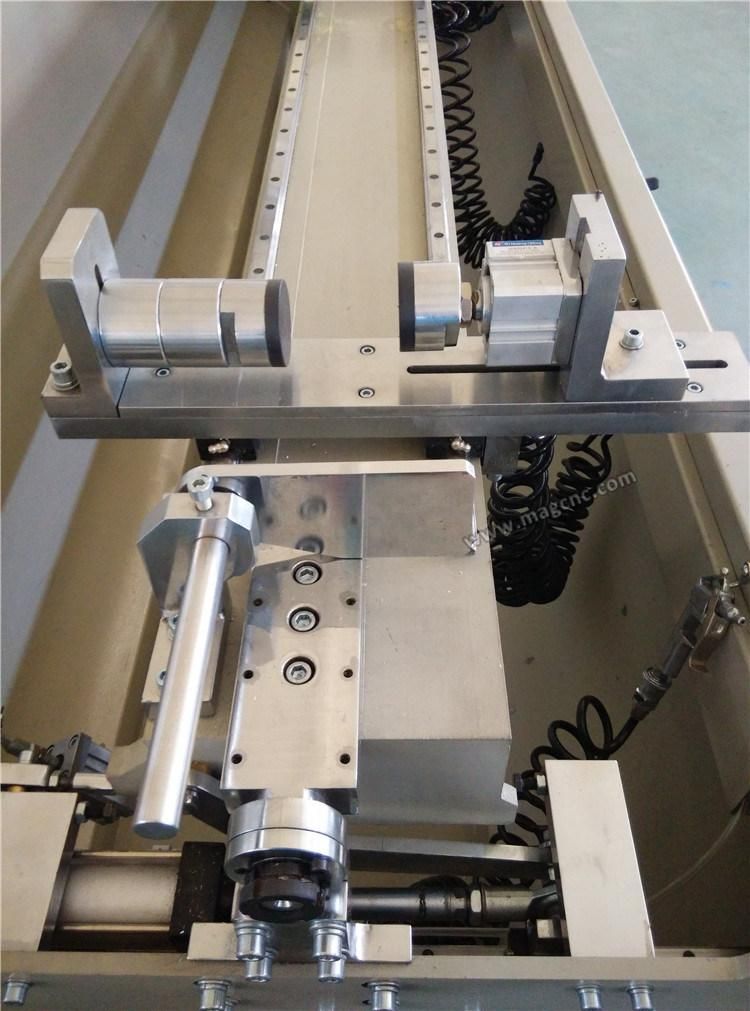

5. Pneumatic Clamplings, Hiwin guide, Japan ball screw and screw rack.
6. Testing Sample

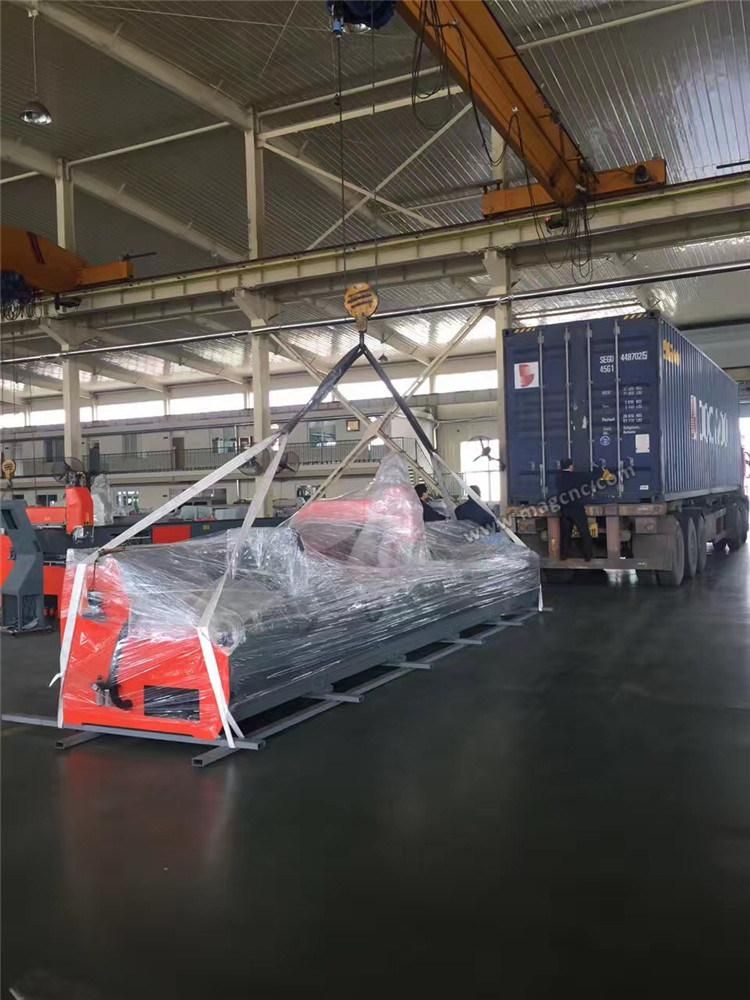

7. Delivery to Customers
8. Our company Certifications
