Vertical / Horizontal Metal Gas/ Water Hose Fitting Welding Machine, TIG Welding Gas Hose Fitting Welder&
Comflex Industrial Co., Ltd.- Pipe Material：Stainless Steel
- Condition：New
- Customized：Customized
- Theory：TIG Welding
- Application：Industry
- Type：Pipe Production Line
Base Info
- Production Speed：2.5~3.5m,Min
- Voltage：380V,415V
- Wall Thickness：0.18-0.3mm
- Size Range：DN8-32mm
- Machine Package：Polywood Box and Standard Pallet
- Material：SUS304, 321 and 316L
- Lead Time：45 Days After Receiving The Deposit
- Warranty：1 Year
- Dimension：8000*1100*1700
- Power：5kw
- Product Name：Vertical , Horizontal Metal Hose Welding Machine
- Size：50*50*100cm
- Colour：Customized
- Transport Package：Standard Seaworthy Package
- Specification：ISO9001
- Trademark：Comflex
- Origin：Wuxi, Jiangsu, China
- HS Code：8515390000
- Production Capacity：500 Sets Per Year
Description
Machine Name.
Mechanical hose making machine
Technical Data
Application of the hose: natural and water hose
Size range: DN8 up to DN32
Wall thickness: 0.15-0.3mm
Production speed:2.5~3.5m/min
Strip thickness: 0.18-0.3mm
Material: sus304, 321 and 316L
Power:4-7KW
Outer dimensions: 8000*1100*1700
Packing details
Polywood box and standard pallet
MOQ
1 set
Warranty
1 year
Payment terms
T/T, L/C, D/P, Western union
No.
(mm)
(mm)
(mm)
(mm)
distance
(mm)
(mm)

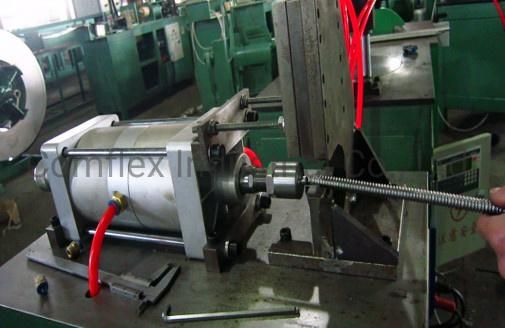

C. Convolution compressing machine
To compress the corrugation for easy welding

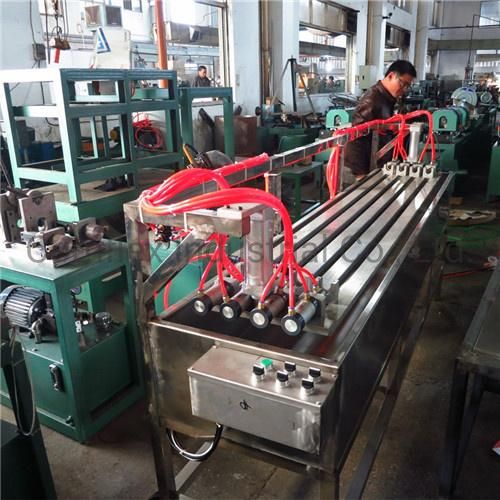

F. Testing BenchThe machine is widely used for following hose testing:Water hose, gas hose, solar hose and fire fighting hose hydraulic leakage testing Size range: DN8-32mm Pressure: 6bar Max. length of the hose: up to 2000mm No. of hoses testing at the same time: 4-8pcs Testing medium: water
G. PVC extruder lineHard Teeth Surface, type 173 Gearbox 18.5KW Inverter, 4 grade Motor with Chinese famous brand Chint contactor The screw & barrel are 38CrMoAl, Nitriding treatment,depth: 0.2-0.4MM,compression ratio:3.2, Length : diameter: 25:1with water cooling system Thermal heating & electrical: the whole machine apply Chint DC contactor. Intelligent temperature controller, AL heating: 6 zones, 4pcs with two sections of moulds Size range: DN8-32mm

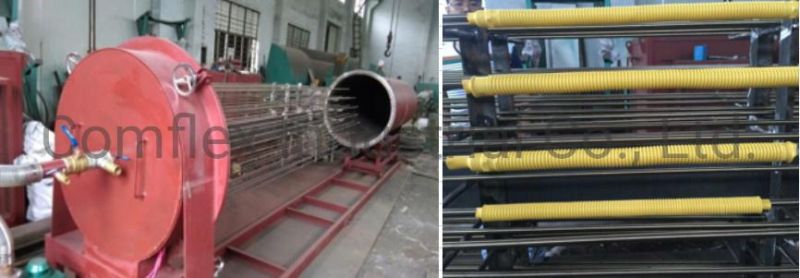

H.Vacuum PVC coating lineRated Power: 60KW Rated voltage: 380V Rated temperature: 300 ºC Frequency: 50HZ Cylinder: ¢ 600X4 meters Cylinder moves: Manual Cylinder seal forms: with silicone rubber seal Vacuum pump: The 2X-30 rotary vane vacuum pump Max. length: 3m Heating element: 30 Pcs of stainless steel electric heating pipe

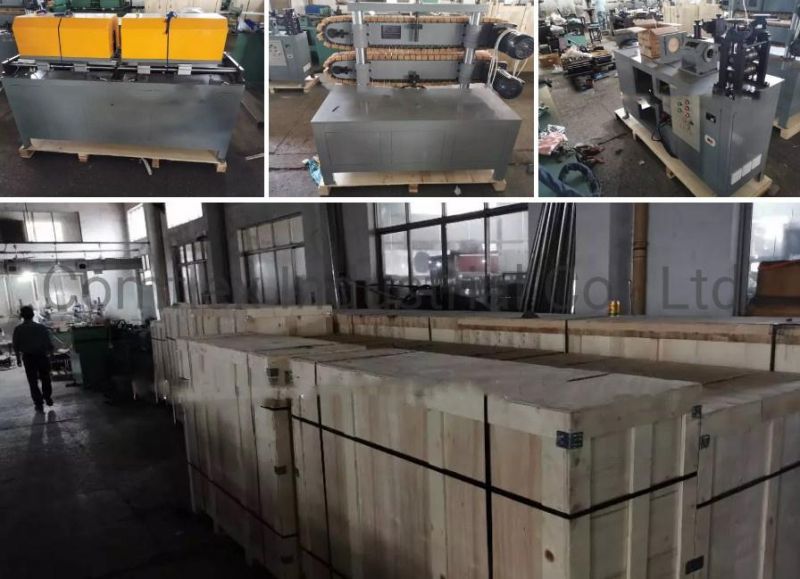

Our Machine Package
Polywood package with tray
Machine training
Our Company
Comflex Industrial Co., Ltd. is professional manufacturer of all types of metal flexible metal hose and hose making machinery, such as corrugated metal hose, square lock and interlock hose/ conduit and machiens with more than 35 years of experience. The hoses are widely used in many industries: gas hose, water hose and wire & cable protection circuit, ect. Our products have been exported to many countries, such as Indonesia, Vietnam, UK, Australia, Canada, USA, Russia, Mexico, Poland, Japan etc...
FAQ
Q: Why choose us for metal hose forming machine?
A: We are most professional manufacturer of hose making machine with more than 25 years of experience
Q: What size can you make?
A: All the sizes from DN8 up to DN400 can be made on different machines
Q: How many different types of machine can you make?
A: Hydraulic metal hose forming machine
a:DN16-65mm b:DN25-DN100mm c:DN32-150mm d:DN50-300mm e:DN80-400mm
B: Mechanical hose making machine
DN8-50mm
C: PU/ Elastomer Metal Hose Making Machine
a:DN12-100 b: DN50-150 c:DN12-65
Q: Can the hose forming machine be used for bellow making?
Yes, all above hose forming machine can be used for bellow making as well
We need to know the following information to quote you correct machinery:
1. Size range you want to make
2.The application of the hose you need, for instance, natural gas hose, water hose, air-conditional hose, etc..
3.Wall thickness
