High Quality Roll Forming Machine

Cangzhou Dixin Roll Forming Machine Co., Ltd.
  • Certification：CE, ISO
  • Condition：New

Base Info

  • Model NO.：bending machine
  • Customized：Customized
  • Usage：Roof, Wall
  • Transmission Method：Machinery
  • Color：Blue
  • Thickness of Plate：0.3-0.8mm
  • Roller：High Grade 45# Steel
  • Shaft：75mm
  • Control System：PLC
  • Hydraulic Pump Station：4kw
  • Motor Power：5.5kw
  • Forming Steps：13
  • Cutter：Cr12
  • Method：Hydraulic Pressure
  • Transport Package：Nude, Covered with Plastic Film
  • Specification：CE SGS
  • Trademark：DIXIN3
  • Origin：Botou, Hebei, China
  • HS Code：845522
  • Production Capacity：30 Sets,Month

Description

Main parameter for1Suitable to processGalvanized/Aluminum/Color steel sheet2Width of plate1250mm3Thickness of plate0.3-0.8mm4RollersHigh grade 45# steel, with hard chrome plating5Forming steps166Sprocket chain1.5 inch7Pump station power4kw8Shaft75mm, high grade 45# steel, heat treatment9Hydraulic oil pumpCB-E31010WeightAbout 5.0 tons11Productivity8-12m/min12Cutting headCr12 mould steel with quenched treatment13Control systemTAIDA brand PLC control14Voltage380V 3Phase 60Hz15Motor power4kw16DimensionAbout 6.8m*1.5m*1.5m17Hydraulic pressure10-12mpa18Index error of length±1mm19The temperature range of working line-35-50°Above all the parameters can be changed exactly according to customer's requirements.

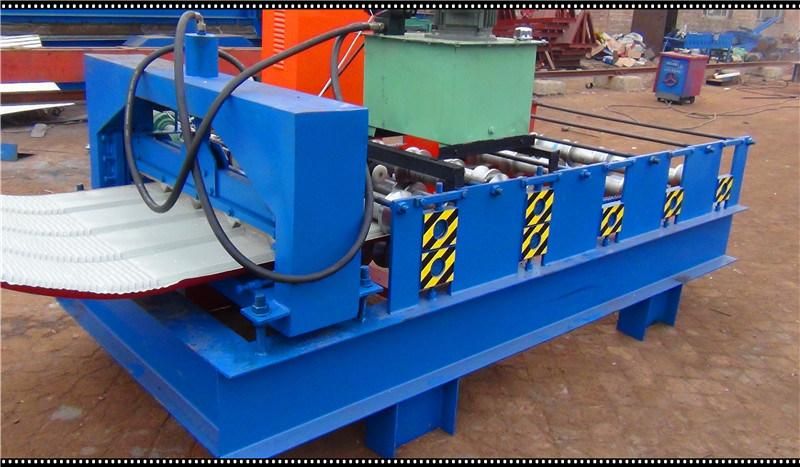

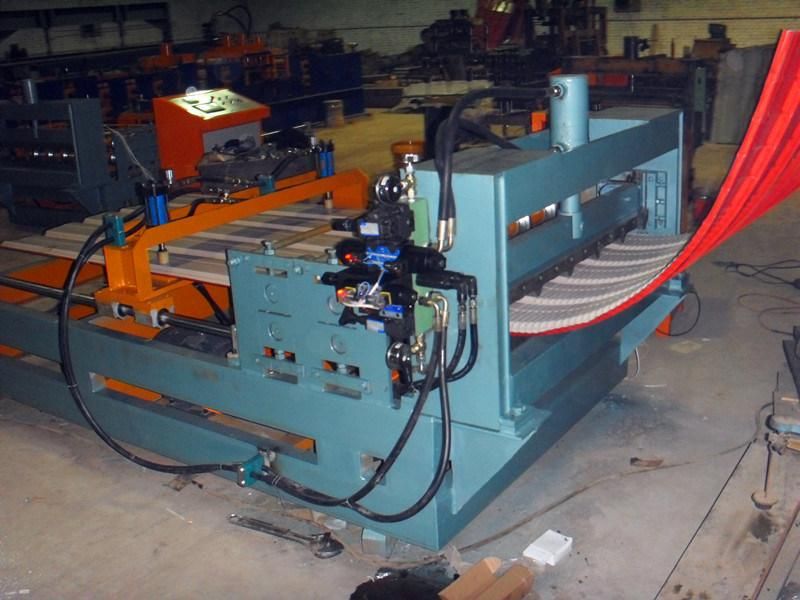

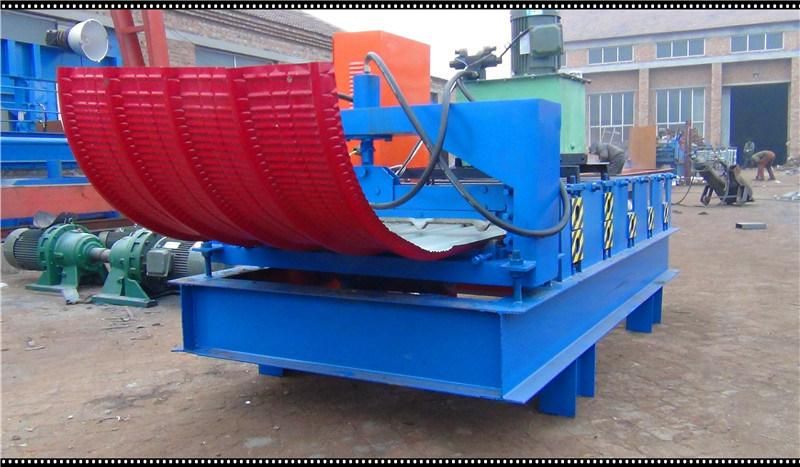

High Quality Roll Forming Machine
High Quality Roll Forming Machine
High Quality Roll Forming Machine
High Quality Roll Forming Machine
High Quality Roll Forming Machine






4. Advantage of DIXIN roll forming machineNo.DIXIN roll forming machine1High grade quality2Reasonable price3High efficiency4Low failure rate5Low energy consumption6Free after-sale service7Reliable working8Durable9Wide application10Beautiful appearance11Welcomed by all over the world customers12Professional foreign trade team13Mature technician team14Customize special typeIf you are interested in the roll forming machine,welcome to contact me directly:
