• Model NO.：LZXA-CNC-1400
• Input Voltage：380V 50Hz
• Input Power：8kw
• Spindle Power：4.5kw
• Spindle Speed：0~18000r,Min
• X-Axes Travel：1400mm
• X-Speed：0~60m,Min
• Y-Axes Travel：450mm
• Y-Speed：0~30m,Min
• Z-Axes Travel：360mm
• Z-Speed：0~30m,Min
• Process Range：1400*120*120mm
• Overall Dimension：2300*1500*2000mm
• Transport Package：Wooden Box
• Specification：2300*1500*2000mm
• Trademark：YueFeng
• Origin：China
• HS Code：8477800000
• Production Capacity：30 Window Per Day

Basic Info.

Model NO. LZXA-CNC-1400 Input Voltage 380V 50Hz Input Power 8kw Spindle Power 4.5kw Spindle Speed 0~18000r/Min X-Axes Travel 1400mm X-Speed 0~60m/Min Y-Axes Travel 450mm Y-Speed 0~30m/Min Z-Axes Travel 360mm Z-Speed 0~30m/Min Process Range 1400*120*120mm Overall Dimension 2300*1500*2000mm Transport Package Wooden Box Specification 2300*1500*2000mm Trademark YueFeng Origin China HS Code 8477800000 Production Capacity 30 Window Per Day

Product Description

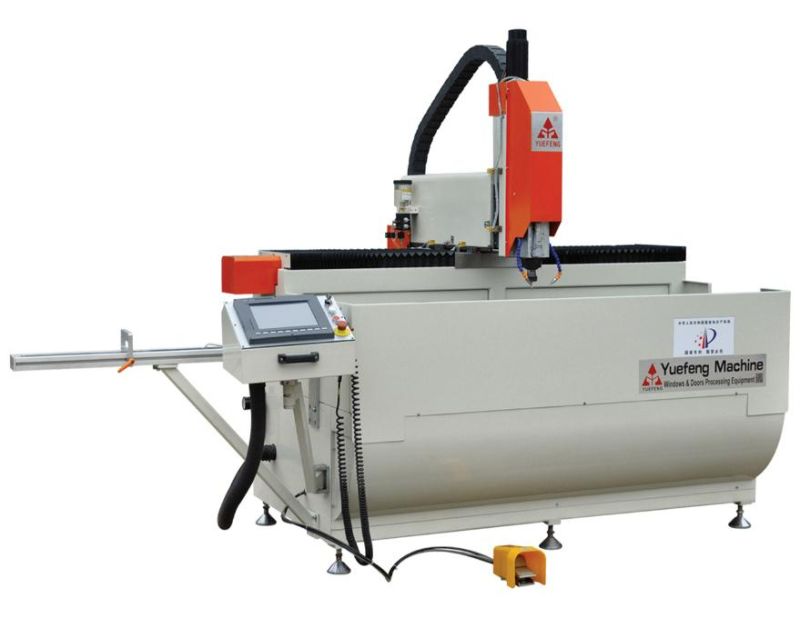

LZXA-CNC-1400   CNC Milling Drilling Machine



1.This machine is mainly used for processing all kinds of mounting holes, lock holes, launders and other slots on various profiles. It can work on aluminum alloy, non-ferrous metal, orbit construct and pvc profiles, etc. Once clamping, multiple hole drilling and milling be finished, high efficiency.
2.Linear guide kinematic pair, ball screw, gear rack and imported servo motor be adopted in this machine, results high stable and accuracy for locating and processing.
3.The main shaft adopts HSD originally imported from Italy, results stable rotation, small noise and high efficiency.
4.Order your own mill tools, the mill tools can be selected automatically during working.

Technical Parameter:

Model	LZXA-CNC-1400
Input voltage	380V 50Hz
Input power	8Kw
Spindle power	4.5Kw
Spindle speed	0~18000r/min
X-axes travel	1400mm
X-speed	0~60m/min
Y-axes travel	450mm
Y-speed	0~30m/min
Z-axes travel	360mm
Z-speed	0~30m/min
Process range	1400×120×120mm
Overall dimension	2300×1500×2000mm

FAQ

1.Are your company a trading one or a factory?
Factory + trade (integration), 36 years' focusing on Upvc,Aluminum Window and Doors Equipment ,insulating glass equipment and curtain wall equipment.

2.After an order is placed, when to deliver?

♦ Generally about 15 days,  If  we have inventory, we can arrange shipment within 5 days.
♦ Please be aware that our production lead times depend on specific items and item quantities.
3.What about the warranty with after - sales services?
♦ 24 months warranty. Besides,we can help you to solve your problem freely;

♦ After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problem encountered while using our product, handles guest problems and complaints in a professional and timely.
4.What about the services and product' quality?
♦ Each machine must be carried out 100% quality examination and test before shipment.

♦ And all machines meet ISO and CE certification.
5. We don't know the machine operation, what should we do?

♦ We can send engineer to your place, or we provide video training to show you how to install & operate, let engineer help you online.
