PVC Door Window Frame Double Head Machine

JINAN YUEFENG MACHINERY CO., LTD.
  • Condition：New
  • Certification：ISO, CE
  • Automatic Grade：Semi-Automatic
  • CNC or Not：not CNC
  • Voltage：380V
  • Model：Ljb2-350*3500

Base Info

  • Model NO.：Ljb2-350*3500
  • Input Voltage：380V ,220 50Hz
  • Input Power：2.2kw
  • Air Pressure：0.4~0.6MPa
  • Air Consumption：100L,Min
  • Spindle Speed：2800r,Min
  • Cutting Length：450~3600mm
  • Cutting Width：180mm
  • Cucutting Height：100mm
  • Overall Dimension：4100*1100*1400mm
  • Transport Package：Wooden Box
  • Specification：4100*1100*1400mm
  • Trademark：YueFeng
  • Origin：China
  • HS Code：8477800000
  • Production Capacity：40 Window Per Day

Description

Basic Info.

Model NO. Ljb2-350*3500 Input Voltage 380V /220 50Hz Input Power 2.2kw Air Pressure 0.4~0.6MPa Air Consumption 100L/Min Spindle Speed 2800r/Min Cutting Length 450~3600mm Cutting Width 180mm Cucutting Height 100mm Overall Dimension 4100*1100*1400mm Transport Package Wooden Box Specification 4100*1100*1400mm Trademark YueFeng Origin China HS Code 8477800000 Production Capacity 40 Window Per Day

Product Description

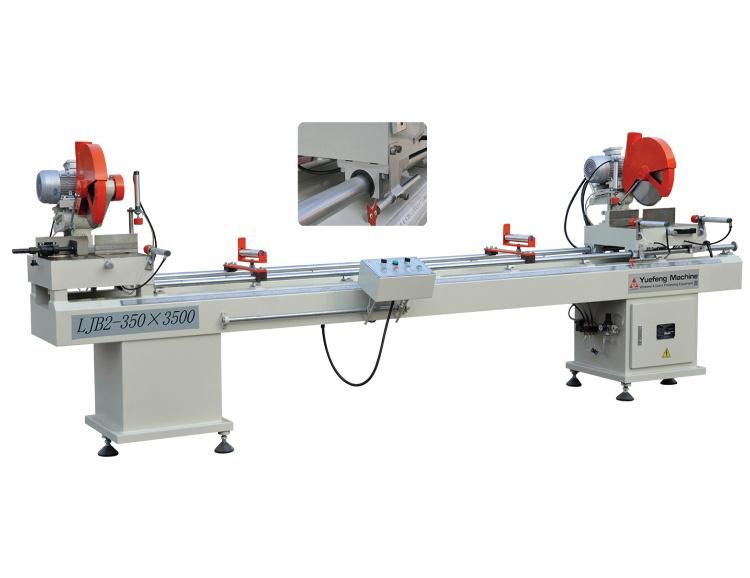

PVC Door Window Frame Double Head Precision Cutting Saw Machine PVC Door Window Frame Double Head Machine




1.The machine applies to cutting aluminum and PVC profiles at 45°~90°.
2.It adopts wabble feeding and pneumatic drive.
3.The right head adopts imported linear guide pair, with high accuracy and smooth working.
4.It has features of high accuracy, efficiency and easy operation.

Technical Parameter:
Model LJB2-350×3500
Input voltage380V/220V 50Hz
Input power 2.2 kw
Air pressure 0.4~0.6MPa
Air consumption100L/min
Motor rotating speed2800r/min
Cutting length 450~3500mm
Cutting width≤180mm
Cutting height≤100mm
Overall dimension 4100×1100×1400mm
PVC Door Window Frame Double Head Machine
PVC Door Window Frame Double Head Machine
PVC Door Window Frame Double Head Machine
PVC Door Window Frame Double Head MachinePVC Door Window Frame Double Head MachineFAQ

1.Are your company a trading one or a factory?
Factory + trade (integration), 36 years' focusing on Upvc,Aluminum Window and Doors Equipment ,insulating glass equipment and curtain wall equipment.

2.After an order is placed, when to deliver?

♦ Generally about 15 days,  If  we have inventory, we can arrange shipment within 5 days.
♦ Please be aware that our production lead times depend on specific items and item quantities.
3.What about the warranty with after - sales services?
♦ 24 months warranty. Besides,we can help you to solve your problem freely;

♦ After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problem encountered while using our product, handles guest problems and complaints in a professional and timely.
4.What about the services and product' quality?
♦ Each machine must be carried out 100% quality examination and test before shipment.

♦ And all machines meet ISO and CE certification.
5. We don't know the machine operation, what should we do?

♦ We can send engineer to your place, or we provide video training to show you how to install & operate, let engineer help you online.
