Automatic Double Head Miter Sawing Machine

JINAN YUEFENG MACHINERY CO., LTD.
  • Condition:New
  • Certification:ISO, CE
  • Automatic Grade:Automatic
  • CNC or Not:CNC
  • Voltage:380V
  • Model:Ljz2-CNC-500*4200

Base Info

  • Model NO.:Ljz2-CNC-500*4200
  • Input Voltage:380V 50Hz
  • Input Power:6.0kw
  • Air Pressure:0.5~0.8MPa
  • Air Consumption:200L,Min
  • Cutting Length:400~5000mm
  • Cutting Height:300mm
  • Cutting Width:130mm
  • Cutting Angle:90-45.67.5
  • Saw Feeding Speed:0~3m,Min
  • Saw Blade Standard:500*4.4-30*Z120
  • Overall Dimension:5500*1700*1600mm
  • Transport Package:Wooden Box
  • Specification:5500*1700*1600mm
  • Trademark:YueFeng
  • Origin:China
  • HS Code:8477800000
  • Production Capacity:40 Window Per Day

Description

Basic Info.

Model NO. Ljz2-CNC-500*4200 Input Voltage 380V 50Hz Input Power 6.0kw Air Pressure 0.5~0.8MPa Air Consumption 200L/Min Cutting Length 400~5000mm Cutting Height 300mm Cutting Width 130mm Cutting Angle 90-45.67.5 Saw Feeding Speed 0~3m/Min Saw Blade Standard 500*4.4-30*Z120 Overall Dimension 5500*1700*1600mm Transport Package Wooden Box Specification 5500*1700*1600mm Trademark YueFeng Origin China HS Code 8477800000 Production Capacity 40 Window Per Day

Product Description

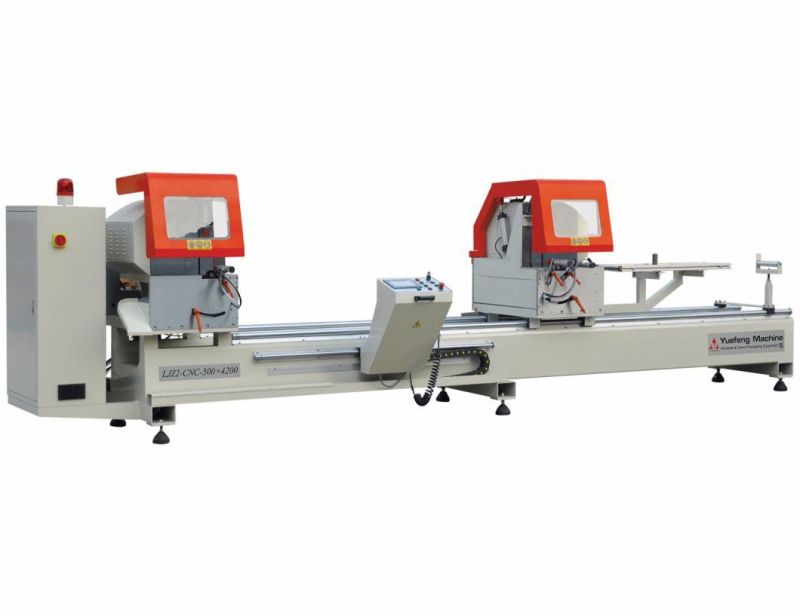

Automatic Double Head Miter Sawing Machine          Automatic double head miter sawing machine

Automatic Double Head Miter Sawing Machine
Automatic Double Head Miter Sawing Machine



Used for cutting profiles such as aluminum profile and curtain wall, two heads cutting angle 90°/45°/67.5°(22.5°) are available.
Cutting dimension controlled by screw, with high accurate driving and locating. Right head can achieve the setting location automatically.
Right head feed the profiles automatically; can also use for cutting aluminum connectors.

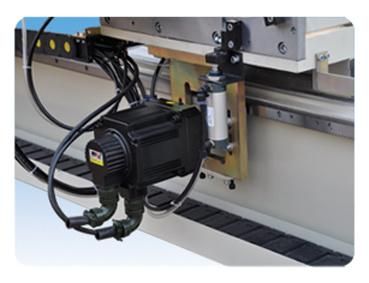

Japan CNC system adopted, which include PLC, touched screen, servomotor, and servodriver, Photo electrical switch,
and Photo electrical cells etc. Complete Japan CNC system results high accuracy and smooth working.

Uniform speed feeding and smooth motion due to air-draulic damping cylinder.
Saw blade feed system adopts imported linear guide kinematic pair results high accuracy.
Automatic protecting guards result convenience and safety.

Technical Parameter:
ModelLJZ2-CNC-500×4200
Input voltage380V 50Hz
Input power6.0Kw
Air pressure0.5~0.8MPa
Air consumption200L/min
Spindle speed3200r/min
Cutting length400~4200mm
Cutting width10~130mm
Cutting height10~300mm
Cutting angle90° 45° 67.5°
Saw feeding speed0~3m/min
Saw blade standardφ500×4.4×φ30×Z120
Overall dimension5500×1700×1600mm
Automatic Double Head Miter Sawing Machine
Automatic Double Head Miter Sawing Machine
Automatic Double Head Miter Sawing Machine
Automatic Double Head Miter Sawing MachineAutomatic Double Head Miter Sawing MachineFAQ

1.Are your company a trading one or a factory?
Factory + trade (integration), 36 years' focusing on Upvc,Aluminum Window and Doors Equipment ,insulating glass equipment and curtain wall equipment.

2.After an order is placed, when to deliver?

♦ Generally about 15 days,  If  we have inventory, we can arrange shipment within 5 days.
Please be aware that our production lead times depend on specific items and item quantities.
3.What about the warranty with after - sales services?
24 months warranty. Besides,we can help you to solve your problem freely;

After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problem encountered while using our product, handles guest problems and complaints in a professional and timely.
4.What about the services and product' quality?
Each machine must be carried out 100% quality examination and test before shipment.

And all machines meet ISO and CE certification.
5. We don't know the machine operation, what should we do?

We can send engineer to your place, or we provide video training to show you how to install & operate, let engineer help you online.
