• Model NO.：customer request
• Customized：Customized
• Usage：Roof
• Transmission Method：Machinery
• Type：Rolling Machine
• Power Source：Hydraulic Pressure
• Feature：High Efficiency
• Advantage：Use Widely
• Warranty：12 Months
• Forging Forming Method：Mold Forging
• Name：Dx Exported Russia Roof Tiles Machine
• Rolled Material：0.3-0.8mm Thickness
• Shaft Material：High Grade No.45 Carbon Wrought Steel
• Cutting Blade：Cr12 Mould Steel with Quenched Treatment
• Transport Package：Water-Proof Packaging, Covered with Plastic Film
• Specification：DX 1100-220-28
• Trademark：DX
• Origin：Botou Hebei China
• HS Code：845522
• Production Capacity：20 Set Per Month

Basic Info.

Model NO. customer request Customized Customized Usage Roof Transmission Method Machinery Type Rolling Machine Power Source Hydraulic Pressure Feature High Efficiency Advantage Use Widely Warranty 12 Months Forging Forming Method Mold Forging Name Dx Exported Russia Roof Tiles Machine Rolled Material 0.3-0.8mm Thickness Shaft Material High Grade No.45 Carbon Wrought Steel Cutting Blade Cr12 Mould Steel with Quenched Treatment Transport Package Water-Proof Packaging, Covered with Plastic Film Specification DX 1100-220-28 Trademark DX Origin Botou Hebei China HS Code 845522 Production Capacity 20 Set Per Month

Product Description

Glazed metal roof tile making steel profile roll forming machine

Our company has always been adhering to the principle of integrity first, quality first, over the years, we have always put quality and reputation in the first place, every machine, our technical staff choose the best quality raw materials, because good raw materials can produce high-quality machines,And our company has passed the quality certification and testing,We believe that your choice is correct, because our company will never let our customers down.

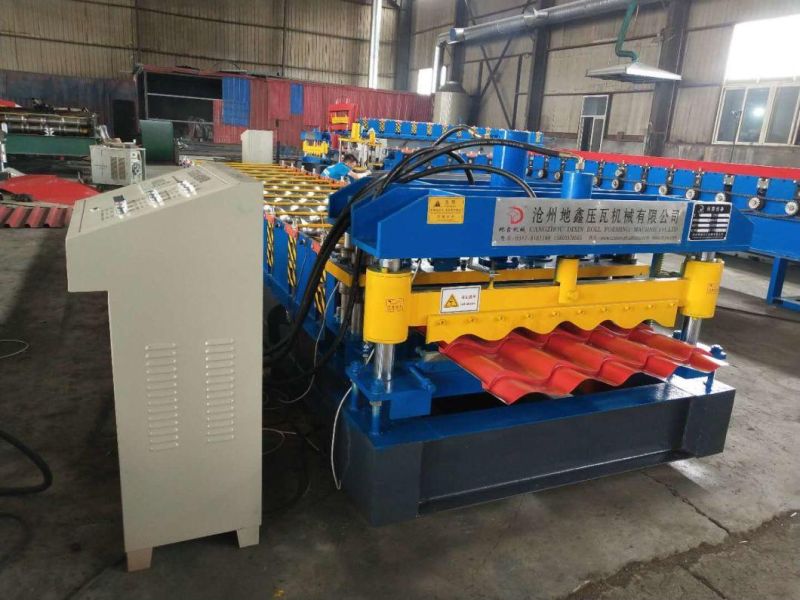

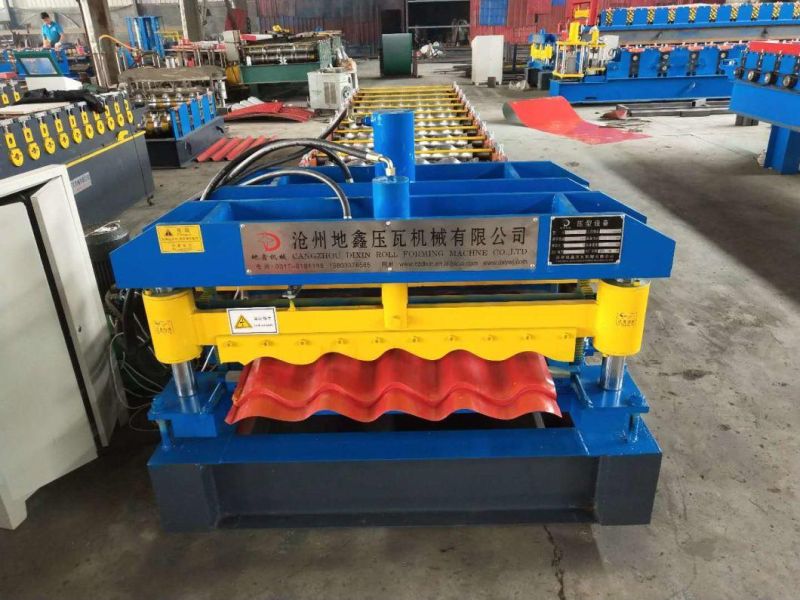

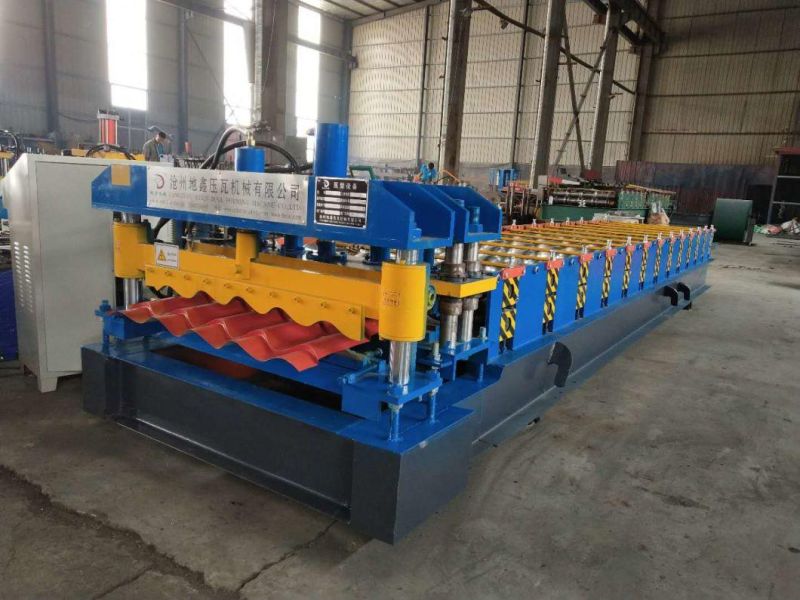

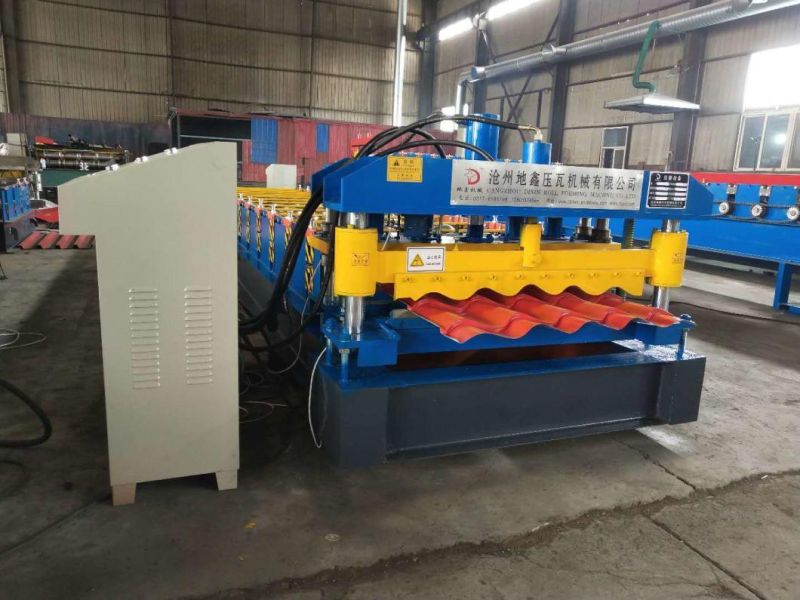

1.Some machine pictures




2.Main technical parameters

(1) Processing material: aluzinc/galvanized steel/colored steel coil

(2) Material thickness: 0.3-0.8mm

(3) Effective width: as drawing

(4) Feeding width: as design

(5) Main motor power: 4kw

(6) Pump power: 4kw

(7) Shaft diameter: 75mm

(8) Forming steps: 16 steps

(9) Roller material: 45# forged steel, with hard chrome plating

(10) Main frame: 350H steel

(11) Medium plate thickness: 16mm

(12) Control systerm:Delta PLC computer control with inverter and touch screen

(13) Cutting blade material:Cr12

(14) Speed:about 3meter/min

(15) Drived by Chain:1inch

(16) Machine size (mm):6500*1300*1400mm

(17) Machine weight:about 2Ton

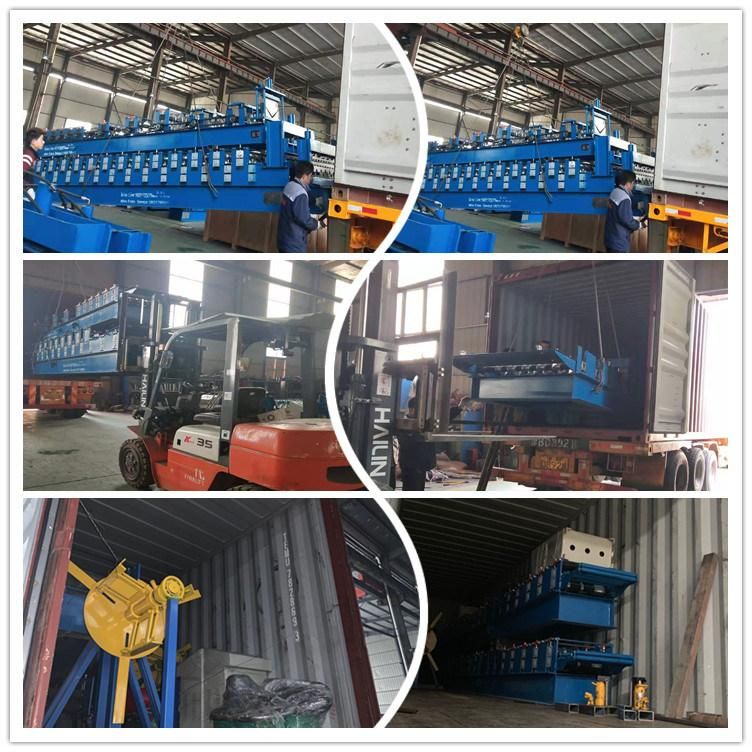

 3.Standard export packing and delivery
1. Main body of roll forming machine and decoiler is nude packing.
2. Rollers, shafts, PLC, pump and cutter are packed with water-proof plastic film, spare parts in carton box.
3. One set of machine needs a 20'container to shipping.

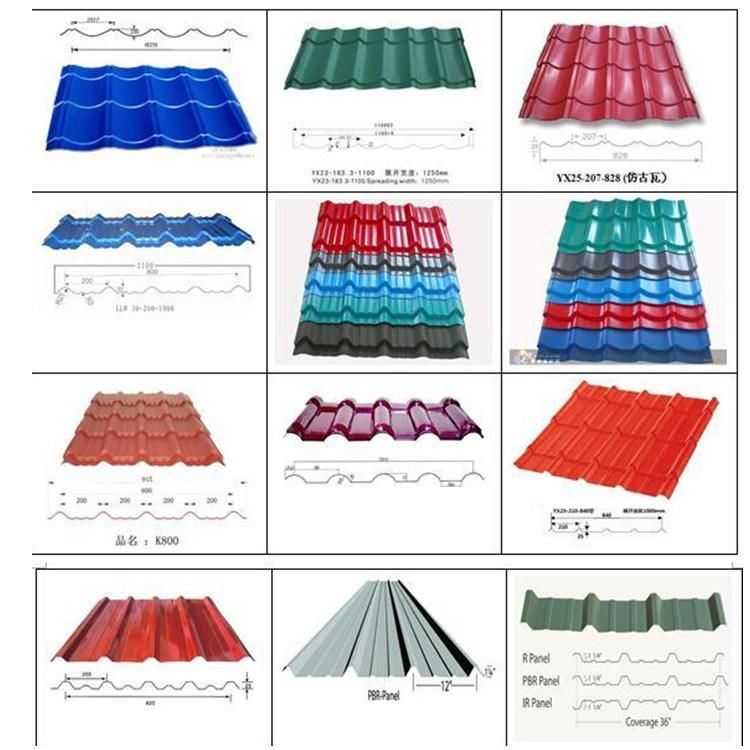

Some others design for your choose



FAQ

Q1. What's your payment terms and delivery time?
A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable.

After we get down payment, we will arrange production. About 30-45 days for delivery.

Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.

Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: We provide 12 months free warranty and free technical support for the whole life of any machine.
If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.

Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. we have rich experience in transporting.

Q6. How to visit your company?
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
       2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
