• Model NO.：roof tile machine
• Certification：CE, CCC, ISO9001
• Condition：New
• Customized：Customized
• Transmission Method：Machinery
• Type：Roof Tile Machine
• Power Source：Hydraulic Pressure
• Feature：High Efficiency
• Advantage：Use Widely
• Forging Forming Method：Mold Forging
• Name：Color Tile Steel Forming Machine
• Rolled Material：0.3-0.8mm Thickness
• Shaft Material：High Grade No.45 Carbon Wrought Steel
• Cutting Blade：Cr12 Mould Steel with Quenched Treatment
• Transport Package：Water-Proof Packaging, Covered with Plastic Film
• Specification：DX740MM
• Trademark：DX
• Origin：Botou Hebei China
• HS Code：845522
• Production Capacity：20 Set Per Month

Basic Info.

Model NO. roof tile machine Certification CE, CCC, ISO9001 Condition New Customized Customized Transmission Method Machinery Type Roof Tile Machine Power Source Hydraulic Pressure Feature High Efficiency Advantage Use Widely Forging Forming Method Mold Forging Name Color Tile Steel Forming Machine Rolled Material 0.3-0.8mm Thickness Shaft Material High Grade No.45 Carbon Wrought Steel Cutting Blade Cr12 Mould Steel with Quenched Treatment Transport Package Water-Proof Packaging, Covered with Plastic Film Specification DX740MM Trademark DX Origin Botou Hebei China HS Code 845522 Production Capacity 20 Set Per Month

Product Description

 Colour Roof Sheet Roll Forming Machine /metal roof machine price
 Features of our machine
 1)Professional designing for manufactures roofing & walling
 2)Automatically continually manufactures high quality product with PLC.
 3)Easy operation : Directly input the data on the touchable screen.
 4)Customers decide the profile of products.
 5)Saving time and cost owing to high speed running with hydraulic system.

1.Panel drawing for your reference.


2.Equipment detailed parameters:

1.Processing material	aluzinc/galvanized steel/colored steel coil
2.Material thickness	0.3-0.8mm
3.Feeding width:	925mm
4.Effective width	712mm
5.Main motor power	4kw
6.hydraulic pump power	4kw
7. Shaft diameter	75mm
8.Forming steps	13steps
9.Main frame	300H Steel frame
10. Side plate thickness	16mm
11.Roller material	45# forged steel, with hard chrome plating
12.Control systerm	Delta PLC control system with touch screen
13.Cutting blade material	Cr12
14.Working speed	About 10-12m/min
15. Transmission way	1 inch chain drive
16. Machine size (mm)	About 6800*1500*1400mm
17. Machine weight	About 2.5ton
18.Power supply	380v,3phase,50hz or accodring to customer request

3.Working flow:
 Uncoiler-- roll forming machine-- PLC control box-- hydraulic cutter- receiving table

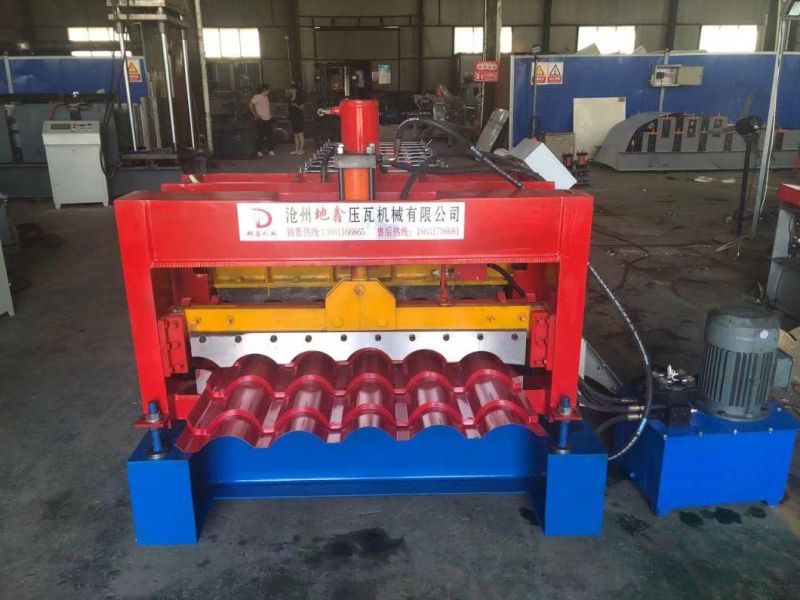

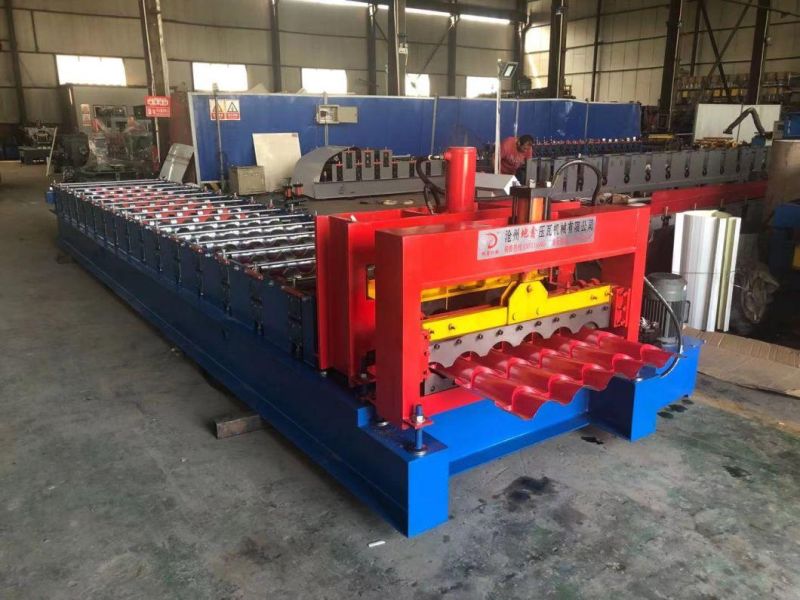

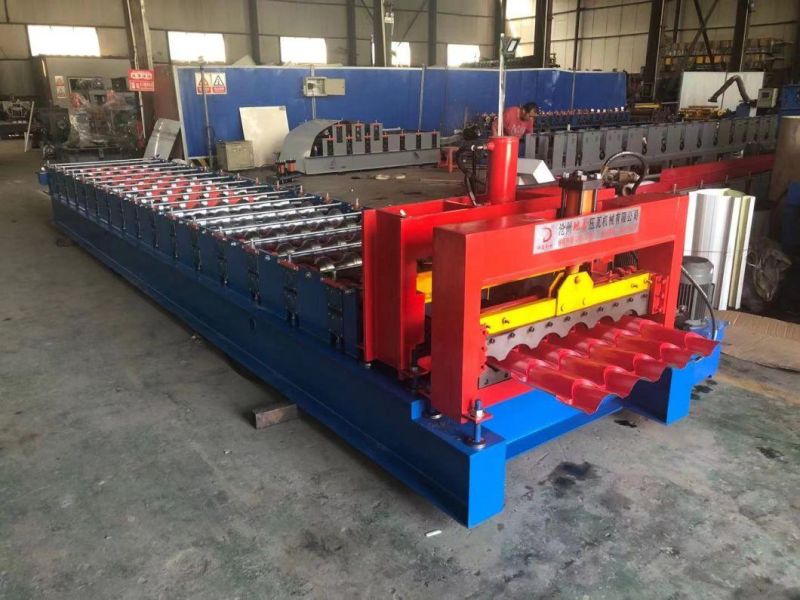

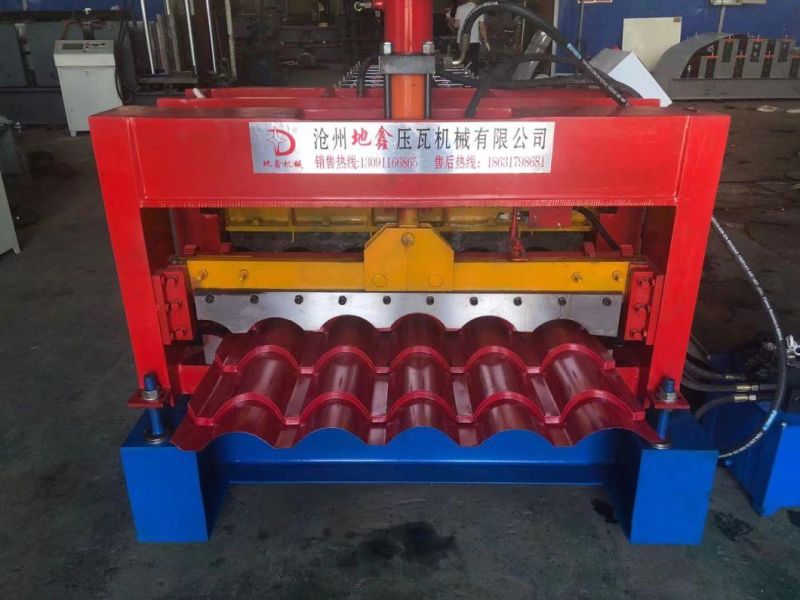

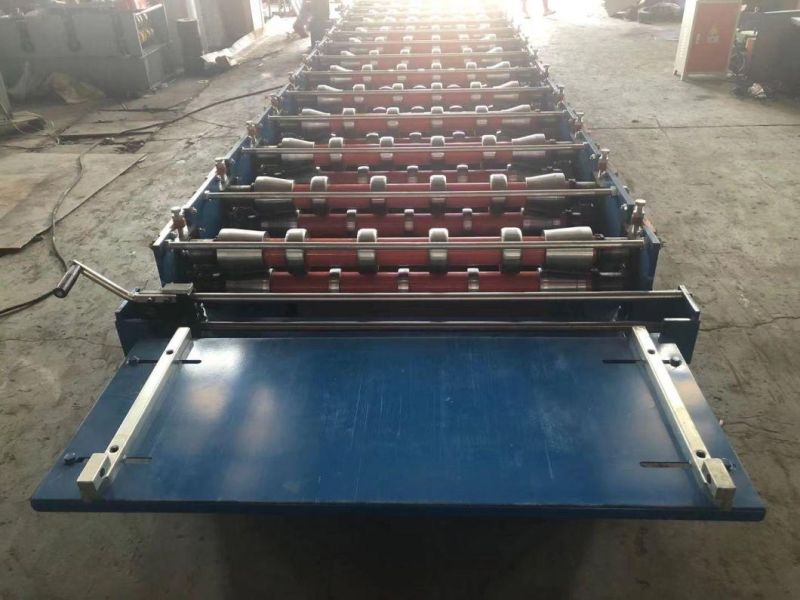

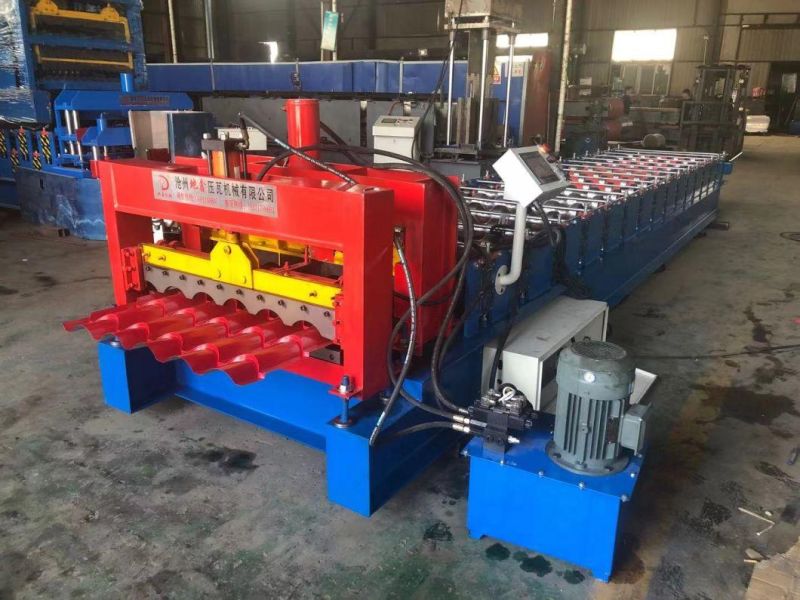

4.Some machine pictures for your reference.

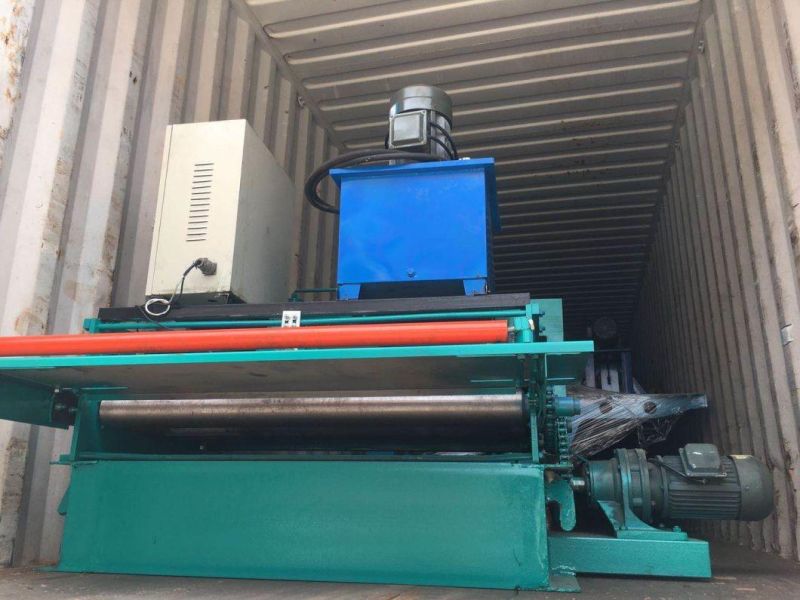

5.Packing and shipping details

* 20 feet or 40 feet GP container.
* Main machine naked and fastened with iron wire in the container.
* Rollers were painted with painted with oil and packed with plastic film.
* Control box will be packed with carton box.
* Main roll forming machine package by plastic film.
* Main machine spare parts package by paper box.
* We have professional technicians for loading. Guaranteed the goods load into container without any damage.
* Transportation :machine need one 40 feet container to hold
* Please provide us the nearest port name, we will ask shipping cost and arrange shipping for you.


6.Why Choose Us??
1.We are the most professional in China,we do our best to benefit for you,our machines are best-quality;
2.From the photo seeing :All kinds of tile type machine we did for customers ;
3.We lengthen the plate beside the machine to make the machine strong during working;
4.When you visit and come to China ,we can teacher you how to use it ;
5.Appear any questions ,we will try our best help you deal with ;Meanwhile ,if any parts go broken and not artificial damage ,we will send you new onew with free .

7.FAQ
1. Q:Are you manufacturer?
A:Yes, we focus on cold roll forming machine manufacture over 12 years.

2. Q: if you can accept OEM? Design and manufacture according our photo.
A: Yes, we can accept OEM,we owned expert engineer team, professional design CAD drawings and use famous brand components according your demands.

3. Q:What's the warranty for your machine?
A: we provide 2years guarantee and provide lifetime technical support.

4. Q:How many workers is needed for the machine operation
A: One worker is enough, the machine use automatic PLC control system.

5. Do you have after sales support?
A: Yes,Our engineer can supply remote-video technical support and online support teach your worker.

6. Q.Can you be responsible for transport?
A.Yes,we owned expert export team, we can arrangement for you to your destination port or address.

7. Q:What service can you provide before order?
A:About the pre-sale service, We provide professional solutions according your demands,such as design,technical parameter,delivery flow etc. At the same time, we can supply invitation letter for your visit our factory and showing the machine operationfor you .

8. Q: What is the after- sale service?
A: we will supply lifetime technical support,quick-wear parts within 2years,Also can provide field maintenance and repair service.

9. Q:Any other service?
A: We can help you purchase raw material for machine,help you check ship date,update for you ship date etc
