• Model NO.：LMBS-120
• Voltage：380V
• Rating Power：1.5kw
• Rating Oil Presure：20MPa
• Air Consumption Pressure：0.5-0.8MPa
• General Pressure of Corner Crimping：60 Kn
• Air Consumption：2L,Min
• Capacity of Oil Box：60 L
• Profie Height：90 mm
• Transport Package：Packed by Non-Fumagation Plywood Case
• Specification：Machine size: 1150x1100x1300mm
• Trademark：MAG
• Origin：Jinan
• HS Code：84752990
• Production Capacity：500,Year

Basic Info.

Model NO. LMBS-120 Voltage 380V Rating Power 1.5kw Rating Oil Presure 20MPa Air Consumption Pressure 0.5-0.8MPa General Pressure of Corner Crimping 60 Kn Air Consumption 2L/Min Capacity of Oil Box 60 L Profie Height 90 mm Transport Package Packed by Non-Fumagation Plywood Case Specification Machine size: 1150x1100x1300mm Trademark MAG Origin Jinan HS Code 84752990 Production Capacity 500/Year

Product Description

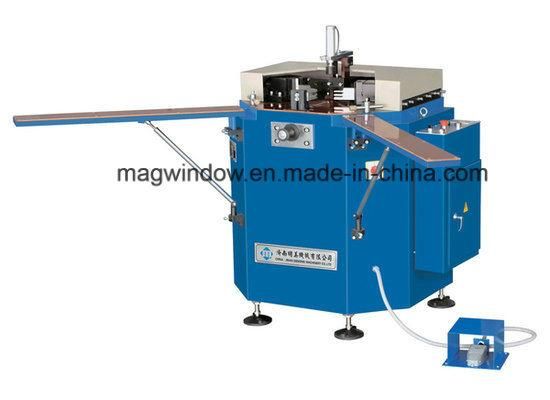

                                       Aluminum Window Corner Crimping Machine


Main features
1). Used for combining the 90 degree corner of high quality aluminum window and door.
2). Strengthened structure and rack to make it work more stable and low malfunctions.
3). Auto up-down inner localization to make work piece clamping convenient.
4). Special hydraulic station with big power and big crimping power, that can process profile with big cross-section and big thickness..
Customer
.5). Special high speed hydraulic system to supply fast crimping and high efficiency.


Technical Parameters

Brand Name	MAG
Model	LMB-120
Power supply	380V 50Hz
Input power	1.5kw
Air pressure	0.6-0.8M pa
Rated pressure	15Mpa
Capability of oil box	20L
Profile width	90mm
Casing movement journey	85mm
The adjustable range of the main location block	54mm
Over all dimension: (L × W ×H)	1000*1200*1200mm
Weight:	350Kg

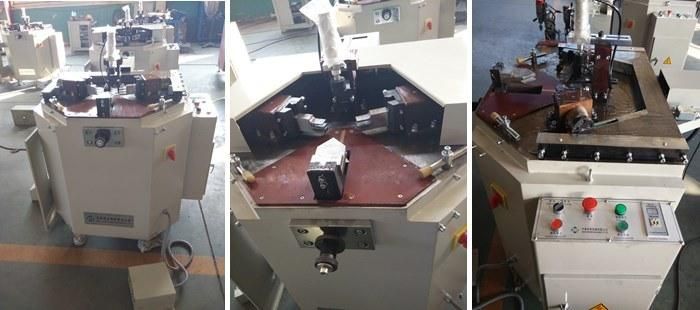

Machine detail


Certificate

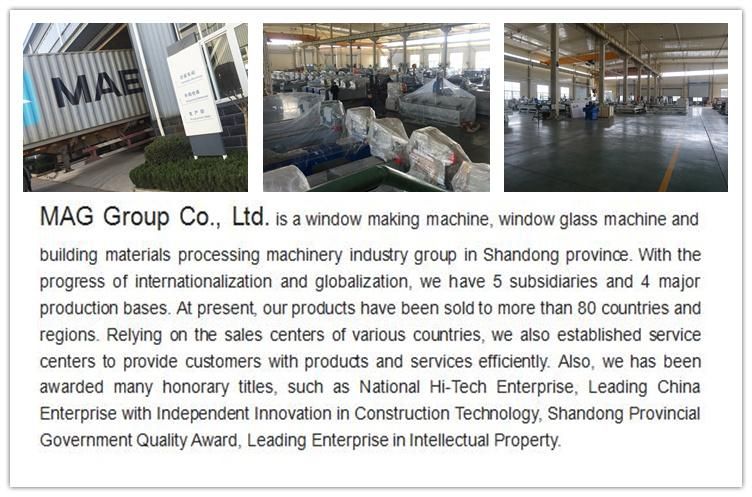

About our company
