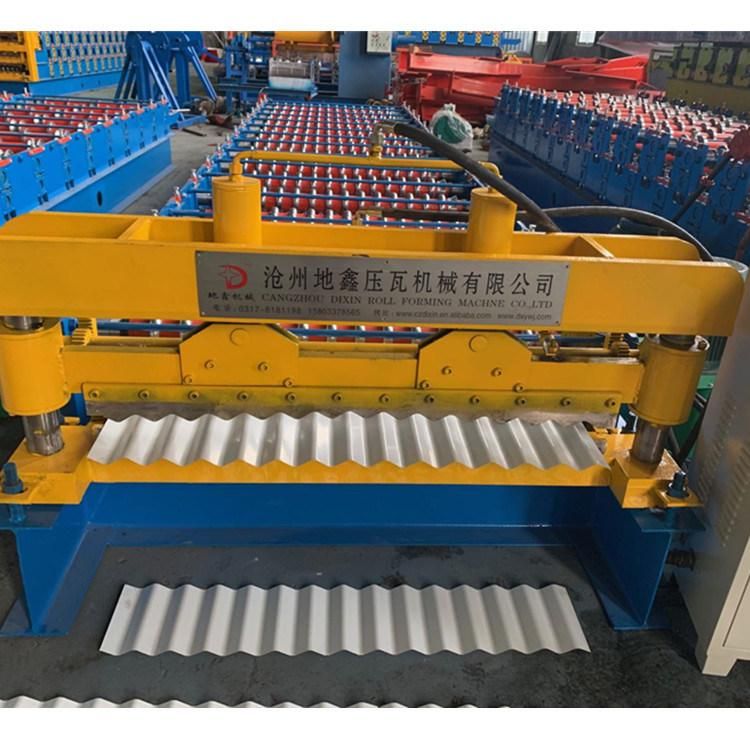

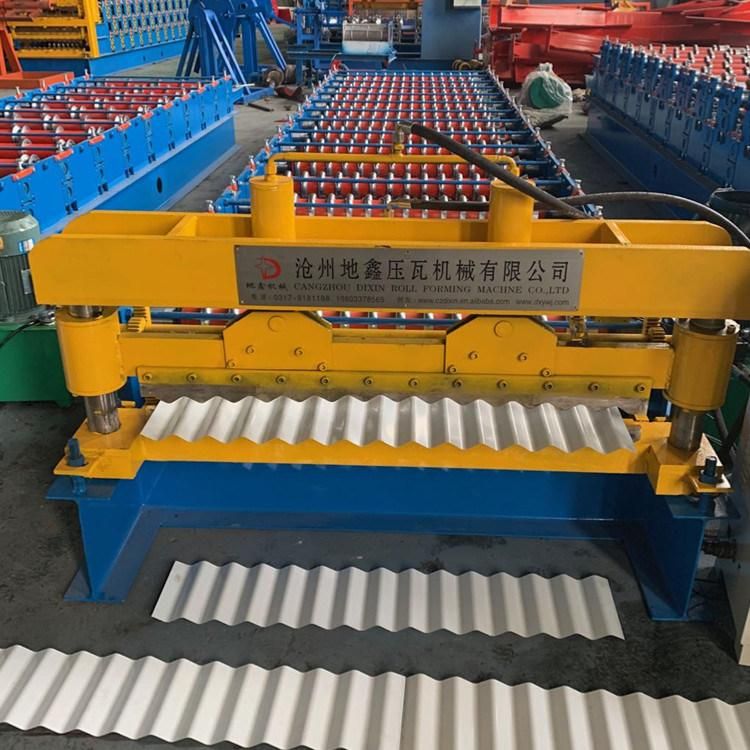

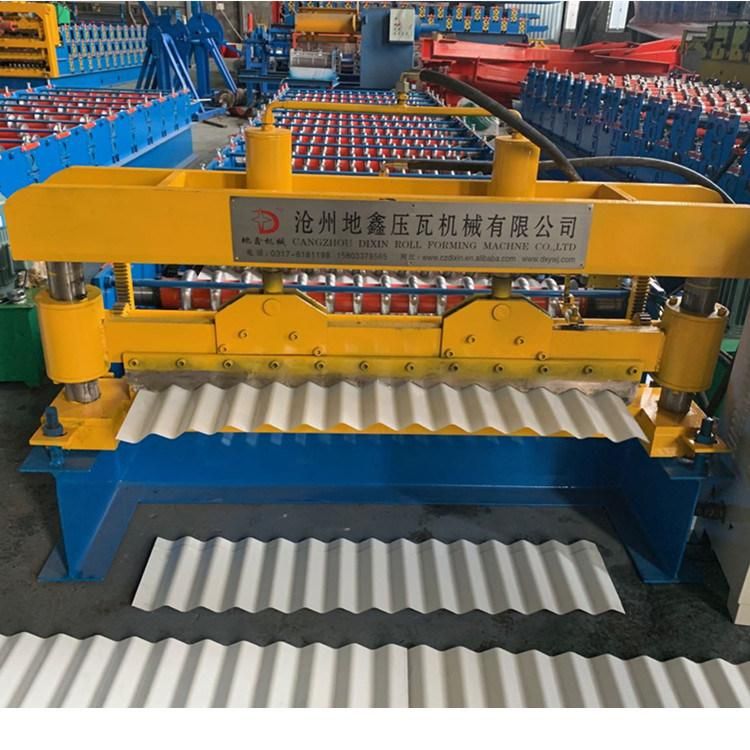

Dx 988 Tile Roll Forming Machine
Cangzhou Dixin Roll Forming Machine Co., Ltd.- Certification:ISO, ISO9001: 2000, CE, SGS
- Condition:New
Base Info
- Model NO.:988-1220
- Customized:Customized
- Transmission Method:Hydraulic Pressure
- Warranty:2 Years
- Effective:Easy Operation
- Type:Concrete Iron Strengthen Machinery
- Method:Rolling Machine
- Processing:Rolling Machine
- Product:Steel
- Brick Raw Material:Steel
- Automation:Automatic
- Tolerance:1.0mm
- Thickness:0.3-0.7mm
- Transport Package:No
- Specification:CE
- Trademark:DIXIN
- Origin:Cangzhou City, Hebei Province, China
- HS Code:84552210
- Production Capacity:20sets,Per Month
Description
Basic Info.
Model NO. 988-1220 Customized Customized Transmission Method Hydraulic Pressure Warranty 2 Years Effective Easy Operation Type Concrete Iron Strengthen Machinery Method Rolling Machine Processing Rolling Machine Product Steel Brick Raw Material Steel Automation Automatic Tolerance 1.0mm Thickness 0.3-0.7mm Transport Package No Specification CE Trademark DIXIN Origin Cangzhou City, Hebei Province, China HS Code 84552210 Production Capacity 20sets/Per MonthProduct Description
Dx 988 Tile Roll Forming Machine
1. We can produce the specialmachine,send your drawing to us,we can desgin for you.
2. If you buy our products,we also can help you to purchase the material,like color roll,the price is lower than you buy by yourself.
3. We provude a one year warranty and lifelong technical support,wa can send our technical to you to give you on-site training.The training period would be for no more than one week with the customer paying for the visa,return ticket,food ,accommodations and a daily wage of US100
4. Engineer available to service machinery overseas.
If you come to visit our factory ,we can book the room for you,car pick up to send.
1. Technique parameters
(1) Processing material: Aluzinc/galvanized steel/colored steel coil
(2) Material thickness: 0.3-0.8mm
(3) Effective width: 988mm
(4) Feeding width: 1220mm
(5) Main motor power: 4 kw
(6) Pump power: 4 kw
(7) Shaft diameter: 75mm
(8) Forming steps: 15steps
(9) Roller material: 45# forged steel, with hard chrome plating
(10) Main frame: 300H steel
(11) Medium plate thickness: 14mm
(12) Control systerm: PLC computer control with inverter
(13) Power supply: 380V, 3 Phase, 50Hz
(14) 0veral sized: 6500mm*1500mm*1500mm
(15)Total weight: 2.7 tons
2. Work flow
Manual decoiler- Roll forming machine- PLC control- Hydraulic system - Post cut- Stacking
3. Specific description
(1) Manual decoiler
Un-powered, single head, max capacity: 5000kg
(2) hydraulic pump station
It is controlled by gear wheel oil pump, after filling the hydraulic oil into the hydraulic oil tank, the pump drive the cutting machine to begin the cutting job.
(3) Computer control cabinet
It adopts TaiDa PLC to control, the target sheet length is adjustable.
Computed mode has two modes: Automatic and manual.
Touch screen.
(4) Output table
It is used to load the finished sheet. This kind is convenient for shipment.
(5) Spare parts
4. Payment term
TT, you should pay 30% as the deposit on the order day, then pay 70% before delivery when you inspect goods well in factory or by video
5. Warranty
12 months, and lifelong technical support service
6. Installation
If you need, we will send one technician to your factory to install & testing the machine. You should assist the technician to get Visa and pay for flight tickets and local accommodation, and pay 80 USD/day for salary.

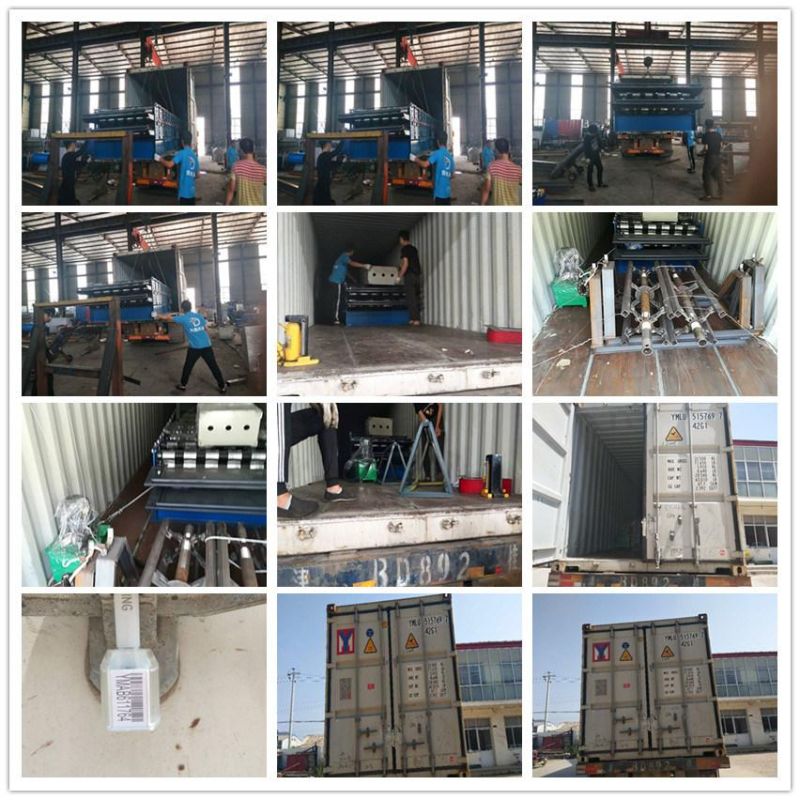

7. Package
Standard export package, water-proof package, covered with plastic film
No. | Name | Unit | Qty |
1 | Manual decoiler | set | 1 |
2 | Main forming machine | set | 1 |
3 | PLC control system | set | 1 |
4 | Hydraulic pump station | set | 1 |
5 | Post cut | set | 1 |
6 | Electric motor | set | 1 |
7 | Output table | set | 1 |
