Auto Change Size Standing Seam Roof Panel Forming Machine

Cangzhou Zhongheng Machine Manufacture Co., Ltd.
  • Tile Type:Colored Steel
  • Certification:CE, ISO
  • Condition:New
  • Customized:Customized
  • Usage:Roof, Wall
  • Transmission Method:Electric

Base Info

  • Warranty:2 Years
  • Production Speed:10-15m,Min
  • Rolling Thickness:0.3-0.6mm
  • Roller Material:45# High Quality Steel
  • Cutting Blade Material:Cr12
  • Voltage:380V 50Hz 3phase
  • Control System:PLC Control
  • Shaft Diameter:70mm
  • Shaft Material:45#Steel
  • Structure:350 H Beam
  • Wall Panel Thickness:16mm
  • Transport Package:Naked with Plastic Film Cover
  • Specification:3800mm*1.55mm*1.3mm
  • Trademark:ZHONGHENG
  • Origin:China
  • HS Code:8455221000
  • Production Capacity:50 Sets ,Months

Description

 Size

 (2000-2300)*1200*1200mm

 Weight

 800-1000KGS base on the design

 Voltage

 380V/50HZ/3PH or base on cutomer requirement

 Motor Power

 2.2KW

 Hydraulic Power

 2.2KW

 Forming Steps

 6-9steps base on the design

 Forming Steel Thickness

 0.5-1.0mm

 Forming Aluminum Thickness

 0.7-1.2mm

 Height of Roofing

 25mm and 38 mm or base on customer design

 Effective Width of Roofing

 230mm - 530mm

 Material Width

 310mm - 610mm

 Tolerance

 ±2mm

 Roller material

 High grade 45# forged steel, Plated hard chrome and polished all the rollers

 Material of principal axis

 High grade 45# forged steel

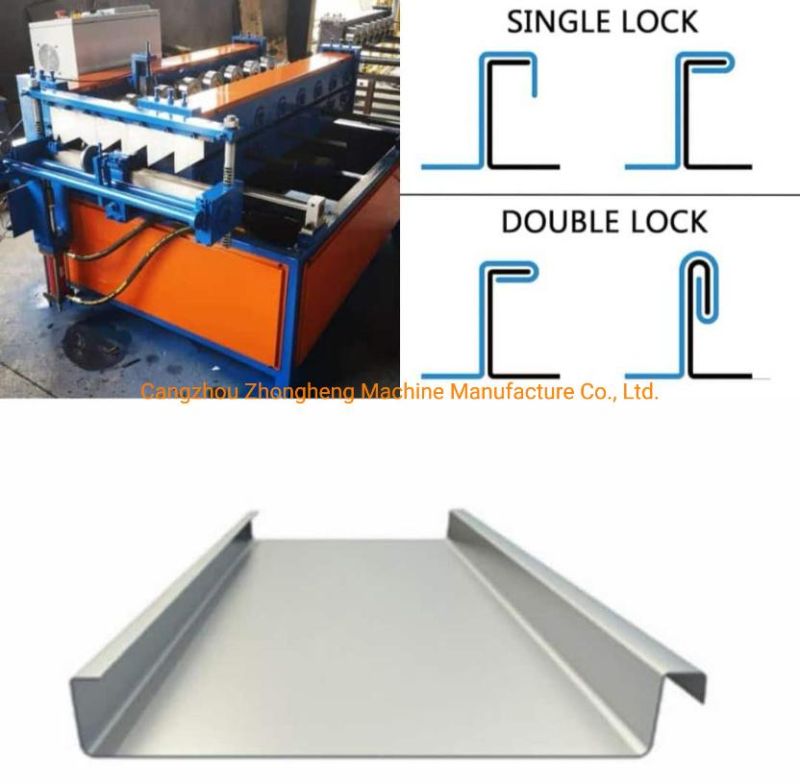

Detailed Image
