• Model NO.：LJB2H-CNC-600x6000
• Application Industry：Curtain Wall Facade Manufacture Industry
• CNC Axis Number：5
• Sawing Blade Feeding Direction：From Bottom Side
• Sawing Blade Diameter：600mm
• Aluminum Raw Material Length Maximum：5000mm
• Servo System：Schneider
• Transport Package：Standard Export Package
• Specification：Double-Head Cutting Saw CNC
• Trademark：Tianchen
• Origin：Jinan, Shandong, China
• HS Code：84614090
• Production Capacity：200 Sets,Year

Basic Info.

Model NO. LJB2H-CNC-600x6000 Application Industry Curtain Wall Facade Manufacture Industry CNC Axis Number 5 Sawing Blade Feeding Direction From Bottom Side Sawing Blade Diameter 600mm Aluminum Raw Material Length Maximum 5000mm Servo System Schneider Transport Package Standard Export Package Specification Double-Head Cutting Saw CNC Trademark Tianchen Origin Jinan, Shandong, China HS Code 84614090 Production Capacity 200 Sets/Year

Product Description

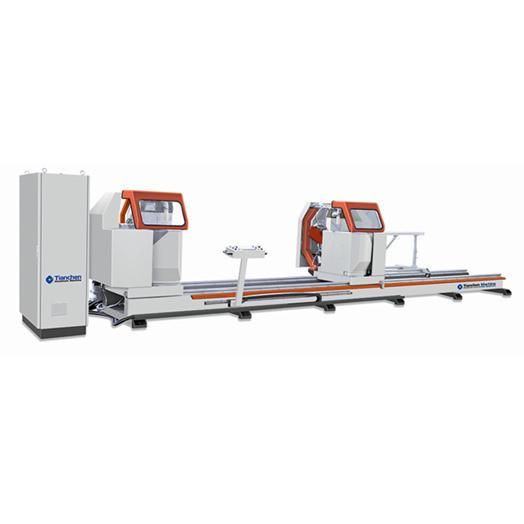

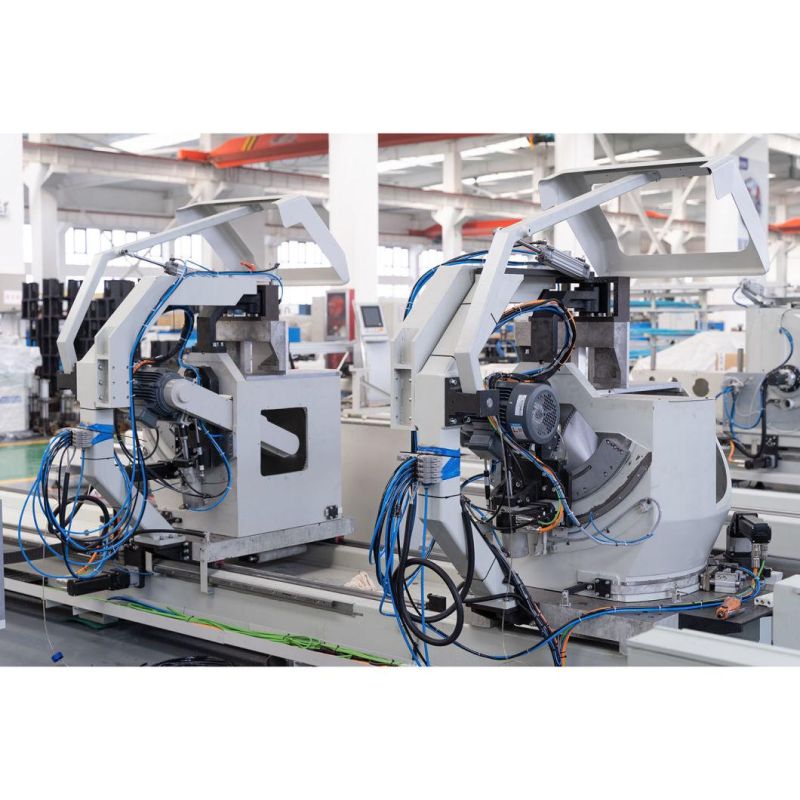

 5 Axis CNC Double Head Cutting Saw for Aluminium Profile




1.Machine Features:
☆ Applicable to any two-dimensional composite angle cutting of large-section aluminum profiles;

☆ Five-axis full-closed CNC system is adopted to ensure the positioning accuracy of the rotation angle and length;


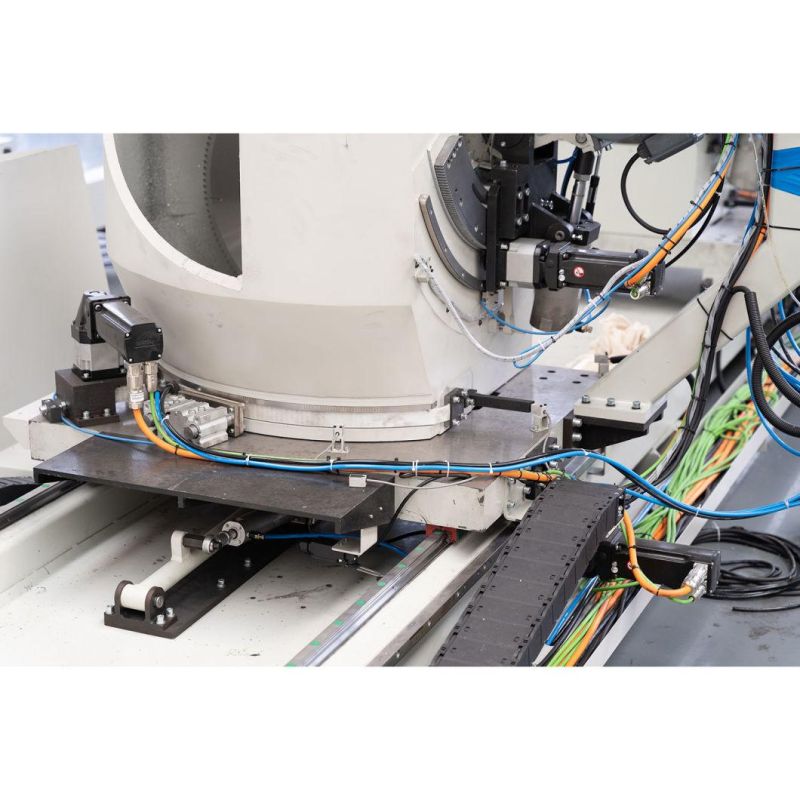

☆ The movable cutting saw head adopts linear guide pair and gear rack transmission to ensure the rigidity and positioning accuracy of the transmission;



☆ The machine head rotates with precision crossed cylindrical roller bearings, and the rotation is stable and reliable;

☆ The enhanced rocker arm structure makes the cutting more stable and the cutting effect is better;

☆ The saw blade swings out under the work table, the cutting is smooth, and the cut surface of the profile is smooth;


☆ Lubrication and cooling device that moves with the saw blade, effectively improving the cutting quality and the service life of the saw blade;

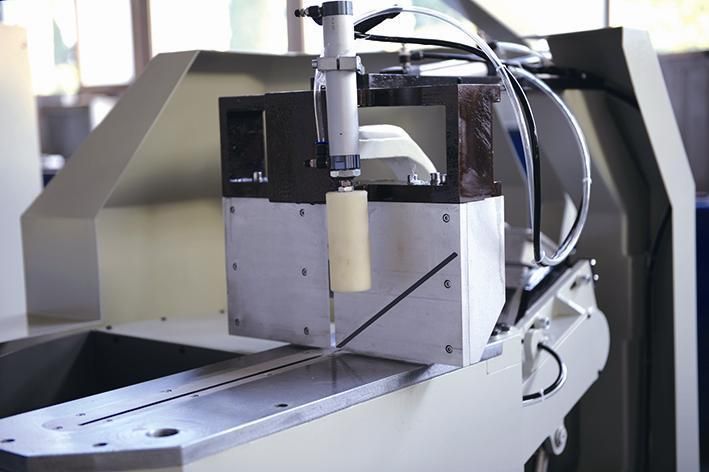

☆ The pneumatic positioning brake and the compressing of the profile ensure the cutting stability;


☆ With automatic lifting intermediate carrier and follow-up carrier for long profile support.

2. Technical parameters:
☆ Power supply voltage: 380V±10% 50Hz±2% three-phase four-wire system
☆ sawing motor power: 3kW 2800rpm
☆ Working pressure: 0.6~0.8MPa
☆ Saw blade specifications: Φ600 × Φ38 × 4.8 × 4.2 × 144P
☆ Saw blade angle: 45°~90° arbitrary angle
☆ Table rotation angle: 45 ° ~ 135 ° arbitrary angle
☆ Cutting Section range: 200mm × 200mm (cutting angle at 90°, width × height, see the cutting section range)
☆ Cutting length: 700mm~5000mm (90°)
☆ Blade feed rate: 0~3m/min
☆ Cutting surface roughness: ≤ Ra12.5μm
3. Main outsourced components:
☆ Servo system: Schneider
☆ Sawing motor: Siemens Beide
☆ Reducer: NewStart
☆ Rack: YYC
☆ Pneumatic components: SMC
4. Cutting section range:

Horizontal rotation angle range of two heads: 45°~135° (top view)


Two saw blades vertical swing angle range: 45 ° ~ 90 ° (front view)
