High Capacity Qt10-15 Paving Interlocking Brick Block Making Machine

Xi'an International Mechanical Factory Co., Ltd.
  • After-sales Service:Provided
  • Warranty:1 Year
  • Certification:CE, ISO
  • Customized:Customized
  • Automatic Grade:Automatic
  • Type:Block Making Machine

Base Info

  • Model NO.:IMF-QT10-15
  • Product Name:Block Making Machine
  • Core Components:PLC, Pressure Vessel, Engine, Gear, Motor, Pump,
  • Molding Cycle:15s
  • Exciting Frequency:0~65 Hz
  • Vibration Form:Platform Vibration
  • Scope of Application:Wall Tiles, Floor Tiles
  • Distributor:Rotary Distributor
  • HMI:6 Inch Single Color Display
  • Voltage:220V,380V,440V
  • Host Installed Capacity:37kw
  • After Warranty Service:Online Support
  • Marketing Type:New Product 2021
  • Applicable Industries:Building Material Shops, Manufacturing Plant
  • Machinery Test Report:Provided
  • After-Sales Service Provided:Video Technical Support, Online Support
  • Transport Package:1 Set Per Bag. or Customized Packaging.
  • Specification:3500*2300*2930mm
  • Trademark:IMF
  • Origin:China
  • Production Capacity:63000

Description

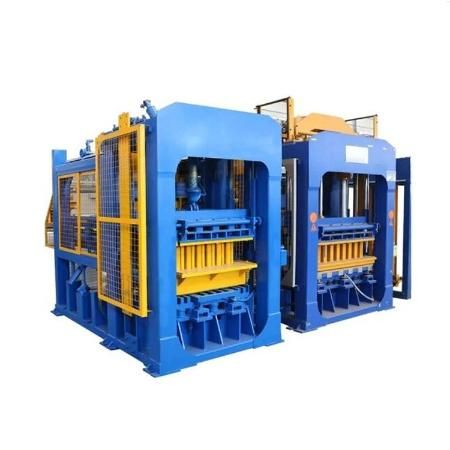

 High Capacity QT10-15 paving interlocking brick block making machine

Dimension of host machine

3500 *2300 *2930mm

Moulding area

1196*880mm

Moulding cycle

15s

Pallet size

1300*900*30mm

Host machine power

37kw

Weight

9.8T

Viration force

100KN

Mixer modeal

JS750

Voltage

220V/380V/440V

Water consumption

10-20T/day

Workshop

260m2

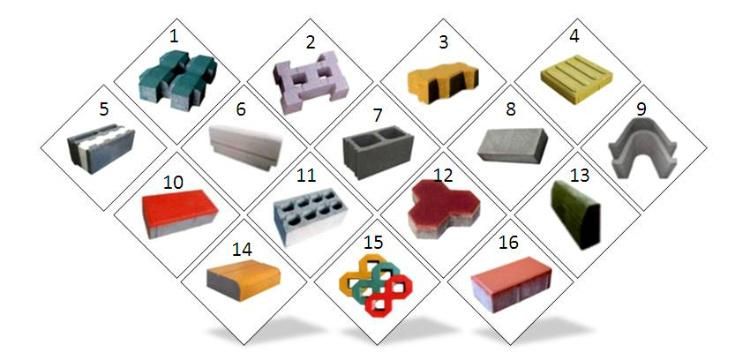

 High Capacity Qt10-15 Paving Interlocking Brick Block Making MachineApplication of block making machine
1.Material and welding:all material and spare parts selected according international CE standard ,Carbon dioxide protection
welding will assure whole line stable running.
2.Control PLC: we select original Mitsubishi PLC combine with independently develop machine control program ,assure stable and
high-efficiency working status.
3.Hydraulic system:hydraulic spare parts be ordered according our block machine characteristics from Taiwan.
4.Mould: newest heat treatment device and carburizing treatment will assure longer mould life span and ensure the strength of
mould reach to 54-58 HRC so that the mould can be used more than 100 thousand times.


High Capacity Qt10-15 Paving Interlocking Brick Block Making Machine
During the production process, only the main motor is in working condition, and all other motors run intermittently, which saves energy and electricity.
The spreader, feeder, upper die and lower die of the cement brick making machine are all driven by the hydraulic system and run smoothly.
The mold has been quenched, tempered, carburized, boronized and other heat treatment processes to improve the life of the mold. And exceed the national standard mold wear resistance greatly enhanced.

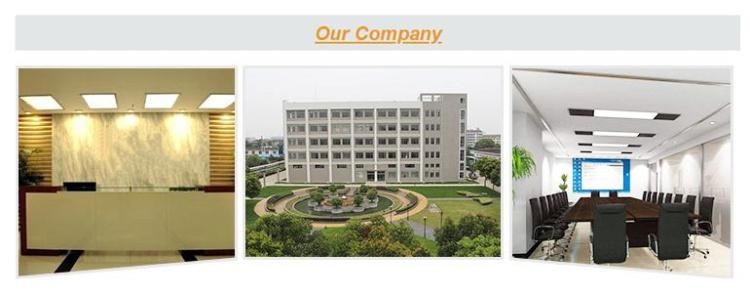

High Capacity Qt10-15 Paving Interlocking Brick Block Making Machine High Capacity Qt10-15 Paving Interlocking Brick Block Making MachineHigh Capacity Qt10-15 Paving Interlocking Brick Block Making Machine                                   »»» CLICK HERE TO SEE MORE STOCKHigh Capacity Qt10-15 Paving Interlocking Brick Block Making Machine Xi'an International Mechanical Factory Co., Ltd., was established in May 2010. It is a professional supplier of Packaging Machine, Chemical Machinery, Pharmaceutical Machinery, Food & Beverage Machinery, Feed Processing Machine. It has absolute advantage because of strong research strength, modern management system and high-quality marketing team.  Now we have 3 GMP standard workshop, Meanwhile, the factory is equipped with the researching and quality inspection centre, with strong technology research and development strength. We also have 3 salesdepartments over 30 people and sell our products all over the world. For customer's needs, OEM service is also acceptable. If you have a good idea in new product production but lack of laboratory device and human resource, we are glad to solve this problem for you. Sincerely hope to strengthen exchanges and cooperation with friends from both home and abroad.High Capacity Qt10-15 Paving Interlocking Brick Block Making MachineHigh Capacity Qt10-15 Paving Interlocking Brick Block Making Machine  High Capacity Qt10-15 Paving Interlocking Brick Block Making Machine Q: Where is your factory ? How can I visit your factory ?
A: Our factory is located In Xi'an , Shaanxi . We are warmly welcome you visit our Factory if you have a travel plan.

Q: How can I know your machine is designed for my product ?
A: If you don't mind, you can send u sample and we test it on the machine. During that time, we will take video and clearer picture for you. If chance, we can take video online and show u.

Q: How can I trust you for the first time business ?
A: Please check our business license and certificate. And if you don't trust us, then we can use Alibaba Trade Assurance service. it will protect your money during the whole stage of the transaction.

Q: How about the after service and guarantee period ?
A: We make the guarantee time 12 months from the machine's arrival in buyer's facility and we have a professional team with an experienced technician to serve abroad and do the best after service to assure the machine whole life usage.

Q: How do we contact you ?
A: Please leave a message and click "send" to send us an inquiry.
