• Model NO.：DX1000
• Automation：Automatic
• Tolerance：1.0mm
• Type：Concrete Iron Strengthen Machinery
• Brick Raw Material：Steel
• Processing：Rolling Machine
• Method：Rolling Machine
• Speed：8-12m,Min
• Sheet Thickness：0.3-0.8mm
• Roller Stations：13-18 Steps
• Roller Shaft：75mm
• Transport Package：No
• Specification：CE, SGS
• Trademark：DIXIN
• Origin：Cangzhou City, Hebei Province, China
• HS Code：84552210
• Production Capacity：10sets,Per Month

Basic Info.

Model NO. DX1000 Automation Automatic Tolerance 1.0mm Type Concrete Iron Strengthen Machinery Brick Raw Material Steel Processing Rolling Machine Method Rolling Machine Speed 8-12m/Min Sheet Thickness 0.3-0.8mm Roller Stations 13-18 Steps Roller Shaft 75mm Transport Package No Specification CE, SGS Trademark DIXIN Origin Cangzhou City, Hebei Province, China HS Code 84552210 Production Capacity 10sets/Per Month

Product Description

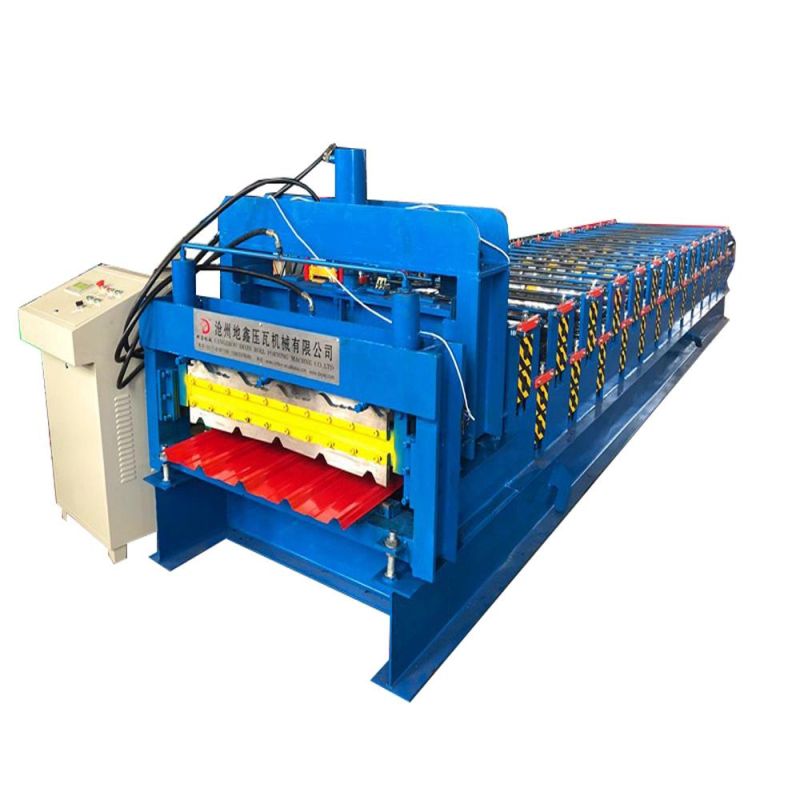

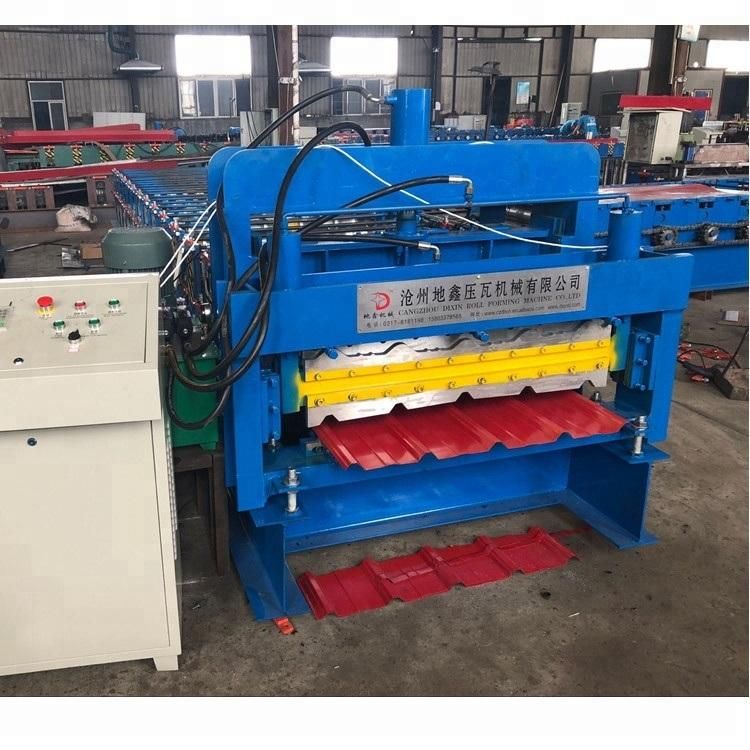

Double layer two layer roofing sheet roll forming making machine
1.Technical parameters
(1) Processing material: Aluzinc/galvanized steel/colored steel coil
(2) Material thickness: 0.3-0.8mm
(3) Effective width: 750/900mm
(4) Feeding width: 1000/1000mm
(5) Main motor power: 5.5 kw
(6) Pump power: 4 kw
(7) Shaft diameter: 75mm

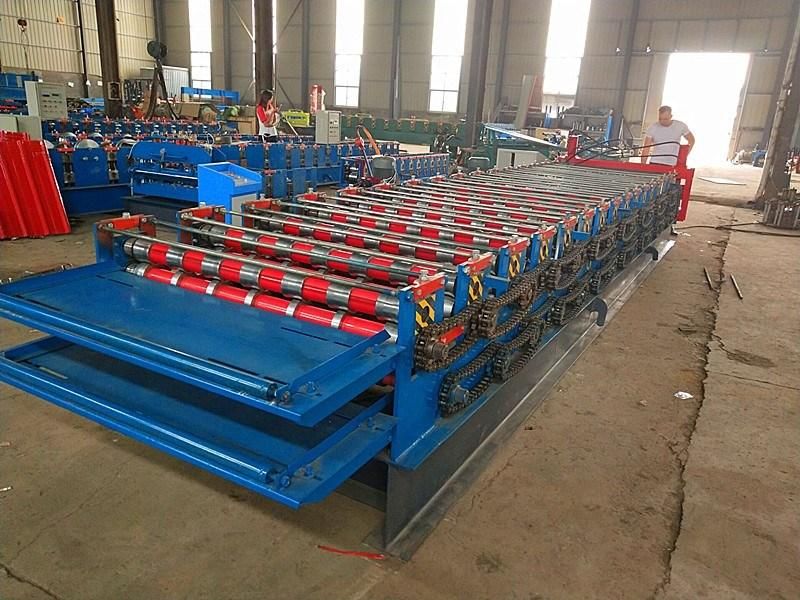

(8) Forming steps: 13/15steps
(9) Roller material: 45# forged steel, with hard chrome plating
(10) Main frame: 350H steel
(11) Medium plate thickness: 16mm
(12) Control systerm: PLC computer control with inverter
(13) Power supply: 380V, 3 Phase, 50Hz
(14) 0veral sized: 6500mm*1500mm*1500mm
(15)Total weight: 3.5 tons

2. Work flow
Manual decoiler- Roll forming machine- PLC control- Hydraulic system - Post cut- Stacking





3. Specific description
(1) Manual decoiler
Un-powered, single head, max capacity: 5000kg

(2) hydraulic pump station
It is controlled by gear wheel oil pump, after filling the hydraulic oil into the hydraulic oil tank, the pump drive the cutting machine to begin the cutting job.

(3) Computer control cabinet
It adopts TaiDa PLC to control, the target sheet length is adjustable.
Computed mode has two modes: Automatic and manual.
Touch screen.

(4) Output table
It is used to load the finished sheet. This kind is convenient for shipment.

(5) Spare parts

4. Payment term
TT, you should pay 30% as the deposit on the order day, then pay 70% before delivery when you inspect goods well in factory or by video

5. Warranty
12 months, and lifelong technical support service

6. Installation
If you need, we will send one technician to your factory to install & testing the machine. You should assist the technician to get Visa and pay for flight tickets and local accommodation, and pay 80 USD/day for salary.

7. Package
Standard export package, water-proof package, covered with plastic film

No.	Name	Unit	Qty
1	Manual decoiler	set	1
2	Main forming machine	set	1
3	PLC control system	set	1
4	Hydraulic pump station	set	1
5	Post cut	set	1
6	Electric motor	set	1
7	Output table	set	1
