• Model NO.：HR1-10
• Colour：According to Your Demand
• Total Weight：6500kg
• Power：29.4 Kw
• Brick Raw Material：Cement
• Transport Package：Nude Package or 20 Feet Container
• Specification：CE SGS ISO
• Trademark：HENRY
• Origin：Shandong Linyi
• HS Code：8474802000
• Production Capacity：(400*200*200)7680PCS,Hour

Basic Info.

Model NO. HR1-10 Colour According to Your Demand Total Weight 6500kg Power 29.4 Kw Brick Raw Material Cement Transport Package Nude Package or 20 Feet Container Specification CE SGS ISO Trademark HENRY Origin Shandong Linyi HS Code 8474802000 Production Capacity (400*200*200)7680PCS/Hour

Product Description

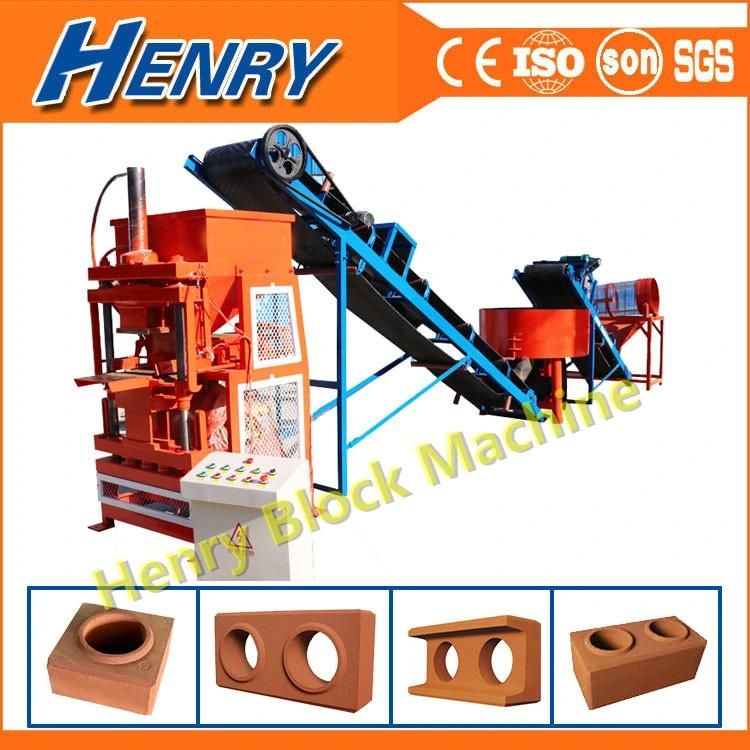

HR1-10 Eco Turbo fully automatic clay and cement brick making machine production line



HR1-10  block machine specification


rated power	3 kw or 15 HP diesel engine
overall size	1000x1000x1800mm
weight	1000kg
cycle	10 seconds
electricity source	380v/50HZ (adjustable)
Cooling way	Water cooling
Switch	Automatic
rated pressure	16mpa

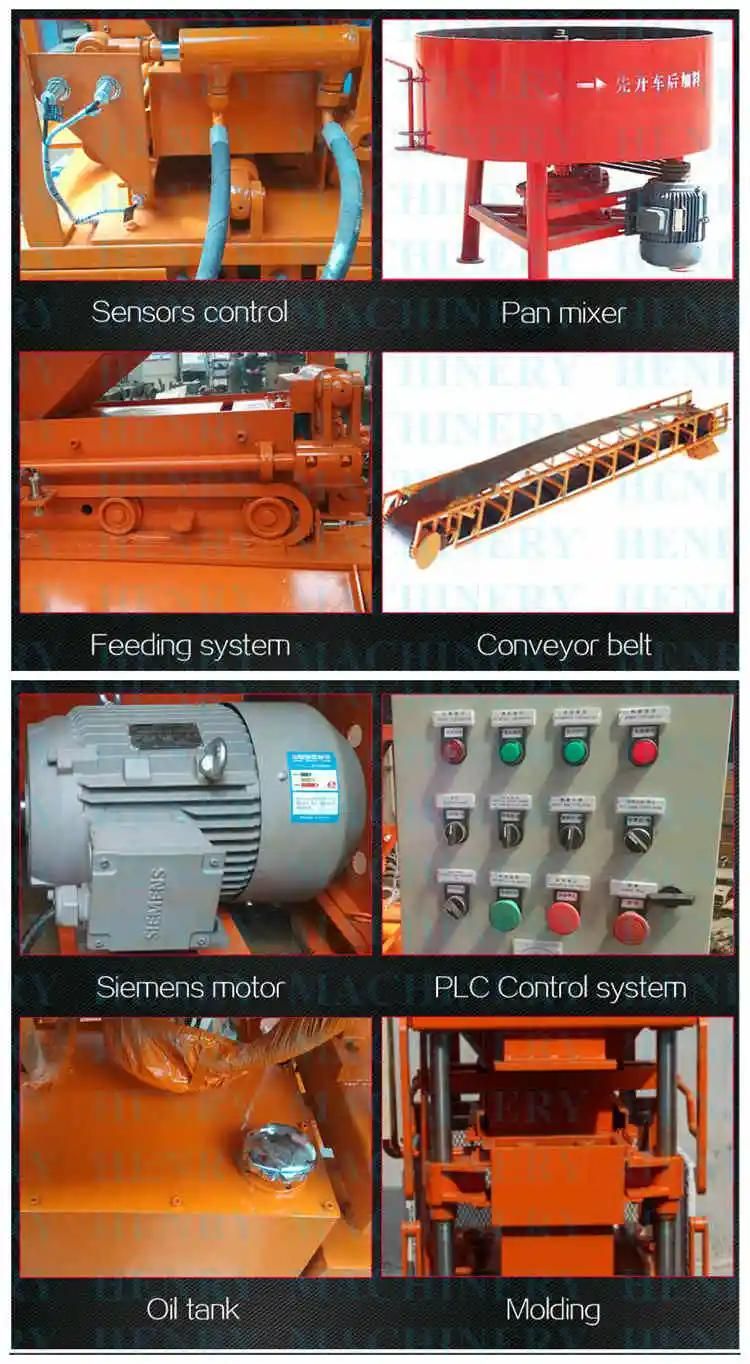

There are some advantages of HR1-10 brick machine:

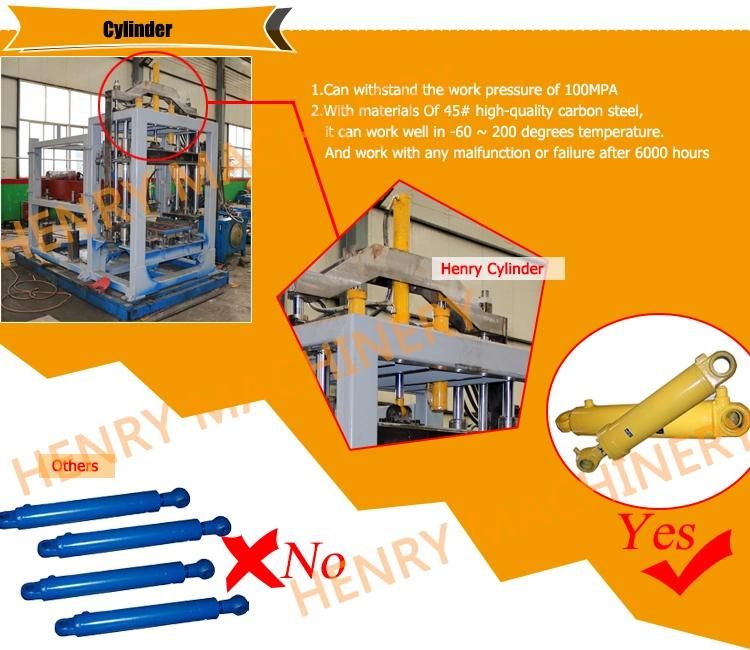

1.With 15cm diameter hydraulic cylinder,Processing shift short,high efficiency and higher pressure
2.Surrounding style protective screening,Avoid concrete pellets from hopper hurt workers
3.Hydraulic oil meter.With this,it is easy to adjust rated pressure,for different brick pressure requirement
4.Brick molding.With screw to be connected in order to change molding more easierly
5.Discharging system with Intelligence sensor.Discharging is more Accurate and uniform
6.Oil tank.With vault design.The tank volume gets larger,more easier to pump
7.Sensor controlling.All of processing is with sensor controlling.MakMake sure every step perfect and
   accurate
8.Siemens electric motor.Famous brand motor,No.1 in the world.

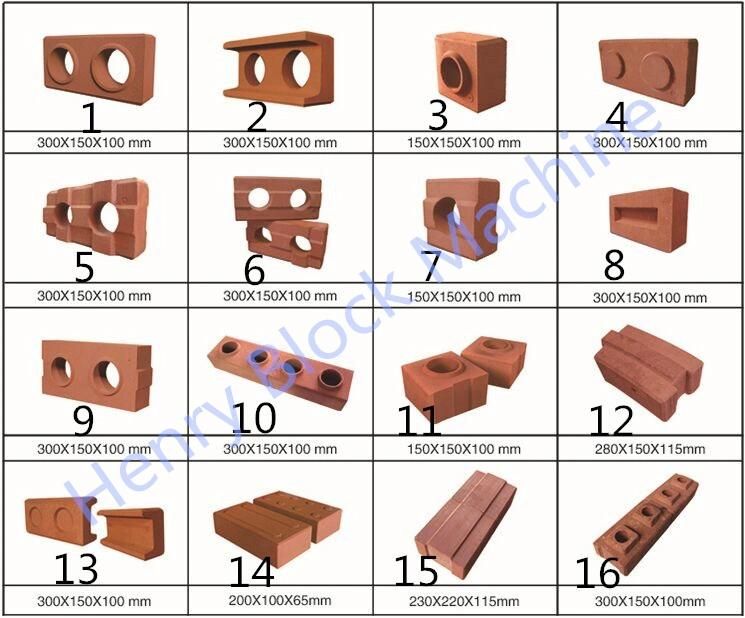

About clay soil interlocking block sample and capacity


Block size	Pcs/mould	Pcs/hour
250x125x100mm	1	500-600
125x125x100mm	2	1000-1200
300x150x100mm	1	500-600
150x150x100mm	2	1000-1200
300x150x100mm	1	500-600
300x150x100mm	1	500-600



  Ecological interlocking blocks-----new architectural trends

What are interlocking blocks?

       Interlocking refers to the male and female ridges on the top and bottom as well as front and back
of the Hydraform blocks. These ridges then lock into one another to lock the blocks into place.

What's Eco-friendly Soil-cement Interlocking Blocks?

      Our blocks are cured, not burnt and therefore requires NO burning trees. The bricks in an average
clay house could burn as many as 60-100 trees. Our blocks are made from earth (soil) which is an
excellent insulation material; it keeps structures cool in the warmer months and warm in the cooler
months, thus reducing carbon footprints. Because our blocks are also made from soil and clay and only
10% cement, the blocks require no harmful additives.

There are some advantages of ecological interlocking blocks:

1. Save up to 30% in construction costs
2. Faster and Easier construction
3. High Quality firebrick like finish
4. After sales support to ensure NO "down time" on your site
5. Low machine maintenance costs
6. Mobile machines enable you to make blocks where you need them

It can meet with environmental requirements, without being burned in the kiln. It only need to be cured in the open-air as long as 5-7 days , then you can use it in the construction.
Using ecological interlocking bricks, you can save much construction costs, you needn't use cement and the construction process is very easy.

Matching principle

soil interlocking bricks
soil 60%-72% cement 8%-10% sand 20%-30%
concrete hollow blocks
crushed stone:50%-60%  sand 30%  cement 7%-10%
paving blocks
crushed stone:30%-40%  sand 40%-50% cement10%-12%

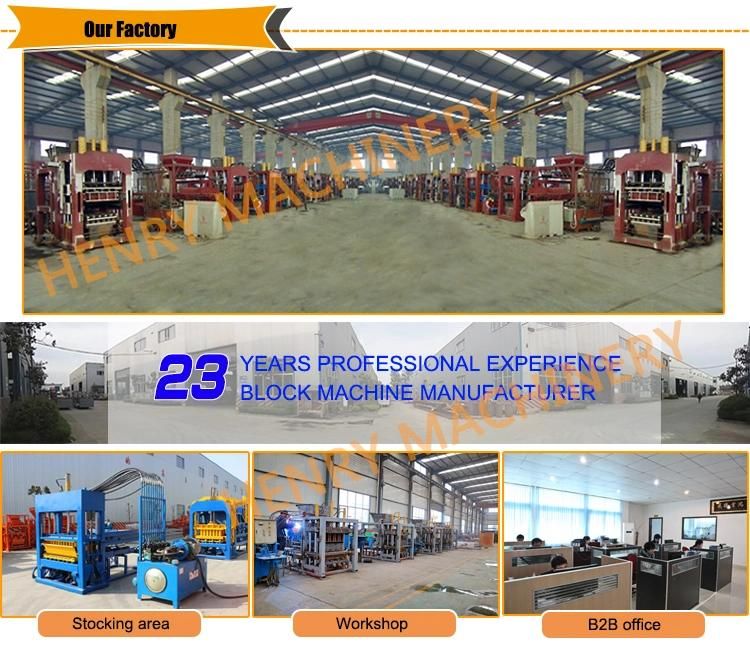

                                                                   Company profile

         Henry Industrial Co., Ltd has been committed to designer, manufacturer, saler of construction
machinery, has the domestic advanced equipments, super professional skills. With over 23 years of
experience, we produce a wide range of products like hollow block machine, soil brick machine,
interlocking brick machine,paving machine, crusher, mixer, block mould and paving mould.
        Among the same trade, the company took the lead in wining the ISO9001 and ISO14001environment
management system certificate, CE certificate, the"China Well-Known Trademark ", and "High and New
Tech enterprise certificate" Our products have been well sold to hundreds of countries and regions such
as Europe, America, Africa, the Middle east, Southeast Asia, etc, winning the high reputation of customers from domestic and overseas.now has 3 offices in foreign countries.
       Currently, we have perfected design of the machines, enhanced  the performance of the machine,
improve the production process of the machine.and in price we made a substantial adjustment. Our
R&D team develops new designs every two months. I believe that your customers will be always satisfied with our products and designs.


                                                                            Our service

(1)We offer different types of block machines, small, semi-automatic and fully automatic. And make all
kinds of size of moulds, according to customer requirements

(2) We have about 200 workers, 50 sales manager and 10 professional designers of 20 years experience

(3)Exported to more than 70 countries in the world, setting branch office in Nigeria, Tanzania and Algeria

(4)Professional factory: We are manufacturer, specializing in manufacturing block machines, mixers for
     20 years.

(5)Competitive price with good quality, the deadline usually is 25-35 working days.

(6)Our worker will test the machine for making blocks before we send it out, So please rest assure.

(7)Rapid response to your needs: We will be answer within 24 hours. Welcome to contact with us if you
     have any problems. We are looking forward to cooperating with you.


Shipping way

We have our own long cooperate shipping company, they can offer the best freight. And if you would like, we can use your shipping company to sent the machines.
