• Model NO.：request
• Certification：ISO9001: 2000, CE, SGS
• Condition：New
• Customized：Customized
• Usage：Roof, Wall
• Transmission Method：Hydraulic Pressure
• Effective：Easy Operation
• Motor Power：4kw
• Forming Station：13 Stations
• Medium Plate Thickness：14mm
• Main Frame：300h
• Diameter of Roller：75mm
• PLC：Delta Brand
• Type：Roll Forming Machine
• Method：Roll Forming Machine
• Transport Package：One 20 Feet Container for Loading One Set Machine
• Specification：CE, SGS
• Trademark：DIXIN
• Origin：Cangzhou City, Hebei Province, China
• HS Code：84552210
• Production Capacity：20sets,Per Month

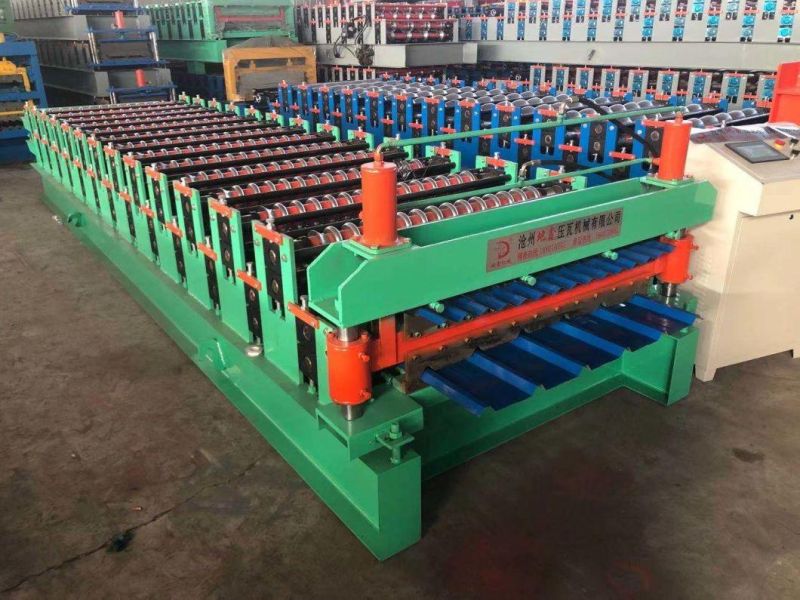

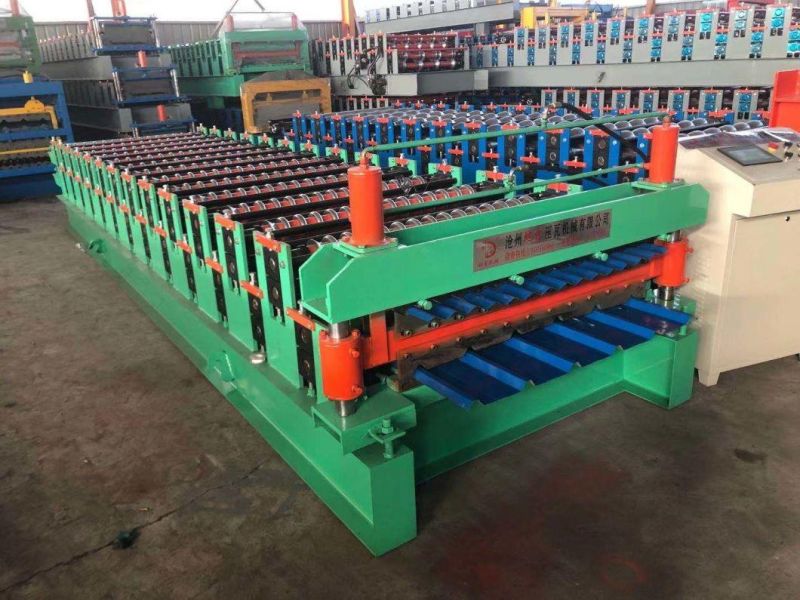

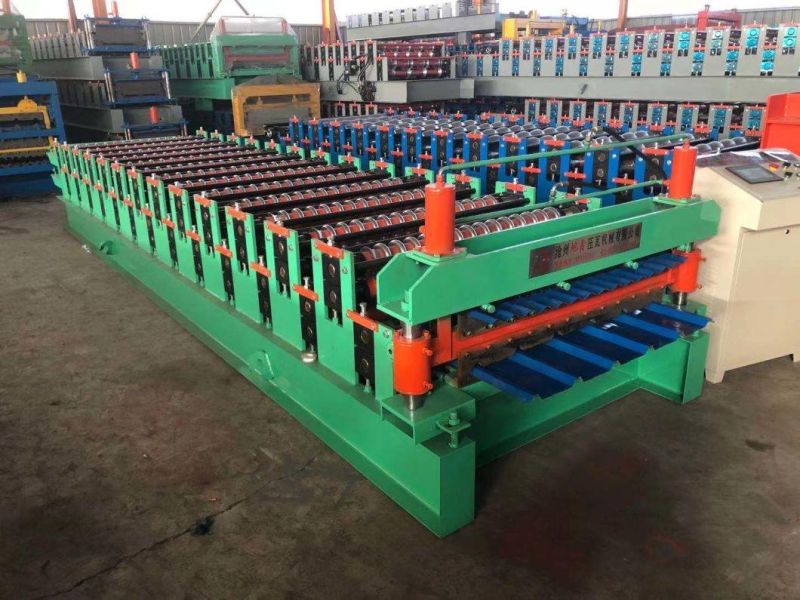

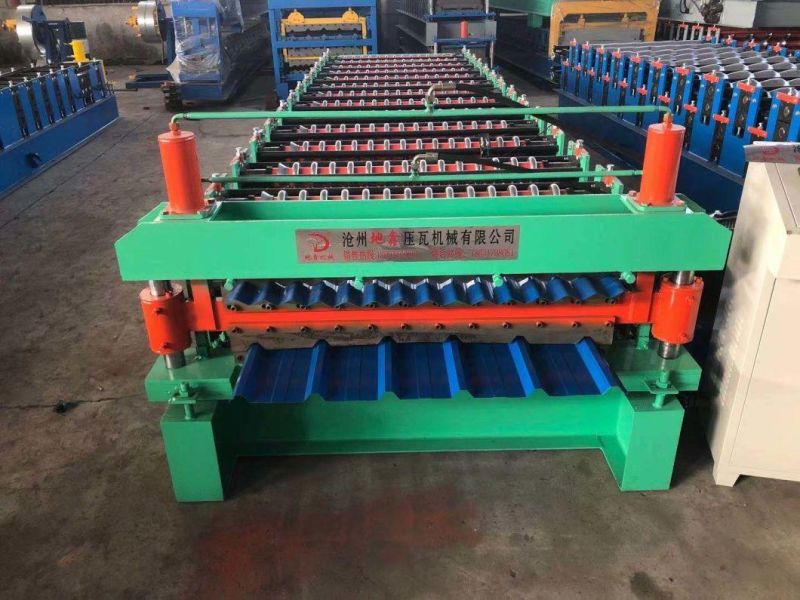

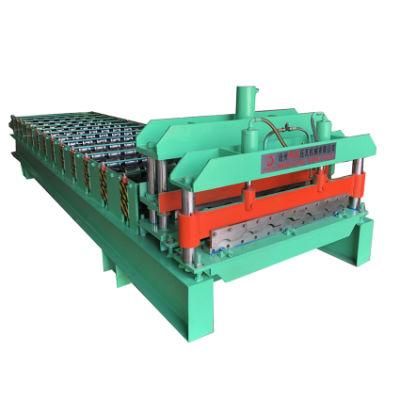

Machine details

Roller material

High grade no. 45 forged steel with 0.05mm hard chrome plating

Shaft material

High grade no. 45 carbon wrought steel

Cutting blade

Cr12 mould steel with quenched treatment

Diameter of shaft

75mm or as your requirement

Main frame

350 h steel

Forming steps

Up layer:13stations

Down layer:13 stations

Productivity

10-20m/min

Hydraulic station power

5.5kw+4kw

Hydraulic pressure

10-12mpa

Appearance size

7700mm*1500mm*1700mm

Weight

6-7tons

Hydraulic oil

40# hydraulic oil

Electric tension

380v 50 hz 3 phase or as your requirement

Cut mode

Hydraulic forming after cutting off

Cutter materia

Cr12 heat treatment

Electronic control system

Plc, touch screen, encoding counter

Color

Blue, green or yellow or as your requirement

Rolling material

45# steel,roller surfaces polishing, hard plating

Service life

10 years


Packing and shipping details :
1. One 20feet container for loading one set machine with mechanical decoiler.
2. Main machine body and decoiler is load naked (tighten to container with steel wire rope).
3. Spare parts and operating tools are loading in tooling box.


Q: Do you sell only standard machines?

A: No, most of our machines are built according to customers specifications, using top brand name components.



Q: What size decoiler can you supply us with?

A: From 5-ton decoiler to a 25-ton motorized hydraulic decoiler.



 Q: How to visit your company?

A:a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.

    b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.



 Q: What can you do if the machine broken?

A:Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.
