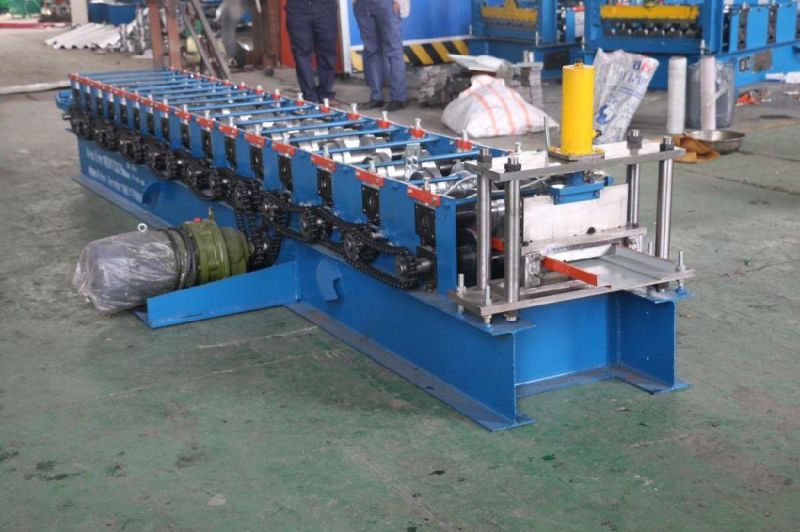

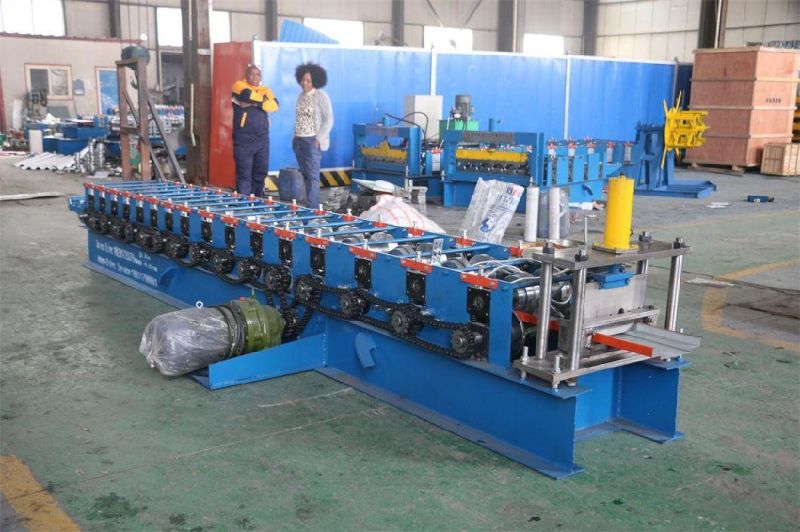

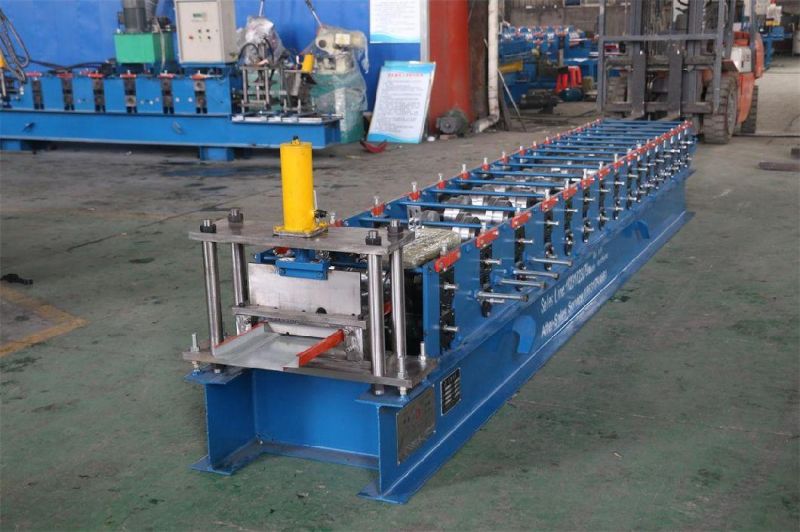

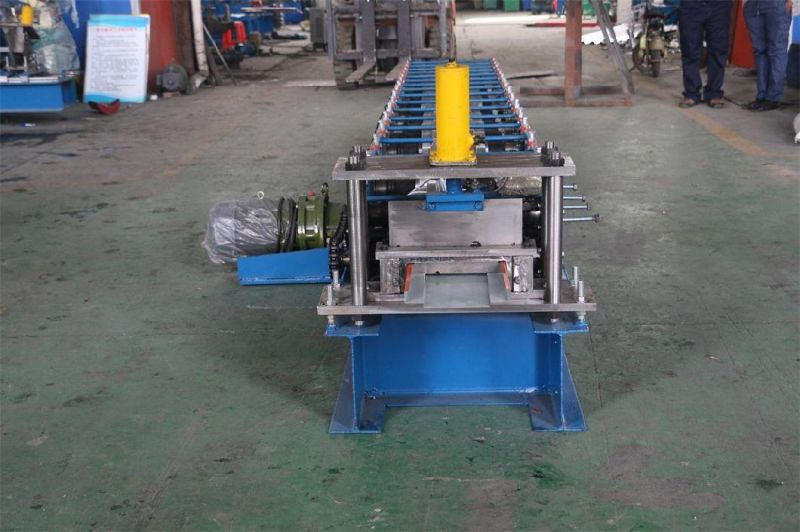

High Speed Galvanized Steel Metal Slat Roller up Shutter Door Frame Profile Panel Roll Forming Making Machine Production Line
Cangzhou Dixin Roll Forming Machine Co., Ltd.- Certification:CE, RoHS, GS, ISO9001
- Customized:Customized
Base Info
- Model NO.:door frame roll forming machine
- Condition:New
- Control Type:CNC
- Automatic Grade:Automatic
- Drive:Hydraulic
- Effective:Easy Operation
- Usage:Door Frame
- Power:3kw
- Forming Station:13 Stations
- PLC:Delta Brand
- Hydraulic Motow:3kw
- Type:Steel
- Method:Roll Forming Machine
- Processing:Steel
- Transport Package:No
- Specification:CE, SGS
- Trademark:DIXIN
- Origin:Cangzhou City, Hebei Province, China
- HS Code:84552210
- Production Capacity:8sets,Per Month
Description
Basic Info.
Model NO. door frame roll forming machine Condition New Control Type CNC Automatic Grade Automatic Drive Hydraulic Effective Easy Operation Usage Door Frame Power 3kw Forming Station 13 Stations PLC Delta Brand Hydraulic Motow 3kw Type Steel Method Roll Forming Machine Processing Steel Transport Package No Specification CE, SGS Trademark DIXIN Origin Cangzhou City, Hebei Province, China HS Code 84552210 Production Capacity 8sets/Per MonthProduct Description
High speed galvanized steel metal slat roller up shutter door frame profile panel roll forming making machine production lineWe are manufacturer of roll forming machine for 8 years, and ever sold machines to many countries, such as: US, UK, Canada, Russia, Zambabwe, Italy, Azerbaijan. etc.
1. Technique parameters
(1) Processing material: Aluzinc/galvanized steel/colored steel coil
(2) Material thickness: 0.3-0.8mm
(3) Main motor power: 3 kw
(4) Pump power: 3 kw
(5) Shaft diameter: 65mm
(6) Forming steps: 13 steps
(7) Roller material: 45# forged steel, with hard chrome plating
(8) Main frame: steel frame
(9) Medium plate thickness: 12mm
(10) Control systerm: PLC computer control with inverter
(11) Power supply: 380V, 3 Phase, 50Hz
(12) 0veral sized: 4500mm*1000mm*1500mm
(13)Total weight: 1.5 tons
2. Specific description
(1) Manual decoiler
Un-powered, single head, max capacity: 5000kg
(2) hydraulic pump station
It is controlled by gear wheel oil pump, after filling the hydraulic oil into the hydraulic oil tank, the pump drive the cutting machine to begin the cutting job.
(3) Computer control cabinet
It adopts TaiDa PLC to control, the target sheet length is adjustable.
Computed mode has two modes: Automatic and manual.
Touch screen.
(4) Output table
It is used to load the finished sheet. This kind is convenient for shipment.
3. Payment term
TT, you should pay 30% as the deposit on the order day, then pay 70% before delivery when you inspect goods well in factory or by video
4. Warranty
24 months, and lifelong technical support service
5. Installation
If you need, we will send one technician to your factory to install & testing the machine. You should assist the technician to get Visa and pay for flight tickets and local accommodation, and pay 80 USD/day for salary.
6. Package
Standard export package, water-proof package, covered with plastic film
No. | Name | Unit | Qty |
1 | Manual decoiler | set | 1 |
2 | Main forming machine | set | 1 |
3 | PLC control system | set | 1 |
4 | Hydraulic pump station | set | 1 |
5 | Post cut | set | 1 |
6 | Electric motor | set | 1 |
7 | Output table | set | 1 |
Welcome to our company: Cangzhou Dixin Roll Forming Machine Co.,Ltd.
ADD: Fuzhuang Development Zone, Botou City, Cangzhou, Hebei Province, China
Welcome to have a visit !
We can design according to our customers' requirements and we will do our best to meet your needs. For the above reasons, our products not only have a ready sale in domestic market but are also exported to Armenia, Russia, Kazakhstan, Iran and other countries and regions
Please contact me now !!!!
