• Model NO.：sheet metal forming machine
• Condition：New
• Customized：Customized
• Usage：Roof
• Transmission Method：Machinery
• Name：Glazed Roofing Tile Roll Forming Machine
• Type：Rolling Machine
• Power Source：Hydraulic Pressure
• Feature：High Efficiency
• Advantage：Use Widely
• Forging Forming Method：Mold Forging
• Processing Material：Aluzinc,Galvanized Steel,Colored Steel Coil
• Material Thickness：0.3-0.8mm
• Effective Width：1030mm
• Transport Package：Water-Proof Packaging, Covered with Plastic Film
• Specification：DX1030
• Trademark：DX
• Origin：Botou Hebei China
• HS Code：845522
• Production Capacity：20 Set Per Month

Basic Info.

Model NO. sheet metal forming machine Condition New Customized Customized Usage Roof Transmission Method Machinery Name Glazed Roofing Tile Roll Forming Machine Type Rolling Machine Power Source Hydraulic Pressure Feature High Efficiency Advantage Use Widely Forging Forming Method Mold Forging Processing Material Aluzinc/Galvanized Steel/Colored Steel Coil Material Thickness 0.3-0.8mm Effective Width 1030mm Transport Package Water-Proof Packaging, Covered with Plastic Film Specification DX1030 Trademark DX Origin Botou Hebei China HS Code 845522 Production Capacity 20 Set Per Month

Product Description

 Taiwan quality Double layer Ibr trapezoidal Sheet Roll Forming Machine Roof Panels Making Machine
This is Double Layer Roll Forming Machine Two in One Double Deck Roof Machine, suitable for ss304 material and other harder coils , the finished sheet usually worked for roof and wall panel . It has beautiful water wave design , now is widely used in all over the world .
1.Equipment technical parameters

Length of the main part	About8500*1650*1500mm
Weight of main part	About 4.5 tons
Voltage	380V/50HZ/3Phase (as customer`s request)
Roller fixer	Middle plate welded
Frame	350H steel welded
Middle plate thickness	20mm/18mm/16mm/14mm/12mm
Drive mode	Chain Drice//Gear Drive
Material of rollers	45# steel, surface hard chromium plating.
Material of shafts	45# steel
Diameter of shafts	Φ80mm(depend on different design)
Number of rollers:	14/18 rollers
Main power	5.5kw
Cutting&Hydraulic	Double guide pillar
Hydraulic motor power	3kw, 4kw
Hydraulic Pressure	10-12MPa
Cutting  drive	Decelerating motor + Chain drive  gear all by high-frequency
Control System	PLC system: Mitsubishi, Panasonic,Dental,Siemens,Schneider
Feeding Material width	Better as your drawing or from our designer
Feeding Thickness	0.3-0.6mm
Effective width	Better as your drawing or from our designer
Productivity	8-12m/min
Package of machine	Waterproofing membrane, standard export packing

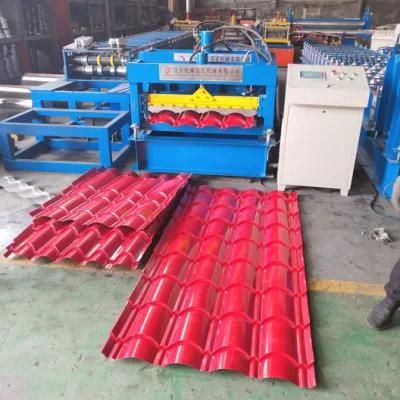

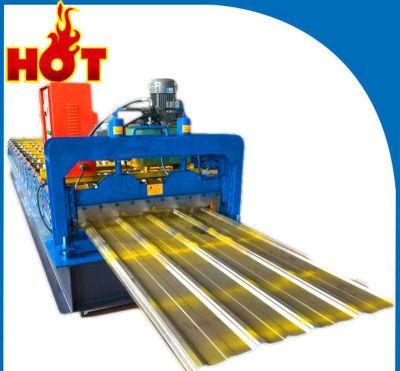

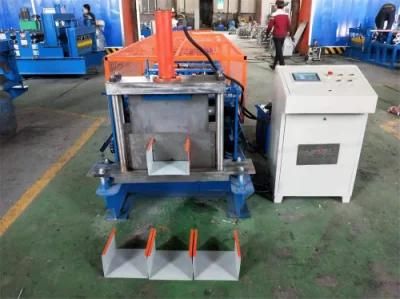

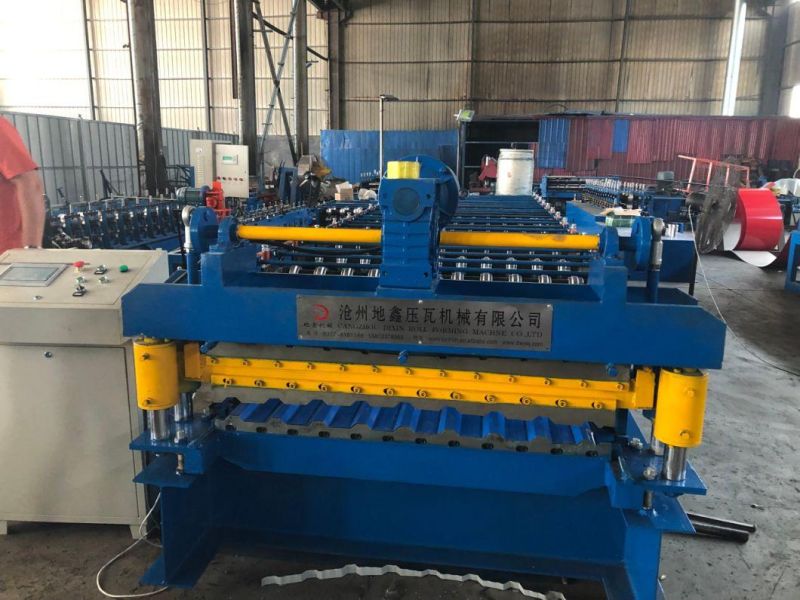

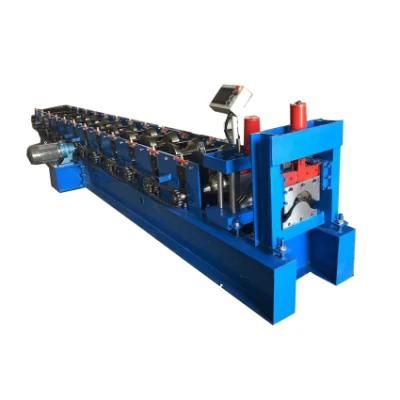

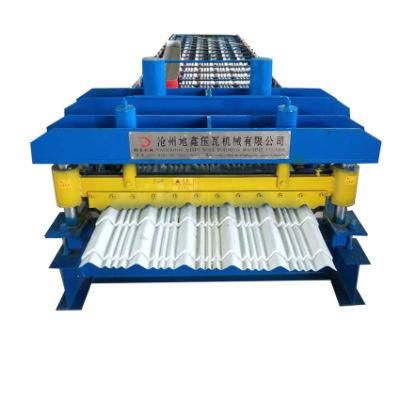

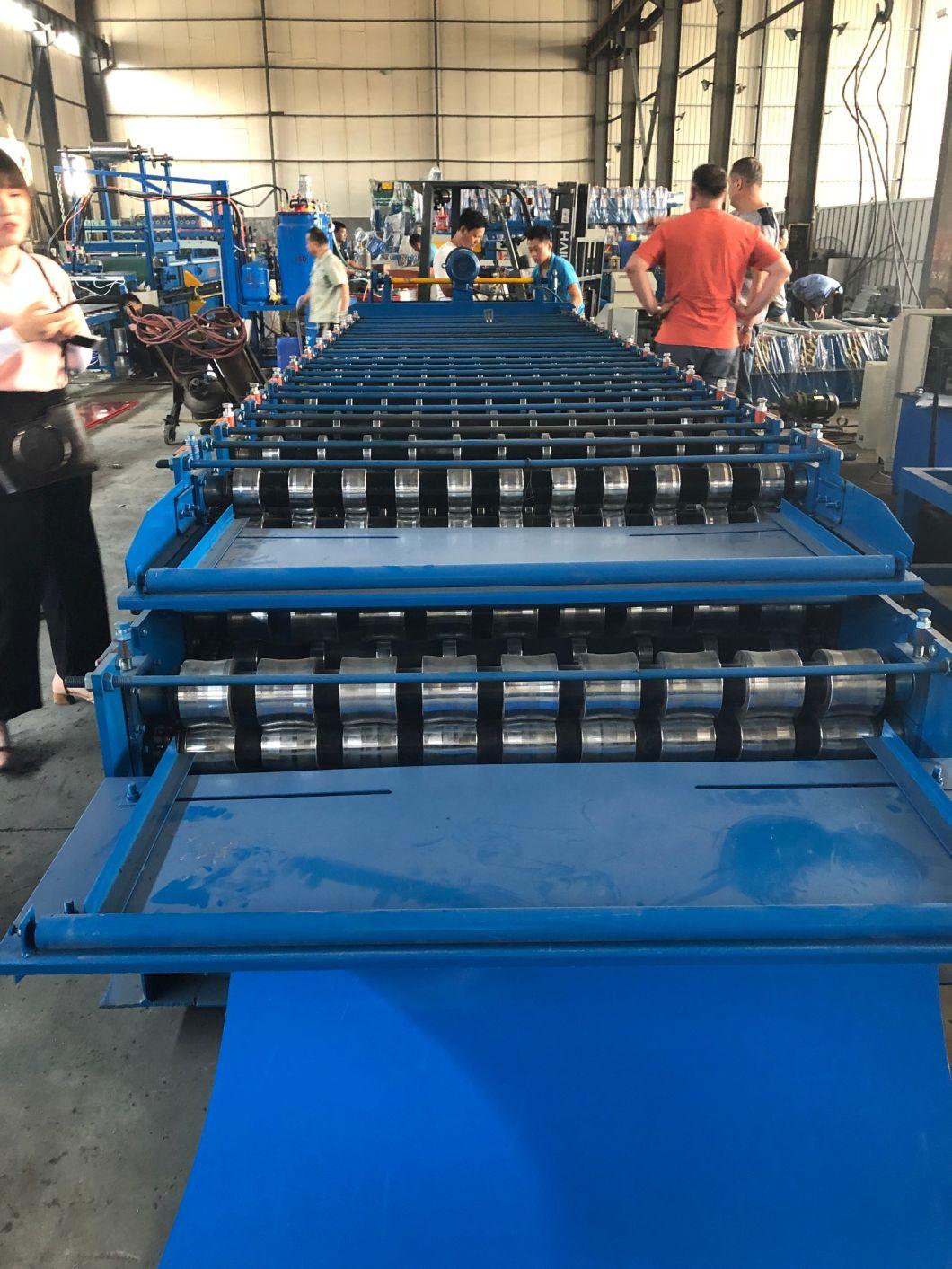

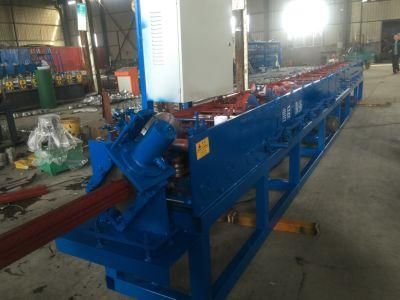

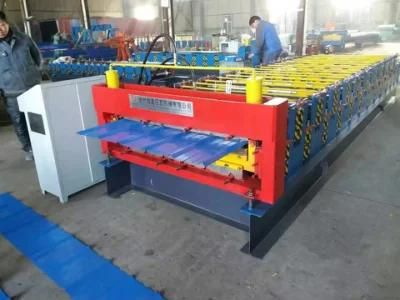

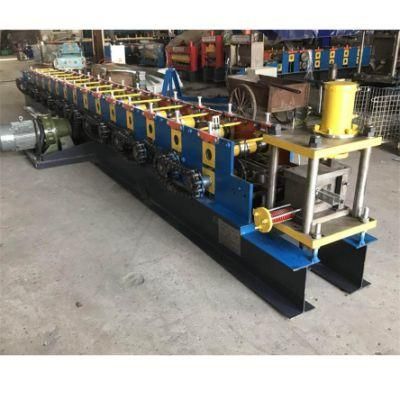

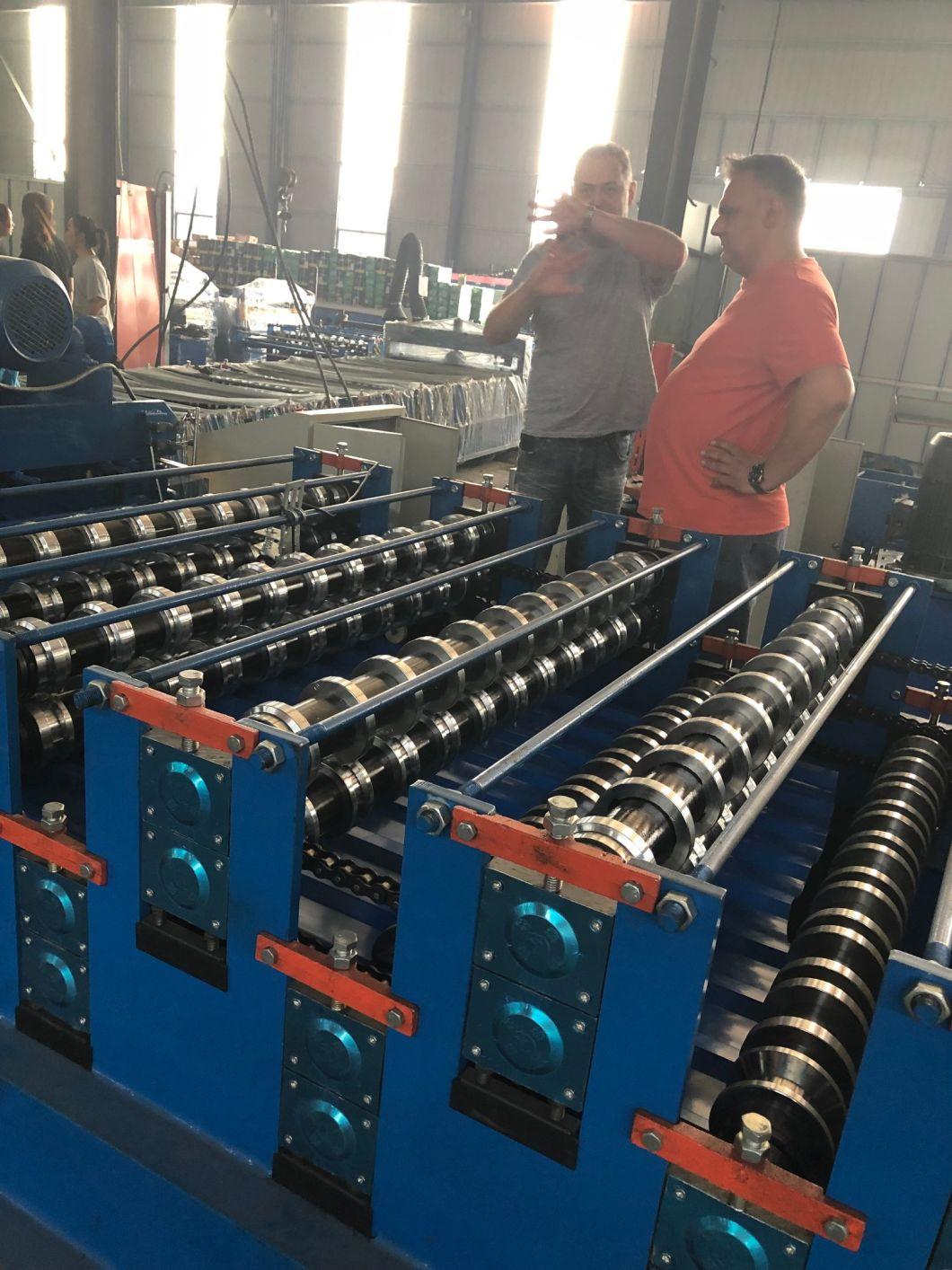

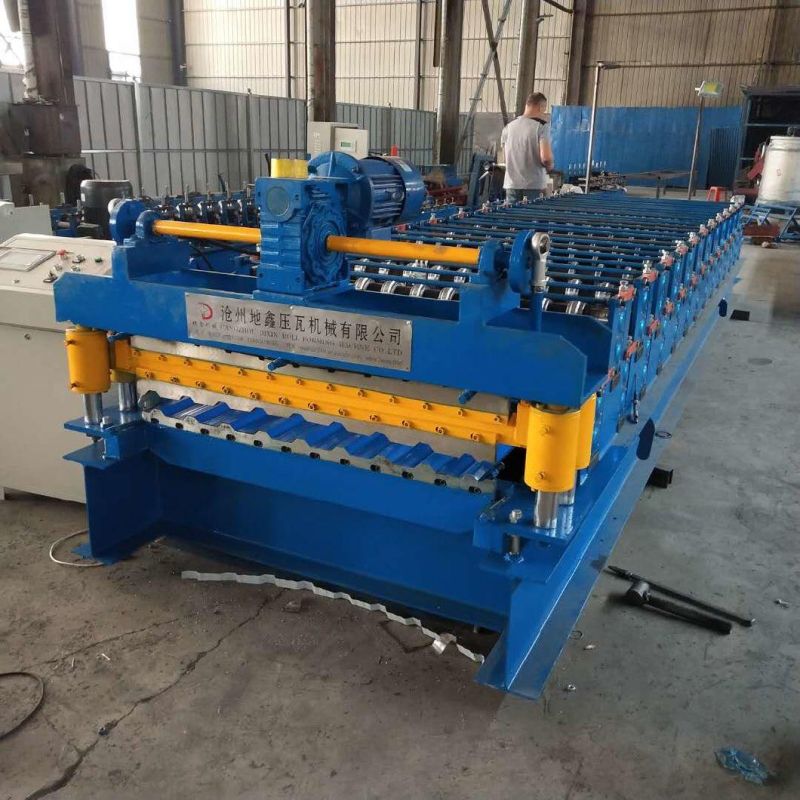

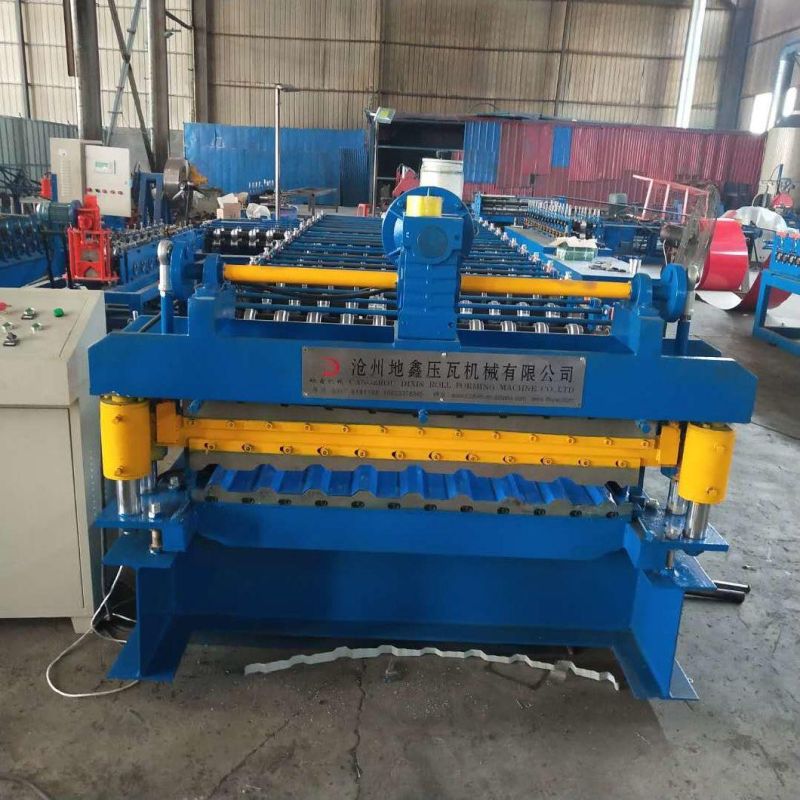

2.Some machine pictures for your reference.

3.About our company
Cangzhou Dixin roll forming machine Co.,Ltd is experienced manufacturer & exporter of cold roll forming machine with ISO quality system.
Our R&D department is staffed with senior engineers who has more than 20 years experience in metal forming machine industry, so we are able to assist customers with professional designing and solution.
Our range of products: roof tile roll forming machine, cladding roll forming machine, metal decking roll forming machines, C/U/Z/W/L steel purlin roll forming machine etc. We also can supply steel coils, roof panels to suit diverse requirements of our global customers.
Today, we have exported our machines to America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Honduras, Fiji, Papua New Guinea, Kuwait, Syria, Oman, Saudi Arabia, U.A.E, Nigeria, Tanzania,Ethiopia, Gana, Guinea,South Sudan, Algeria, Niger, Philippines,Indonesia,India, Azerbaijan and Kazakhstan.
We have rich experience for cold roll forming machine solution,competitive price and excellent service. We will continue to do our best to supply perfect products and service for customers. Invite you to contact us for further information.

4.After-Sale Service

In correct operation & maintaining, the machine is guaranteed for one year since leaving our factory excludes the electric elements.
Installation:
If installation is needed, WE will dispatch a technician to the buyer's factory abroad to assist regulating the machine with charge free. The buyer should assist US to
get the Chinese technician's visa and should pay for the roundtrip air ticket and the local accommodation.
If installation is needed, the buyer shall make the following preparation before arrival of technicians.


5.Terms Of Trade

Package & Shipment: Facility water-proof packing, Control cabinet packed in wooden packing.
Payment: 30%payment by T/T is required as deposit within a week since the contract signing date.70% payment by T/T is required before the machine be send out of factory.
6.FAQ

1. Can you make the machine according to my design or photo type?
A: Yes. We have an experienced engineers to work out the most suitable design and production plan for the machine.
2: How can we be assured that you will deliver us quality machine with spare parts?
A:1. Customers to send the technical people to our factory for checking the quality.
2.We can send the technicians to the buyer`s factory for the installation and trainning .
3.What about your warranty?
A: Within the One-YEARS period, we could supply you the replacement parts for free .
If any damaged parts caused by quality problems after two years,we will also help but customer pay the cost .


More information please send inquiry to us , you will get reply within 12 hours !
