• Model NO.：DX 820
• Customized：Customized
• Transmission Method：Machinery
• Type：Rolling Machine
• Power Source：Hydraulic Pressure
• Feature：High Efficiency
• Advantage：Use Widely
• Forging Forming Method：Mold Forging
• Name：820 Glazed Roofing Tile Roll Forming Machine
• Rolled Material：0.3-0.8mm Thickness
• Effective Width：820mm
• Feeding Width：1000mm
• Transport Package：Water-Proof Packaging, Covered with Plastic Film
• Specification：DX 820
• Trademark：DX
• Origin：Botou Hebei China
• HS Code：845522
• Production Capacity：20 Set Per Month

Raw material

Material

Colored steel sheet, galvanized steel sheet, aluminum sheet

Thickness of coil sheet

0.2-0.8 mm

Material expand width

1220mm

Efficiency width

950mm as drawing

Machine details

Roller material

High grade no. 45 forged steel with 0.05mm hard chrome plating

Shaft material

High grade no. 45 carbon wrought steel

Cutting blade

Cr12 mould steel with quenched treatment

Diameter of shaft

75mm or as your requirement

Main frame

300 h steel

Forming steps

16stations

Productivity

4-6m/min

Hydraulic station power

4+4kw

Hydraulic pressure

10-12mpa

Appearance size

750mm*1500mm*1500mm

Weight

4.5tons

Hydraulic oil

40# hydraulic oil

Electric tension

380v 50 hz 3 phase or as your requirement

Cut mode

Hydraulic forming after cutting off

Cutter materia

Cr12 heat treatment

Electronic control system

Plc, touch screen, encoding counter

Color

Blue, green or yellow or as your requirement

Rolling material

45# steel,roller surfaces polishing, hard plating

Service life

10 years

4.Equipment maintenance

maintenance of roll forming machine is quite easy. We recommend that you regularly feed lubricant to the machine gear, chain and moving parts to reduce friction and avoid rusting. Make sure the power lines are properly connected before starting the machine, and at regular intervals, change the gear oil and hydraulic oil.

we provide a one year warranty and lifelong technical support will be provided

we can send our technicians to you to give you on-site training. The training period would be for no more than one week with the customer paying for the visa, return ticket, food, accommodations and a daily wage of USD100.

Our enterprise, Cangzhou Dixin Roll Forming Machine Co., Ltd, as the professional and leading manufacturer, can manufacture, design, installation and debug various roll forming machines and metal processing sheet equipments, which produce metal roof wall panel, glazed roof tile, CZ steel  purlin, floor decking, roof ridge cap, sandwich panel, roof truss, shutter panel, shutter slat, door frame, guardrail, and metal sheet uncoiler, bending, slitting, cutting, flattening, punching, crimping.

Backed by reasonable design, precision machining and selected material, both our standard and customized machines are characterized by long life span, precise forming and easy operation. With our customers' trust, our machines have been sent to America, Australia, Russia, India, Sri Lanka, Nigeria, Pakistan, Uzbekistan, Mozambique, Angola, Turkey, Brazil, etc.

Warmly welcome to China to visit our factory and select the machines you need. Our address, Fuzhuang Industrial Development Zone, Botou City, Hebei Province, China.

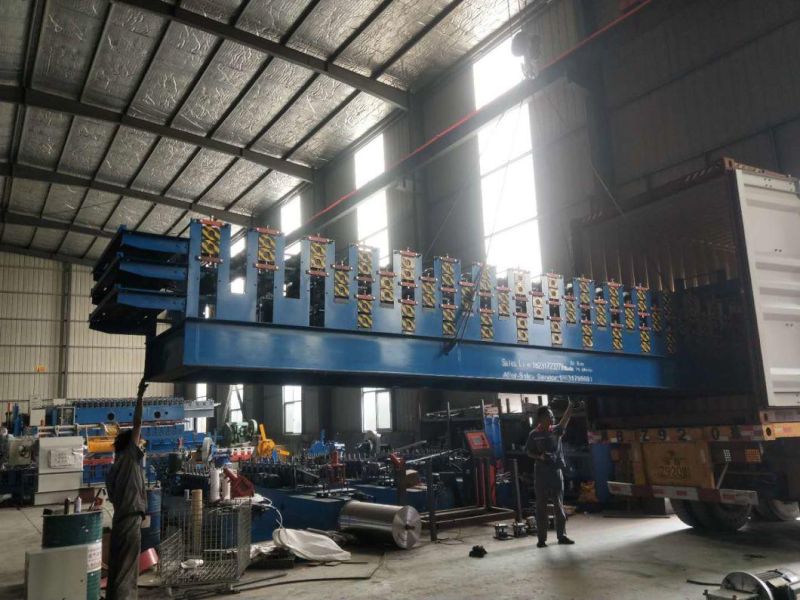

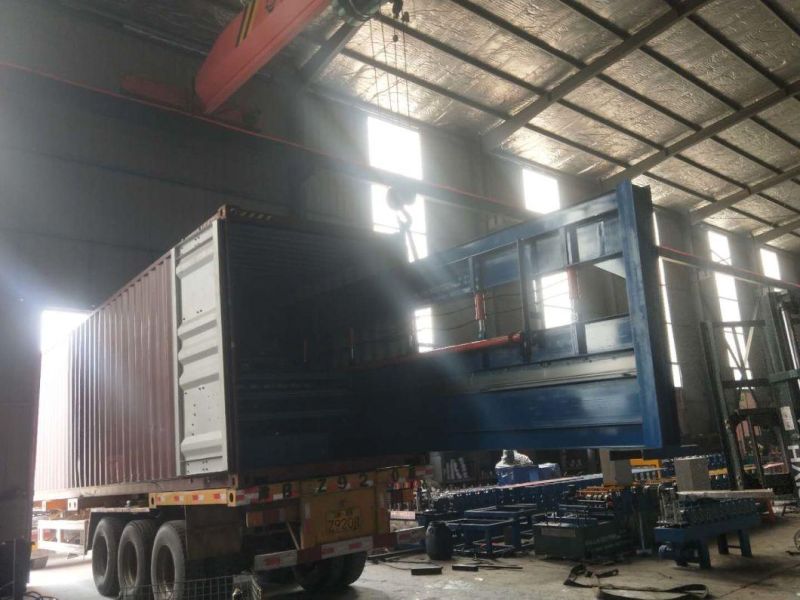

5.Packing and shipping




FAQ: 1.How to maintain the machine?

Answer: add mechanical lubrication equipment to chain, bearing and cutting slide every month. Add mechanical lubrication to the case every half a year.

2. Do you sell only standard machines?

A: No, most of our machines are built according to customers specifications, using top brand name components.

3.How many workers to operate the machine?

A:Only 1-2 workers.

4. How to visit your company?

a.Fly to Beijing airport: By high speed train From Beijing Nan Station to Cangzhou West  Station(1 hour), then we can pick you up .

b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou West station(4.5 hours), then we can pick you up.

5. What can you do if the machine broken?

Our machine's warranty period is 12months,if the broken parts can't be repaired,we can send the new parts to replace the broken parts for free,but you need pay the express cost yourself.if over warranty period,we can for to solve the problems via negotiation,and we supply the technical support for the whole life of the equipment.
