• Model NO.：C Purlin Roll Forming Making Machine
• Condition：New
• Control Type：CNC
• Automatic Grade：Automatic
• Type：Rolling Machine
• Power Source：Electric
• Feature：Automation
• Advantage：Work Flexible
• Forging Forming Method：Mold Forging
• Roller Material：45# Forged Steel, with Hard Chrome Plating
• Forming Steps：13 Steps+5 Steps
• Effective：Easy Operation
• Shaft Diameter：75mm,80mm
• Pump Power：7.5 Kw
• Transport Package：Waterproof Package
• Specification：CE SGS ISO BV
• Trademark：DIXIN
• Origin：China, Hebei
• HS Code：84552210
• Production Capacity：10 Sets One Month

Basic Info.

Model NO. C Purlin Roll Forming Making Machine Condition New Control Type CNC Automatic Grade Automatic Type Rolling Machine Power Source Electric Feature Automation Advantage Work Flexible Forging Forming Method Mold Forging Roller Material 45# Forged Steel, with Hard Chrome Plating Forming Steps 13 Steps+5 Steps Effective Easy Operation Shaft Diameter 75mm/80mm Pump Power 7.5 Kw Transport Package Waterproof Package Specification CE SGS ISO BV Trademark DIXIN Origin China, Hebei HS Code 84552210 Production Capacity 10 Sets One Month

Product Description

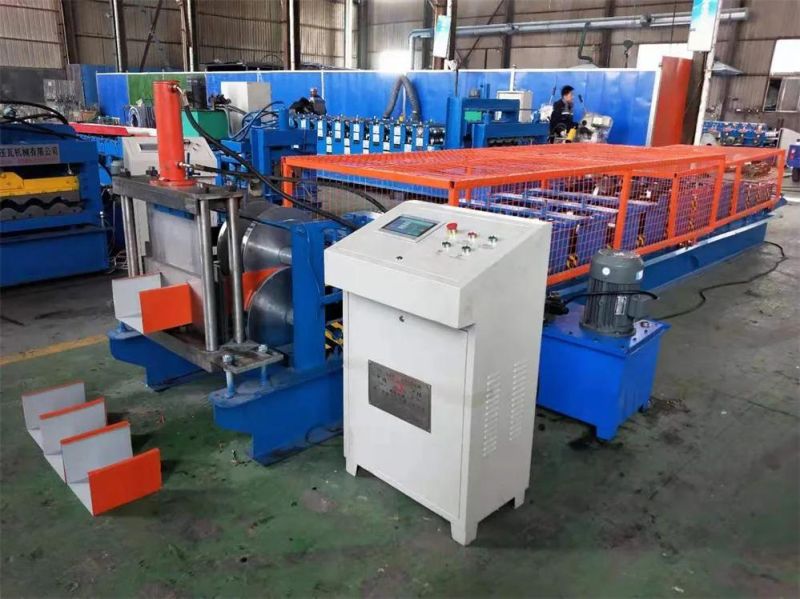

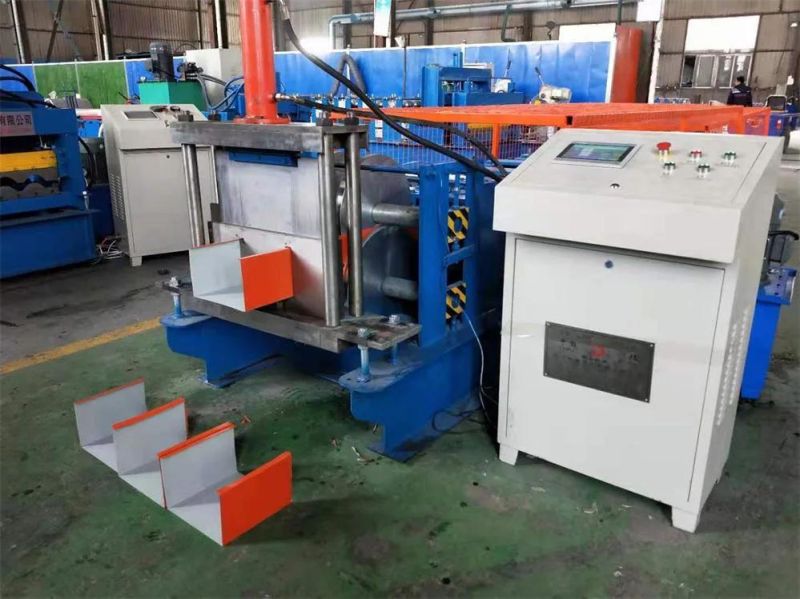

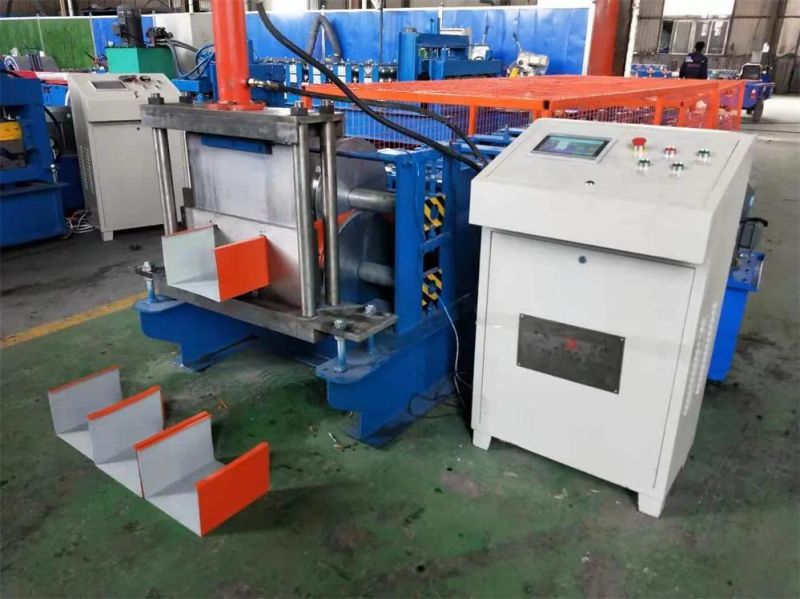

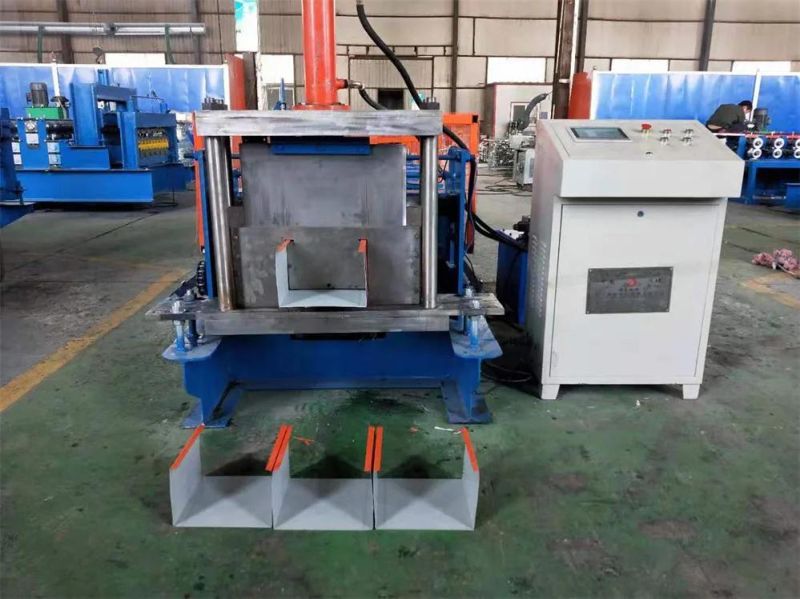

New building material multi-function C U shape profile purlin channel light keel roof tile cold roll former making machine







2. Technique parameters
 (1) Processing material: galvanized steel/strip steel/GI
(2) Material thickness: 0.8-3.0mm
(3) Forming speed:10-15m/min
(5) Main motor power: 22kw
(6) Pump powe22 kw
(7) Shaft diameter: 80mm
 (8) Forming steps: 5+6 level steps,3+5+3+2 forming steps
 (9) Roller material: bearing steel
 (10) Main frame: 400H steel
 (11) Medium plate thickness: 25mm and 40mm
 (12) Control system: Delta PLC computer control with inverter
 (13) Power supply: 380V, 3 Phase, 60Hz or as requirement.
 (14) 0veral sized: 11000mm*1500mm*1500mm

3.Packing and loading
   Waterproof package and one 40 foot container
4.Service
One year quality guarantee and engineers oversea service available


Advantages or difference of C Z purline use and selection<o:p>

1 Simple introduction of Cee line<o:p>

C-beam device is a roller to produce a variety of specifications C purlin roll forming machine finished alone.<o:p>

It consists of passive loading rack, leveling device, punching device, after forming cutting device, hydraulic station, computer control systems.C steel flying saw with automatic punching equipment, simple operation. C-beam equipment roll of C steel finished with good flatness bending pressure performance is good,<o:p>

automatic fixed-length cutting, automatic punching, high degree of automation, quick and easy installation, the product can be used as the main medium-sized industrial buildings by force structures, such as factories, warehouses, machine garages, hangars, exhibition halls, theaters, stadiums, fairs Shed roof and wall flat load bearing support.<o:p>



2 Simple introduction of Cee line<o:p>

Z-beam machine is efficient and economical cutting surface profiles, since the sectional shape of justice, they can make more steel to cast performance, progress Load carrying capacity. C-beam equipment mainly use products can be used as the main medium-sized industrial civil force structure. Unlike ordinary workers are H-shaped steel wing embroidery were widened, and inner and outer surfaces generally parallel, so that makes it easy to connect with high-strength screw Gui and other components. Its dimensions constitute fair series, complete model, ease of design choice. C-beam equipment and Z-beam machine is an important pressure-type equipment, have an important role in the performance of CNC machine tools.<o:p>

 <o:p>

3 C and Z steel machine steel machine selection problem:<o:p>

a, generally larger roof loads, C-purlins computational difficulties or need to use the calculated results of the large C-purlins, consider using the Z-purlins.<o:p>

b, a larger area of basic wind pressure, often at this time is calculated by purlins wind suction control, this time can also be used if the Z-purlins computational difficulties with C-purlins.<o:p>

C and Z steel machine steel machine features:<o:p>

a, Z purlin because of inertia weak axis distance than similar C-purlins big, so it's integrity than the C-purlins better, C-beam machine is generally suitable for gently sloping roof; and Z steel suitable for slopes greater than 1 / roofing 4.<o:p>

b, because the connection to a solid lap, lap after such a continuous purlins, C-purlins and can only be calculated by simply supported purlins.<o:p>

c, Z purlin smaller than the C-purlins, you can save materials and reduce cost. However, installation and transportation complex than the C-purlins.<o:p>



1	Direct factory
2	Many kinds of construction purlin profiles available.Hydrauluic motor,Elcctric Motor,Different speed:6-10m/min or 8-15m/min;PLC button control or PLC touch screen control;Pre punching&cuting,post punching&cutting or fly saw cutting.
3	Good credit,communication,service
4	CE,SGS,ISO to easy your import
5	Custom-made profile sample will be appreciated

If you have any question, you can contact me!
