• Model NO.：DX IBR
• Usage：Roof, Wall, Floor
• Transmission Method：Machinery
• Automation：Automatic
• Method：Hydraulic Pressure
• Product：Tile
• Tolerance：0.5mm
• Brick Raw Material：Colored Steel Sheet, Galvanized Steel Sheet, Alumi
• Processing：Roll Forming
• Type：Tile Making Machine
• Name：Cheap Roll Forming Machine Iron Sheet Making Machi
• Application：Roll Forming Machine Used for Producing Metal Roof
• Material Spec：Colored Steel Sheet
• Transport Package：Water-Proof Packaging, Covered with Plastic Film
• Specification：DX 1000
• Trademark：DX
• Origin：Botou Hebei China
• HS Code：84552210
• Production Capacity：20 Set Per Month

Basic Info.

Model NO. DX IBR Usage Roof, Wall, Floor Transmission Method Machinery Automation Automatic Method Hydraulic Pressure Product Tile Tolerance 0.5mm Brick Raw Material Colored Steel Sheet, Galvanized Steel Sheet, Alumi Processing Roll Forming Type Tile Making Machine Name Cheap Roll Forming Machine Iron Sheet Making Machi Application Roll Forming Machine Used for Producing Metal Roof Material Spec Colored Steel Sheet Transport Package Water-Proof Packaging, Covered with Plastic Film Specification DX 1000 Trademark DX Origin Botou Hebei China HS Code 84552210 Production Capacity 20 Set Per Month

Product Description

Automatic Panel Roof Wall Cold Roll Forming Making Machine Rib Trapezoidal Corrugated Metal Steel sales





consist of machine
Uncoiler-Roll forming machine-PLC system-Hydraulic system-Mold pressing machine-Post cutOur company

Our enterprise, Cangzhou Dixin Roll Forming Machine Co., Ltd, as the professional and leading manufacturer, can manufacture, design, installation and debug various roll forming machines and metal processing sheet equipments, which produce metal roof wall panel, glazed roof tile, CZ steel  purlin, floor decking, roof ridge cap, sandwich panel, roof truss, shutter panel, shutter slat, door frame, guardrail, and metal sheet uncoiler, bending, slitting, cutting, flattening, punching, crimping.

Backed by reasonable design, precision machining and selected material, both our standard and customized machines are characterized by long life span, precise forming and easy operation. With our customers' trust, our machines have been sent to America, Australia, Russia, India, Sri Lanka, Nigeria, Pakistan, Uzbekistan, Mozambique, Angola, Turkey, Brazil, etc.

Warmly welcome to China to visit our factory and select the machines you need. Our address,Fuzhuang Industrial Development Zone, Botou City, Hebei Province, China.

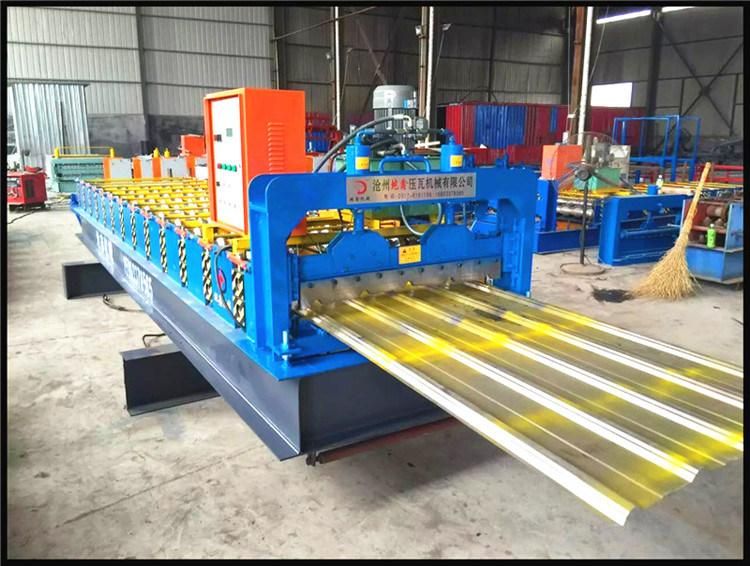

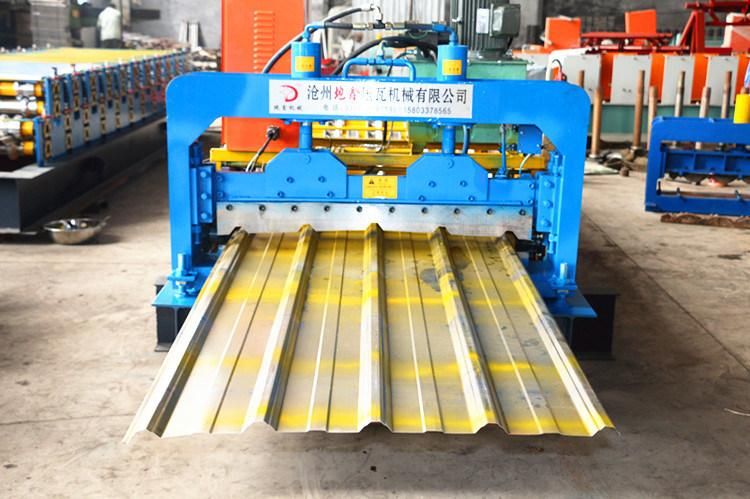

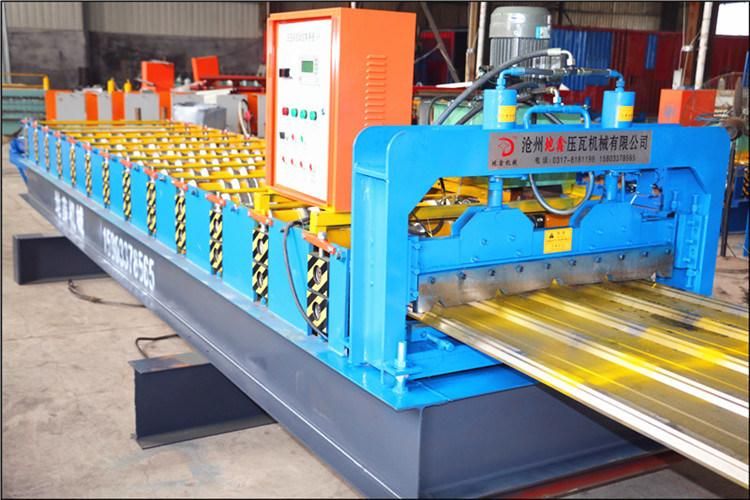

Model number	DX 1000 roof panel roll forming machine
Rolled material	0.3-0.8mm thickness, aluminium sheet, galvanized sheet, colored steel sheet and various steel plates
Effective width	1080mm
Feeding width	1200mm

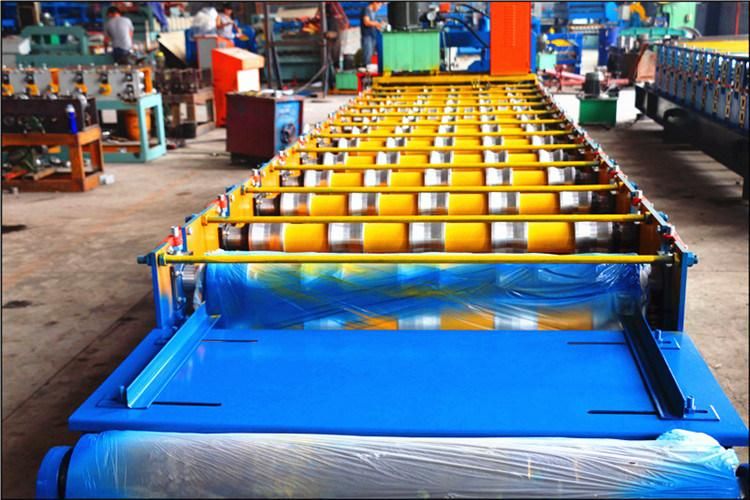

Forming steps	13
Roller	45# forged steel, hard chrome plating within 0.05mm
Diameter of shaft	70mm
Main frame	300H steel
Main motor power	4 kw
Pump power	4 kw
Medium plate thickness	14mm
Sprocket chain	1 inch
Drive  type	by chain
Cutting Blade	Cr12, heat treatment 60-62°C
Frequency Converter	It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm).

If you are interested in roll forming machine,welcome to contact me directly:
