• Model NO.：request
• Certification：CE, ISO
• Condition：New
• Customized：Customized
• Usage：Roof, Wall
• Transmission Method：Hydraulic Pressure
• Effective：Easy Operation
• Motor Power：4kw
• Forming Station：13 Stations
• Medium Plate Thickness：14mm
• Main Frame：300h
• Diameter of Roller：75mm
• PLC：Delta Brand
• Effective Width：850mm
• Type：Roll Forming Machine
• Transport Package：No
• Specification：CE, SGS
• Trademark：DIXIN
• Origin：Cangzhou City, Hebei Province, China
• HS Code：84552210
• Production Capacity：10sets,Per Month

Basic Info.

Model NO. request Certification CE, ISO Condition New Customized Customized Usage Roof, Wall Transmission Method Hydraulic Pressure Effective Easy Operation Motor Power 4kw Forming Station 13 Stations Medium Plate Thickness 14mm Main Frame 300h Diameter of Roller 75mm PLC Delta Brand Effective Width 850mm Type Roll Forming Machine Transport Package No Specification CE, SGS Trademark DIXIN Origin Cangzhou City, Hebei Province, China HS Code 84552210 Production Capacity 10sets/Per Month

Product Description

 Glazed Tile Color Roof Roll Forming Machine/ Step Tile Roofing Sheet Forming Machinery

Glazed tile roll forming machine is one of our main products,it is more and more popular in recent years
It is beautiful in appearance &unique in design.We are very professional manufacturer of glazed tile roll
forming machine,with mature techique and  more than 23 yesrs' experience ,our machines have been sent to many countries all around the world and gained a good reputation for us .
Components for the Machine:
The roll forming machine includes manual uncoiler unit, infeed guide, fixed position driven forming stations, pressing die, cutting equipment, hydraulic station, PLC console and manual unload product run out table.
Equipment technical parameters


Material specification	Aluminum, alu-zinc, galvanized and pre-painted galvanized steel.
Thickness	0.3-0.7mm.(perfect is 0.4mm-0.6mm)
Main motor power	5.5 kw.
Hydraulic station power	4kw
Feeding width	1200mm.
Cover width	as drawing
Yield stress	235Mpa (33KSI) ~ 345Mpa (50KSI).
Roll forming Speed	15-18 m/min
Cutting Tolerance	+/-2.5mm(length≤5000mm); +/-3.0mm(5000mm<length≤10000mm).

Manual Uncoiler	Max. Capacity: 5000kgs.
Coil inner diameter	508mm.
Voltage	380V,3 Phase,50HZ,Or As per customer's request.
Numbers of stands	15 stations
Type of cutting	Roll-formed and length-set profile cutting.

3. Material of Main Equipment:

Roller Material	High grade S45C forged steel, coated with hard chrome.
Active Shaft Material	High grade S45C carbon wrought steel, diameter 76mm.
Electric Elements	PLC control console, touch screen and transducer, from Siemens, Germany. Other elements, from Schneider Electric, Germany.
Cutter Blades	Cr12MoV steel with quenched treatment, hardness HRC58~61, wear-resistance, good steel structure, long life.

4.Process Sketch:
Uncoiling →Infeed guiding →Roll forming →Pressing→Measure Length&Shearing →Sheet to Support Table

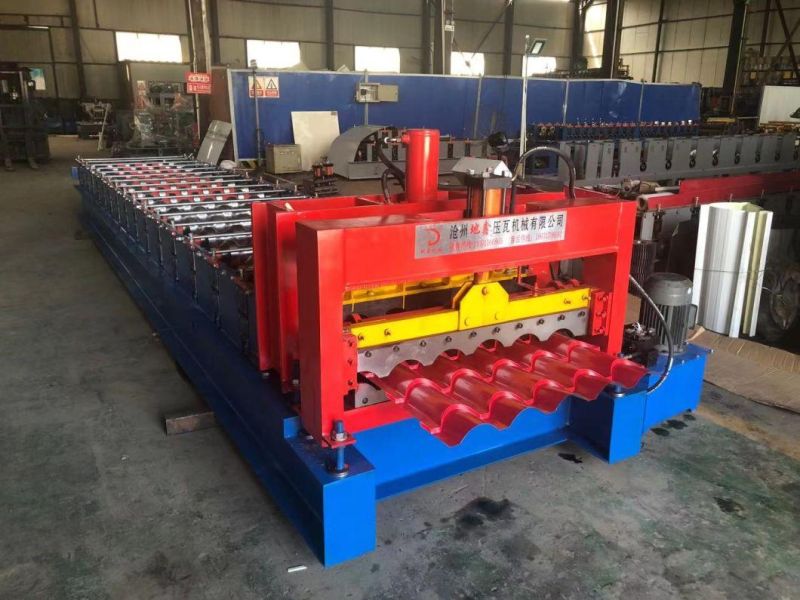

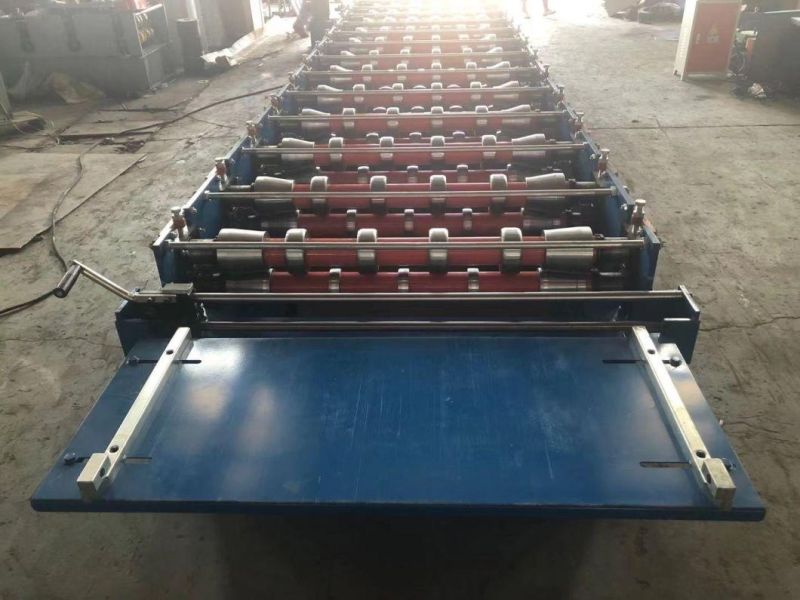

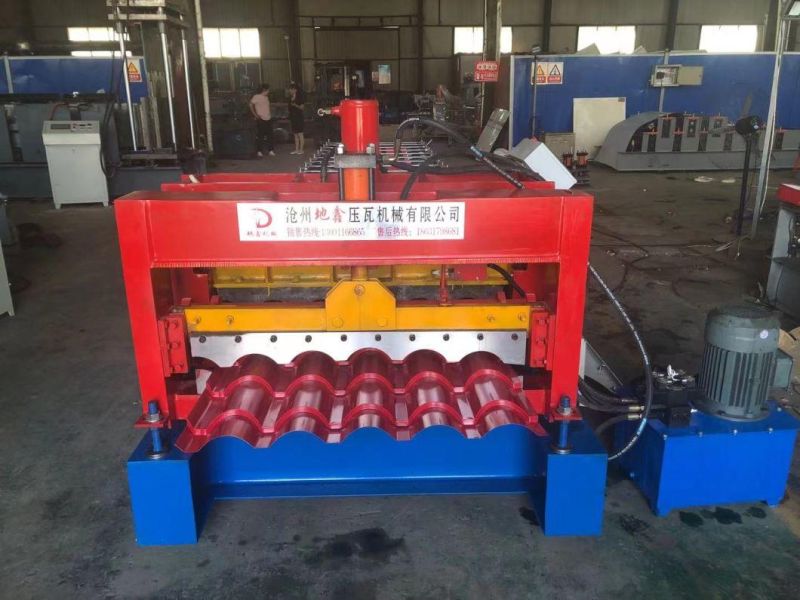

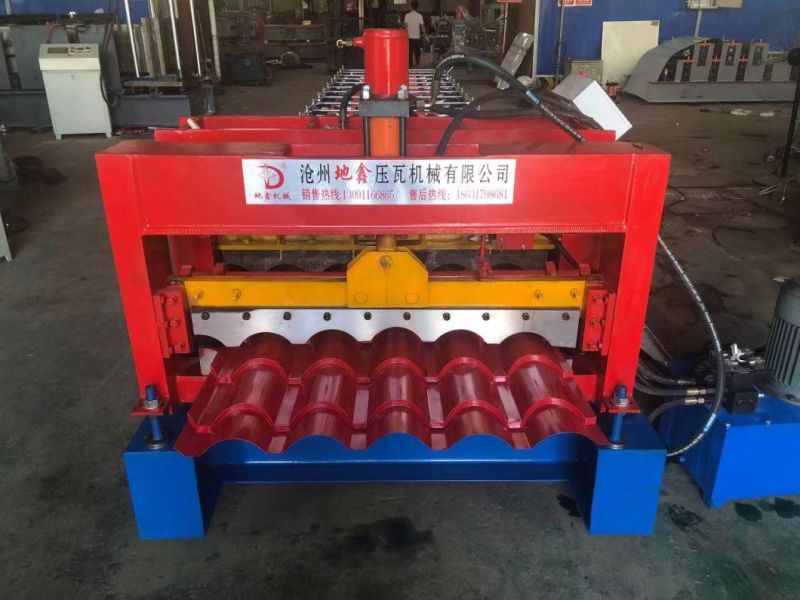

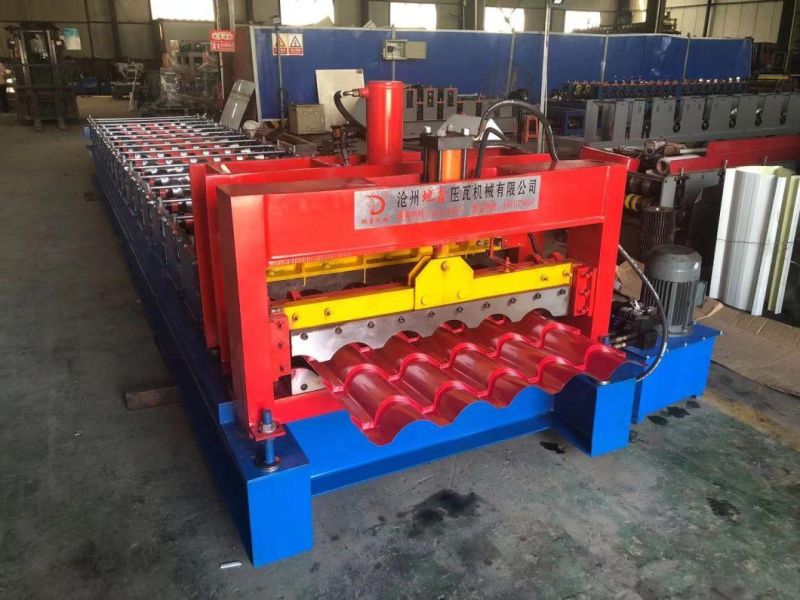

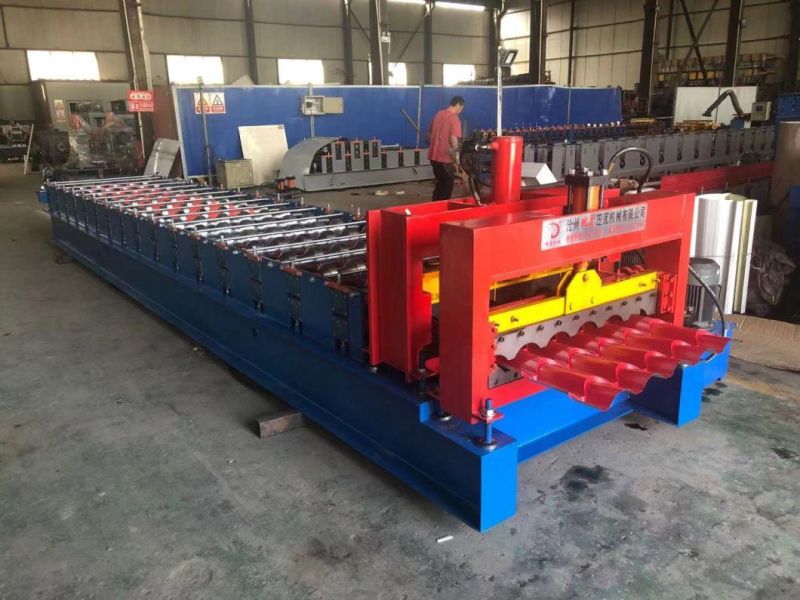

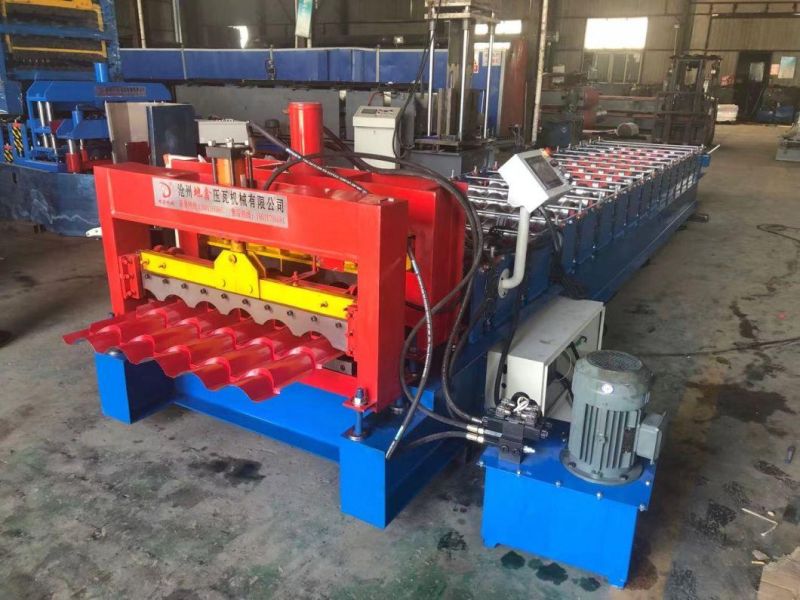

5.Some machine pictures for your reference.

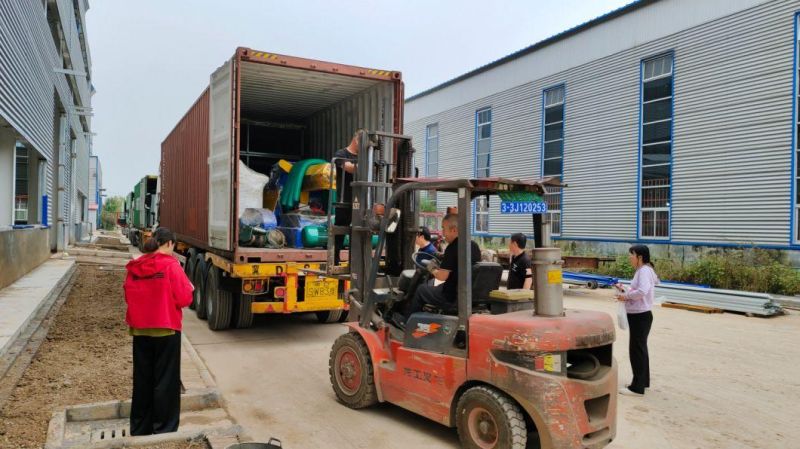

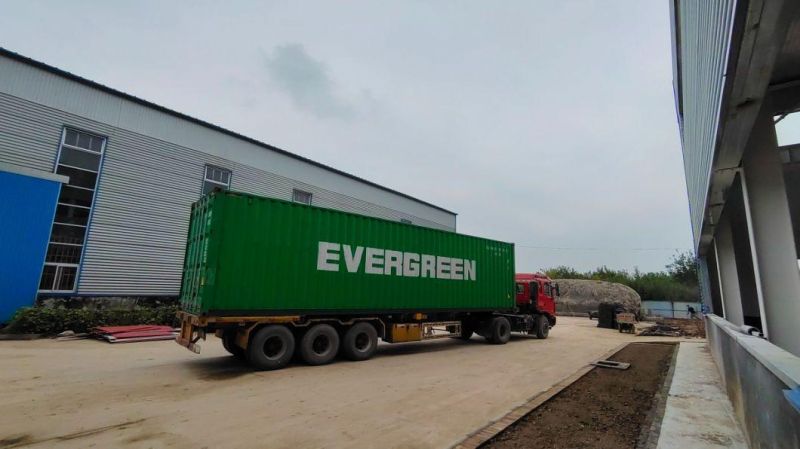

6.Packing and shipping details
1.One 40ft container for loading one set machine with manual decoiler;
2.The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3.Spare parts and some small parts packed in plastic tooling box;
4.All Components Fixed by steel wire with Container.

Q1. What are the main key points for selecting right machines?

A1: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price
not the final point.
Good quality is for long-term business cooperation.

Q2. Can you provide OEM service for roll forming machine?
A2: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production
usage, machine speed, then machine specification will be some different.

Q3. What's your standard trade terms ?
A2: We can provide the technical offer with FOB,CFR,CIF,Door to Door and so on. Please kindly tell the detailed port name for
competitive ocean freight.

Q4. How about the quality control?
A4: Our company adopts 6S system to control every part with passed ISO9001:2000, CE,TUV/BV(Alibaba) Certificate.

Q5. How about the after-sale service?
A5: We provide 18 months free warranty and free technical support for the whole life of any machine. During warranty period, if
parts still broken, we can send the new ones freely.

Q6. If I am in Beijing,Shanghai or Guangzhou,how to visit your company?
A6: 1) Beiing South Statioin to Cangzhou West Station (by fast train 1 hour).
2) Shanghai Hongqiao to Cangzhou West (4.5 hours)
3) Guangzhou Airport to Tianjin ,then Tianjin to Cangzhou West
