Building Material Making Machinery

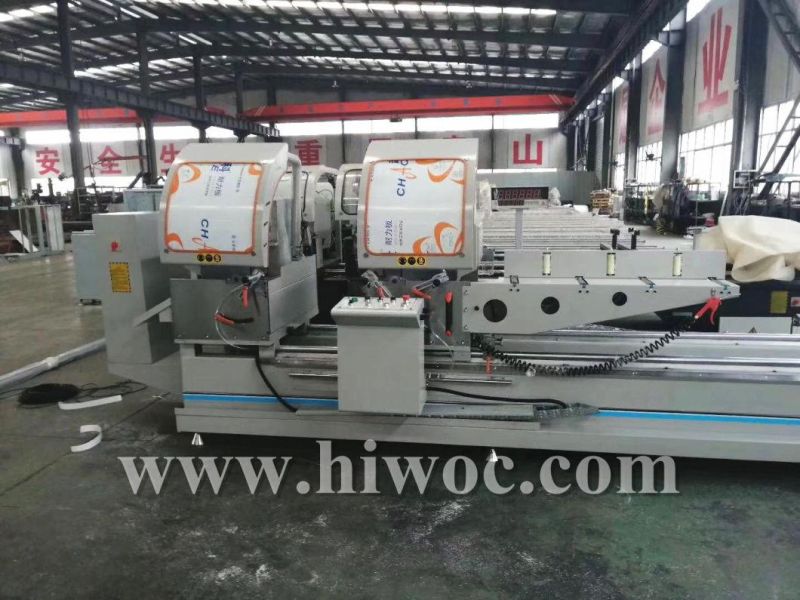

Factory Supply CNC Aluminum Double Heads Cutting Saw Aluminum Window Door Machine PVC Window Door Machine Window Door Making Machine Window Door Cutting Saw

Jinan Hiwoc Group Co., Ltd.
  • Warranty:2 Years Warranty Time
  • Condition:New

Base Info

  • Model NO.:LJZ2S-500x4200
  • Certification:ISO, CE
  • Automatic Grade:Semi-Automatic
  • CNC or Not:not CNC
  • Voltage:Customized
  • Air Pressure:0.5~0.8MPa
  • Input Voltage:380V 50Hz or as Customer Need
  • Input Power:2.2X2kw
  • Air Consumption:80L,Min
  • Motor Rotary:2800r,Min
  • Cutting Width*Height:135X200mm
  • Cutting Length:400-4200mm
  • Saw Blade Specification:500mm, 30mm
  • Cutting Angle:90° 67.5° 45°
  • Overall Size:5700*1650*1520mm

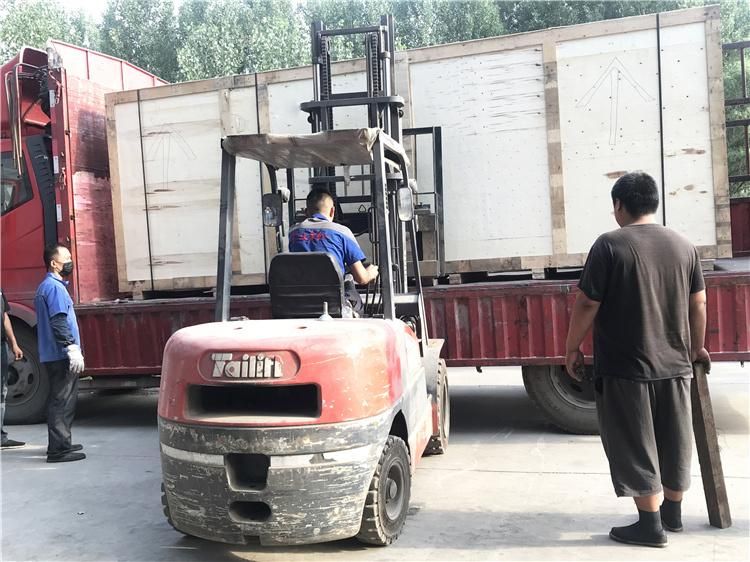

  • Transport Package:Film and Plywood Case
  • Specification:5530*1650*1950mm
  • Trademark:Hiwoc
  • Origin:China
  • HS Code:84659200
  • Production Capacity:1000,Year

Description

Basic Info.

Model NO. LJZ2S-500x4200 Certification ISO, CE Automatic Grade Semi-Automatic CNC or Not not CNC Voltage Customized Air Pressure 0.5~0.8MPa Input Voltage 380V 50Hz or as Customer Need Input Power 2.2X2kw Air Consumption 80L/Min Motor Rotary 2800r/Min Cutting Width*Height 135X200mm Cutting Length 400-4200mm Saw Blade Specification 500mm, 30mm Cutting Angle 90° 67.5° 45° Overall Size 5700*1650*1520mm Transport Package Film and Plywood Case Specification 5530*1650*1950mm Trademark Hiwoc Origin China HS Code 84659200 Production Capacity 1000/Year

Product Description

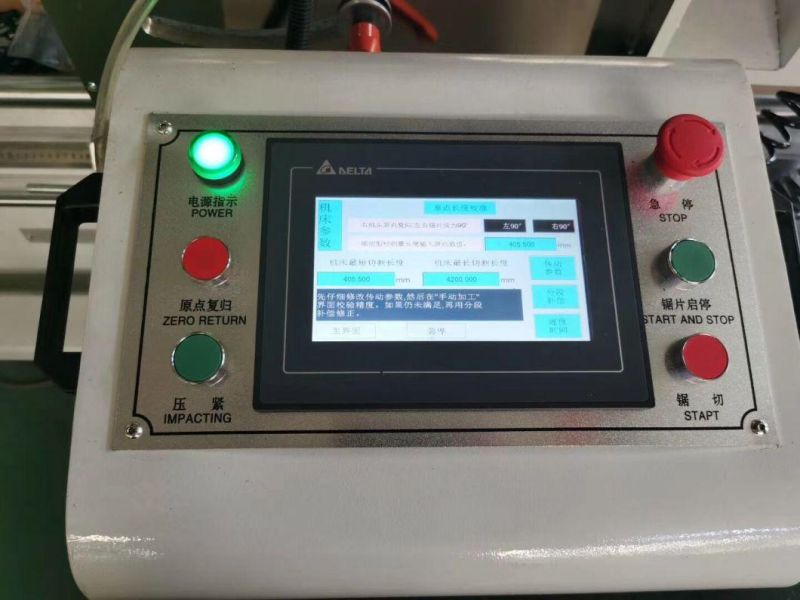

Feature1. The system adoped the mitsubishi Touch screen man-machine interface, can support the USD mouse, quick responsea and easy operation. (SIEMENS system optional)2. Imported carbides blade is of accurate processing and high endurance.3. Saw blade rotates smoothly due to the high accurate spindle4. Uniform speed feeding and smooth motion is due to air hydranlic damping cylinder.5. The feeding system adopts the imported linear guide pair, with high accuracy and stability6. Two saw heads are adjustable and cut the profiles in 67.5°, 45°, 90°7. Auto open and close shield maked the operation safety.8. Right head feeding adopts high lead ball screw with high accurate driving, locating and smooth working.9. This machine uses the CNC control technology, profiles of different specifications can be completely processed under the expected size.10. Vertical and horizontal clamping cylinder.11. Spraying cooling system.
Parameter
Air Pressure0.5~0.8MPa
Saw blade specification60L/min
Input Voltage380V 50Hz or As Customer need
Input Power5.9Kw
Air comsuption80L/min
Motor rotary  2800r/min
Cutting width*height120~160, 130~200
Cutting lenth  400-4200mm
Saw blade specification  Ø500×Ø30
Cutting angle   90°  67.5°  45° 22.5°
Overall size5530*1700*1950mm
Weight2250kg

Main accessory
Saw bladeWagan
Solenoid valveAirtec
CylinderHuatong
MotorSanyang
Air Filter DeviceSTNC
Electrical Button and SwitcherSchneider
AC Contactor and Circuit BreakerSchneider
Approach SwitchJapan Omron
Controlling SystemDelta

Standard accessory
Saw blade2pcs

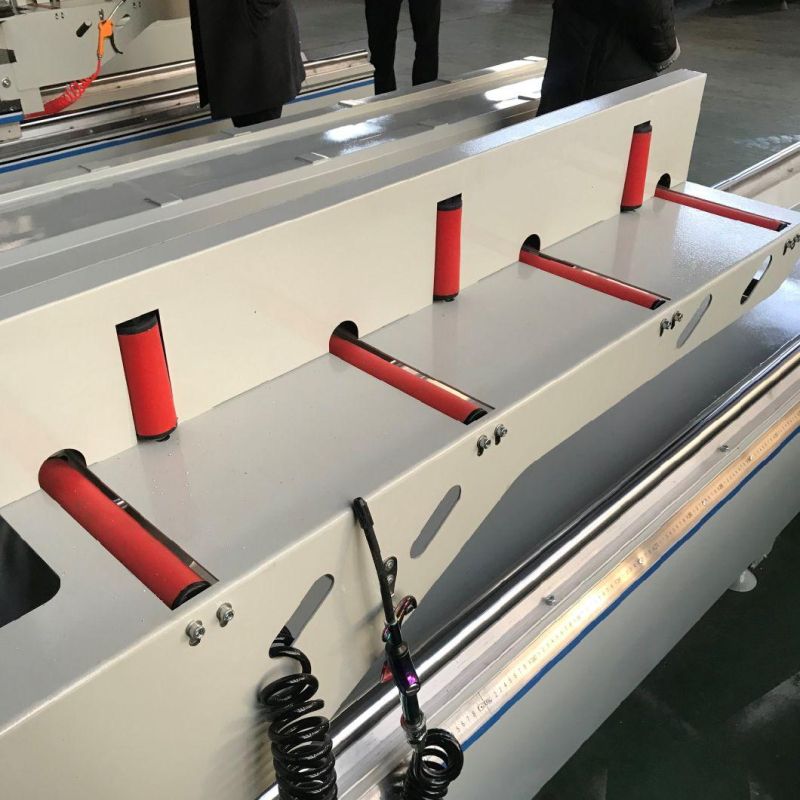

Work piece supports2set
Air Gun1pc
Complete tooling1set
Certificate1pc
Operation Manual1pc
