• Model NO.：SHJ2-120*3500
• CNC or Not：not CNC
• Voltage：380V
• Air Pressure：0.5~0.8MPa
• Air Consumption：200L,Min
• Input Voltage：220V 50~60Hz or as Customer Need
• Input Power：3kw
• Welding Profile Height：20-110mm or Customized
• Welding Width：Max 120mm
• Welding Range：400-3500mm
• Overall Size：4400×950×1700mm
• Weight：1500kg
• OEM：Support
• Transport Package：Film and Plywood Case
• Specification：5300x950x1700mm
• Trademark：Hiwoc
• Origin：China
• HS Code：84659200
• Production Capacity：1000,Year

Basic Info.

Model NO. SHJ2-120*3500 CNC or Not not CNC Voltage 380V Air Pressure 0.5~0.8MPa Air Consumption 200L/Min Input Voltage 220V 50~60Hz or as Customer Need Input Power 3kw Welding Profile Height 20-110mm or Customized Welding Width Max 120mm Welding Range 400-3500mm Overall Size 4400×950×1700mm Weight 1500kg OEM Support Transport Package Film and Plywood Case Specification 5300x950x1700mm Trademark Hiwoc Origin China HS Code 84659200 Production Capacity 1000/Year

Product Description

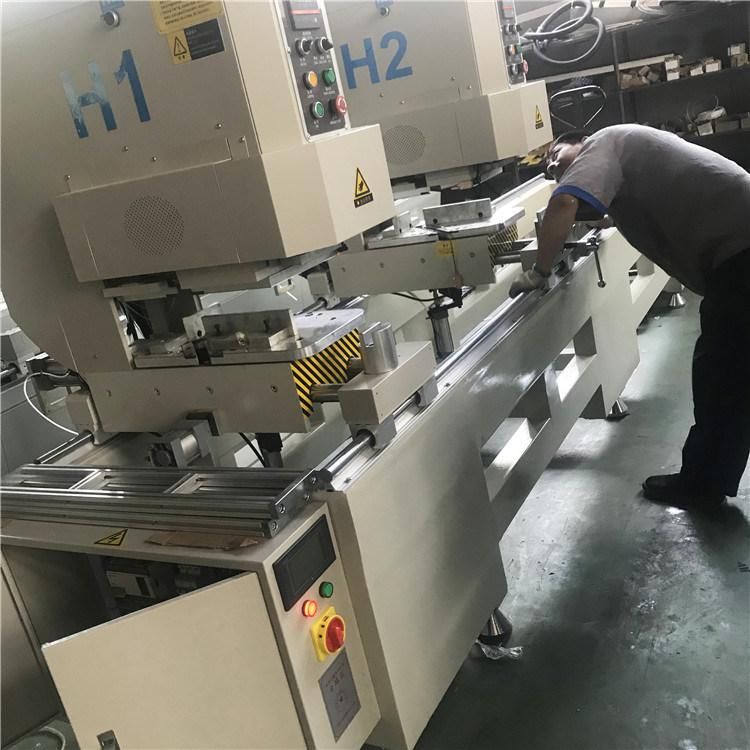

Feature1. Welding  ⊥∟+ many kinds shapes combined with each other, and maybe welded to range of arbitrary angle.2. Three heads can work independently and can also be linked, flexible combination, high work efficiency.3. Right head could be 30° ~ 180° arbitrary angle welding.

Parameter
Air Pressure	0.6~0.8MPa
Air consumption	260L/min
Input Voltage	220V 50~60Hz or As Customer need
Input Power	4.5Kw
Welding profile height	20-110mm
Welding Width	Max 120mm
Welding range	400-3500mm
Overall size	4400×950×1700mm
Weight	1500kg



Main accessory

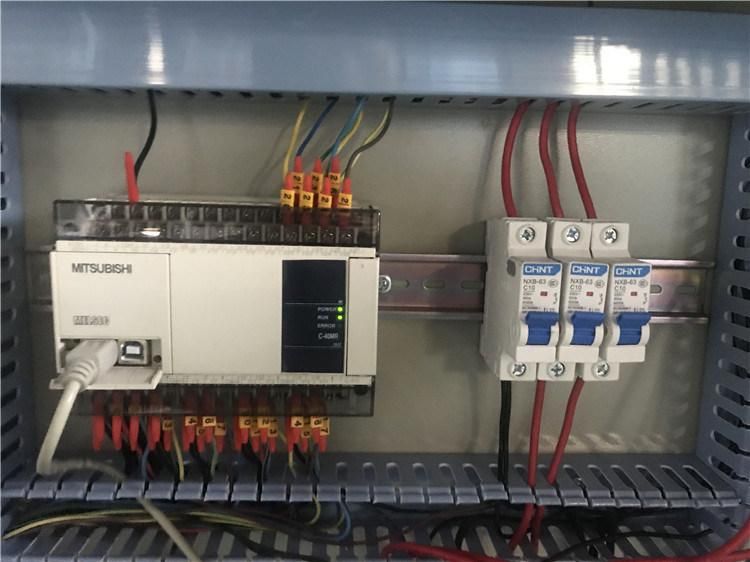

PLC	Taiwan Delta
Solenoid valve	Airtec
Cylinder	PC(FESTO Joint Venture Brand)
Motor	Anhui Sanyang (Best Chinese Motor Brand)
Air Filter Device	Huatong
Electrical Button and Switcher	Schneider
AC Contactor and Circuit Breaker	Schneider

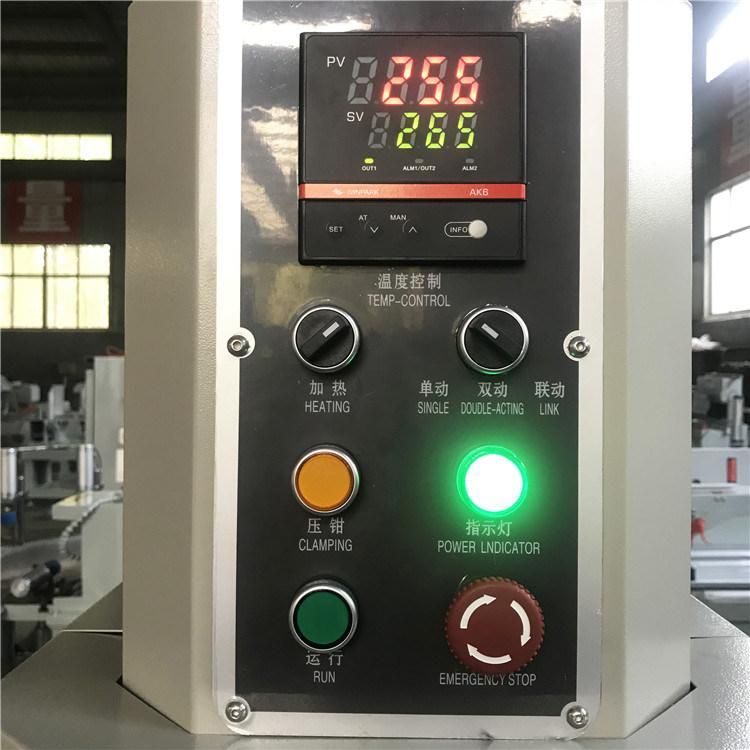

Temperature Controller	Japan Omron



Standard accessory
Heat plate	8pcs
Teflon cloth	several
Complete tooling	1set
Certificate	1pc
Operation Manual	1pc
