• Model NO.：LXF-235X100
• Certification：ISO, CE
• Automatic Grade：Semi-Automatic
• CNC or Not：not CNC
• Voltage：380V
• Input Voltage：380V,50Hz or Other
• Operation Air Pressure：0.5~0.8MPa
• Input Power：2.6kw
• Cutter Diameter：5mm,8mm
• Copy-Routing Range：235X100mm
• Diameter of Three Holes Drilling Head：10
• Centers Distance of 3holes Drilling Head：21.5X21.5mm
• Color：Blue or White or Customer Need
• Type：New Type
• Weight：259kgs
• Transport Package：Wood Box
• Specification：1000x1130x1500mm
• Trademark：Hiwoc
• Origin：Shandong, China
• HS Code：84659200
• Production Capacity：3500

Basic Info.

Model NO. LXF-235X100 Certification ISO, CE Automatic Grade Semi-Automatic CNC or Not not CNC Voltage 380V Input Voltage 380V/50Hz or Other Operation Air Pressure 0.5~0.8MPa Input Power 2.6kw Cutter Diameter 5mm/8mm Copy-Routing Range 235X100mm Diameter of Three Holes Drilling Head 10 Centers Distance of 3holes Drilling Head 21.5X21.5mm Color Blue or White or Customer Need Type New Type Weight 259kgs Transport Package Wood Box Specification 1000x1130x1500mm Trademark Hiwoc Origin Shandong, China HS Code 84659200 Production Capacity 3500

Product Description

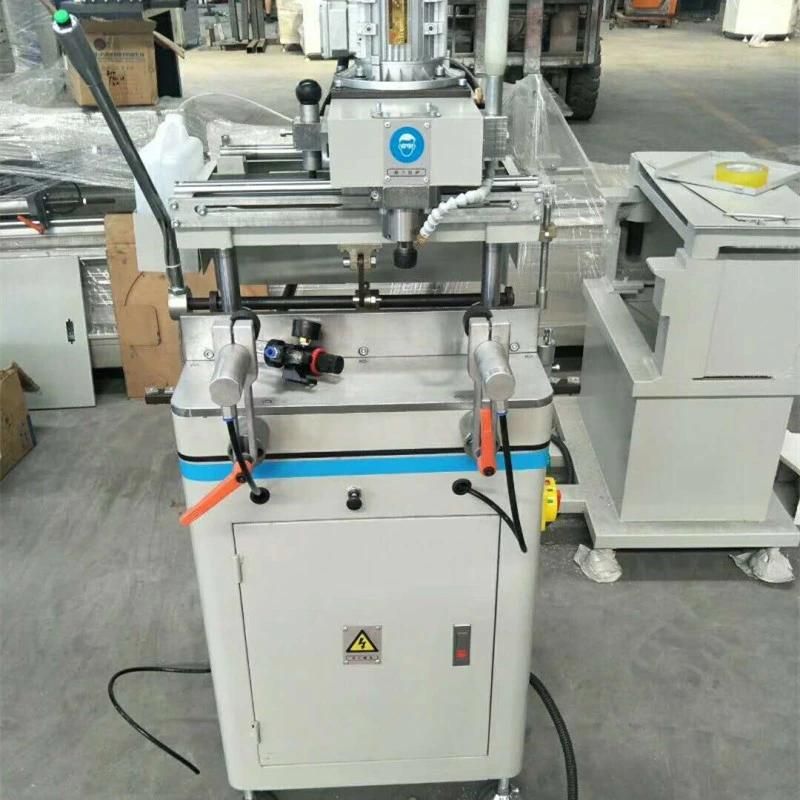

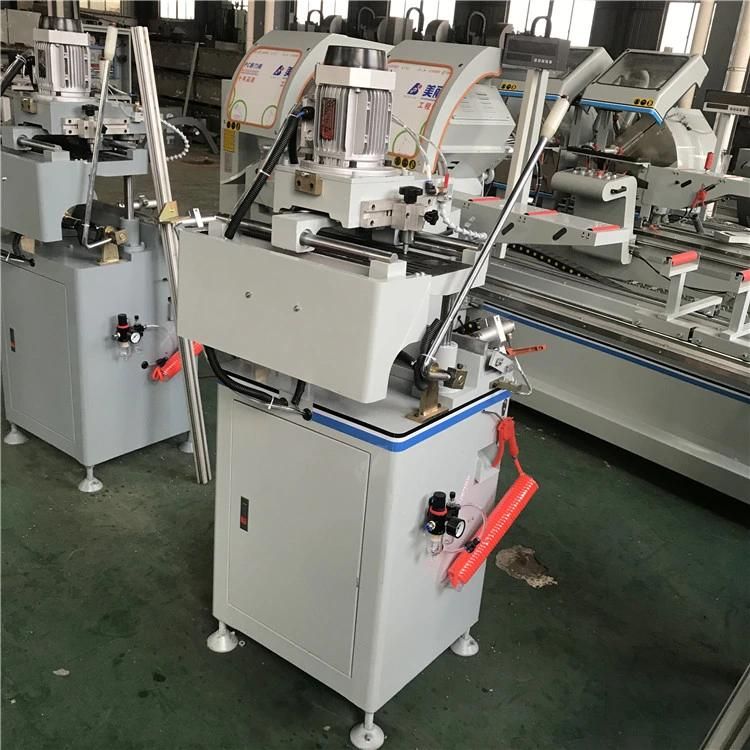

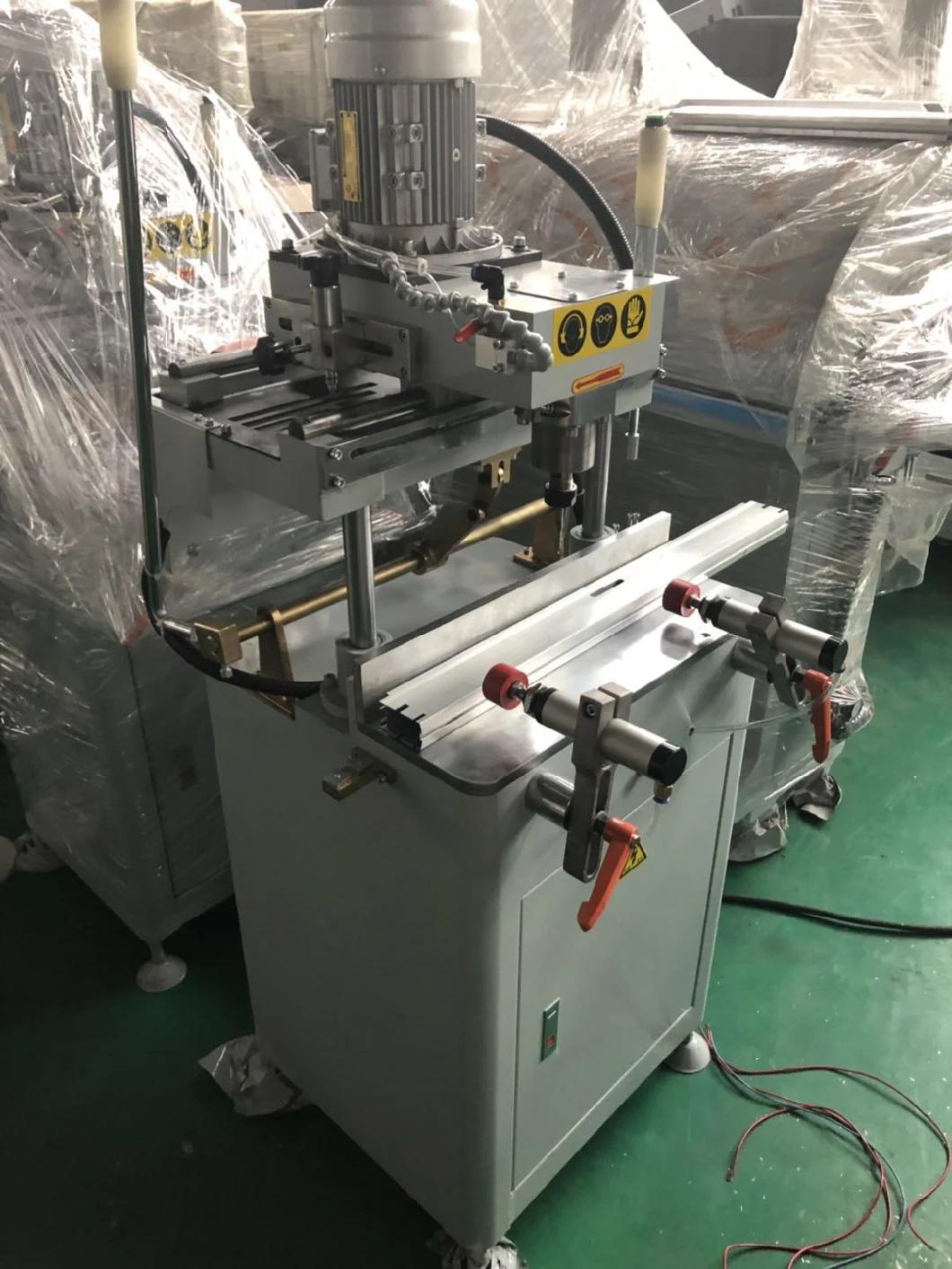

New Type Aluminum Machine Copy-routing Milling and Drilling Machine Window and Door Making Machine Aluminum copy router machine

Main features
1.Used for copy routing processing various kinds of holes, grooves and water slots on
aluminum window and door.
2.By copying template and auxiliary positioning two copy methods.
3.Using a foot switch control the pressing cylinder, safe and reliable.
4.It has features of compact structure and small volume.
Main specifications and parameters


Model	HZ3FX-235*100
Input power	2.6kw
power supply	380v/50hz
air pressure	0.6-0.8mpa
diameter of the three-hole drilling head	Φ10
center of the three-hole drilling head	21.5mm
milling cutter diameter	Φ5  Φ8
copy routing range	235*100mm
overall diamension	870*1200*1500mm
weight	250kg
