• Model NO.：DX836
• Certification：CE, ISO, ISO9001: 2000, ISO 9001:2008, CE
• Condition：New
• Customized：Customized
• Usage：Roof, Wall
• Transmission Method：Hydraulic Pressure
• Name：Corrugated-Iron-Sheet-Making-Machine
• Material Spec：Colored Steel Sheet, Galvanized Steel Sheet, Alumi
• Thickness of Coil Sheet：0.3-0.8mm
• Shaft Material：High Grade No.45 Carbon Wrought Steel
• Cutting Blade：Cr12 Mould Steel with Quenched Treatment
• Diameter of Shaft：75mm
• Thickness of Medium Plate：16mm
• Main Frame：300h,U Steel
• Forming Steps：15 Steps
• Productivity：10-12m,Min
• Transport Package：Waterproof Package and Ship in a Container
• Specification：DX 850-65-13
• Trademark：DIXIN
• Origin：Botou Hebei China
• HS Code：845522
• Production Capacity：20 Set Per Month

1.Name  glazed tiles roofing sheet making machine 2.Raw MaterilGalvanizd steel 3.Thickness0.3-0.8mm or as request4.Roller Station13 Steps5.Shaft Material45#Steel6.Roller Material45#steel heat treated7.TransportChain or gear8.Forming Speed10-15min9.Motor Power4kw 10.Voltage380V 50HZ 3Phase11.Cutting SystemHydraulic Cutting12.Control SystemDetal PLC,13.

The whole line :Manual decolier, roll forming machine, hydraulic station, PLC control system, Hydraulic cutter, run-out-table

Decoiler

1set

Feeding & guiding device

1set

Main roll forming machine

1set

Hydraulic pressing system

1set

Hydraulic cutting system

1set

Controlling system

1set

Run out table

1set

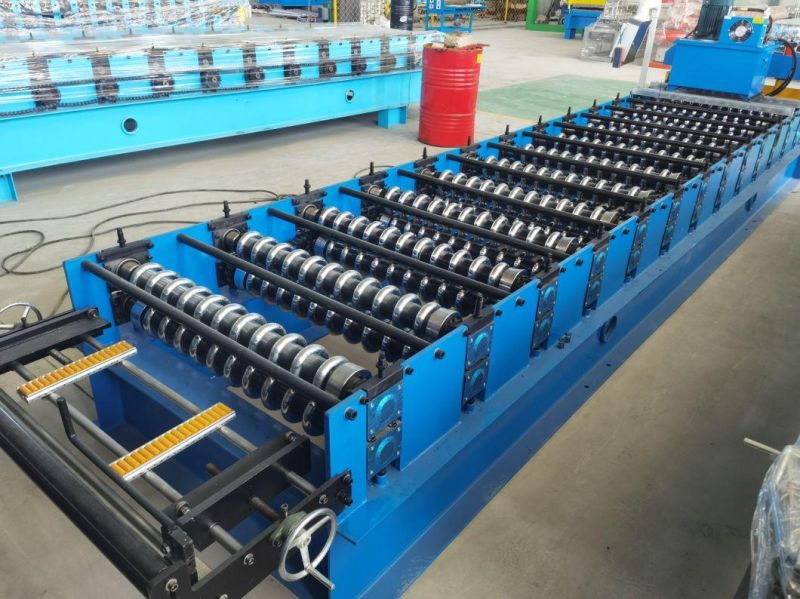

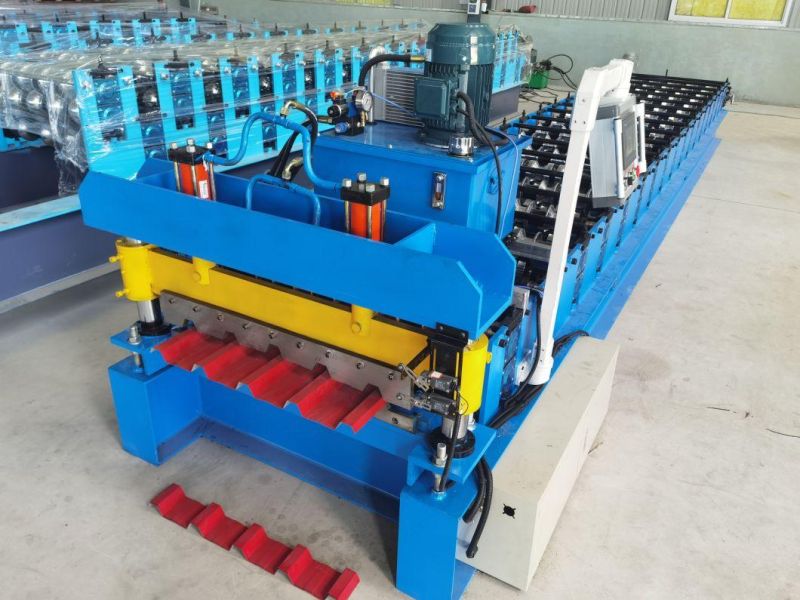

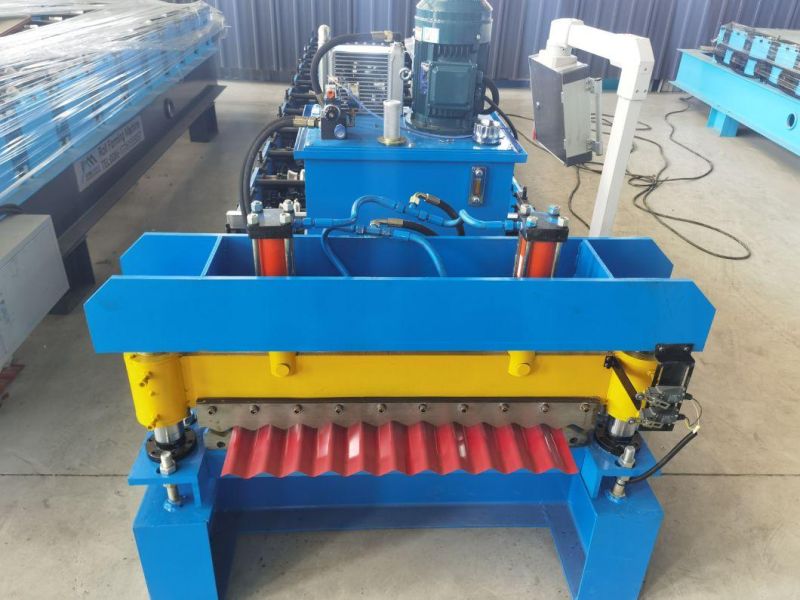

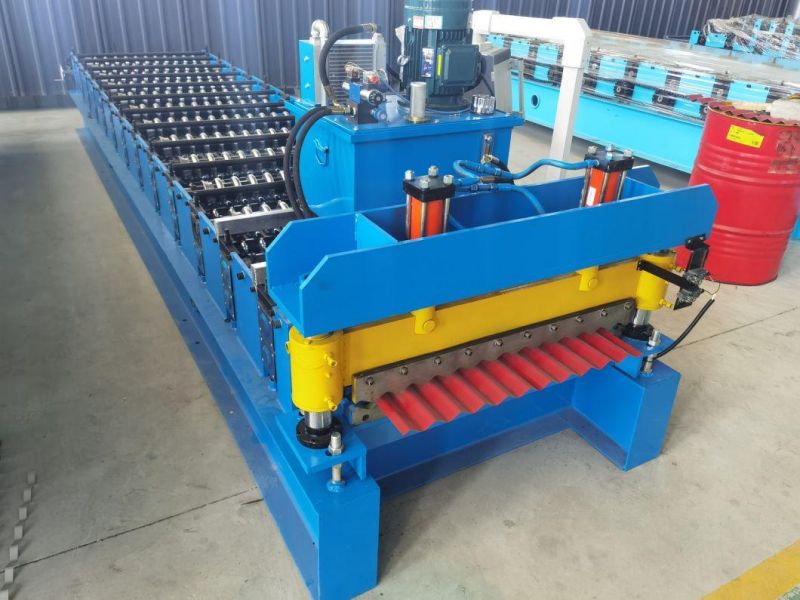

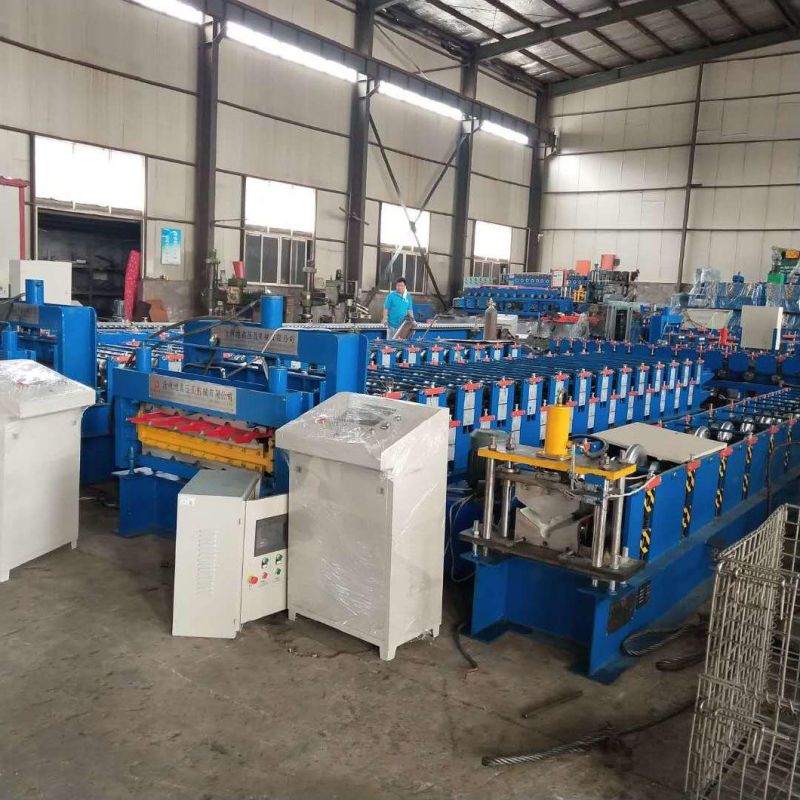

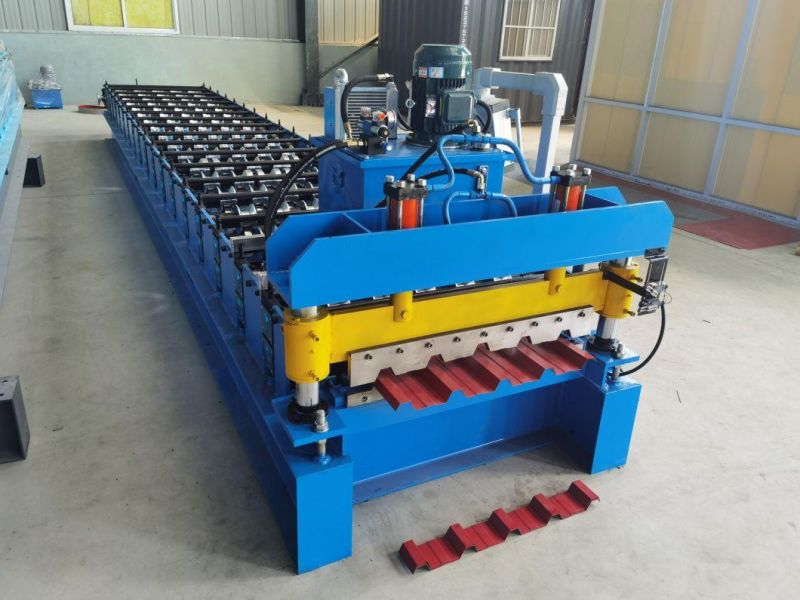

Some machine pictures for your reference

Certification of Corrugated-Iron-Sheet-Making-Machine

Packaging and shipping details

Our roof panel roll forming machine is wrapped in a waterproof package


Our Company

Our enterprise, Cangzhou Dixin Roll Forming Machine Co., Ltd, as the professional and leading manufacturer, can manufacture, design, installation and debug various roll forming machines and metal processing sheet equipments, which produce metal roof wall panel, glazed roof tile, CZ steel  purlin, floor decking, roof ridge cap, sandwich panel, roof truss, shutter panel, shutter slat, door frame, guardrail, and metal sheet uncoiler, bending, slitting, cutting, flattening, punching, crimping.

Backed by reasonable design, precision machining and selected material, both our standard and customized machines are characterized by long life span, precise forming and easy operation.With our customers' trust, our machines have been sent to America, Australia, Russia, India, Sri Lanka, Nigeria, Pakistan, Uzbekistan, Mozambique, Angola, Turkey, Brazil, etc.

Warmly welcome to China to visit our factory and select the machines you need.Our address,Fuzhuang Industrial Development Zone, Botou City, Hebei Province, China.

^_Service

We provide a one year warranty and lifelong technical support will be provided

We can send our technicians to you to give you onsite training.

The training period would be for no more than one week with the customer

Paying for the visa, return ticket, food, accommodations and a daily

Wage of USD50.



1:How to place order

Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit or L/C---then OK



2:How to visit our company

Fly to Beijing airport:By high speed train From Beijing Nan to Cangzhou Xi (1 hour),

Then we can pick up you.

Fly to Shanghai Airport:By high speed train From Shanghai Hongqiao  to Cangzhou Xi(4.5 hours),then we can pick up you.
