Diesel Engine Movable Block Machine Making Brick

Linyi ShengMing Machinery Co., Ltd.
  • Warranty：1 Year
  • Certification：CE, ISO

Base Info

  • Model NO.：QMY4-45D
  • Customized：Customized
  • Automatic Grade：Automatic
  • Type：Vibration Molding
  • Work Method：Vibration Forming
  • Raw Material：Sand, Stone, Cement, Stonedust
  • Block Type：Hollow Concrete Brick Machine
  • Product Name：Mobile Egg Laying Block Machine
  • Name：Movable Block Machine
  • Products：4PCS,Mould
  • Keywords：Manual Cement Block Moulding Machine
  • Pallet Size：No Need
  • Brick Type：Hollow Brick Concrete Brick Hole Brick
  • Molding Cycle：45-50s
  • After Warranty Service：Video Technical Support
  • Warranty Service：Online Support
  • After-Sales Service Provided：Free Spare Parts
  • Advantage：Mobile Block Production Line
  • Machine Type：Egg Laying Block Making Machine
  • Transport Package：Shipping by Sea
  • Specification：1700*1400*1400mm
  • Trademark：SHENGMING
  • Origin：China
  • HS Code：8474802000
  • Production Capacity：60set,Month
  • Package size per unit product：140.00cm * 140.00cm * 120.00cm
  • Gross weight per unit product：550.000kg

Description

Total rated power
 8HpBlock shop area
 500-1000M2
 Daily capacity
 1500-2000 pieces
 Power voltage
 No Need
 Pallet quantity
 No Need
 Labor quantity
 2-3 people
 Water consumption
 1-2T/day
 Forming period
 45S-50S

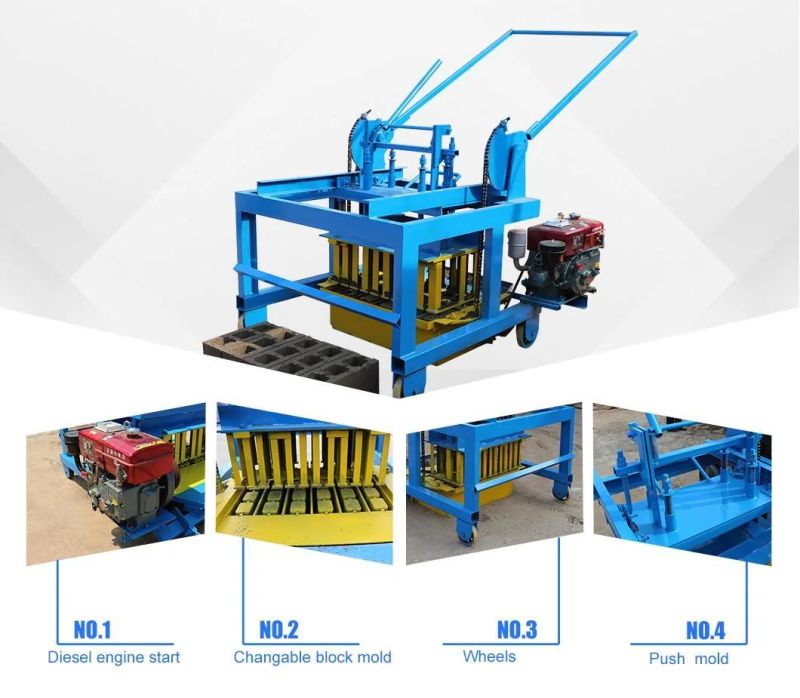

 QMY4-45D is newest design diesel engine mobile block machine.its vibation system connected with diesel engine directly, whole machine no need any electricity. With 4 wheel for moving on ground, no need any pallet.machine adopt large eccentric shaft to provide super vibration for shaping block. By changing mold, this machine can make all type hollow block and solid block.Diesel Engine Movable Block Machine Making BrickAvantage:
1.No need pallet, make block on ground directly.
2.Powerful Mold vibration, shaping fast and powerful.
3. powerful diesel engine, no need any electricity.
4.Mold changable design for different type block.Size (LXWXH)mm
 Pieces/mold
 Pieces/Hour
 Pieces/day

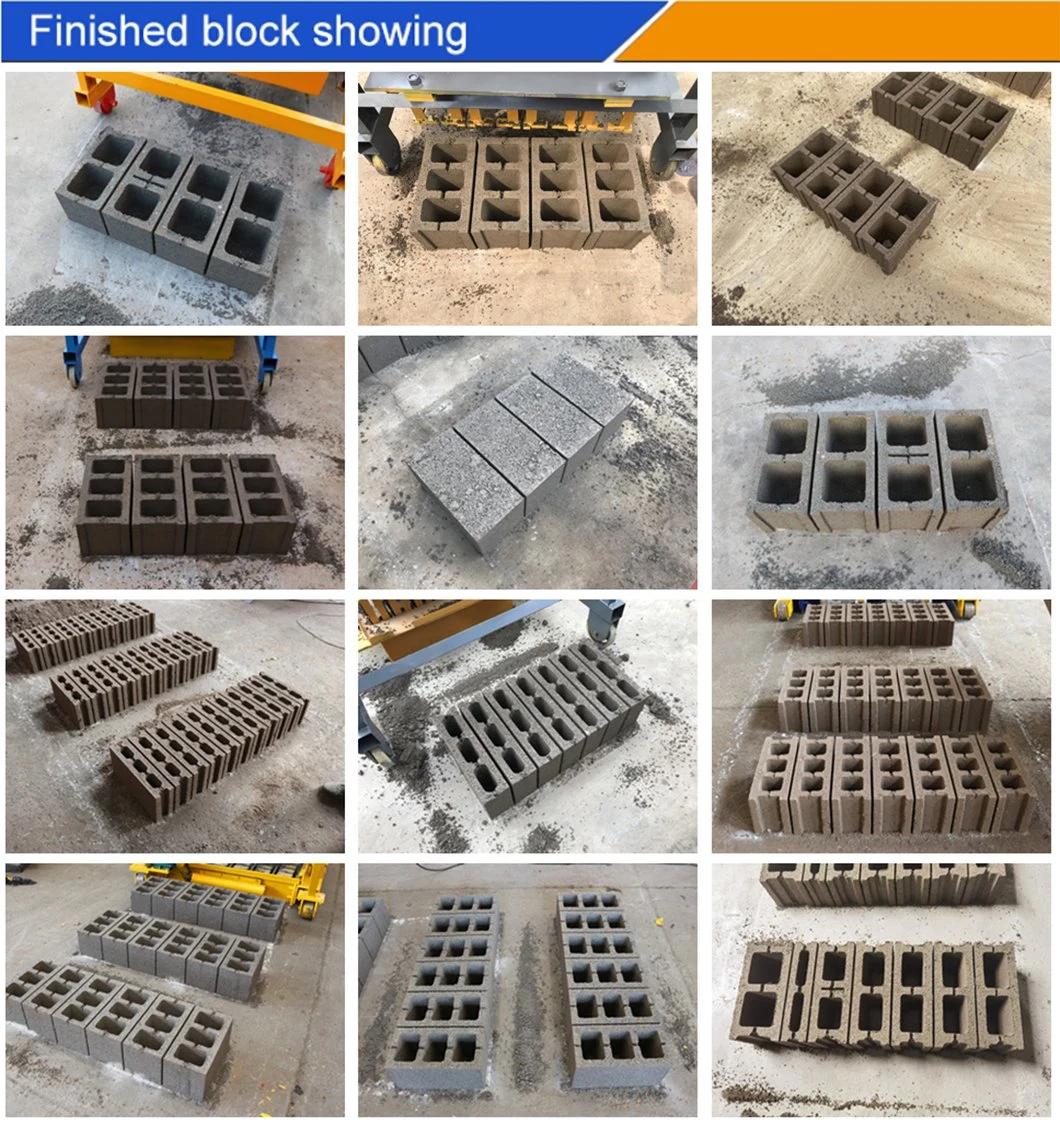

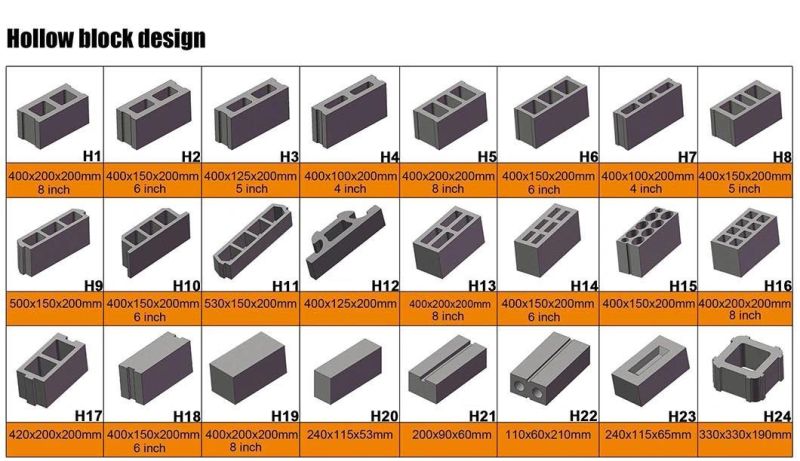

 Hollow block 400x200x200
 4
250
 2000Hollow block 400x150x200
 53002400Hollow block 400x100x200
 78003200Solid block 400x200x200
 4250
 2000Solid block 400x150x200
 53002400Solid block 400x100x200
 78003200
 Diesel Engine Movable Block Machine Making Brick
Diesel Engine Movable Block Machine Making BrickQMY4-45D Diesel engine movable block machine making brickDiesel Engine Movable Block Machine Making Brick Diesel Engine Movable Block Machine Making Brick Diesel Engine Movable Block Machine Making Brick Diesel Engine Movable Block Machine Making Brick Diesel Engine Movable Block Machine Making Brick Diesel Engine Movable Block Machine Making Brick(1) Q: what is the material for this machine ?
A: you can use concrete material, plus a little cement.
(2) Q: How many kinds of block can be made by this machine ?
A: by changing mold, this machine can make all type design brick ,block or even paver.
(3) Q: Will you provide spare parts for this machine ?
A: we will provide you one year free spare parts.can support machine working for many years
(4) Q:Will you provide installation support?
A: we will provide installation video and manual book.online video avaiable also.
 QMY4-45D Diesel engine movable block machine making brick
